Home > Construction & Decoration > HVAC System & Parts > Heating Cable, Snow Melting, Anti Freeze SH KOREA SH-SA-120

Heating Cable, Snow Melting, Anti Freeze SH KOREA SH-SA-120

Heating Cable, Snow Melting, Anti Freeze SH KOREA SH-SA-120 photo-1

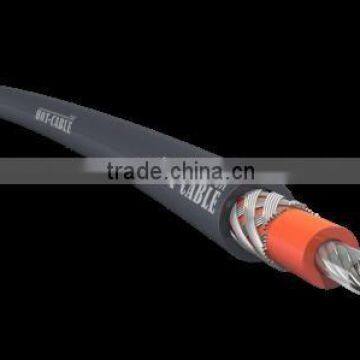

Heating Cable, Snow Melting, Anti Freeze SH KOREA SH-SA-120 photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
South Korea
Brand Name:
HOT CABLE
Model Number:
SH-SA-120
Payment & Shipping
Payment Methods:
Port of Shipment:
Busan Korea
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin South Korea
Brand Name HOT CABLE
Model Number SH-SA-120
Type Floor Heating Parts
Floor Heating Part Type Floor Heating Cables

Heating Cable, Snow melting, Anti Freeze SH KOREA SH-SA-120





SH KOREA is the industry leader of eco-friendly and high efficiency heating system and is committed to manufacturing high efficiency heating films and heating cables.

Snow is beautiful when there is just right amount on right places.

However, too much snow and snow on roads are hazards.

Using calcium chloride for snow melting can cause damage of road, corrosion of vehicle, contamination of trees and plants nearby roads.



SH Korea’s Heating Cables for Snow Melting system will get rid of unwanted snow.

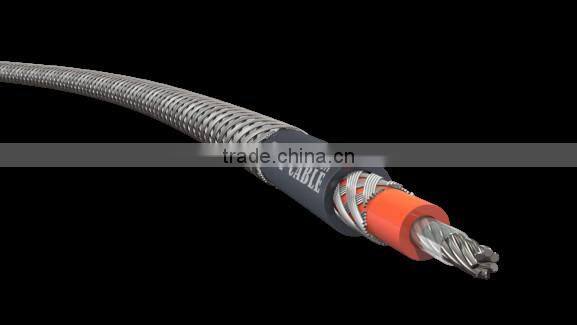

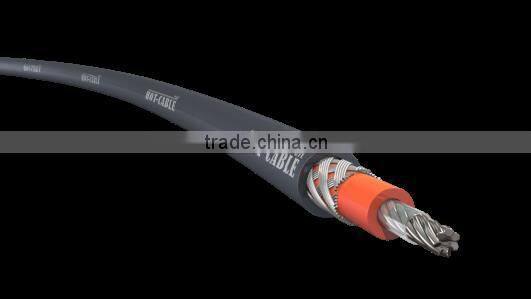

Heating Cable, Snow melting, Anti Freeze SH KOREA SH-SA-120                              Heating Cable, Snow melting, Anti Freeze SH KOREA SH-SA-120

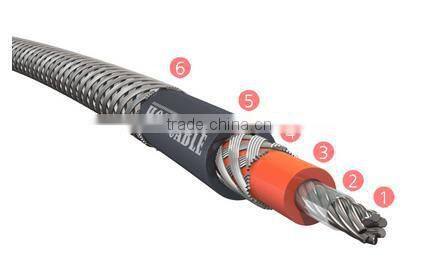

Heating Cable, Snow melting, Anti Freeze SH KOREA SH-SA-120

1.  Nichrome Heating Element
2.  Teflon Primary insulation
3.  EPDM Secondary insulation
4.  Tinned copper braided wave screen
5.  EPDM rubber sheath
6  Braided stainless layer

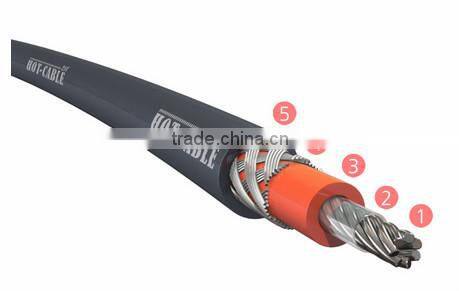

Heating Cable, Snow melting, Anti Freeze SH KOREA SH-SA-120

1.  Nichrome heating element
2.  Teflon Primary insulation
3.  EPDM Secondary insulation
4.  Tinned copper braided wave screen
5. . EPDM sheath









2. Hot Cable is safer with EPDM rubber



SH KOREA’s Hot Cable is built with our patented technology which solved conventional heating cable’s common defects on electric wire and heating wire.

Safety is maximized with 3 layer insulation structure, electromagnetic field shield braid, high quality TEFLON and EPDM rubber.

High quality EPDM rubber covers over the tinned braid layer.  High quality EPDM rubber sheath protects the Cable from continuous sunlight, rain and temperature changes.  Thus, it is suitable to be installed on roofs, also.



Characteristic of EPDM

Excellent ozone resistance

Excellent low temperature properties

Extensive range of properties

Excellent electrical insulation properties

Excellent resistance to moist and steam

Excellent weather resistance

Excellent chemical resistance to polar substances

Excellent heat resistance (for prolonged exposure: 120, for short exposure: 300~500)







 The Superiority of “HOT-CABLE”





 1.    “Hot-Cable” is with SAFE structure.





Covered with three layer top quality covering materials, “Hot-Cable” is safe from overheating and electromagnetic fields.

TEFLON which can withstand heat up to 200serves as the primary insulation, covering the heating wire.  Then, tin plated braided around TEFLON coating for electromagnetic field shielding.  The PVC sheath covers the braid shield.  The PVC is flame retardant and withstand heat up to 105.





  2.    “Hot Cable” is efficient and economic







“Hot-Cable” is easy to install.  “Hot Cable” is powered by electricity.  Such easy and convenient power source saves time and money. Hot Cable’s robust structure makes the Cable virtually semi-permanent.  Unless you decide to tear down the building, the Cable is there to heat up wherever you want.

Also, with “Hot-Cable”, partial and individual heating is possible.  Just the select the area where you want to install, and heat up only that area.With Hot Cable, it is possible.

Save Energy and Money.





  3.    “Hot-Cable” is eco-friendly





No dust.

No smoke.

No pollution.

“Hot-Cable” heating system is clean and eco-friendly heating system.





Specification - Various types to meet your needs!





“Hot-Cable” comes in various sizes and specifications to meet your needs.







For Asphalt



Model No.

Specification

Watt

Space

Amp

Volt

Make-up

SH-SA-120

Ø 8.5mmx120m

4200W

15.0sqm

11A

380V

35w/m
Sus Braided

SH-SA-85

Ø 8.5mmx85m

3000w

10.0sqm

7.9A



 For Concrete



Model No.

Specification

Watt

Space

Amp

Volt

Make-up

SH-SC-120

Ø 0.6mmx120m

4200W

15.0sqm

11A

380V

35w/m

SH-SC-85

Ø 0.6mmx85m

3000w

10.0sqm

7.9A



Developed and Made in Korea



We have dedicated teams for research, engineering and production.  Our government recognized lab never stops on developing better heating system.  Our engineers are always at our factory to produce state of the art heating materials.  From initial design to acquiring raw materials, from setting up production to shipping, every process is done in Korea - the home of floor heating system.







Packing



Hot Cable is packed as roll in a box per specified sizes.
