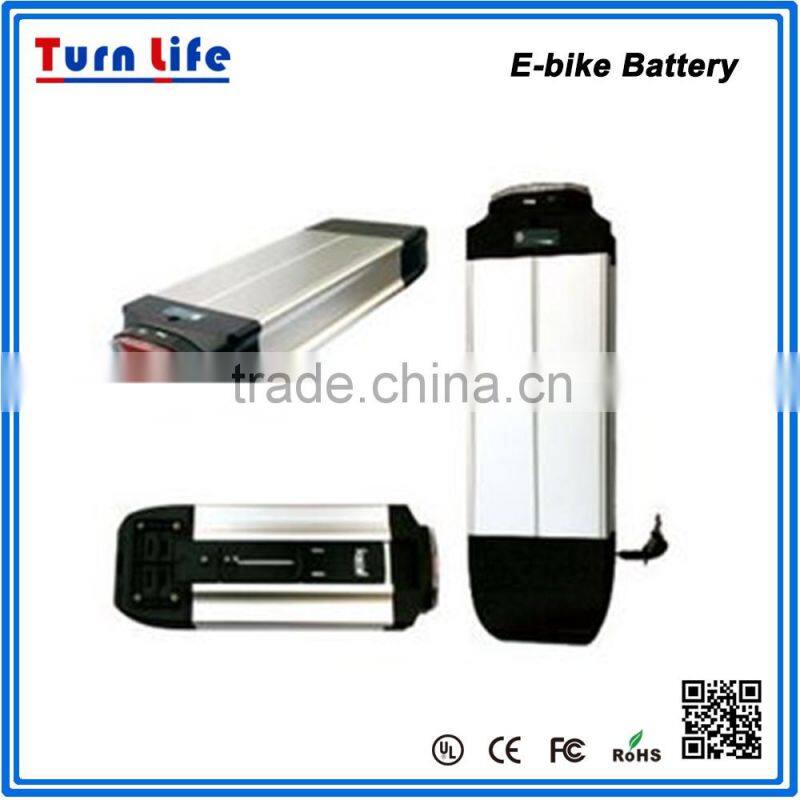

36 volt lithium ion battery for electric bicycle battery box
Product features
1.Import Waterproof ABS plastic raw material;
2.Light-weight,high energy density;
3.Built-in PCB protection,prevent overcharge,over-discharge,over current and short current.To keep battery chemistry intergrality and prolong battery life;
4.Superior li-polymer battery cell,has longer cycle life than NIMH battery;
5.PolySwitch Installed will cut off the power when the battery is discharging over current.
Product Specification
| Model | SS-04 | |
| Cell Type | 36v 10ah electric bike li ion samsung battery for electric bike | |
| Nominal Voltage | 36V | |
| Rated Capacity | 10.4Ah (0.5C2A discharge) | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 3.5KG | |
| Dimension | 95(L)*91(W)*386(H)mm | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | ≥500 times | |
|
Battery Hopower Retention (power strorage:one month) |
≥85% | |
| Certification | RoSH,CE | |
| Warranty | 18 months | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 42V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20A | |
| Discharge Cut-off Voltage | 17.5V | |
|
PCB parameters |
Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
|
Working Temp. |
Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |
Detailed Photo
2.Strict Quality Control: All parts must be strictly tested by QC department before shipping.
3.OEM order Welcome:We can accept OEM order anytime.
4.Small Quantity Acceptable: Please don’t worry your requirement quantity is small, because we also accept samples before mass orders. electric bike battery
5.Return Policy:For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Good Aftersale Service:Any questions on technical issues,welcome to contact us anytime.We will help you solve at first time.
Our partners
Q: Is it the original Samsung Cell?
A: Yes, it is. We only export the Samsung Cell.
Q: Can we get one sample?
A: Yes, samples can be delivered 3-10 working days
Thank you for choosing us. We hope and expect that you will be pleased with the performance of our products, for years to come. Do be sure to contact us if you have any questions, problems, suggestions.We will be here for you.
