LZZBJ9-12 11kv 3 Phase High Voltage Indoor Current Transformer
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Indoor/outdoor High Voltage Current Transformer &Voltage Transformer, Potential Transformer CT, PT
-
Current Transformer 10kv Post Type (LZZBJ9-10C2)
-
LAJ-10Q 10kV12kV Indoor Single Phase Dry Wall- Through Type Current Transformer
-
LZZBJ9-10 10KV Dry Type Current Transforemr
-
LZZBJ9-10 10KV Indoor Current Transformer
-
LA-10Q 10kV12kV Indoor Single Phase Wall- Through Type Current Transformer
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SANAI | |
| Model Number | LZZBJ9-12 | Usage | Instrument | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
LZZBJ9-12 11kv 3 phase high voltage indoor current transformer
Summary
This current transformer is of a whole sealing casting insulation pillar type, used for measurement of current and electric energy as well as relay protection in the AC circuit of rated frequency 50Hz and rated voltage 10kV.
1.The performance of products is conformed to IEC standard and GB1208-2006 Current Transformer.
2.Rated insulation level: 12/42/75kV
3.Load power factor: cosφ=0.8(Lag)
4.Rated frequency: 50/60Hz
5.Rated secondary current: 5A, 1A
6.Partial discharge level: In conformity to GB5583-85 standard,
Its partial discharge is not more than 20PC.
1)it has test report
2)primary current :from 5A to 2000A
3).sendary current :5A(or 2A , 1A)
4) it is also used for double current ratio: such as 200/5/5A, 400/5/5A and so on.
5)accuracy class: 0.5 , 5P10 , 0.2 /0.5/10P10, 5P15 , 5P20 ....and so on
6)buden:10VA , 15VA ,20VA , 30VA
7).rated insulation level: 12/42/75kv or 24/65/125kv
8).standard : IEC
Technical parameter
Primary Rated Current(A) | Accuracy Class Combination | Rated Output (VA) | 1 Second Thermocurrent (KA) | Rated Dynamic Current (KA) |
5~100 | 0.2/0.5 0.2S/0.2 0.5/10P10 0.2S/10P10 | 10/10 10/15 | 150l1n/1000 | 375l1n/1000 |
150 | 22.5 | 44 | ||
200~300 | 24.5 | 44 | ||
400~600 | 45 | 90 | ||
800~1000 | 63 | 100 |
Service conditions
1,Alutitude : Not over 1000m
2.Ambinet : temperature -5c° to +40C°
3,Relative humidity : less than 90% at 20C°.
4,No gas , steam chemical desposition pollution ,explosive gas or eaching gas which was badly influnce the insulation of the transformer .
5,No chattering of bumping .

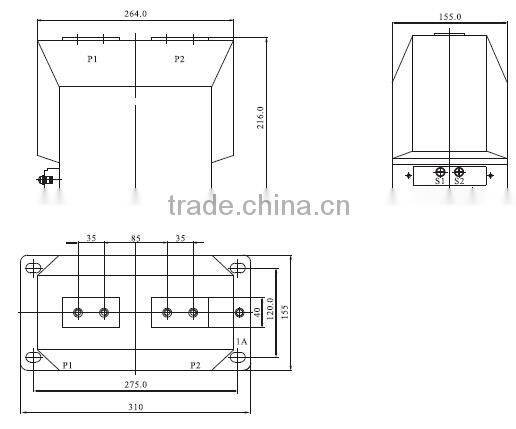

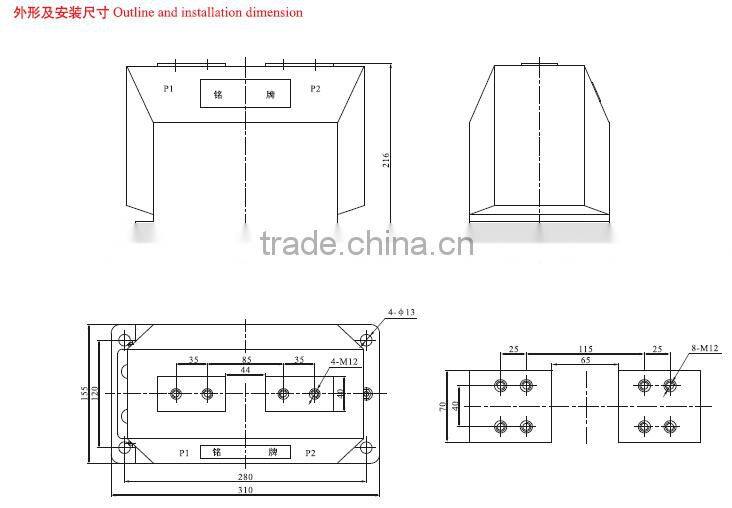

outline and installation dimension
When ordering, please specify the following
1. insulation level
2. current ratio
3. accurate level and rated secondary load
4. use environment

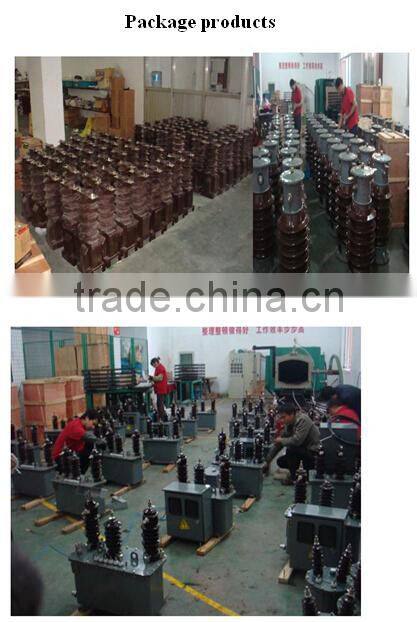

Package : cartons and wooden case with pallent.
Shipping : 3days ~30days after receiving L/C or T/T advance payment .
We can also package the goods according your requirements
24 hours online services . to solve your any questions,
Offer OEM Service , After-Sales Service, Technical data Service
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after the advance payment
payment term:
1. accept L/C, T/T, western union,money gram

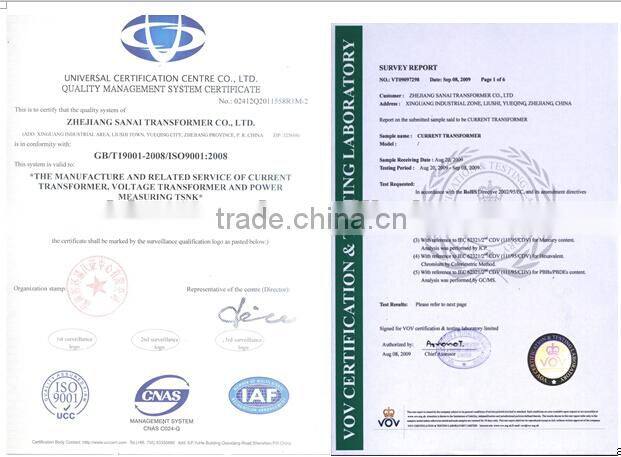

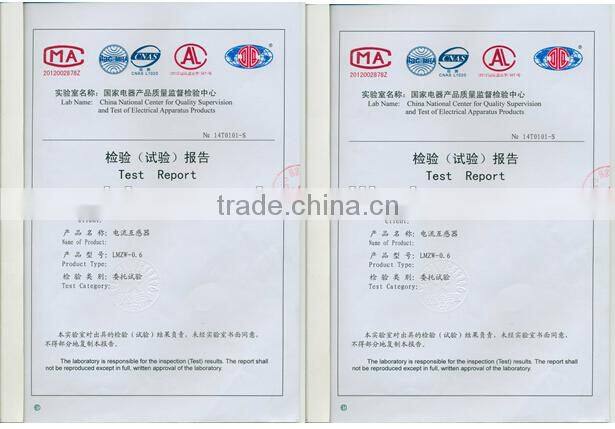

Test report .
1.ISO Certificate
2.Type test report and factory test report .
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
