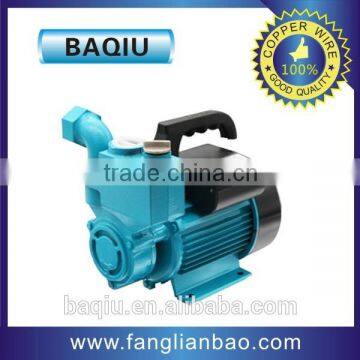

Single Stage Single Suction Pump,Centrifugal Pump
ZDB Series pumps are constituted with clean water pump, Non-return valve and air-water separation room which located on the upside of the pump body. During operating, no need to use foot valve, what you should do is just to leave some water in the pump body, after a few minutes running, the water will be sucked out relying on the pump body itself's effect. This series pumps are ideal equipments for household well water pumping.
| Application |
| *Clear water,non-aggressive liquid only without sand or other solid mppurites. |
| *Bigger suction with self priming. |
| *Low power. |
| *Installed in enclosed places,or at least protected against inclement weather. |
| Operating Conditions |
| *Suction lift up to 8m. |
| *Liquid temperature up to +40℃ |
| *Ambient temperature up to +40℃ |
| *Max. working pressure:6 bar. |
| Motor |
| *2-pole induction motor:50Hz. |
| *Insulation:Class B. |
| *Protection:IP 44. |
| *With capacitor and thermal overload protection. |
| Material |
| *Pump body:Cast iron. |
| *Motor bracket: Aluminum or Castiron. |
| *Impeller:Brass. |
| *Shaft with rotor:Stainless steel or Cs45#. |
| *Mechanical seal:Sillcon carbide-Graphite. |
| *Copper winding. |
RPM:n=2850 r/min
| TYPE | POWER | MAX.FLOW | MAX.HEAD | INLET/OUTLET | G.W | PACKING DIMENSION | |
| (Kw) | (Hp) | (L/min) | (m) | (Inch) | (Kg) | (mm) | |
| IZDB-35 | 0.35 | 0.5 | 40 | 35 | 1"×1" | 8 | 275×200×240 |
| IZDB-45 | 0.55 | 0.75 | 55 | 45 | 1"×1" | 9.5 | 295×200×260 |
| IZDB-55 | 0.65 | 0.9 | 55 | 55 | 1"×1" | 10 | 295×200×260 |
| IZDB-65 | 0.75 | 1 | 50 | 65 | 1"×1" | 10.5 | 295×200×260 |
Work shop area |
| Brief Introduction |
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory. |
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
| More choices if you like ... | |||||||||
| | | |||||||
| | | |||||||
JET PUMP JET PUMP JET PUMP JET PUMP JETPUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUM
“Quality always stands the first” and “Honest” is our concept. we provide reasonable price, punctuality delivery and satisfying service
PJET P
1)Q: Are you a factory or a trading company?
A: Pump manufacturer.
2) Q: What is your MOQ of this item?
A: 100PCS.
3)Q: How many times for one container production?
A: 30days after receiving the depoistes,40 days in very busy season.
4)Q: How about your quality?
A: We arrang the prodcution quality according to customers' request.
5)Q: What are your payment terms?
A: 30% t/t deposit and the balance t/t against copy of BL.
6)Q: What is your company's available production capacity?
A: 20000 per month.
7)Q: How about the packing of this model?
A: Standard export strong colour carton.
| How to order? |
| 1. Please tell us some detail information, such as the Capacity, Head, Medium, Voltage etc. |
| 2. We can recommend pumps for you according to your requirements as well. |
| 3. If you have the certificate requirements, please let me know. |
| 4. We will make quotation for you. After your confirmation, PI will send to you. |
| 5. We will arrange the order for you as soon as receiving your payment. |
| 6. After the goods finished, we will send the goods to you. |
| 7. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so any change of goods are available. |
