Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > AUTO JET100 Self-priming High Pressure Water Pump

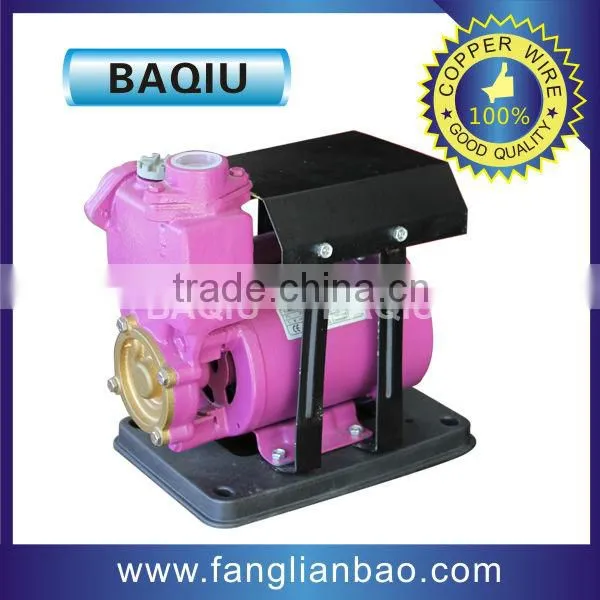

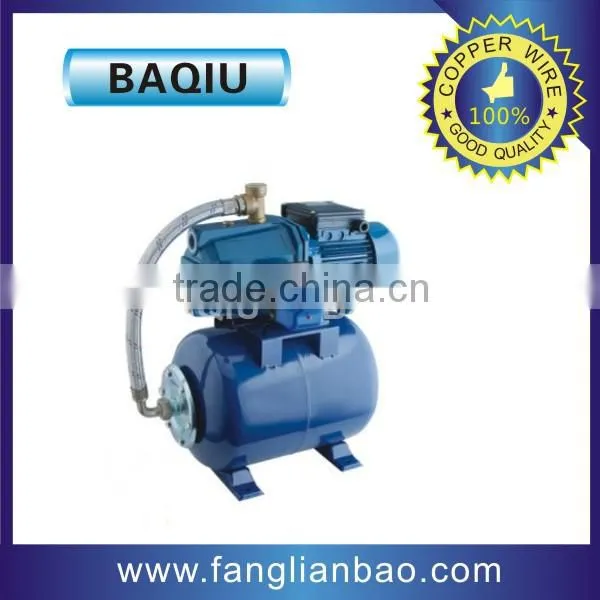

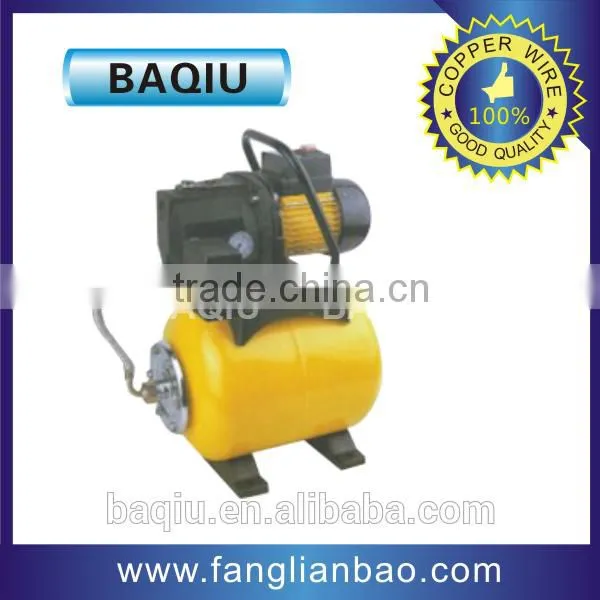

AUTO JET100 Self-priming High Pressure Water Pump
US$ 35 - 40
MOQ: 100 Cartons
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAQIU
Model Number:
AUTO JET100M
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
230v Self Priming Electric Jet Pump Russia PumpUS$ 20 - 40MOQ: 100 Pieces -
AUTO JET100M SELF-PRIMING WATER PUMP (0.5HP/0.75HP/1HP)US$ 35 - 40MOQ: 100 Cartons
-
Auto Booster Pump (FLBC-3)US$ 42 - 100MOQ: 10 Pieces
-
Auto Booster Pump (FLBC-2JF)US$ 42 - 100MOQ: 10 Pieces
-
Auto Booster Pump (FLBC-2JFD)US$ 42 - 100MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
BAQIU
Model Number
AUTO JET100M
Theory
Jet Pump
Structure
Other, SELF PRIMING
Usage
Other, CLEAN WATER
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, electric
Pressure
High Pressure
Application
Other, vortex water booster pump
| AUTO JET100 Self-priming High Pressure Water Pump |
|
|
| Model | Power |
Max. Flow (L/min) |
Inlet/Outlet (inch) |
Tank Capacity |
Tank Located |
Suggested Pressure Setting Bar |
Dim(mm) | G.W(kg) |
| kw | ||||||||
| AUQB60 | 0.37 | 30 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 525x300x550 | 11.5 |
| AUDP255 | 0.55 | 45 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 21.4 |
| AUDP505 | 1.1 | 100 | 1.25''x1''x1'' | 24L | Horizontal | 1.8-3 | 600x345x530 | 25 |
| AUSJET60L | 0.46 | 40 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 500x300x530 | 19.4 |
| AUSJET80L | 0.55 | 47 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| AUSJET100L | 0.75 | 55 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| 1.Pump material |
| Pump Body: Cast Iron |
| Impeller: Brass/Aluminum(DP-505:two impeller |
| Motor bracket:Aluminum |
| Shaft with rotor:Stainless Steel or Cs45# |
| Mechanical Seal: Ceramic-Graphite |
| Copper winding |
| 2.Pump motor |
| 2-pole induction motor:50Hz/60Hz |
| Insulation:Class B |
| Protection:IP44 |
| With capacitor and thermal overload protection |
| 3. Operation Conditions |
| Suction head up to 9M |
| Liquid temperature up to 40C |
| Ambient temperature up to 40C |
| Max.Pressure:6Bar |
| 4.Application |
| Clean water without abrasive particles |
| Domestic use,irrigation of gardens and allotments etc. |
| High head |
| Suitable for water lifting,distribution with small or medium pressure sets. |
| Installed in enclosed places,or at least protected against inclement weather. |
| Work shop area | |||||||||
|
| Brief Introduction |
|
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory. |
|
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
|
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
|
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
| More choices if you like ... | |||||||||
|
|
|
|||||||
|
|
|
|||||||
Await for your kind inquiry ! My co-worker and i will do our best to supply good service for you
