Help CenterSW-PL2 2015 Curry Powder Weighing and Packaging Machine Line
Related Products
-
SW-PL2 2015 Chicken Powder Packing MahcineUS$ 15,000 - 25,000MOQ: 1 Set -
SW-PL2 Automatic Clear Garlic Powder Packaging MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
SW-PL2 Automatic Soy Milk Auger Powder Packing MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
SW-PL2 2015 Potato Protein Powder Packing MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
SW-PL2 Automatic Chilli Powder And Packing Machine Into BagsUS$ 15,000 - 25,000MOQ: 1 Set
Overview:
available products:

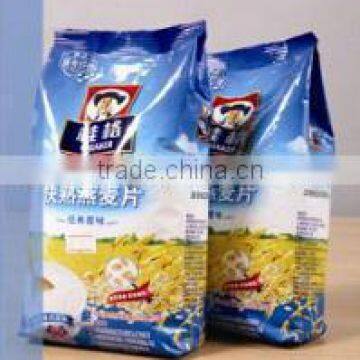

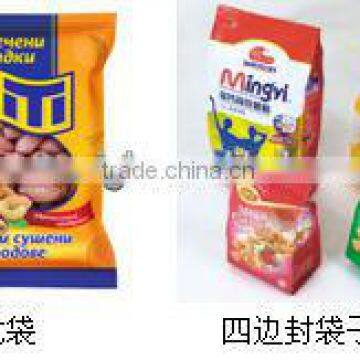

Bag Style
Feature:
1). Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;
2). Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;
3). Multi-languages touch screen for various clients, English, French, Spanish, etc;
4). Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;
5). Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;
6). Double film pulling belt with servo system;
7). Only control touch screen to adjust bag deviation. Simple operation.
Specifications:
Model |
SW-PL2 |
Weighing Range |
10 - 1000 g |
Bag Size |
80-350mm(L) ; 50-250mm(W) |
Bag Style |
Pillow Bag; Gusset Bag; Four side seal |
Bag Material |
Laminated film; Mono PE film |
Film Thickness |
0.04-0.09mm |
Speed |
40 - 120 times/min |
Accuracy |
100 - 500g,≤±1%; > 500g,≤±0.5% |
Hopper Volume |
45L |
Control Penal |
7" Touch Screen |
Air Consumption |
0.8Mps 0.4m3/min |
Power Supply |
220V/50HZ or 60HZ; 15A; 4000W |
Driving System |
Servo Motor |
Drawing:
Options:
1. Feeding Machine
1). Different volume hopper
Function: contain different volume powder
2. Filling Machine
1). Different screw
Function: for different weight bag
3. Vertical Packaging Machine
1). Thermal Transfer Printer (Chinese Brand)
Function: easy for change printing content and layout
2). Bag Former
Function: for different bag width
3). Gusset Bag/Euro Hole/Easy Open
Function: different bag shape requirement
Packing and delivery:
1. Polywood case,
2. delivery: 20 days for production
3. warranty: 15 months of the date delivery
Smart Weigh products:
