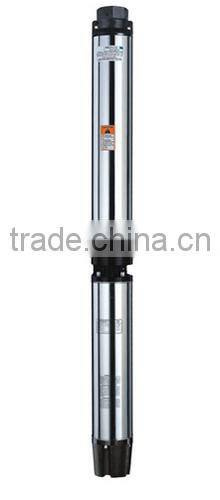

FLB6SP17 21-13T Six Inch Deep Well Pump 17.5HP/13KW Water Pump Well
| Products Description |
Maximum fluid temperature up to +35°C.
Maximum sand content: 0.25%.
Maximum immersion :80m.
Minimum well diameter :4".
| Technical Data |
|
*Typical Applications*
Water supply system
Booster
Garden and farm irrigation
Lowering underground water level
Various industrial applications |
*Motor*
Q max:28(m3/h)
Adopted the NEMA standard
Insulation class:B
Protection grade:IP68
Maximum diameter:Φ141mm
Highest temperature of liquid:35℃ |
|
*Working conditions*
Dilute and clean non-corrosive liquids which out contain solid grains or fibers.
The pump should be running under the performance range of the thick curve to prevent the motor overheat due to lower capacity or overload due to higher capacity.
| |
*Performance Table* rpm:2850 Outlet:G3”
| Type | Power |
capacity and head |
Dimensions | ||||||||
| L/min | 0 | 167 | 233 | 283 | 333 | 367 | Length | Weight | |||
| HP | KW | m3/h | 0 | 10 | 14 | 17 | 20 | 22 | mm | kg | |
FLB6SP17 07-4 |
5.5 | 4 | Head(m) | 75 | 69 | 61 | 56 | 49 | 33 | 1423 | 45 |
| FLB6SP17 09-5.5 | 7.5 |
5.5 | 97 | 81 | 79 | 72 | 63 | 43 | 1525 | 51 | |
| FLB6SP17 12-7.5 | 10 | 7.5 | 129 | 108 | 105 | 96 | 84 | 57 | 1761 | 56 | |
| FLB6SP17 15-9.2 | 12.5 | 9.2 | 162 | 134 | 132 | 120 | 105 | 72 |
2003 |
65 | |
| FLB6SP17 18-11 | 14.75 | 11 | 194 | 161 | 158 | 144 | 126 | 86 | 2209 | 72 | |
| FLB6SP17 21-13 | 17.5 | 13 |
226 | 188 | 184 | 168 | 147 | 100 | 2456 | 78 | |
| FLB6SP17 24-15 | 20 | 15 | 259 | 215 | 211 | 192 | 168 | 115 | 2662 | 82 | |
| FLB6SP17 30-18.5 | 24.75 | 18.5 | 323 | 297 | 263 | 240 | 210 | 143 | 2989 | 96 | |
| Te If You Also Like(*_*) |
|
FLB 6SP |
FLB 150QJ |
FLB 100QJ |
|
FLB 100SN |
FLB 100SR |
FLB3SKM/EM |
| Company Information |
TAIZHOU FANGLIANBAO IMPORT AND EXPORT CO.,LTD
Which located in the home town of Chinese water pump-- Daxi, Wenling, Zhejiang,China, is an integrated manufactural and trading enterprise.
Our major productions are all kinds of water pumps, air compressor, welding machine, gasoline engine generator, diesel generator, fan, fishery machinery, food machine, spray cooling humidification equipment, shoes, map, Christmas gift, art work and so on.
"Quality" always stands the first and "Honest" is our concept. we provide reasonable price, punctuality delivery and satisfying service, We sincerely welcome all the friends from the world to join in us and develop together.
| Shipping & Payment |
|
PACKING: one pump one clour carton, two cartons in one big strong outside carton SHPPING: 30 days after receiving the deposites or original L/C |
| 1.FedEx/DHL/UPS/TNT for samples |
| 2.Batch goods delivered by sea |
| 3.Customers specifying freight forwarders or negotiable shipping methods |
| 4.Delivery Time:7-15 days for samples; 25-30 days for batch goods |
| 5.30%T/T or 100%LC,balance against the copy of B/L |
1)Q: Are you a factory or a trading company?
A: Pump manufacturer.
2) Q: What is your MOQ of this item?
A: 100PCS.
3)Q: How many times for one container production?
A: 30days after receiving the depoistes,40 days in very busy season.
4)Q: How about your quality?
A: We arrang the prodcution quality according to customers' request.
5)Q: What are your payment terms?
A: 30% t/t deposit and the balance t/t against copy of BL.
6)Q: What is your company's available production capacity?
A: 3000 pcs every month.
7)Q: How about the packing of this model?
A: Standard export strong colour carton.
“Quality always stands the first” and “Honest” is our concept. we provide reasonable price, punctuality delivery and satisfying service
1. Customized Production is available.
2. Supply for OEM and After Markets.
3. 100% tested for the quality prior to shipment
4. Certificate and Guarantee: ISO 9001:2008 / one year
5. package: carton&pallet
6. IE1 three phase electric motors, cast iron and aluminium frame
7. IE2 and IE3 cast iron and aluminium frame electric motors
8. Brake electric motors
9. ABB electric motors
10. Expostion proof electric motors
11. competitive price
12. 14 years manufacturing experience
13. Special motors can be designed according to customers' requirements
We are looking forward to your asking^^^^^
