SW-PL2 10-5000g Automatic Auger Powder Filler
Overview:
available products:
Bag Style
Feature:
1). Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;
2). Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;
3). Multi-languages touch screen for various clients, English, French, Spanish, etc;
4). Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;

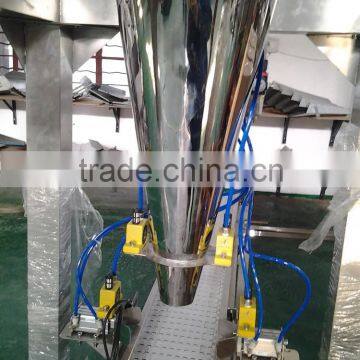

5). Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;
6). Double film pulling belt with servo system;
7). Only control touch screen to adjust bag deviation. Simple operation.
Specifications:
Model | SW-PL2 |
Weighing Range | 10 - 1000 g |
Bag Size | 80-350mm(L) ; 50-250mm(W) |
Bag Style | Pillow Bag; Gusset Bag; Four side seal |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 40 - 120 times/min |
Accuracy | 100 - 500g,≤±1%; > 500g,≤±0.5% |
Hopper Volume | 45L |
Control Penal | 7" Touch Screen |
Air Consumption | 0.8Mps 0.4m3/min |
Power Supply | 220V/50HZ or 60HZ; 15A; 4000W |
Driving System | Servo Motor |

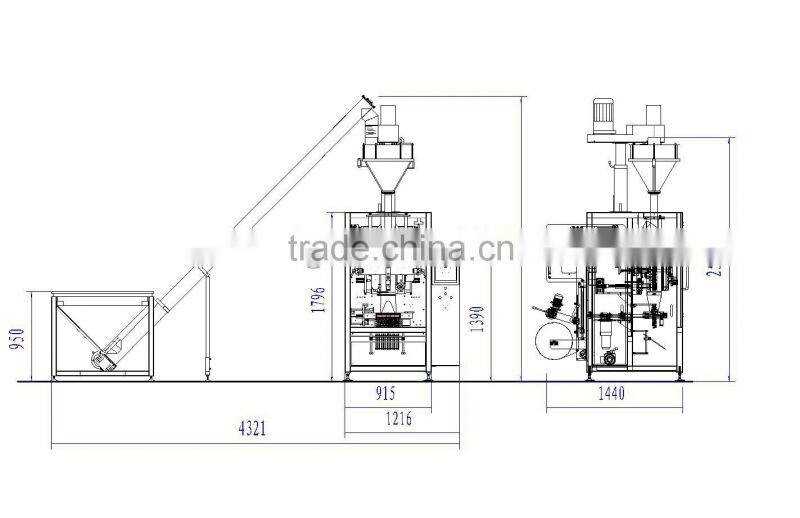

Drawing:
Options:
1. Feeding Machine
1). Different volume hopper
Function: contain different volume powder
2. Filling Machine
1). Different screw
Function: for different weight bag
3. Vertical Packaging Machine
1). Thermal Transfer Printer (Chinese Brand)
Function: easy for change printing content and layout
2). Bag Former
Function: for different bag width
3). Gusset Bag/Euro Hole/Easy Open
Function: different bag shape requirement
Packing and delivery:
1. Polywood case,
2. delivery: 20 days for production
3. warranty: 15 months of the date delivery
