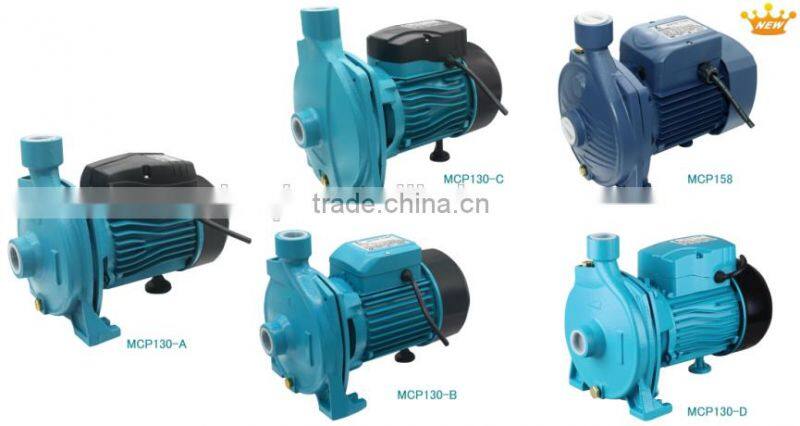

MCP Series Centrifugal Water Pump
Application: |
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:
1. Tank filling
2. Domestic water supply
3. Water transfer
4. Pressure boosting
5. Irrigation
| Material: |
1.pump body:cast iron
2.motor bracket:cast iron
3.impeller:brass
4.shaft with rotor:stainless steel or CS45#
chanical seal:silicon carbide-graphite
pper winding
| Operating Conditions: |
1.Max temperature of Fluid up to +80
2.Max pressure:10bar
3.Max ambient temperature up to40
| Features |
1. 100%copper wire, and automatic wiring.
2. Brass impeller
3. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.
4. CNC precision automatic lathe for smoother shaft, our owner casting factory
5. Strict test including high-pot testing of stator coil and whole pump, outgasing test and performance test, ect
6. New shape design with patent protection
7. Anti-rust treatment castings and electrophoresis.
8. 30 years experience, 1 year warranty
| Hydraulic Performance Curve: |
| Data & Parameter: |
| Model | Power | Voltage (V) | Current (A) | Max. Flow (l/min) | Max. Head (m) | Max. Suction (m) |
Pipe Diameter (inch) |
Overal Dimension (cm) |
Weight (kg) | Qty/ 20ft | |
| KW | HP | ||||||||||
| MCP -130 | 0.37 | 1/2 | 220 | 2.6 | 85 | 20 | 9 | 1"x1" | 32x17.5x23.5 | 9.2 | 2170 |
| MCP -146 | 0.55 | 3/4 | 220 | 3.6 | 90 | 25 | 9 | 34.5x20.5x26 | 12.5 | 1600 | |
| MCP -158 | 0.75 | 1 | 220 | 4.8 | 110 | 30 | 9 | 34.5x20.5x26 | 14 | 1430 | |
| MCP -180 | 1.1 | 1.5 | 220 | 6.8 | 120 | 40 | 9 | 42.5X25.5X33.5 | 21.5 | 930 | |
| MCP-200 | 1.5 | 2 | 220 | 8.8 | 130 | 45 | 9 | 42.5X25.5X33.5 | 23 | 870 | |
| Work shop area | |||||||||
|
| Brief Introduction |
|
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory. |
|
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
|
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
|
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
| More choices if you like ... | |||||||||
|
|
|
|||||||
|
|
|
|||||||
JET PUMP JET PUMP JET PUMP JET PUMP JETPUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUMP JET PUM
“Quality always stands the first” and “Honest” is our concept. we provide reasonable price, punctuality delivery and satisfying service
PJET P
1)Q: Are you a factory or a trading company?
A: Pump manufacturer.
2) Q: What is your MOQ of this item?
A: 100PCS.
3)Q: How many times for one container production?
A: 30days after receiving the depoistes,40 days in very busy season.
4)Q: How about your quality?
A: We arrang the prodcution quality according to customers' request.
5)Q: What are your payment terms?
A: 30% t/t deposit and the balance t/t against copy of BL.
6)Q: What is your company's available production capacity?
A: 20000 per month.
7)Q: How about the packing of this model?
A: Standard export strong colour carton.
| How to order? |
| 1. Please tell us some detail information, such as the Capacity, Head, Medium, Voltage etc. |
| 2. We can recommend pumps for you according to your requirements as well. |
| 3. If you have the certificate requirements, please let me know. |
| 4. We will make quotation for you. After your confirmation, PI will send to you. |
| 5. We will arrange the order for you as soon as receiving your payment. |
| 6. After the goods finished, we will send the goods to you. |
| 7. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so any change of goods are available. |
