Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > 2015 SW-P520 Coffee Packaging Machine
2015 SW-P520 Coffee Packaging Machine
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Bottles, Cans, Case, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 SW-P520 Seafood Vacuum Packaging Automatic MachineUS$ 3,000 - 5,000MOQ: 1 Set -
2015 SW-P520 Seafood Packaging MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
SW-P520 Fully Automatic Packaging Machine FoodUS$ 3,000 - 5,000MOQ: 1 Set
-
2015 SW-P520 Salt Vertical Packaging Machine Quality ChoiceUS$ 3,000 - 5,000MOQ: 1 Set
-
2015 SW-P420 Vertical Form Fill Seal Filling Packing MachineUS$ 5,000 - 10,500MOQ: 1 Set
Condition
New
Application
Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type
Bags, Bottles, Cans, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
220V/50-60HZ
Power
2KW
Place of Origin
Guangdong, China
Brand Name
SMART WEIGH/OEM
Model Number
SW-P520
Weight
600KG
Dimension(L*W*H)
1430*(W)1200*(H)1700mm
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Application:

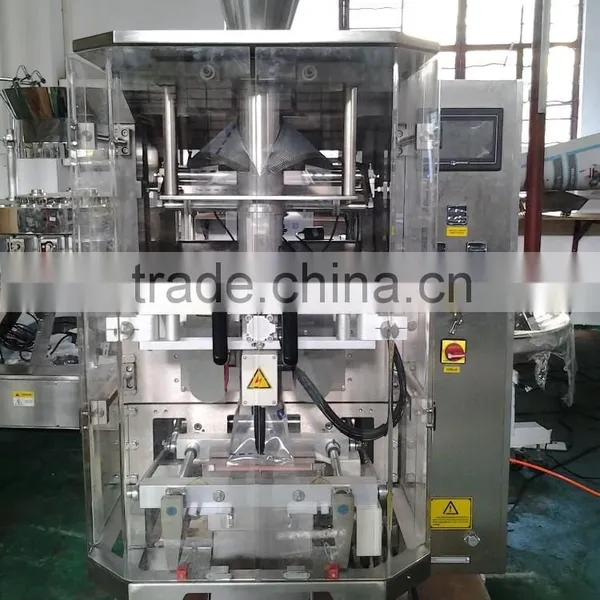

This series vffs machines is SIEMENS PLC control with stable reliable biaxial high accuracy output and Machine adjustments via full feature operator HMItouch-screen, high-speed capable of bag-making a maximum of 80 bags per minute.Film-pulling with servo motor double belt, .This machine can make Stand pillow bag; pillow bag with Gusset;Square bottom bag; Quard bag ect.
Features:
1).SIEMENS PLC control system, more stable and accuracy output signal, bag making, measuring, filling, printing, cutting, finished in one operation;
2).Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
2).Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
3).Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
4).Open door alarm and stop machine running in any condition for safety regulation;
5).Film centering automatically is available (Optional);
5).Film centering automatically is available (Optional);
6).Only control touch screen to adjust bag deviation. Simple operation;
Specification:
Model |
SW-P420 |
SW-P520 |
Packing speed |
55 bags/min |
55 bags/min |
Bag size |
(L)80-200 (W) 50-210mm |
(L)80-350 (W) 50-250mm |
Bag style |
Pillow bag/square bottom |
Pillow bag/square bottom |
Max packaging film width |
420mm |
520mm |
Thickness of film |
0.04-0.09mm |
0.04-0.09mm |
Air consumption |
0.8ps 0.25m3/min |
0.8ps 0.25m3/min |
Main power/voltage |
2KW 220V 50Hz |
2KW 220V 50Hz |
Dimension |
L1110×W800×H1130mm |
1430×(W)1200×(H)1700mm |
The weight of switchboard |
350kg |
680kg |
Optional device:
1).Thermo transfer printer
Function: easy to change printing content and layout on the screen

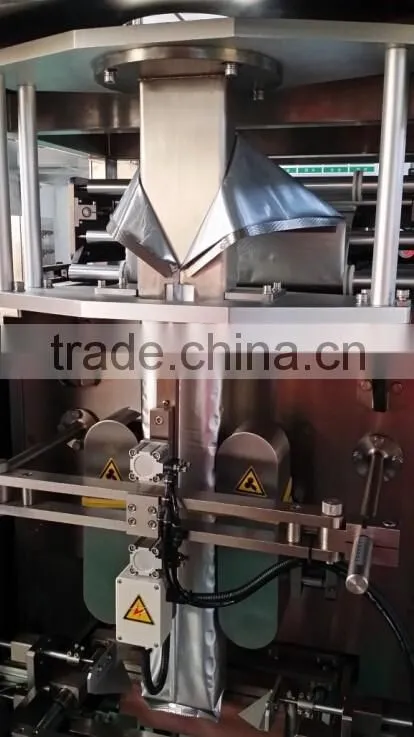

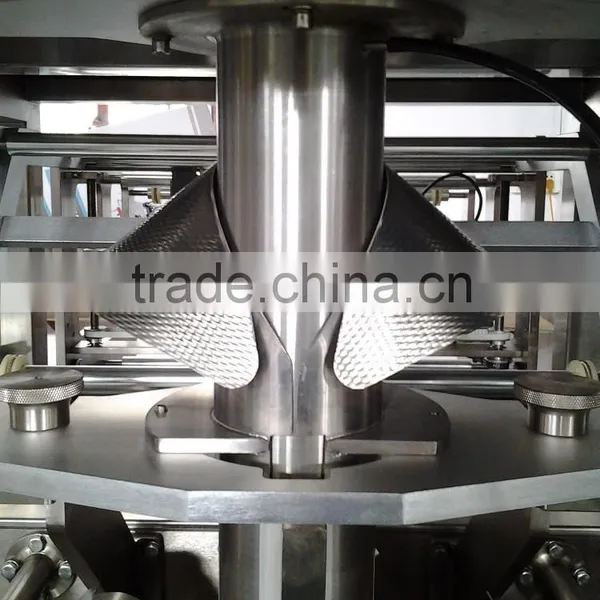

2).Bag former
Function: making different bag width
3).Gusset device
Function: making gusset bag
4).Euro hole
Function: making holding hole
5).Easy open
Function: easy to open bag
6).vibration device
Function: for stickly and Expanded Food, easy for droping down
7).PE foil sealing device
Function: special for PE foil packing
Optional Filling Systems:
1).Fits most fillers for dry and frozon applications:

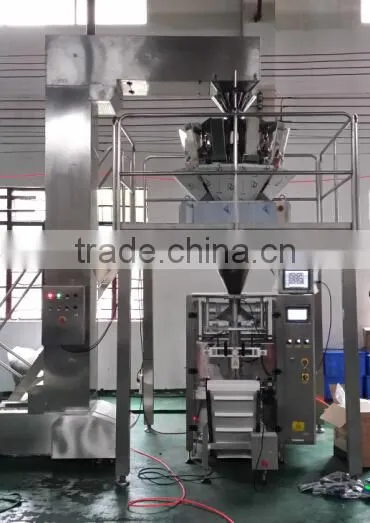

2).Combination weighers
3).Combination scalesAuger fillers
4).Cup fillers
5).Linear scales
Bag type selection
Machine dimension layout:
Packing& shipping:
1. polywood carton
2. 25 days delivery
3. FOB/CIF terms

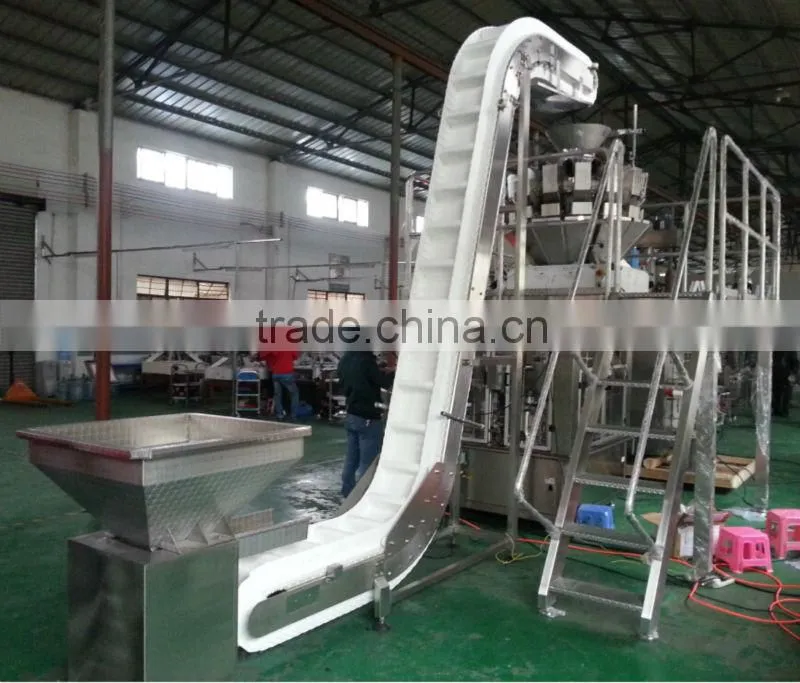

Our factory packaging line:
Smart Weigh products:
