Home > Products > Packaging machine > 2015 SW-P520 Salt Vertical Packaging Machine Quality Choice

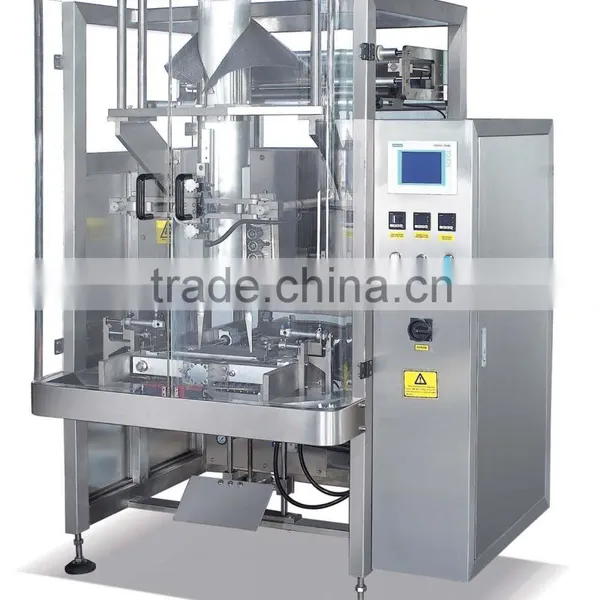

2015 SW-P520 Salt Vertical Packaging Machine Quality Choice

FOB Price

USD $3,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Zhongshan
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type	Bags, Bottles, Cans, Case, Film, Foil, Pouch, Stand-up Pouch	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Mechanical
Voltage	220V/50-60HZ	Power	2KW
Place of Origin	Guangdong, China	Brand Name	SMART WEIGH/OEM
Model Number	SW-P520	Weight	600KG
Dimension(LWH)	1430(W)1200(H)1700mm	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Application:

This series vffs machines is SIEMENS PLC control with stable reliable biaxial high accuracy output and Machine adjustments via full feature operator HMItouch-screen, high-speed capable of bag-making a maximum of 80 bags per minute.Film-pulling with servo motor double belt, .This machine can make Stand pillow bag; pillow bag with Gusset;Square bottom bag; Quard bag ect.

Features:

1).SIEMENS PLC control system, more stable and accuracy output signal, bag making, measuring, filling, printing, cutting, finished in one operation;
2).Separate circuit boxes for pneumatic and power control. Low noise, and more stable;

3).Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;

4).Open door alarm and stop machine running in any condition for safety regulation;
5).Film centering automatically is available (Optional);

6).Only control touch screen to adjust bag deviation. Simple operation;

Specification:

Model	SW-P420	SW-P520
Packing speed	55 bags/min	55 bags/min
Bag size	(L)80-200 (W) 50-210mm	(L)80-350 (W) 50-250mm
Bag style	Pillow bag/square bottom	Pillow bag/square bottom
Max packaging film width	420mm	520mm
Thickness of film	0.04-0.09mm	0.04-0.09mm
Air consumption	0.8ps 0.25m3/min	0.8ps 0.25m3/min
Main power/voltage	2KW 220V 50Hz	2KW 220V 50Hz
Dimension	L1110×W800×H1130mm	1430×(W)1200×(H)1700mm
The weight of switchboard	350kg	680kg

Optional device:

1).Thermo transfer printer

Function: easy to change printing content and layout on the screen

2).Bag former

Function: making different bag width

3).Gusset device

Function: making gusset bag

4).Euro hole

Function: making holding hole

5).Easy open

Function: easy to open bag

6).vibration device

Function: for stickly and Expanded Food, easy for droping down

7).PE foil sealing device

Function: special for PE foil packing

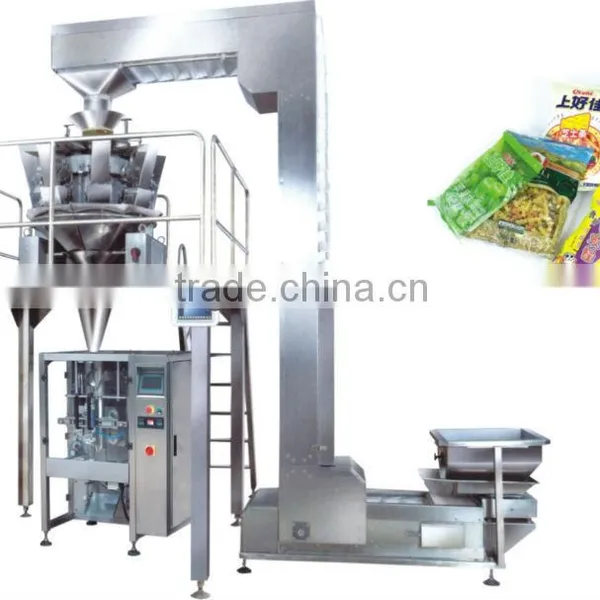

Optional Filling Systems:

1).Fits most fillers for dry and frozon applications:

2).Combination weighers

3).Combination scalesAuger fillers

4).Cup fillers

5).Linear scales

Bag type selection

Machine dimension layout:

Packing& shipping:

1. polywood carton

2. 25 days delivery

3. FOB/CIF terms

Our factory packaging line:

Smart Weigh products:
