2014 metal detector SW-D300

Specifications

It is suitable to inspect various products, if product contain metal, it will be rejected into bin, qualify bag will be passed.



Application



According to different product size, various detect head size will be provided. It is not only suitable for finished package product, but also for bulk product.

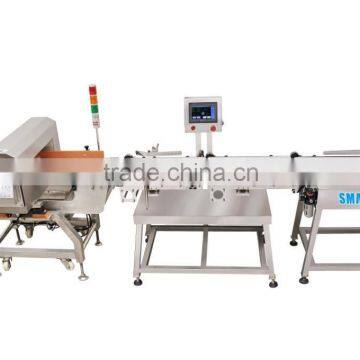

The metal detector also can be integrated with check weigher into combine machine.







Features:



1). Advanced DSP technology to refrain product effect;

2). LCD display with simple operation;

3). Multi-functional and humanity interface;

4). English/Chinese language selection;

5). Product memory and fault record;

6). Digital signal processing and transmission;

7). Automatic adaptable for product effect.

8). Optional reject systems;

9). High protection degree and height adjustable frame.(conveyor type can be chose).







Specification:



Model	SW-D300
Control System	PCB and advance DSP Technology
Conveying Speed	22 m/min
Detect Size (mm)	250W×80H	300W×100H	400W×150H	500W×200H
Sensitivity: FE	≥0.7mm	≥0.8mm	≥1.0mm	≥1.0mm
Sensitivity: SUS304	≥1.0mm	≥1.2mm	≥1.5mm	≥2.0mm
Conveying Belt	White PP (Food grade)
Belt Height	700 + 50 mm
Construction	SUS304
Power supply	220V/50HZ Single Phase
Packing Dimension	1300L*820W*900H mm
Gross Weight	300kg







Drawing:







Packing



Options:





1). Safe photo sensor
Function: If unqualify bag did not reject out and still pass to next equipment, this safe sensor will alarm and stop machine running

2). Reject Bin
Function: Collect rejected products, when rejected products full to 2/3 position, PLC will alarm to remind operator to take out the reject products

3). Three color alarm
Function: check production situation all the time

4). Push rejector and air blow rejector
Function: for heavy and light proudcts rejection







Packing and shipping:



1. Polywood carton

2. Delivery: 15-20 days

3. FOB ZHONGSHAN
