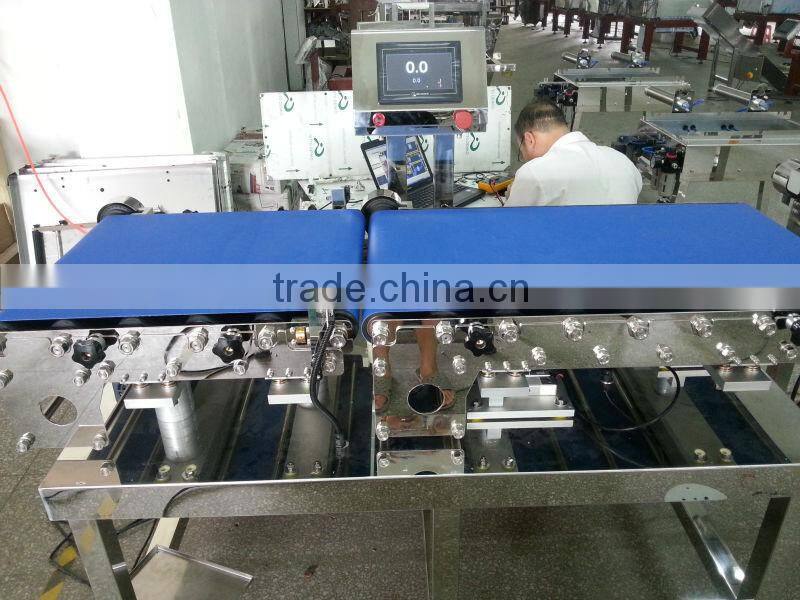

SW-C320 High Speed Online Check Weigher
It is suitable to check weight of various kinds of product, such as finished packing bag, boxes, etc, over or less weight will be rejected out,qualify bags will be passed to next equipment. Speed can be upto 120b/min, accuracy is +—0.1-2g.
| Model | SW-C320 |
| Control System | 7" WEINVIEW HMI and SIEMENS PLC |
| Weighing range | 10-2000 grams |
| Speed | 30-100bags/min |
| Accuracy | +1.0 grams |
| Product Size | 10<L<380; 10<W<300 mm |
| Mini Scale | 0.1 grams |
| Weigh Belt | 570L*320W mm |
| Reject system | Reject Arm/Air Blast/ Pneumatic Pusher |
| Power supply | 220V/50HZ or 60HZ Single Phase |
| Packing Dimension | 1418L*1368W*1325H mm |
| Gross Weight | 250kg |
Delivery: Within 35 days after deposit confirmation;
Payment: TT, 40% as deposit, 60% before shipment; L/C
Service: Prices do not include engineer dispatching fees with oversea support.
Packing: Plywood box;
Warranty: 15 months.
Validity: 30 days.
1). SIEMENS PLC & 7" touch screen, more stability and easier to operate;
2). Apply HBM load cell ensure high accuracy and stability (original from Germany);
3). Advanced DSP technology to refrain product effect;
4). Digital signal processing and transmission;
5). Solid SUS304 structure ensure stable performance and precise weighing;
6). Reject arm, air blast or pneumatic pusher for selecting;
7). Belt disassembling without tools, which is easier to clean;
8). Arm device show clients clearly for the production situation (optional);

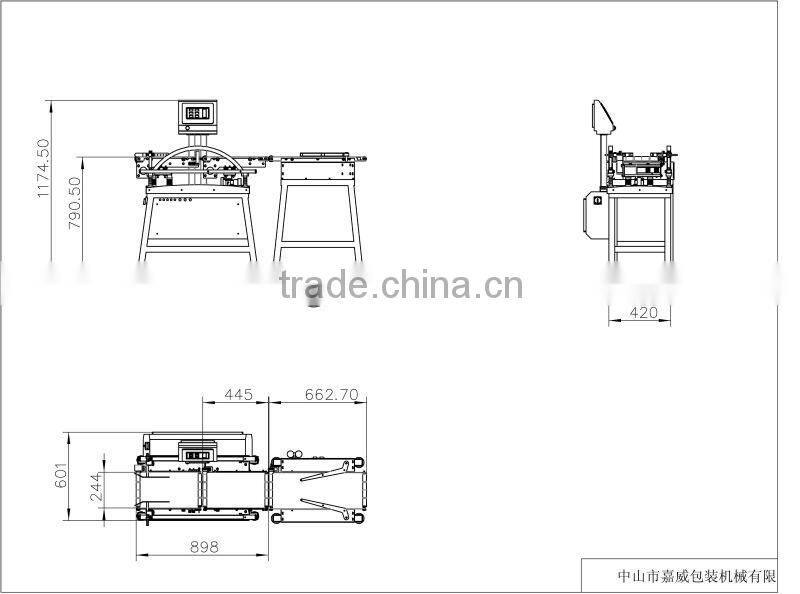

Drawing:
Options:
1). Reject Bin
Function: collect rejected products when unqualify bags were rejected out
2). Push rejector and air blow rejector
Function: for heavy and light proudcts rejection
3). 360°rotary HIM
Function: Operator can check the production data in 360°.
Smart Weigh products:
