Help CenterHot Sale 75W Flexible Solar Panel for 12V Battery Monocrystalline Silicon Semi Flexible Solar
Related Products
-
20W High Effeciency Monocrystalline Silicon Cell Semi Flexible Solar Panel for 12v BatteryUS$ 1.55 - 1.7MOQ: 50 Pieces -
21.5% High Efficiency 100W Sunpower Back Contact Cells Semi Flexible Solar Panel for RVUS$ 109 - 115MOQ: 10 Pieces
-
Hot Sale 20W 30W 50W 75W 100W High Efficient Flexible Solar Panel,Sunpower Solar Panels Price China by Factory DirectlyUS$ 2 - 2.2MOQ: 100 Pieces
-
High Efficency Solar Cell Bending Panel Make in Guangzhou Semi Flexible Solar Panel for Boat Yacht Caravan UseUS$ 1.6 - 1.8MOQ: 100 Pieces
-
Semi Flexible Solar Panel for Yacht Best Price in Guangzhou Cheap Price High Efficency With CE and RoHSUS$ 1.6 - 1.8MOQ: 100 Pieces

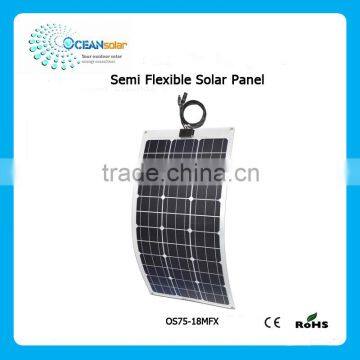

75W Monocrystalline Silicon Cell Semi Flexible Solar Panel
We can produce the flexible solar panel size and the junction box location by cutomers' request.
Pls do not hesitate to let us know if you have any special idea for the flexible solar panel.
Mechanical Data:
1).Flexible Angle : up to 20 degree
2).Back Sheet: aluminum or fiberglass (PCB)
3).J-Box: IP 67 rated
4).Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2.5mm or 3 mm

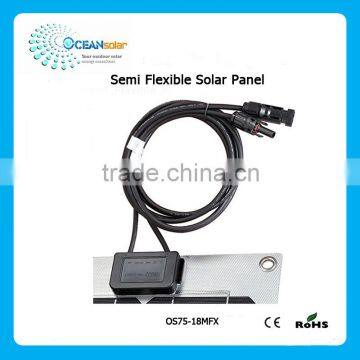

6).Cables/Connector: 1.5meters, 2*2.5mm2 cable with MC4 connectors
7).Type of Solar Cells: Sunpower back contact cells
8).Eyelets: 4pcs in the corners
9). By pass diode: 2pcs (10A for each one )
10). Solar Panel Size: 1070*530*2.5mm
Electrical Data:
1).Peak Power(Pmax)------------------------------------------- 75W
2).Maximum Power Voltage (Vmp)--------------------------- 18V
3).Maximum Power Current (Imp)---------------------------- 4.17A
4).Open Circuit Voltage (Voc)---------------------------------- 21.24V
5).Short Circuit Current (Isc)----------------------------------- 4.58A
6).Maximum System Voltage---------------------------------- DC 500V
7).Cell Efficiency---------------------------------------------- 17.4%
8).Power Tolerance---------------------------------------------- ±3%
9).Number of Cells----------------------------------------------- 36pcs
10).Operating Temperature------------------------------------ -20℃~+50℃
11).Storage Temperature--------------------------------------- -20℃~+30℃
12).Temperature Coefficients of Isc(%)--------------------- +0.09%/℃
13).Temperature Coefficients of Pmax(%)----------------- -0.37%/℃
14).Temperature Coefficients of Voc(%)-------------------- -0.34%/℃
(Test Condition: AM=1.5,E=1000W/m2 ,Tc=25°C)

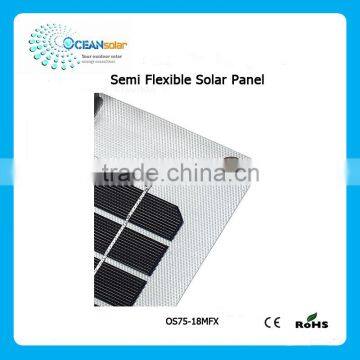

Product Structure(Brand New):
The front cvoer is ETFE, which is imported from Japan. This materials can absorb more sunlight for its superior thinness.
This materials can be integrated with the back sheet very well, and it will not easily to be cracked, expecially having excellent lifetime.
ETFE has a memory effect or selfhealing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are "healed" within a few hours.
ETFE has Non-viscous, dirt-resistance and good self-cleaning properties.

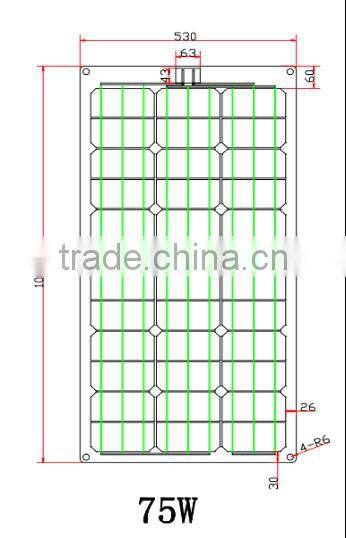

Semi Flexible Solar Panel Layout:
Flexible Solar Panel Size&Packing Information:
Solar Panel Size (1pc)----------------------------------------- 1070*530*2.5mm
Packing Size(1pc)---------------------------------------------- 1165*567*42mm
Carton Size(10pcs)--------------------------------------------- 1180*590*244mm
Net Weight (1pc)----------------------------------------------- 2.5kgs
Q’ty/ctn---------------------------------------------------------- 5pcs
Gross Weight (10pcs)------------------------------------------ 26.15kgs

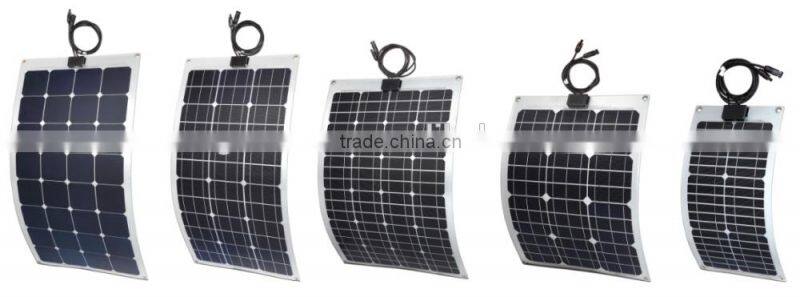

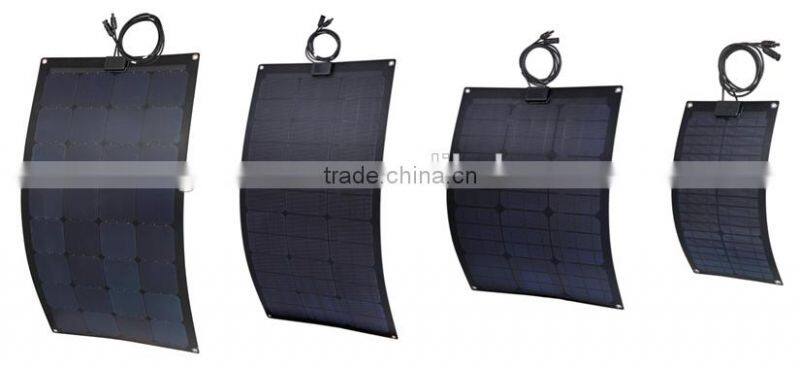

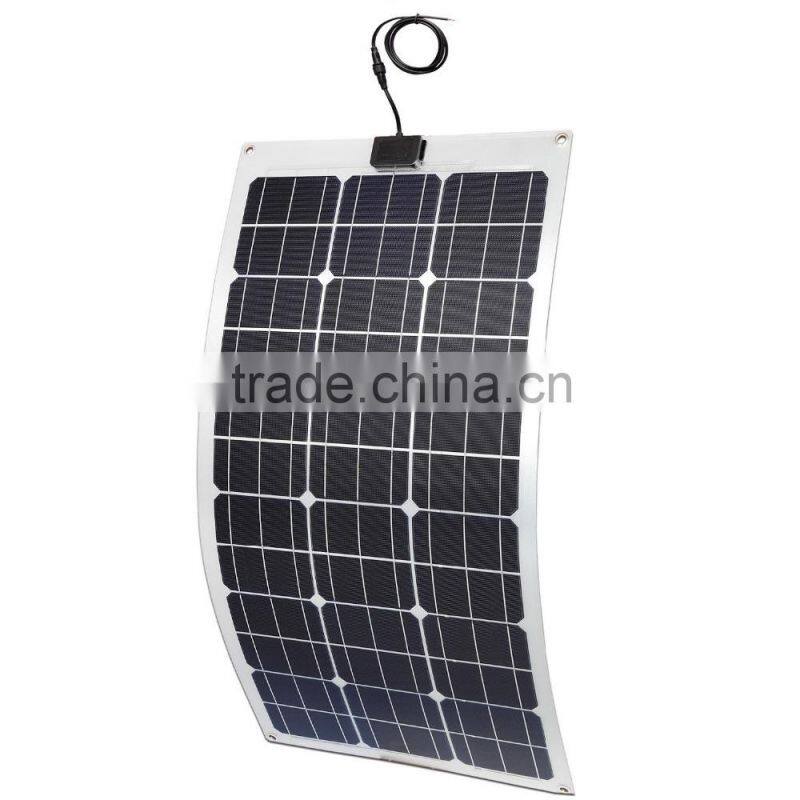

Product Show:
Packaging:
Applications of Our Semi Flexible Solar Panel:
Our Factory:
Certificates:
Product Warranty:
Quality Guarantee: 24 months
Lifespan: 10-15 years
Product Data Sheet:
