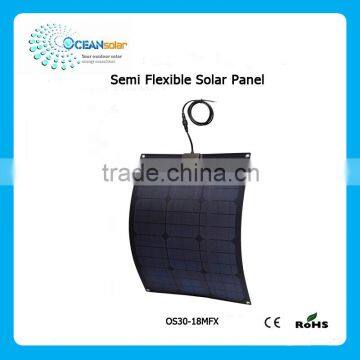

30W Monocrystalline Silicon Cell Semi Flexible Solar Panel
We can produce the flexible solar panel size and the junction box location by cutomers' request.
Pls do not hesitate to let us know if you have any special idea for the flexible solar panel.
Mechanical Data:
1).Flexible Angle : up to 20 degree
2).Back Sheet: aluminum or fiberglass (PCB)

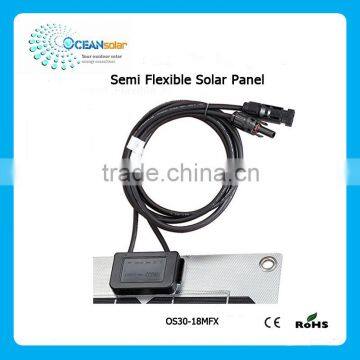

3).J-Box: IP 67 rated
4).Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2.5mm or 3mm
6).Cables/Connector: 1meters, 2*2.5mm2 cable with MC4 connectors
7).Type of Solar Cells: Sunpower back contact cells
8).Eyelets: 4pcs in the corners
9). By pass diode: 2pcs (10A for each one )
10). Solar Panel Size: 630*440*2.5mm
Electrical Data:
1).Peak Power(Pmax)------------------------------------------- 30W
2).Maximum Power Voltage (Vmp)--------------------------- 18V
3).Maximum Power Current (Imp)---------------------------- 1.67A
4).Open Circuit Voltage (Voc)---------------------------------- 21.24V
5).Short Circuit Current (Isc)----------------------------------- 1.83A
6).Maximum System Voltage---------------------------------- DC 500V
7).Cell Efficiency---------------------------------------------- 18%
8).Power Tolerance---------------------------------------------- ±3%
9).Number of Cells----------------------------------------------- 36pcs
10).Operating Temperature------------------------------------ -20℃~+50℃
11).Storage Temperature--------------------------------------- -20℃~+30℃
12).Temperature Coefficients of Isc(%)--------------------- +0.09%/℃
13).Temperature Coefficients of Pmax(%)----------------- -0.37%/℃
14).Temperature Coefficients of Voc(%)-------------------- -0.34%/℃
(Test Condition: AM=1.5,E=1000W/m2 ,Tc=25°C)

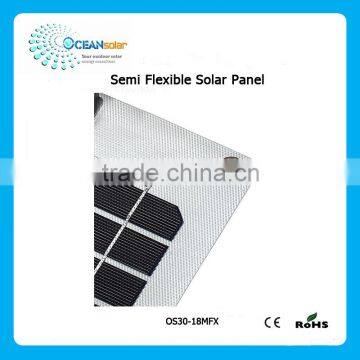

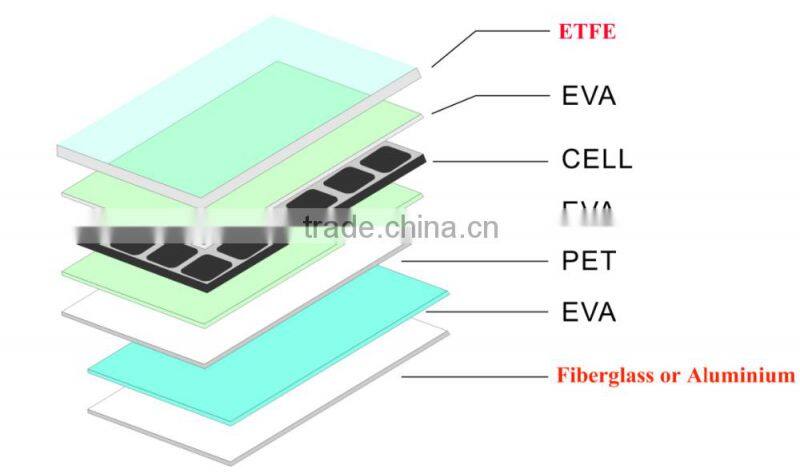

Product Structure(Brand New):
The front cvoer is ETFE, which is imported from Japan. This materials can absorb more sunlight for its superior thinness.
This materials can be integrated with the back sheet very well, and it will not easily to be cracked, expecially having excellent lifetime.
ETFE has a memory effect or selfhealing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are "healed" within a few hours.
ETFE has Non-viscous, dirt-resistance and good self-cleaning properties.

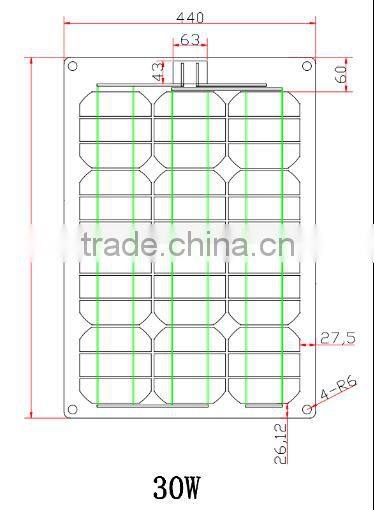

Semi Flexible Solar Panel Layout:
Flexible Solar Panel Size&Packing Information:
Solar Panel Size (1pc)----------------------------------------- 630*440*2.5mm
Packing Size(1pc)---------------------------------------------- 720*472*4mm
Carton Size(10pcs)--------------------------------------------- 734*495*422mm
Net Weight (1pc)----------------------------------------------- 1.58kgs
Q’ty/ctn---------------------------------------------------------- 10pcs
Gross Weight (10pcs)------------------------------------------ 24.05kgs

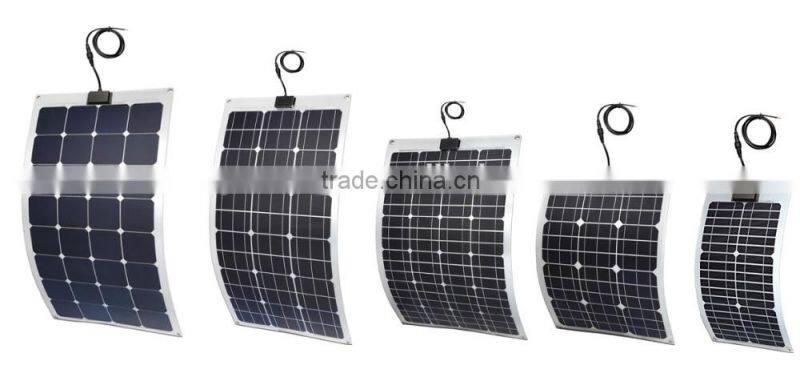

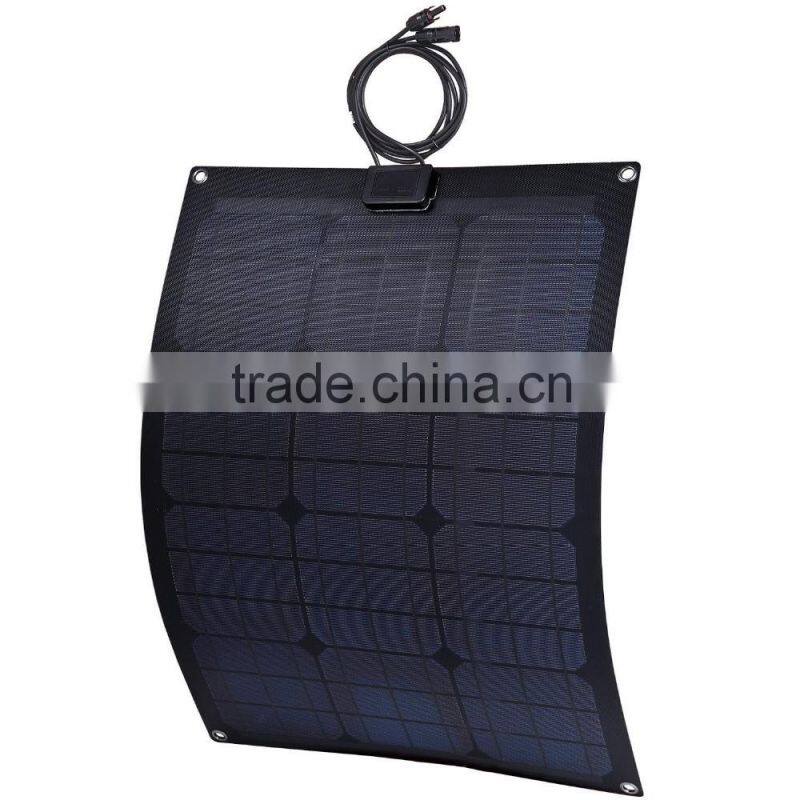

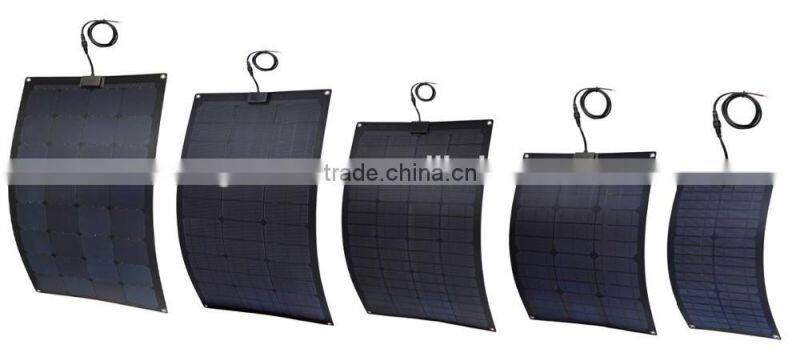

Product Show:

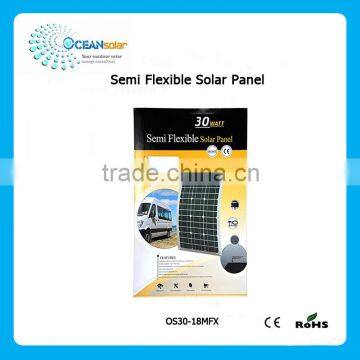

Packaging:

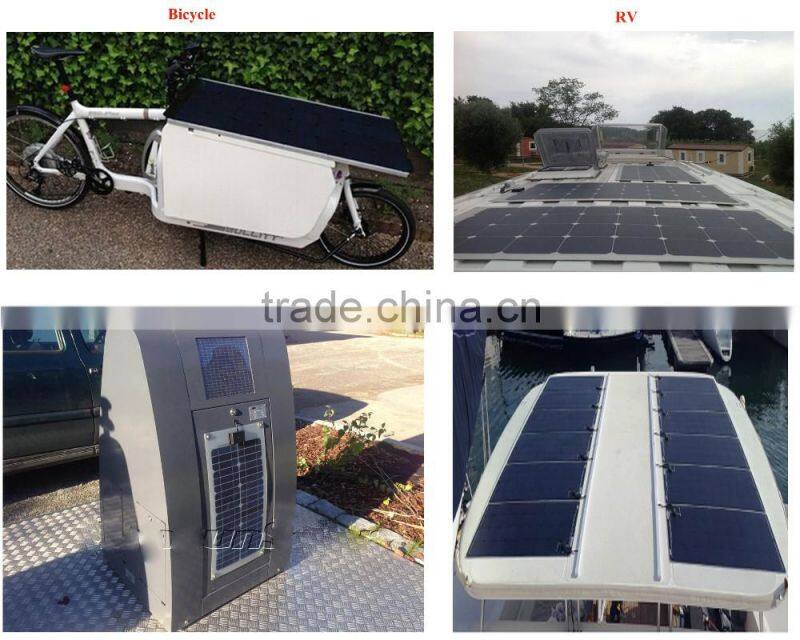

Applications of Our Semi Flexible Solar Panel:

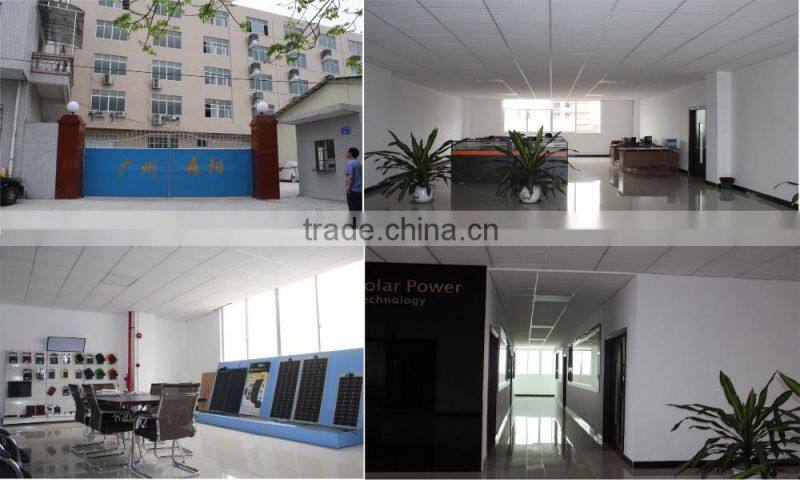

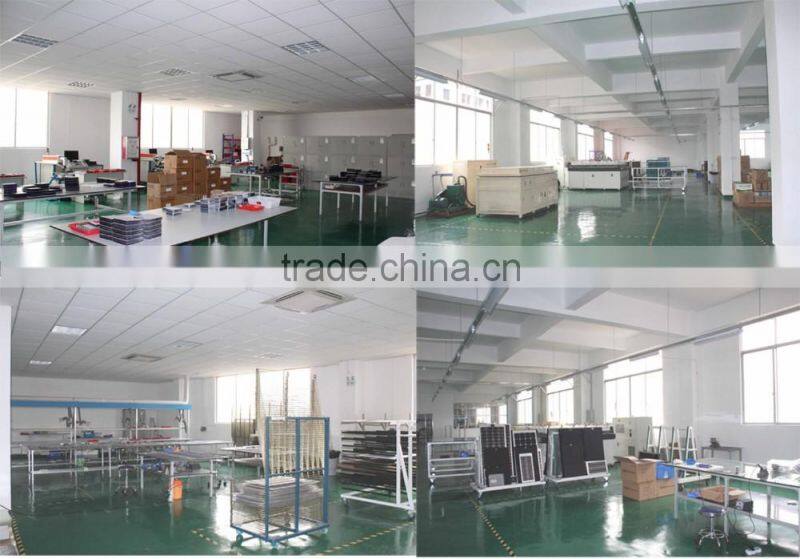

Our Factory:

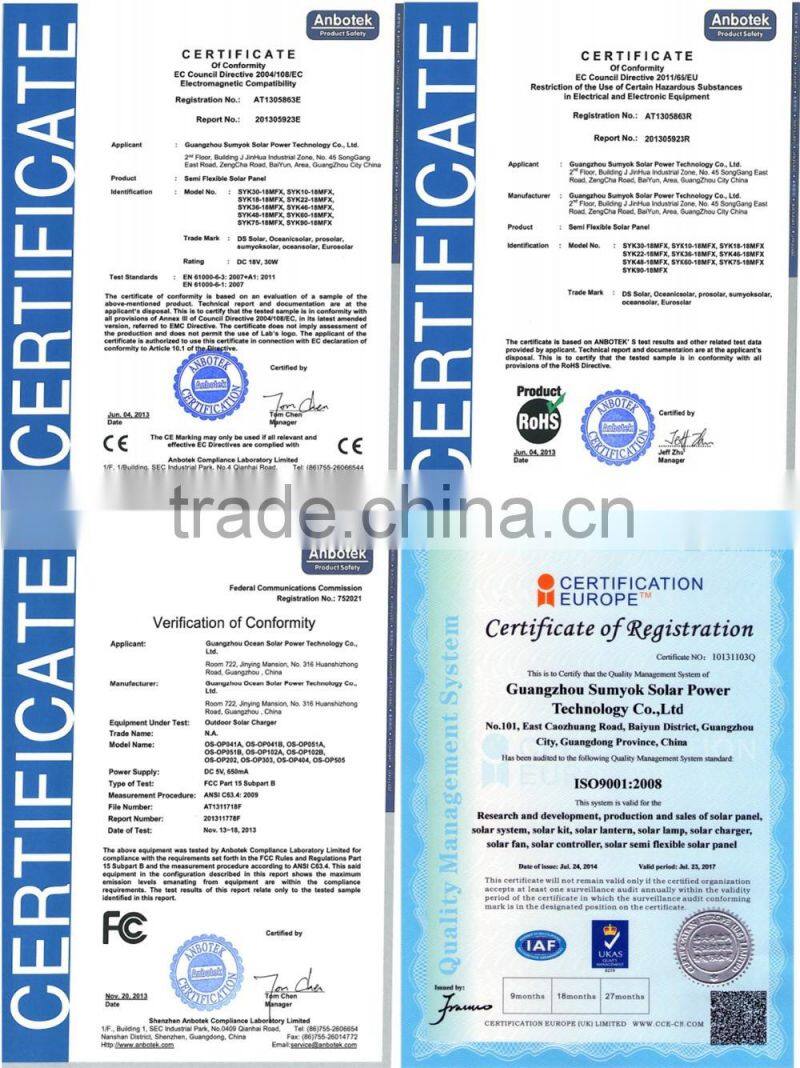

Certificates:
Product Warranty:
Quality Guarantee: 24 months
Lifespan: 10-15years
Product Data Sheet:
