Product Details
| Place of Origin: | Henan, China | Brand Name: | Yongchi | Model Number: | YCC 4-7 |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot selling mining ore car 2015
Application and application:

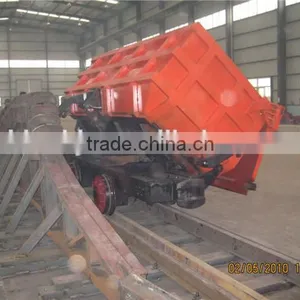

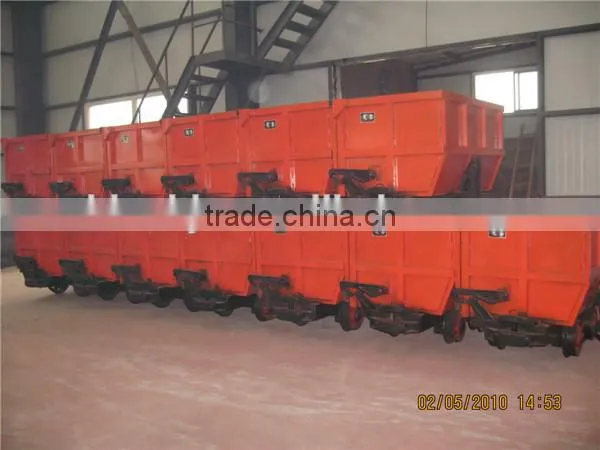

Unilateral curved rail side dump mine car is suitable for the mine , underground mine or ground transportation materials.Loose density is 2.5t/m3or gangue minerals.The car size conforms to the GB/T2885.3 standard,it is most suitable for metal mine .
Hot selling mining ore car 2015
Technical parameters:
Model | Volume (m3) | Load (t) | Gauge (mm) | Dimensions mm
| Wheelbase (mm) | Wheel diameter (mm) | Traction height (mm) | Traction force (Kg/t) | Unloading angle
| ||
length | width | height | |||||||||
mm | mm | mm | |||||||||
YCCO.7-6 | 0.7 | 1.75 | 600 | 1650 | 980 | 1050 | 600 | 300 | 320 |
6000 | 40 |
YCC1.2-6 | 1.2 | 3 | 600 | 1900 | 1050 | 1200 | 600 | 300 | 320 | 40 | |
YCC2-6 | 2 | 5 | 600 | 3000 | 1250 | 1300 | 1000 | 400 | 320 | 42 | |
YCC2-7 | 2 | 5 | 762 | 3000 | 1250 | 1300 | 1000 | 400 | 320 | 42 | |
YCC4-7 | 4 | 10 | 762 | 3900 | 1400 | 1650 | 1300 | 450 | 430 | 42 | |
YCC4-9 | 4 | 10 | 900 | 3900 | 1400 | 1650 | 1300 | 450 | 430 | 42 | |
YCC6-7 | 6 | 15 | 762 | 5000 | 1600 | 1800 | 2500 (1000) | 450 | 500 | 42 | |
Note: 1.Height and traction are calculated from the rail surface (no-load).
2. the dimensions in brackets are expressed as the bogie's wheelbase.
3.the use of cars can be selected and matched with the dump rail.
