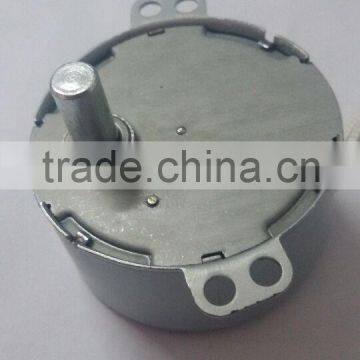

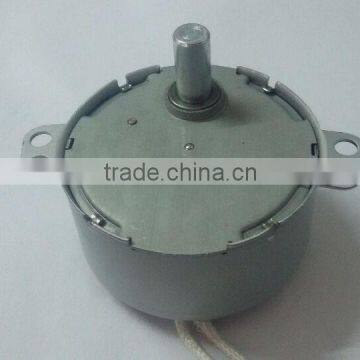

Help CenterSingle Phase Custom 7mm Shaft 60rpm 72rpm 50/60hz 4W Motors Electrical AC Synchronous Motor 220V
Related Products
-
CE ROHS UL Synchronous Servo Motor Synchronous AC Motor TH-50, Strong 12v Motor Machinery And EquipmentUS$ 1.32 - 1.4MOQ: 100 Pieces -
TH-50 AC Synchronous Motor Washing Machine Drain Pump Motor, AC Reversible Synchronous MotorUS$ 1.32 - 1.4MOQ: 100 Pieces
-
Single Phase Motor Speed Control Synchronous Servo Motor Synchronous AC Motor TH-50, Strong 12v MotorUS$ 1.42 - 1.5MOQ: 100 Pieces
-
Microwave Turntable 50/60hz 18/22rpm Micro Synchronous AC MotorUS$ 1 - 2MOQ: 100 Pieces
-
CW/CCW Electric Motor 2.5/3 Rpm 2.5 Rpm Synchronous Motor Shenzhen Electric Fan MotorUS$ 0.5 - 3MOQ: 100 Pieces

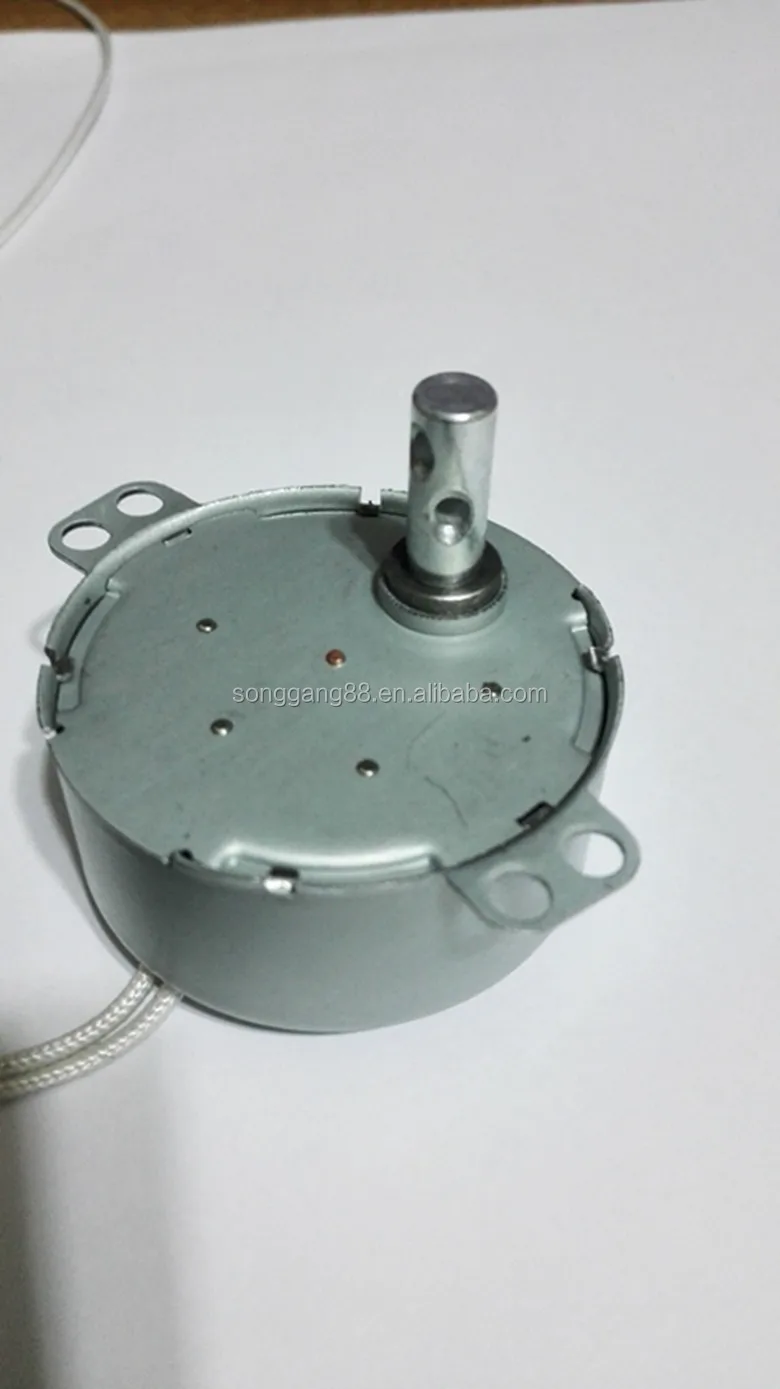

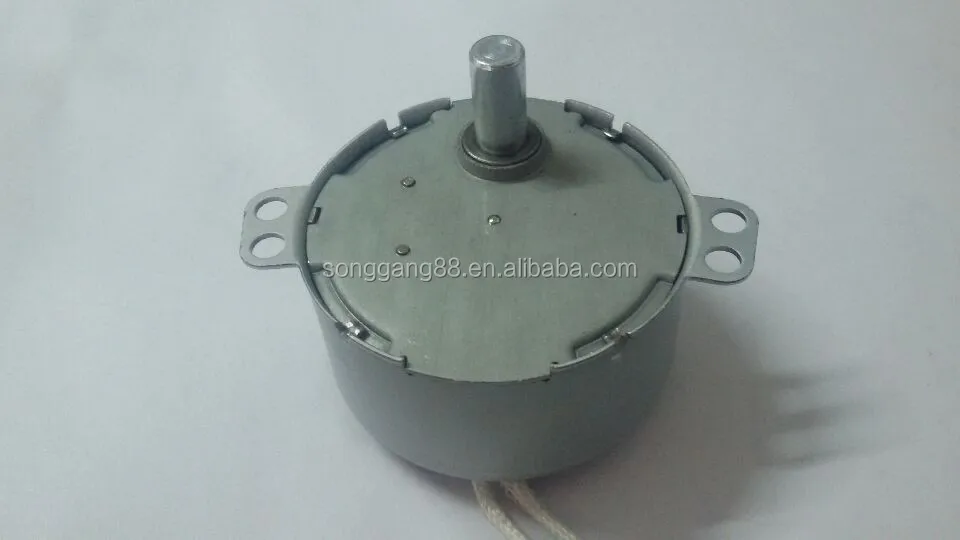

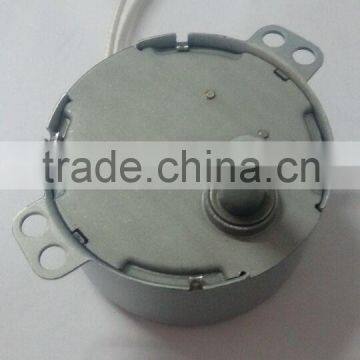

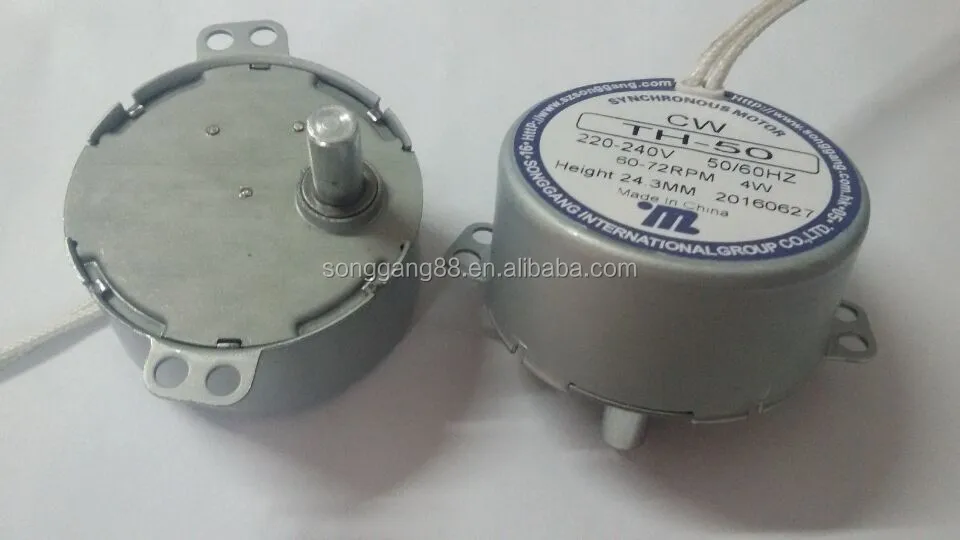

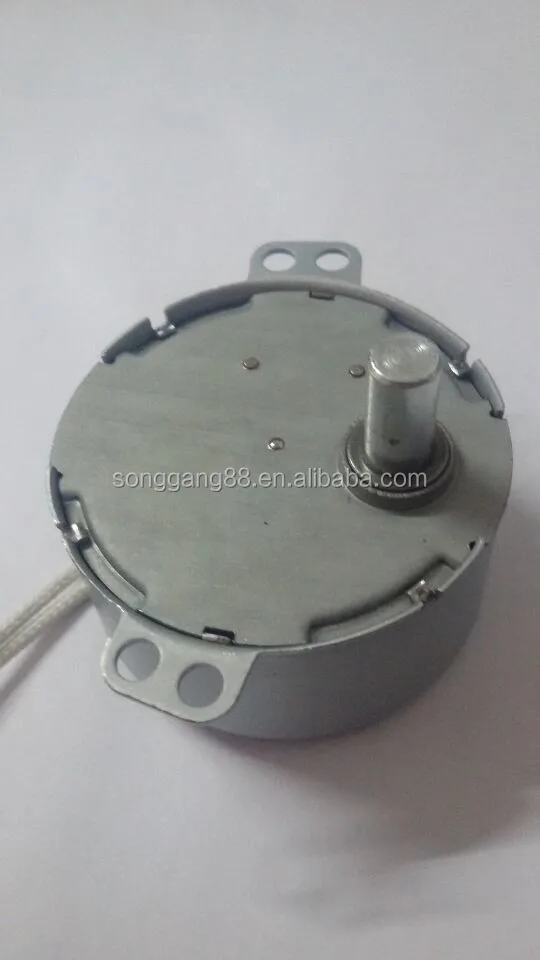

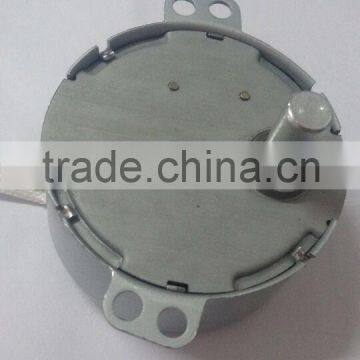

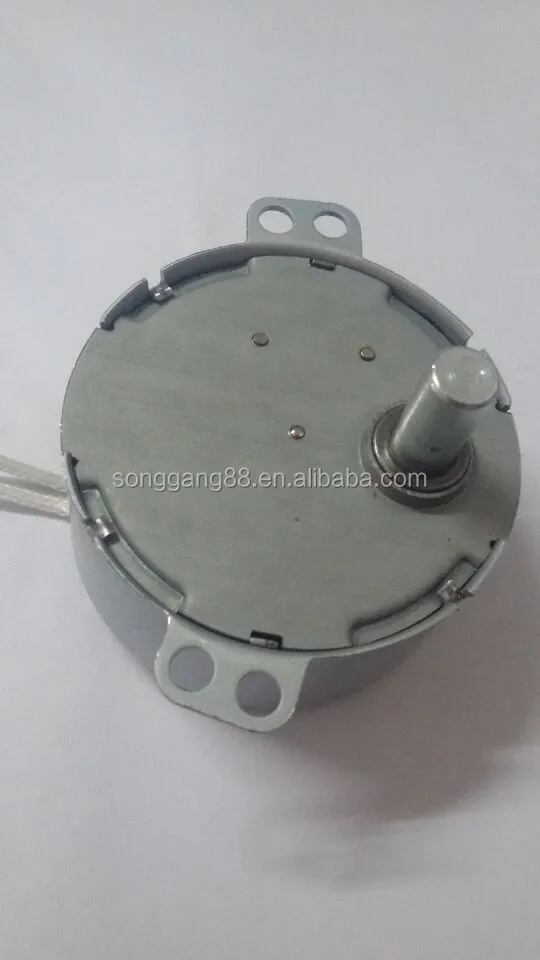

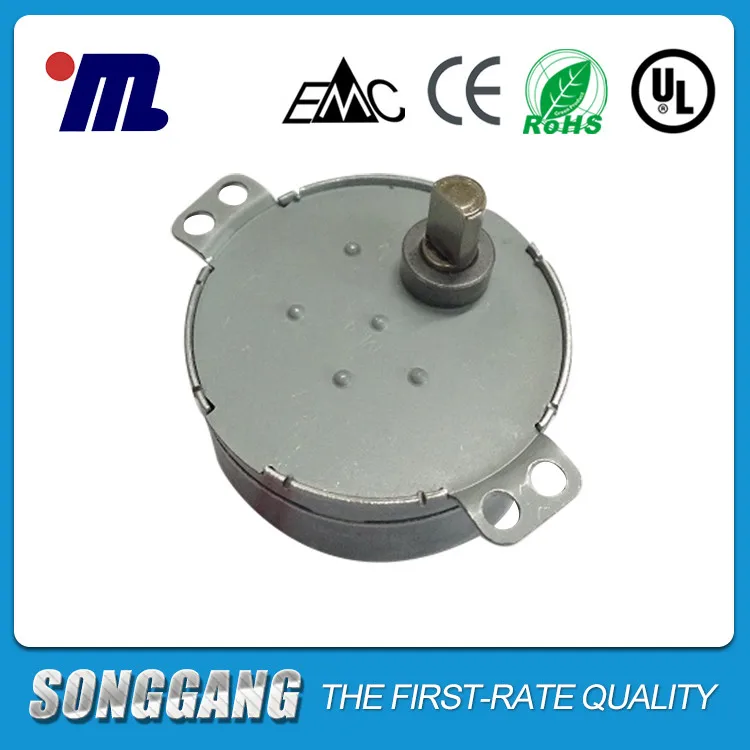

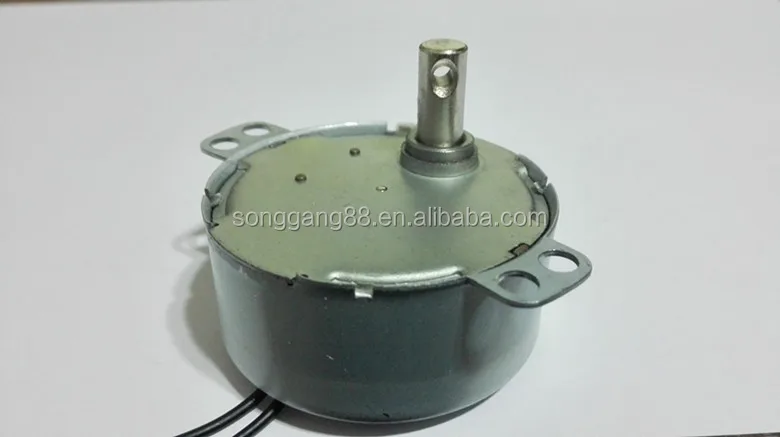

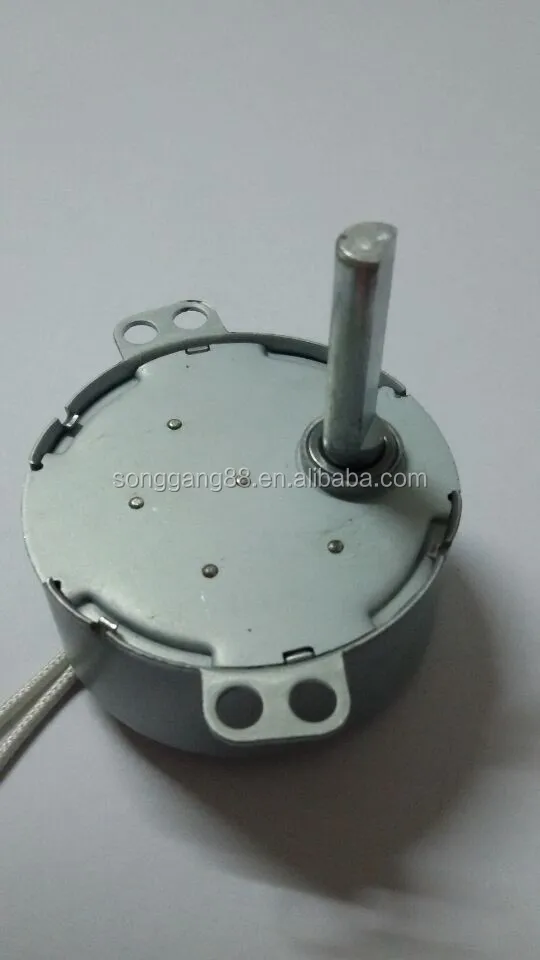

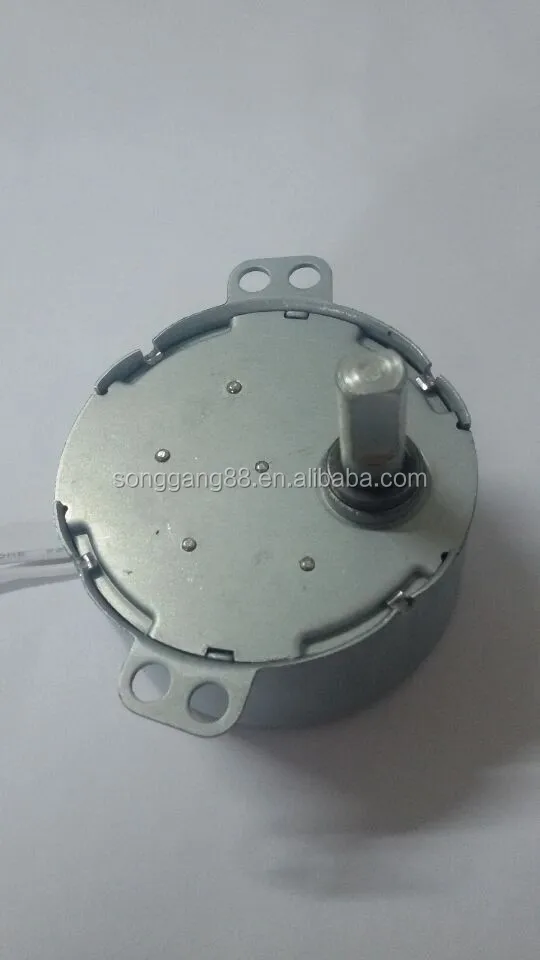

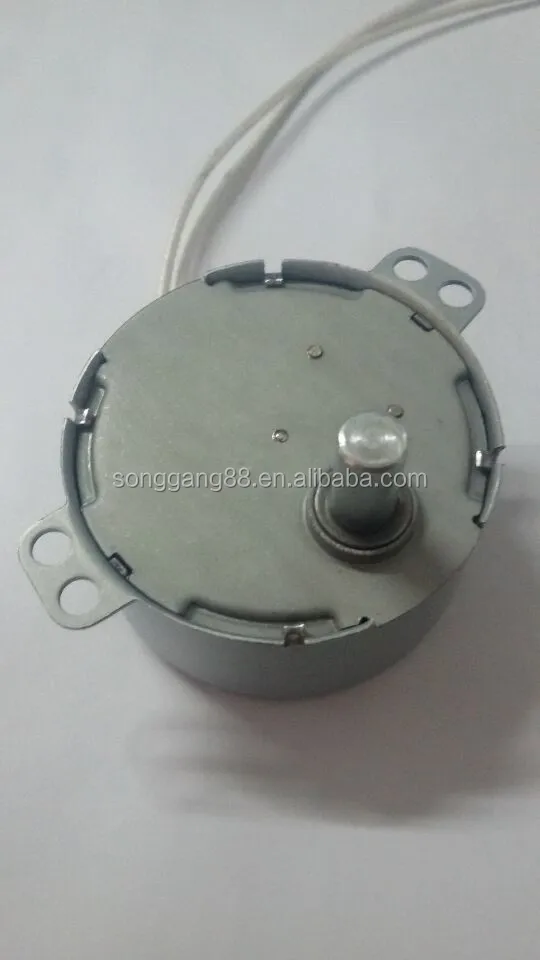

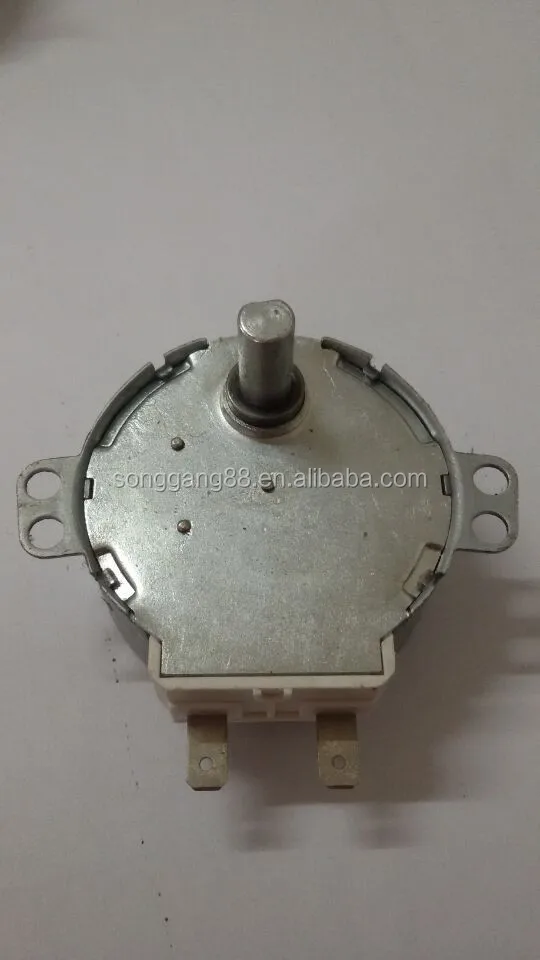

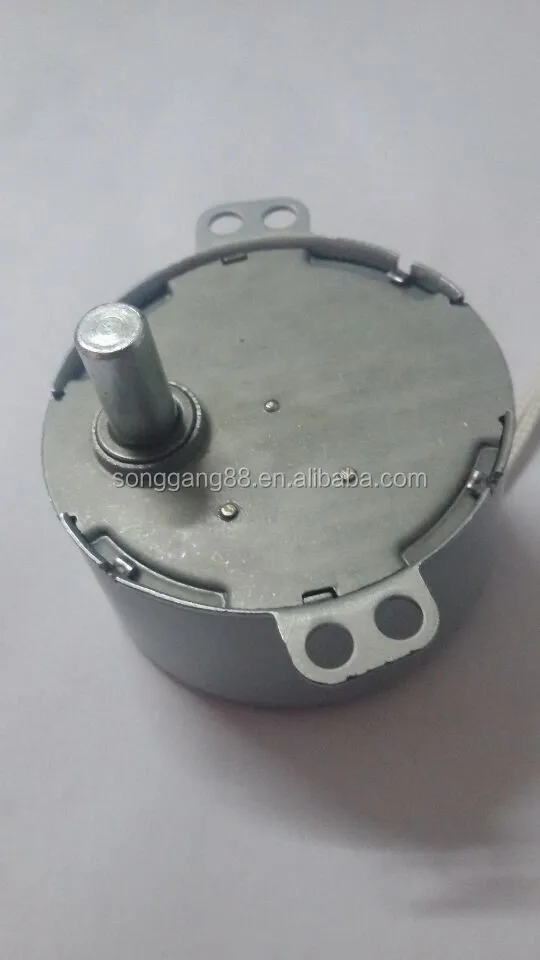

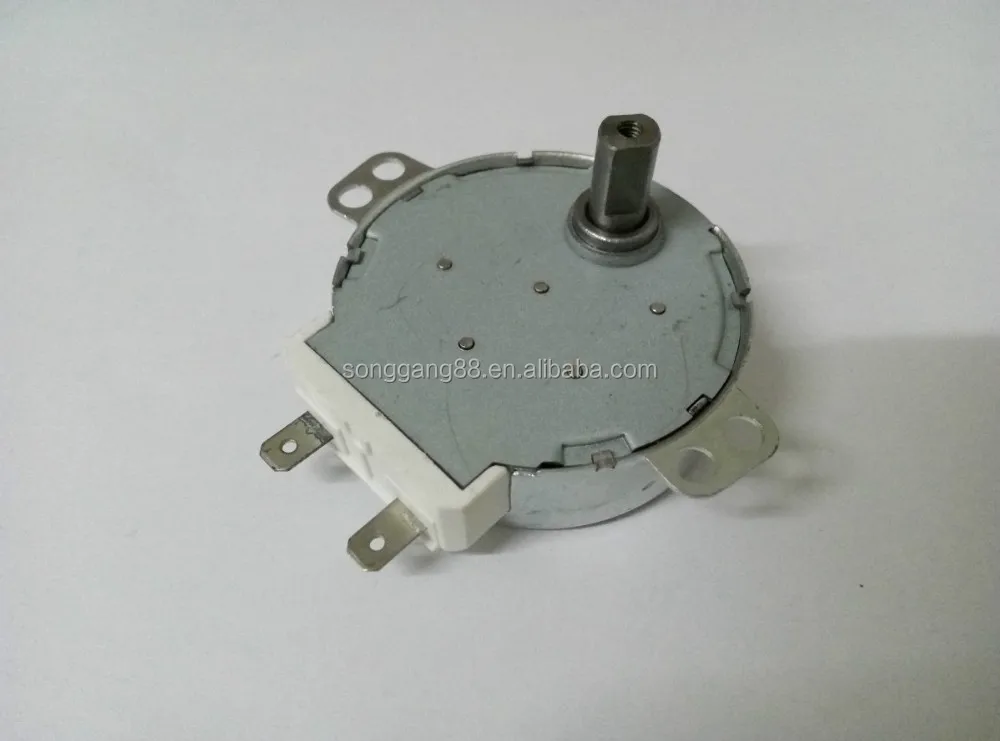

Introduction of Synchronous Motors TH-50
With over 20 years history in motor areas, Songgang is experienced in manufacturing and developing kinds of synchronous motors. Songgang's mission is to produce supreme quality and to offer our customer professional service. We are continously upgrading our facility and producing system to reach this goal. Our in-house facilities provide the versatility and capability to do a complete job for you and to serve you base on your requirements.
TH-50 is one of our most popular synchronous motor series in world with high life span, low noise, low temperature rise, high temperature insulation, high durable gears. Our customers is all over 30 countries, USA, UK, Germany, France, Indonesia, Malaysia, New Zealand...etc.
TH-50 can be widely used in Household Appliances,Microwave Oven,Oven,Heater,Blender, Advertising Light Box, Material Level Device,Timer, Oil Pump,Stage Light and so on.

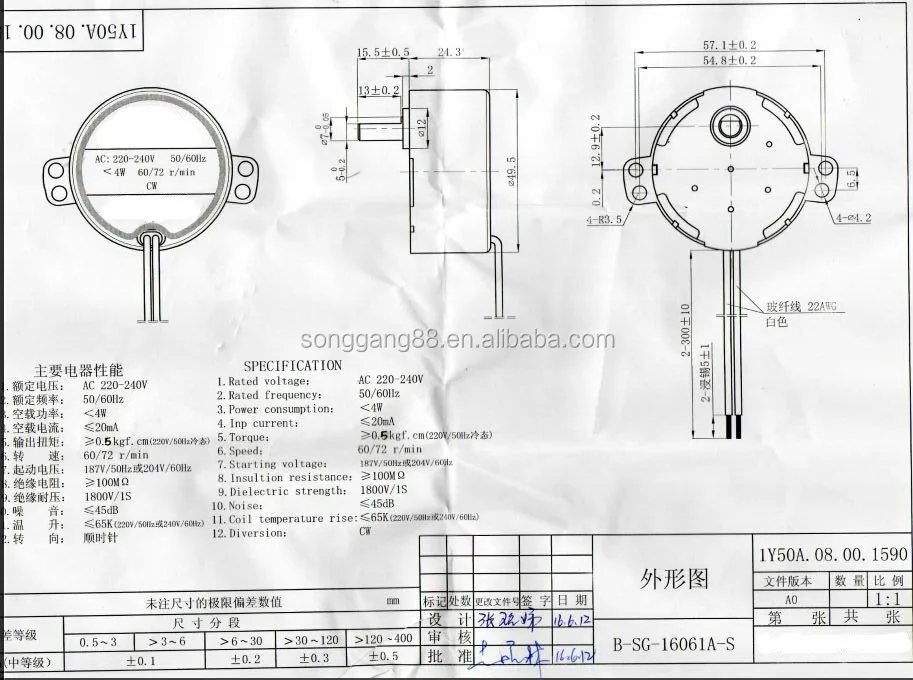

Specifications can be made as customer's requirements:
• Rated Voltage: 12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC
• Power Frequency: 50/60Hz
• Input Power: 4 W
• Output Speed: 0.8~ 60 RPM
• Rotation: CW, CCW, Free
• Rated Torque: 500 gm-cm ~ 10Kg-cm
• Operating Temperature: -10 ℃ ~ 60℃
• Insulation Strength: AC 1800V - 1 Min
• Insulation Class: A, B, F Class
• No Load Current: 20mA
• Noise: Less than 45dB
• Coil Temperature Rise: Less than 115K
• Insulation Resistant: 1000MΩ
Please let us know the following Parameter if we are lucky to attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( It would be better if you can offer us shaft drawing)
4. Torque on output shaft
5. Length of lead wire if you have requirements
Main Features
2) Low noise (less than 45dB)
3) Metal gears and high durable plastic gears
4) High torque and lightweight motor
