Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, No screen
Contact Supplier Request Quote Chat Now
Shenzhen Gator Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, No screen
Function Other, Positioning and Tracking
Place of Origin Guangdong, China
Brand Name Gator
Model Number M528
Warranty 3 Years

Specifications

gps tracker:
1. SOS alarm
2.3 year warranty
3. Enable/Disable engine remotely
4. Geo-fence alarm

  Quad band gps/gsm car alarm, gps tracker, gps tracking system  m528







Applications



1. School Bus management,

2. Company fleet management,

3. Food transportation Solution,

4. Bus management,

5. Taxi Solution,

6. Car Rental solution

7. Logistics Fleet management



Features and functions



1. SMS and GPRS TCP/UDP Communication

2. Track by Time Interval and call roll to control employees

3. SMS of mobile and GPRS

4. Mileage function

5. Remotely monitor by authorization

6. Record data logging function

7. Remotely lock and unlock vehicle

8. SOS alarm

9. Power-off alarm

10. Overspeed alarm

11. Parking alarm

12. Internal flash memory 16MB: When the M528 is disconnected to the system (for example, the GPRS signal is weak), the position data will be storing in the flash, and then it will upload again after it reconnect to the system (the GPRS signal is ok).

13. Fatigue driving alarm

14. Remotely update.

15. Fuel detect funciton

16.Temperature detect function

17. Acceleration alarm

18. Geo-fence alarm

19. Idling alarm

20. Illegal door open alarm

Specifications:

Hardware Datasheet

work voltage

8VDC~36VDC

work current

50mA-160mA

GSM module

inside contain frequency GSM 900/1800

inside contain frequency GSM 850/900/1800/1900Mhz (can be customized)

Communication protocol

UDP/TCP(can be customized)

GPS module

U-blox

GPS sensitivity

-159dBm

GPS frequency

L1, 1575.42 MHz

C/A coding

1.023 MHz chip rate

Channels

20 channels examine track

Position accuracy

10 meter, 2D RMS

Speed  accuracy

0.1 meter/second

Time accuracy

GPS time synchronization

Default data

WGS-84

Recover

Average 0.1 second

Hot start

Average 1 second

Warm boot

Average 38 second

Cold boot

Average 42 second

Height limit

18,000 meter (60,000 feet) max

Speed limit

515 kilometer/second (1000 knots)max

Acceleration limit

Less than 4g

Others

Work temperature

-20°~ 70° C

Storage temperature

-30°~ 85° C

Humidity

5% ~ 95%  noncondensing

Terminal size

101 mm × 50mm × 24mm

Inside battery

Continuous working no less than 4 hours

LED light

Red: MCU(CPU) status; Green: GSM module status

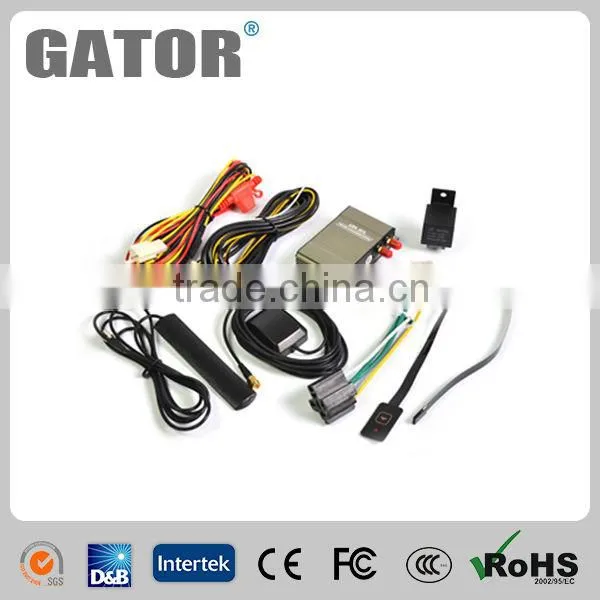

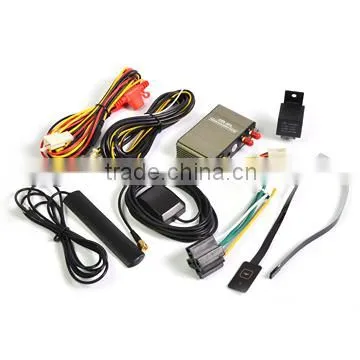

Standard Package



1X unit

1X power cable

1X I/O cable

1X GPS module

1X GSM module

1X SOS button

1X Realy



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528





More pictures



 Quad band gps/gsm car alarm, gps tracker, gps tracking system m528





Quad band gps/gsm car alarm, gps tracker, gps tracking system m528





Software

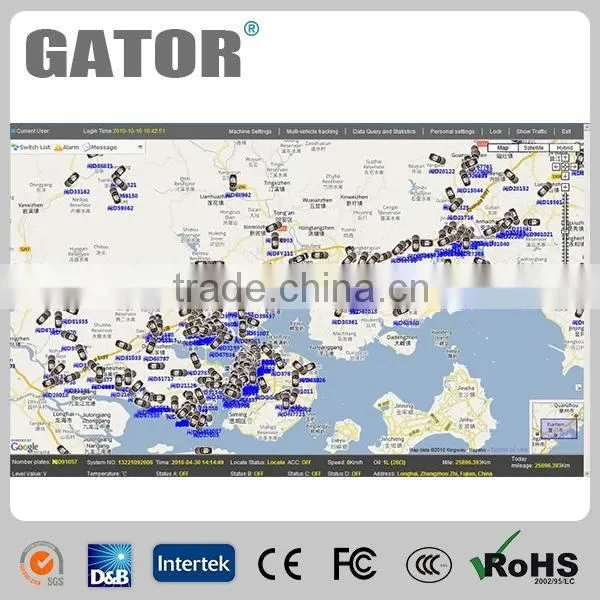

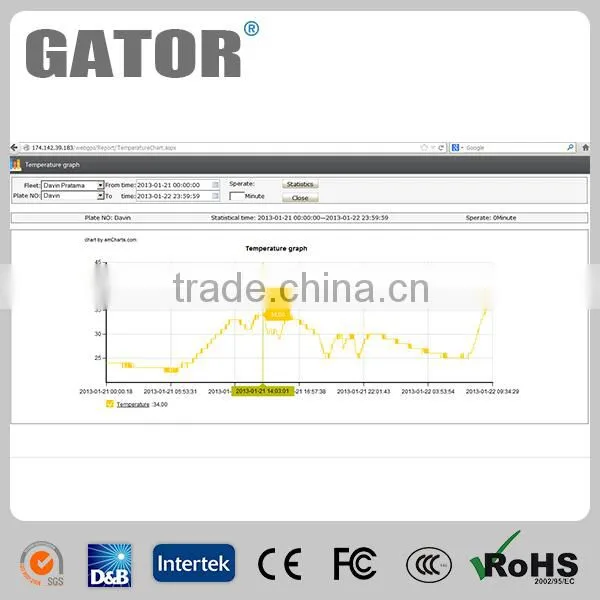

1.    PC Server



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528

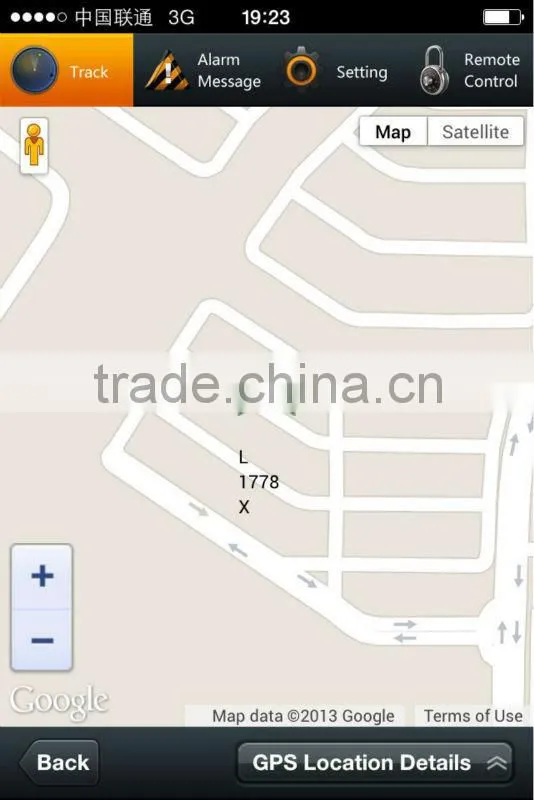

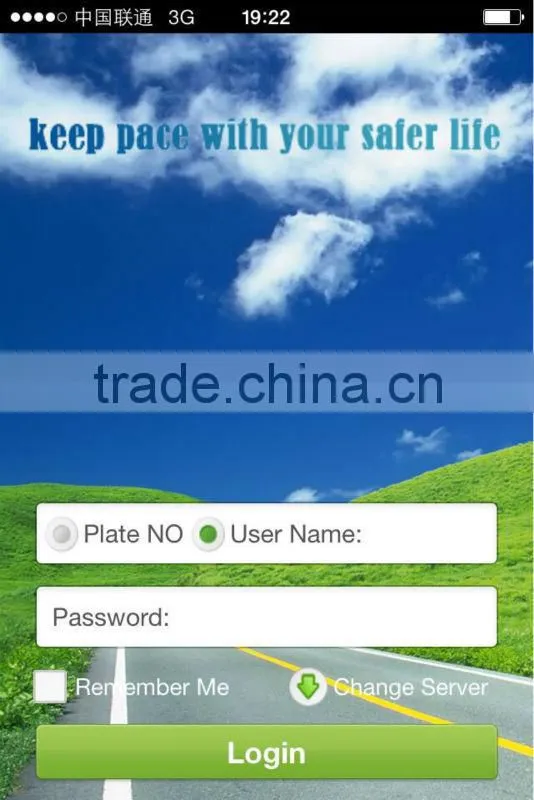

2. Mobile APP



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528



Quad band gps/gsm car alarm, gps tracker, gps tracking system m528

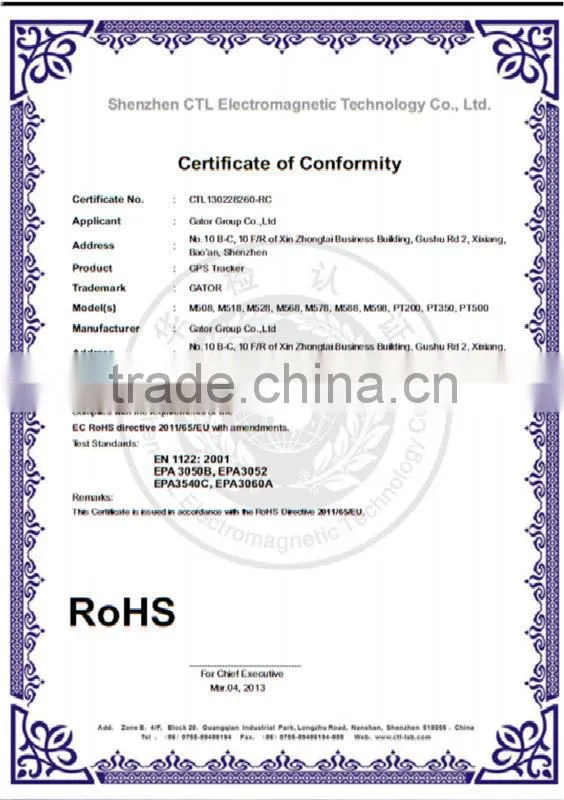

Certificates





Quad band gps/gsm car alarm, gps tracker, gps tracking system m528Quad band gps/gsm car alarm, gps tracker, gps tracking system m528
