Specifications
SZ9 series 10KV electrical Three phase On-load Regulation power distribution transformer1.Winding: copper
2.Type: transformer
SZ9 series 10KV electrical Three phase On-load Regulation power distribution transformer
Specifications
SZ9 series 10KV electrical Three phase On-load Regulation power distribution transformer
1,Brand: BONLE
2,fast delivery suppy
SZ9 series 10KV electrical Three phase On-load Regulation power distribution transformer
The Three-phase oil-immersed transformer applies new type insulation sructure and improves the ability of short-circuit resistance. The iron core is made of high -quality cold-rolled silicon-steel plate. HIgh-voltage winding group is made of high quality copper wires and it adopts multilayer cylindrical structure. All fasteners have been processed with special treatment to prevent them from loosening.
The product have many advantages such as high efficiency, high-tech, low loss. Its social benefits are remarkable that it will save much of electricity comsumption and operating cost.
Product Standard
- IEC 60076
- ANSI/IEEE C57
- EN61558
- NF C52-558
- (GBI094.1.2-1996, GBI094.3.5-1985, GB/T645-1999)
SZ9 series 10KV electrical Three phase On-load Regulation power distribution transformer

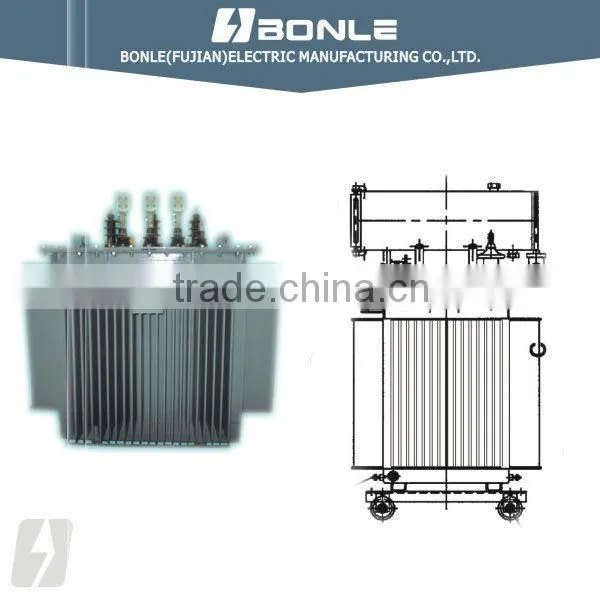

Product picture Display
Service Conditon Data
- Max . Temperature: +40°C
- Max . Monthly Average Temperature : +30°C
- Max . Yearly Average Temperature : + 20 °C
- Min . Temperature : -25°C
- Sea Level: <1000m
- Indoor or Outdoor
- Special Service conditions should be notified when inquiry and order.

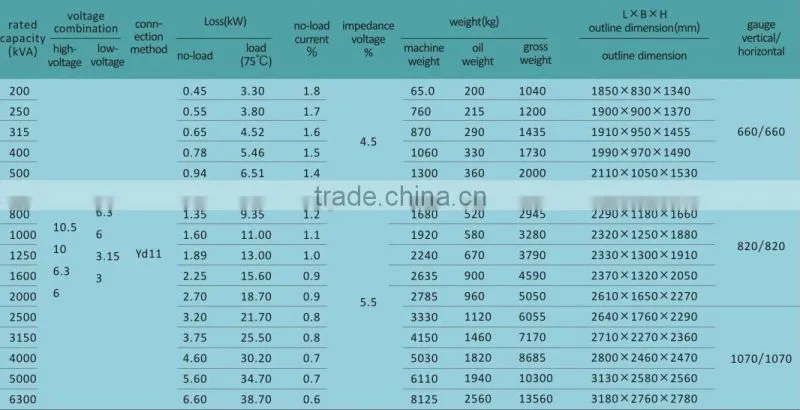

Technical Data
Our Advanced Technology
We have manufactured 35kV and 110kV power transformers in a large scale. We treat the distribution transformer as the same working attitude as power transformer. We have technological advantage more than common manufacturer who manufacture distribution transforer.
Advanced technology and excellent products are melted a whole one.
We are manufacturer and accept OEM projects.
Wooden case packing are provided. Packing
BONLE(FUJIAN) Electric Manufacturing are also run business on insulators, power fittins (spindles, cross arms, strain clamps), fuse cutouts, arrestors, and conductors. With more than 22th experience, we can supply you most professional service and high quality product with reasonable price.
Welcome cooperation with other domestic and foreign enterprises, accept OEM project. Hope we will create great cooperation and good harvest together.
Production Facility
Welcome to visit our factory and start our business here
