60hz 220V 2.5RPM 80kg.cm AC Gear Motors 60ktyz for CCTV scanner

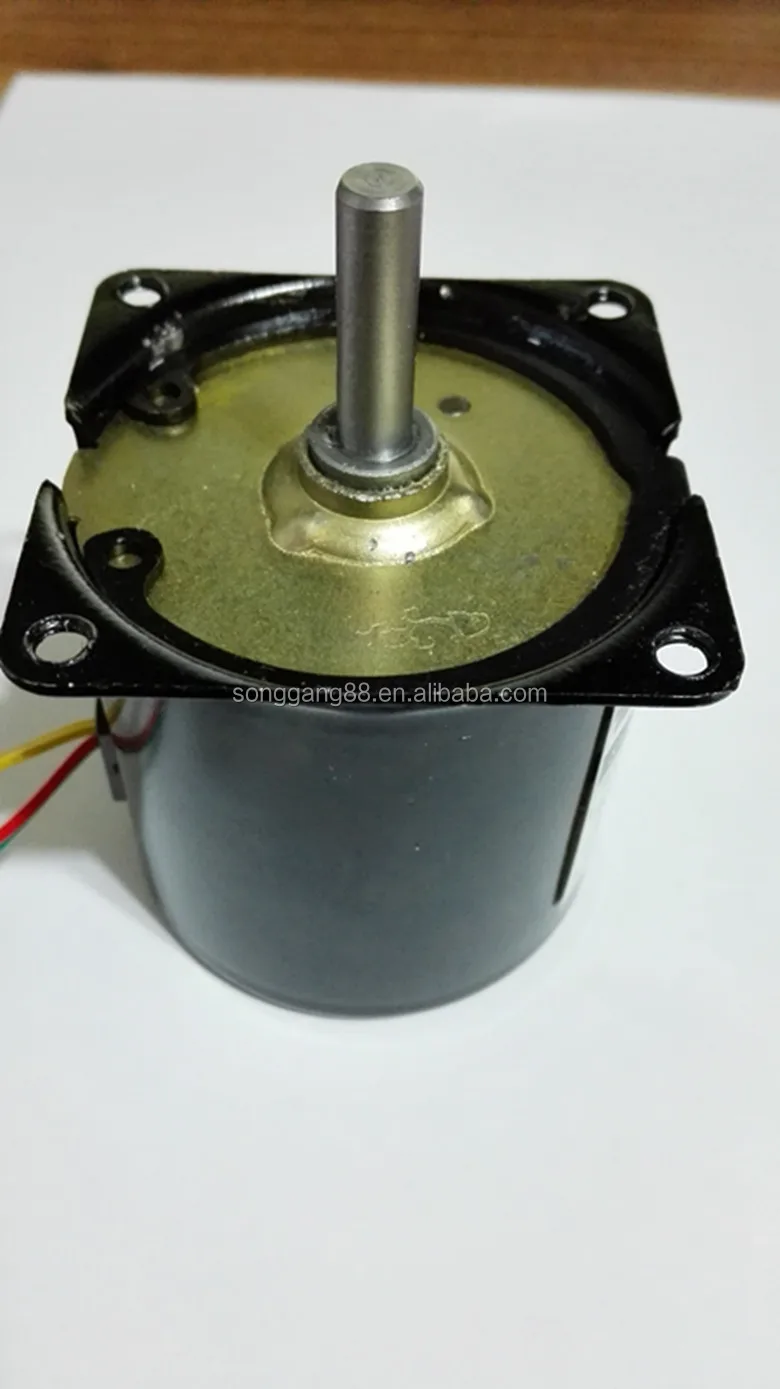

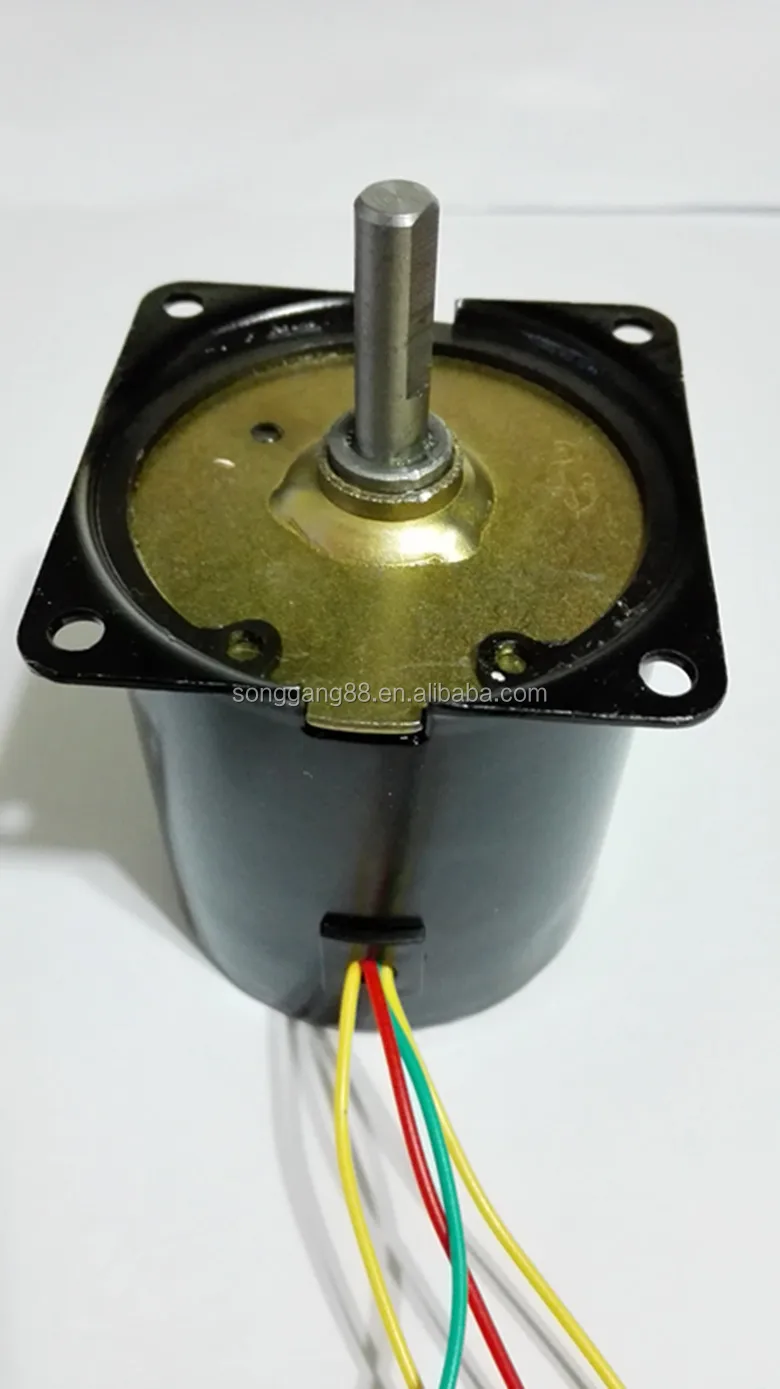

Introduction of Synchronous Reversible Motors 60ktyz/ SGTH-60

With over 20 years history in motor areas, Songgang is experienced in manufacturing and developing kinds of synchronous motors. Songgang's mission is to produce supreme quality and to offer our customer professional service. We are continously upgrading our facility and producing system to reach this goal. Our in-house facilities provide the versatility and capability to do a complete job for you and to serve you base on your requirements.

SGTH-60 is one of our most popular synchronous motor series in world with high life span, low noise, low temperature rise, high temperature insulation, high durable gears. Our customers is all over 30 countries, USA, UK, Germany, France, Indonesia, Malaysia, New Zealand...etc.

SGTH-60 can be widely used in Household Appliances,Microwave Oven,Oven,Heater,Blender, Advertising Light Box, Material Level Device,Timer, Oil Pump,Stage Light and so on.

Specifications can be made as customer's requirements:

• Rated Voltage: 12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC
• Power Frequency: 50/60Hz
• Input Power: 14 W-25W
• Output Speed: 0.8~ 60 RPM
• Rotation: CW, CCW, Free
• Rated Torque: 500 gm-cm ~ 10Kg-cm
• Operating Temperature: -10 ℃ ~ 60℃
• Insulation Strength: AC 1800V - 1 Min
• Insulation Class: A, B, F Class
• No Load Current: 20mA
• Noise: Less than 45dB
• Coil Temperature Rise: Less than 115K
• Insulation Resistant: 1000MΩ

Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( It would be better if you can offer us shaft drawing)
4. Torque on output shaft
5. Length of lead wire if you have requirements
