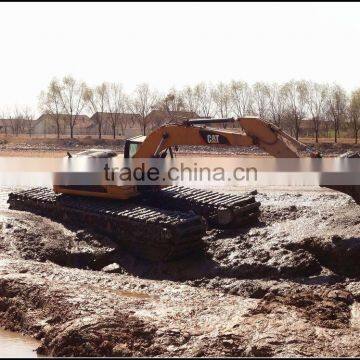

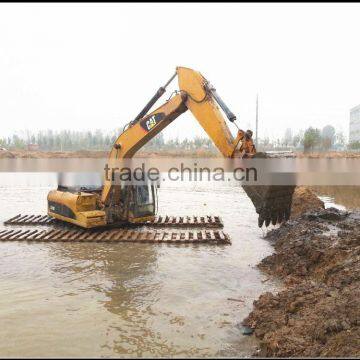

Help Center37Ton JYSL Swamp Excavator (cat324) , CE, EPA (JYSL-370-1)
Related Products
-
24Ton Cat Float Excavator (cat324) , CE, EPA (JYSL-370-1)NegotiableMOQ: 1 Set -
37Ton Cat JYSL Swamp Excavator (cat324) , CE, EPA (JYSL-370-1)NegotiableMOQ: 1 Set
-
JYFT-290 Floating Pontoon of Amphibious ExcavatorNegotiableMOQ: 1 Set
-
Long Arm , Long Boom , Amphibious Undercarriage Floating Excavator , JYSL-350-3NegotiableMOQ: 1 Set
-
Long Arm , Long Boom , PC220 Swamp Excavator , JYSL-350-3NegotiableMOQ: 1 Set
Specifications
1.Upper structure:24Ton2.Operating weight: 37Ton
3.Bucket: 1.1 -- 1.2 m3
4.Engine: 140Kw (C7)
5. Warranty: 2 year
We now have a stock DOOSAN DH215-9E Amphibious excavator (16M long arm) for sale at very competitive price. You can refer to the following web site to get more information.
http://www.china.cn/product-detail/Long-arm-AMPHIBIOUS-EXCAVATOR-Swamp-Excavator_1911088319.html
*******************************************************************************************************************************************
We are factory that mainly produce 6Ton to 55Ton JYSL brand amphibious excavator by assembling different brands and model excavator upper parts, like PC200, HITACHI ZX210, DH215, EX120,SH120.... Also, if you have crawler excavator, we can only produce amphibious undercarriage (steel pontoon) for you. Sincerely wish could have chances to do businss with you and welcome you to visit our factory!
APPLICATION of JYSL series amphibious excavator:
1.Deepening of canal, river channel and river mouth
2.Swamp land clearing at mining area, plantation and forest
3.Building bund for flood prevention and land reclamation
4.Building bund wall for fish and shimp ponds and salt making industry
5.Sludge clearing of lakes, ponds and water reservoir
6.Digging trenches for oil and gas piping installation
7.Transporting and clearing landslide and flood hit area
8.Swamps and wetlands construction
9.Road construction through wetlands.
TECHNICAL PERFORMANCE AND SPECIFICATION OF JYSL-370-1
| Engine | Engine model | CT Acert | |||
| Fuel | Diesel | ||||
| Displacement | 7.2 L | ||||
| Power | 140KW | ||||
| Turbo charged | YES | ||||
| Water-cooled | YES | ||||
| Fuel tank | 520L | ||||
| Hydraulic System | Flow rate of pump | 2 X 235 L / min | |||
| Circuit of working devices | 35000KP | ||||
| Circuit of walking | 35000KP | ||||
| Circuit of turning | 24500KP | ||||
| Swing speed | 10 -- 12 rpm | ||||
| Opeating Datas | Operating Weight | 37000 KG | |||
| Maximum Tractive effort | 227 KN | ||||
| Bucket capacity | 1.1 -- 1.2 M3 | ||||
| Walking speed | 7 KM / H (on land and swamp) 9 KM / H (on deep water) | ||||
| Max.Working depth (on water) | 3 Meter (not assembling stabilizers) 6 Meter (by assembling stabilizers) | ||||
Dimensions ( JYSL-370-1 ) |
mm |
|||
A |
Track length |
10000 |
||
B |
Ground contact length of tracks |
6600 |
||
C |
Tail swing radius |
2940 |
||
D |
Overall length |
11500 |
||
E |
Overall height (to the top of arm) |
3980 |
||
F |
Ground clearance of counter weight |
2025 |
||
H |
Overall width |
4940 |
||
I |
Track gauge |
3440 |
||
J |
Track width |
1500 |
||
K |
Ground clearance |
1140 |
||
L |
Track height |
1840 |
||
M |
Overall height (to the top of cab) |
3990 |
||
N |
Width of the top part |
2990 |
||
WORK PERFORMANCE
JYSL-350 Pump Amphibious Excavator
(JYSL-350-3 with 16M--18M long arm and 0.5CBM bucket )
( PRODUCTION WORKSHOP )
