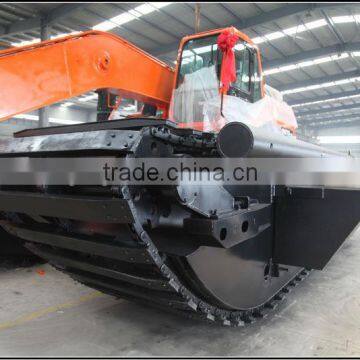

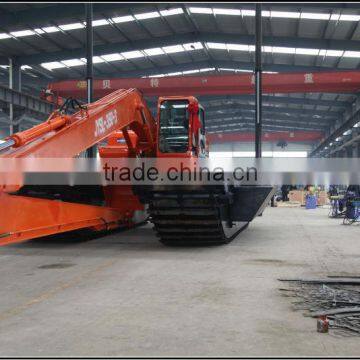

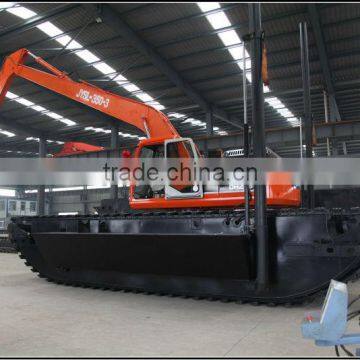

Help CenterWetland Excavator ,Model: JYSL-350-3
Related Products
-
Amphibous Excavator JYAE-30US$ 160,000 - 240,000MOQ: 1 Set -
Amphibious Excavator for Sale, Super Quality and Competitive PriceUS$ 41,000 - 43,000MOQ: 1 Set
-
Amphibious Undercarriages for Excavator Caterpilar Upper Structures, Various Ton Class, New and UsedUS$ 40,000 - 50,000MOQ: 1 Set
-
New Condition and Crawler Excavator Moving Type Swamp Buggy Undercarriage , Model: JYFT-170NegotiableMOQ: 1 Set
-
2015 NEW!! Amphibious Excavator for Sale, Model: JYSL-85NegotiableMOQ: 1 Set
Specifications
1.Famous upper part,eg: CAT, VOLVO,HITACHI...2.Q345B durable steel board. 3 Chains on each pontoon
4.1 year quality warranty
APPLICATION of JYSL series Wetland excavator:
1.Deepening of canal, river channel and river mouth
2.Swamp land clearing at mining area, plantation and forest
3.Building bund for flood prevention and land reclamation
4.Building bund wall for fish and shimp ponds and salt making industry
5.Sludge clearing of lakes, ponds and water reservoir
6.Digging trenches for oil and gas piping installation
7.Transporting and clearing landslide and flood hit area
8.Swamps and wetlands construction
9.Road construction through wetlands.
JYSL-350 LONG REACH WETLAND EXCAVATOR ( SWAMP DREDGER)
TECHNICAL PERFORMANCE AND SPECIFICATION OF JYSL-350
( Made of 20Ton class hydraulic excavators, like CAT320D,PC200,DH215,SK200…..)
| Engine | Engine model | Cummins 6BTA-5.9 ( Isuzu 6BG1TRP ) | |||
| Fuel | Diesel | ||||
| Number of Cylinders | 6 | ||||
| Number of strokes | 4 | ||||
| Capacity | 5.9L ( 6.494L) | ||||
| Power | 112KW (120KW) | ||||
| Turbo charged | YES | ||||
| Water-cooled | YES | ||||
| Fuel tank | 410L | ||||
| Hydraulic System | Flow rate of pump | 2 X 212 L / min | |||
| Circuit of working devices | 35000KP | ||||
| Circuit of walking | 35000KP | ||||
| Circuit of turning | 28000KP | ||||
| Swing speed | 12 rpm | ||||
| Hydraulic pump model | KPM K3V112DT | ||||
| Control valve model | Parker AV-280 | ||||
| Swing motor model | SUNJIN K250D | ||||
| Travel motor model | ETON JMV-147 | ||||
| Opeating Datas | Operating Weight | 22000KG | |||
| Maximum Tractive effort | 205KN | ||||
| Arm size | 16 Meter long reach arm | ||||
| Bucket capacity | 0.5M3 | ||||
| Walking speed | 7 KM / H (on land and swamp) 9 KM / H (on deep water) | ||||
| Max.Working depth (on water) | 2.5 Meter (not assembling stabilizers) 6.5 Meter (by assembling stabilizers) | ||||
Model |
Max. Digging Radius (M) |
Max. Digging Depth (M) |
Max. Digging Height (M) |
Max.Dumping Height (M) |
|
JYSL-350-1 (with standard arm and bucket) |
9.1 |
5.71 |
9.89 |
7.09 |
|
JYSL-350-2 (with 2M longer arm and standard bucket) |
10.99 |
7.7 |
11.04 |
8.7 |
|
JYSL-350-3 (with 16M long arm and 0.44M3 bucket) |
15.6 |
10.6 |
15.3 |
13.2 |
Dimensions (JYSL-350-1 and JYSL-350-2 ) |
mm |
|||
A |
Track length |
8700 |
||
B |
Ground contact length of tracks |
6600 |
||
C |
Tail swing radius |
2750 |
||
D |
Overall length |
10850 |
||
E |
Overall height (to the top of arm) |
3880 |
||
F |
Ground clearance of counter weight |
2025 |
||
H |
Overall width |
4940 |
||
I |
Track gauge |
3455 |
||
J |
Track width |
1500 |
||
K |
Ground clearance |
1140 |
||
L |
Track height |
1780 |
||
M |
Overall height (to the top of cab) |
3870 |
||
N |
Width of the top part |
2710 |
||
Dimensions ( JYSL-350-3 ) |
mm |
|||
A |
Track length |
9200 |
||
B |
Ground contact length of tracks |
6600 |
||
C |
Tail swing radius |
2750 |
||
D |
Overall length |
13500 |
||
E |
Overall height (to the top of arm) |
3880 |
||
F |
Ground clearance of counter weight |
2025 |
||
H |
Overall width |
4940 |
||
I |
Track gauge |
3455 |
||
J |
Track width |
1500 |
||
K |
Ground clearance |
1140 |
||
L |
Track height |
1780 |
||
M |
Overall height (to the top of cab) |
3870 |
||
N |
Width of the top part |
2710 |
||
WORK PERFORMANCE

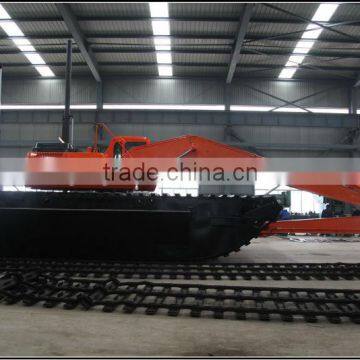

JYSL-350-3 with 16M--20M long arm and 0.5CBM bucket

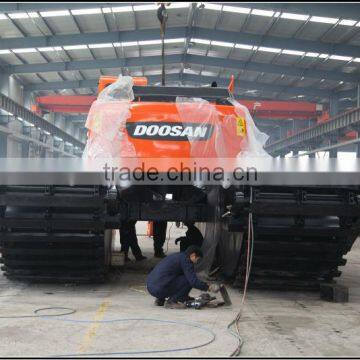

FLOATING PONTOON PRODUCTION WORKSHOP
Contact Person:
Mr. Liu Xin (Sales manager)
Tel: 0086-151 0543 9565
Skype: berry6181
Email: bzjinyi2006 (@)
