Customized Solid Lubricant Brass Graphite Bushing

Customized Solid Lubricant Brass Graphite Bushing photo-1
Customized Solid Lubricant Brass Graphite Bushing photo-2

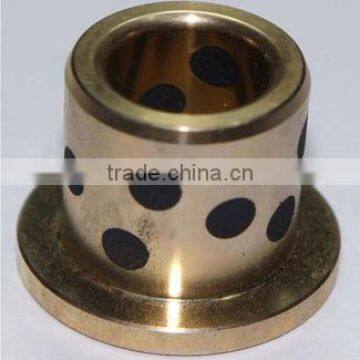

Customized Solid Lubricant Brass Graphite Bushing photo-3

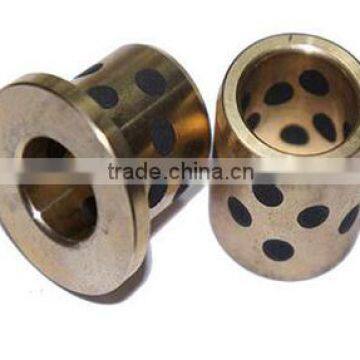

Customized Solid Lubricant Brass Graphite Bushing photo-4
Customized Solid Lubricant Brass Graphite Bushing photo-5

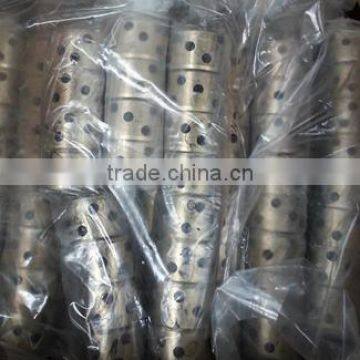

Customized Solid Lubricant Brass Graphite Bushing photo-6
US$ 0.1 - 8 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
JDB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number JDB
Type Other, Flanged/Sleeve
Material Bronze
Our company

We produce self-lubricating bushing (oilless bushing) since 2004.

Our factory located in Jiashan, Zhejiang and 30 employees with the building area of 1500 square meters.

Product Description
 Customized solid lubricant brass graphite bushingCustomized solid lubricant brass graphite bushing
 Customized solid lubricant brass graphite bushingCustomized solid lubricant brass graphite bushing

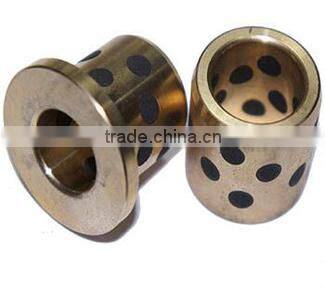

High quality customized Graphite bronze JDB BUSHING

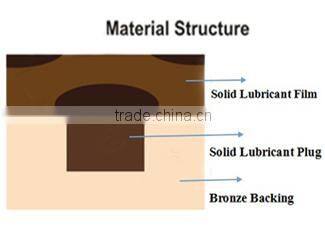

Self-lubricating bearing bushing use high grade metal alloys as their base material, insert graphite and grease during the process of friction, it will release solid lubricant and lubricant oil automatically .

Application

Used in injection molding, automobile mold, engineering machine, food machinery and water turbines.etc.



Metal Material



Corresponding brands/Type

SF-50

SF-51

SF-52

SF-53

SF-54

SF-55

China Brands GB1776-87

ZCuZn25

Al6Fe3Mn3

ZCuZn25

Al6Fe3Mn3

ZCuAl9Fe4

Ni4Mn2

GCr15

HT250

ZCuSn10

Zn2

International ISO1338

GCuZn25

Al6Fe3Mn3

GCuZn25

Al6Fe3Mn3

G-CuAl10

Fe3Ni5

B1

-------

GCuSn10

Zn2

Germany DIN

G-CuZn25

AI5

G-CuZn25

Al5

G-CuAl10

Ni

100Cr6

-------

G-CuSn10

Zn

Japan JIS

HBsC4

HBsC4

AIBC3

SUJ2

FC250

BC3

America ASTM/UNS

C86300

C86300

C95500

52100

Class40

C90500

England Standard

HTB2

HTB2

AB2

--------

--------

G1



Technical Data



performance index/Type

SF-50

SF-51

SF-52

SF-53

SF-54

SF-55

Max Move Load Capacity(N/mm²)

100

150

50

200

15

70

Max sliding Speed(m/min)

15

10

20

5

15

10

Max PV Value Limit(N/mm²·m/min)

200

200

200

150

40

200

Density(g/cm3 )

8.0

8.0

7.6

7.8

7.3

8.8

Tensile Strength(N/mm²)

>750

>780

>500

>1500

>250

>350

Elongation(%)

>12

>4

>10

-------

-------

>8

Hardness(HB)

>210

>250

>150

HRC>55

>160

>80

Max Working Temperature(°c)

300

300

400

300

400

400

Friction coefficient(µ)

Oil Lubrication:0.03   Dry Friction:0.16

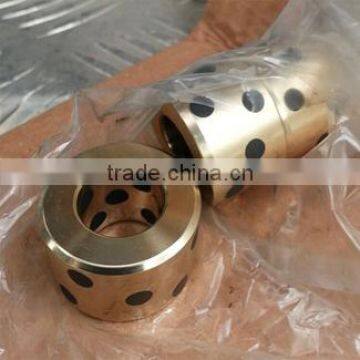

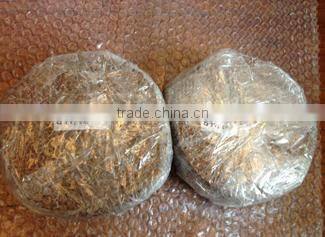

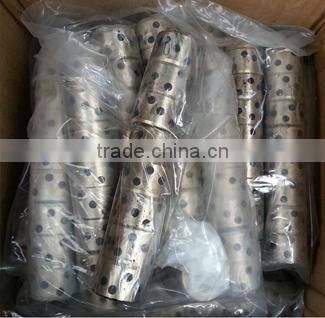

Packing&Shipping

Packing:

1.Anti-rust oil
2.Plastic films scroll
3.Plastic bag scroll
4.Cartons with label of goods information
5.Pallet for every 12ctns/24ctns/36ctns

Delivery:

23 days(General type 15 days),at Shanghai port

Customized solid lubricant brass graphite bushingCustomized solid lubricant brass graphite bushing
Customized solid lubricant brass graphite bushingCustomized solid lubricant brass graphite bushing
Our Services



Partner Services:

  • Product industry-related market investigation.
  • Providing office and sales staff as your branch in China.
  • Co-ordination of sales & marketing locally.
  • Organizing, monitoring and following up of attending in exhibitions.
  • Breakdown service case by case and general problem solving locally.

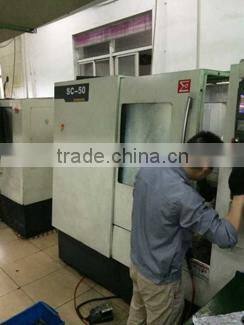

Our Factory
