Specifications
yellow zirconia ball is availableGrade: G5-G40
Size: 0.4-50.8mm
Shaanxi Dewin Technology Co., Ltd is dedicated to precise manufacture of advanced ceramic parts, providing high quality advanced ceramic products for customers all over the world and has experienced rapid development in this field for over 8 years .
We have a factory located in Shanghai, the area of 2000 m2 and the building area of 8000 m2.

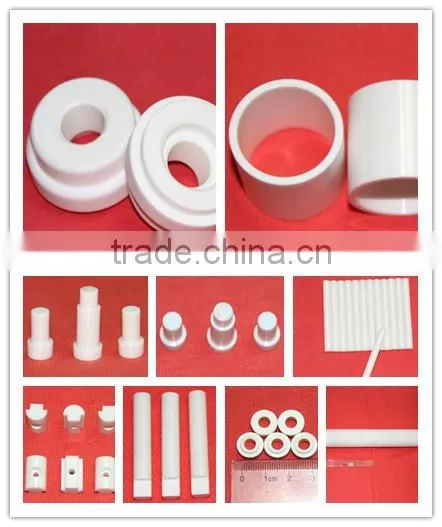

We have the whole process of ceramic manufacturing and precise machining. At present, our mainly product ceramic ball, ceramicbearing, ceramic ring, which are made from silicon nitride, zirconia, alumina or silicon carbide.
We also produce advanced ceramic parts to customer specification. We have an experienced engineer team to assist with customers’ special requirements. From prototype to production, our company will work with you to provide the optimum cost effective solution to your demanding applications.
Compared with steel ball, ZrO2 ball has following advantages:
1. 23% lighter than steel ball, which means less centrifugal force and less friction on the groove during high speed and acceleration.
2. Smaller friction coefficient, more freely rolling.
3. Can be used at higher temperature up to 750ºC.
4. Never rust, and can roll without lubrication.
5. More corrosion resistant than steel
6. No metal contamination.
7. Non-magnetic.
8. Electric isolation.

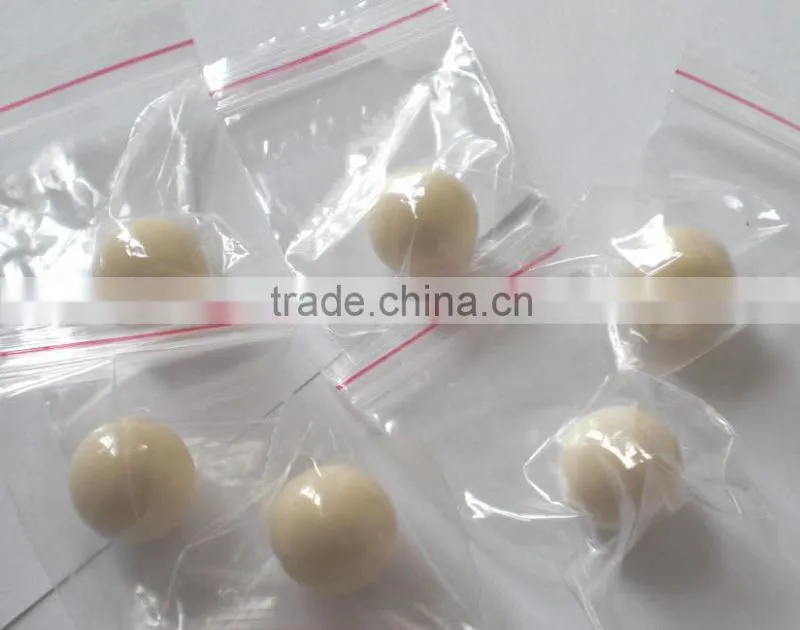

We can also produce yellow zirconia ceramic balls. Talk to me!
7.938mm G10
9.525mm G10

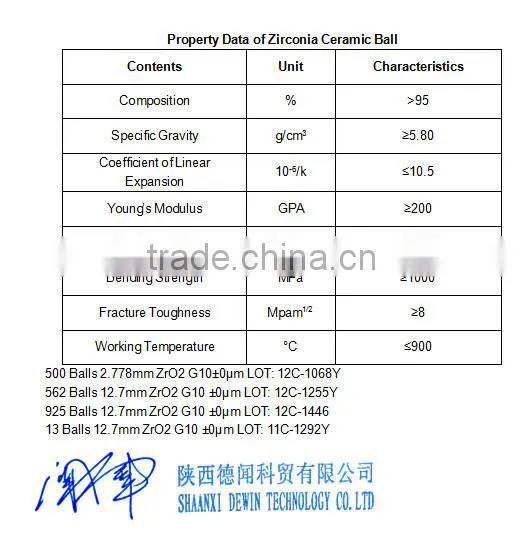

Technic Data

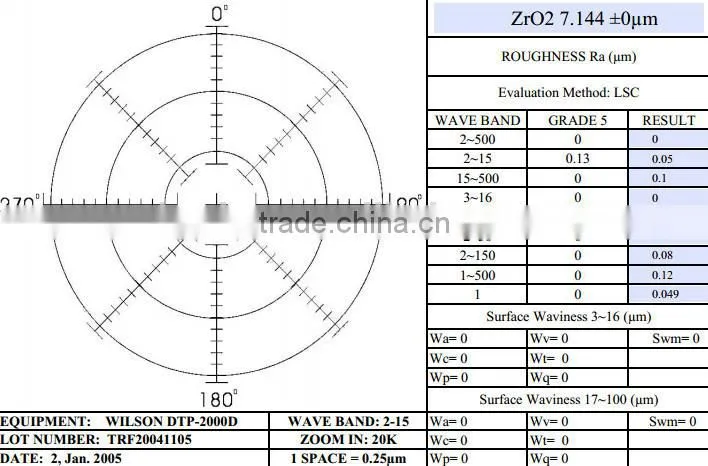

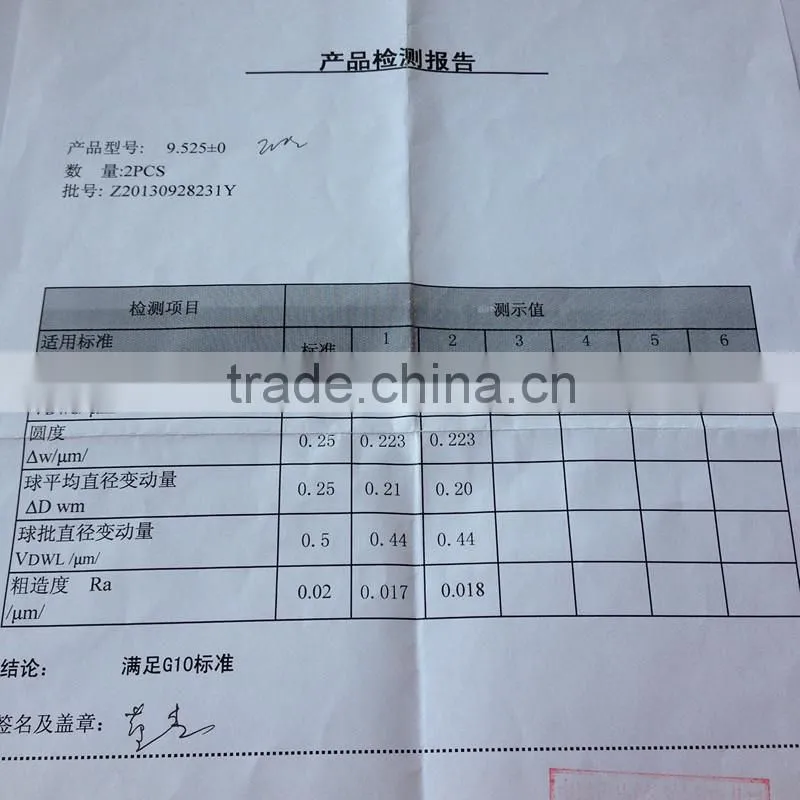

Lab Test
ZrO2 ball is mainly used for valve ball, full ceramic bearing, metering ball, track ball, and precision grinding ball; it can be used in fields requiring chemical resistance, high temperature, electronic insulation, magnetic insulation, non-lubrication. ZrO2 ball is an idea substitute for steel ball in chemical corrosion application. As valve ball, ZrO2 ball is now successfully used in high pressure homogenizer, diaphragm pump, metering pump, oil well pump, high pressure sprayer etc.
Note: 1) white color as standard, yellow ZrO2 ball could be supplied upon customer requirement.
2) plenty of stock.
3) non-standard size could be supplied.
4) thermal expansion coefficient of ZrO2 is 10.5*10-6/℃, similar to that of steel, which means ZrO2 has well fitting with metal. However, it also results in larger size change with temperature fluctuation. Also, ZrO2 fractures in rolling-failure, thus it is less stable than Si3N4 in key application.

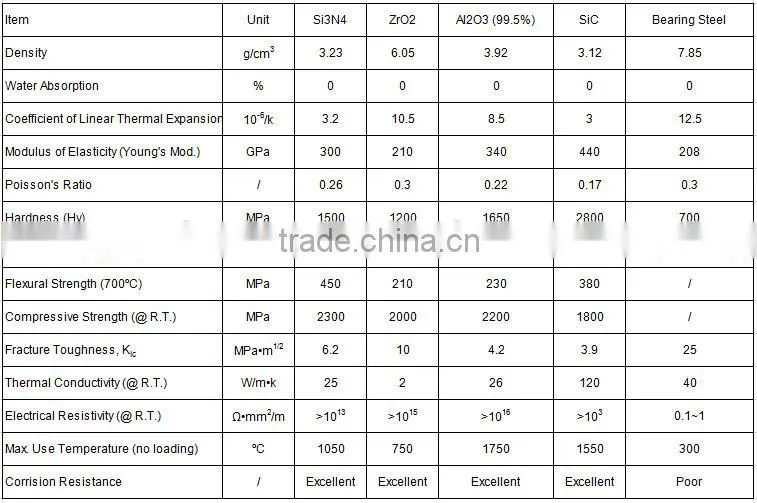

Comparision
Why do I choose you?
Profession and reliability. Everyone likes to talk big, but DEWIN choose to be honest with ourselves and customers. We get our passion like fire! Say what you say how you say it whenever you sayin' it.
Just remember how you said it when you was sprayin' it.
How to deal with quality problem?
When quality problem does show up, we will take our responsibility.
You will get help from beautiful ladies of our QC team.
New products will be prepared, as well as discount and secret gifts!
Besides, we have a PPAP of each shipment, so that we know which shipment goes bad. We will cut off production line to avoid more loss.
Can I get a discount?
Talk to us, you will get what you want!
Can I get free samples?
For standard and small-size products, of course we can provide free samples.
For other products, we can discuss about it.
Would you like to buy a ticket for the sample shipment?
What should I do if the products rusted in her trip?
-Oops! Unavoidable bad weather, the products may not look good.
Don’t worry, we will deal with it.
Do you like to serve clients with small orders?
Yes, we will do our best to meet your needs. Hope we can grow up together!
