Specifications
Al2O3 is 99.5%99.8% Al2O3 can also be supplied
size range: 1.588mm~100mm
grade: G16~G60
Shaanxi Dewin Technology Co., Ltd is dedicated to precise manufacture of advanced ceramic parts, providing high quality advanced ceramic products for customers all over the world and has experienced rapid development in this field for over 8 years .
We have a factory located in Shanghai, the area of 2000 m2 and the building area of 8000 m2.
We have the whole process of ceramic manufacturing and precise machining. At present, our mainly product ceramic ball, ceramic bearing, ceramic ring, which are made from silicon nitride, zirconia, alumina or silicon carbide.
We also produce advanced ceramic parts to customer specification. We have an experienced engineer team to assist with customers’ special requirements. From prototype to production, our company will work with you to provide the optimum cost effective solution to your demanding applications.
Company Feature: Al2O3 content is 99.5%; 99.8% Al2O3 can also be supplied.
Size Range: 1.588mm~100mm.
Grade: G16~G60.
Note: 1) plenty of stock.
2) non-standard size could be supplied.
3) fracture toughness is relatively lower.
4) Al2O3 ball is more suitable for low-end application.
5) Al2O3 ball is not suitable for application in HCl acid, HF acid and strong alkali.
G25 10.319mm Alumina ball
G20 15.875mm Alumina ball
G25 16mm Alumina ball
High strength
Good wearability
High rigidity
Corrosion resistance
High temperature resistance
Electrical insulation
Non-magnetic
Lighter weight
Longer lifetime
Compared with steel ball, Al2O3 ball has following advantages:
1. 50% lighter than steel ball, which means less centrifugal force and less friction on the groove during high speed and acceleration.
2. Smaller friction coefficient, more freely rolling.
3. Can be used at higher temperature up to 1750ºC.
4. Never rust, and can roll without lubrication.
5. More corrosion resistant than steel
6. No metal contamination.
7. Non-magnetic.
8. Electric isolation.
Al2O3 ball is anti-wear, heat-resistant, anti-oxidant, and corrosion resistant in salt solution and other chemicals. One feature of Al2O3 ball is its size remains unchanged up to 1100ºC. Al2O3 ball is mainly used for pump, valve and flow-meter.
Chemical composition |
90% Al2O3 ball |
99% Al2O3 ball |
99.5% Al2O3 ball |
Al2O3 |
>90% |
>99% |
>99.5% |
SiO2 |
<7% |
<0.2% |
<0.15% |
Fe2O3 |
<0.5% |
<0.1% |
<0.1% |
Na2O K2O |
<1.0% |
<1.0% |
<0.4% |
MgO CaO |
<1% |
<0.2% |
<0.2% |
Physical property
90% Al2O3 ball |
99%-1 Al2O3 ball |
99%-2 Al2O3 ball |
99.5% Al2O3 ball |
|||
Max working temp. |
1500℃ |
1500℃ |
1600℃ |
1600℃ |
||
Water absorption |
<5% |
<2-6% |
<1% |
<1% |
||
Specific gravity |
≥3.1g/cm3 |
≥3.3g/cm3 |
≥3.65g/cm3 |
≥3.68g/cm3 |
||
Mass density |
≤38mm |
1.8kg/L |
2.0kg/L |
2.0-2.16kg/L |
2.0-2.16kg/L |
|
50mm |
1.6-1.7kg/L |
1.9-2.0kg/L |
2.0kg/L |
2.0kg/L |
||
70mm |
1.6kg/L |
1.9kg/L |
1.9kg/L |
1.9kg/L |
||
Moh's hardness |
9 |
9 |
9 |
9 |
||
Impact resistance(fall from 6m high down to 25mm steel plate) |
pass |
pass |
pass |
pass |
||

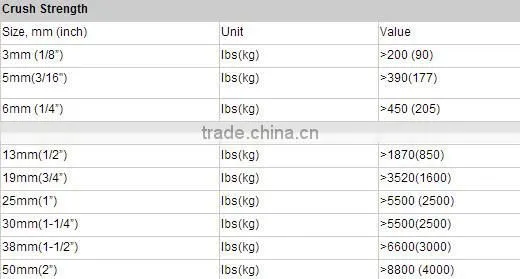

Compressive strength (kN) |
3mm |
0.4 |
0.5 |
0.6 |
0.6 |
|
6mm |
1.3 |
1.5 |
1.6 |
1.6 |
||
10mm |
5 |
6 |
6 |
6 |
||
13mm |
7 |
8 |
8 |
8 |
||
16mm |
15 |
9 |
13 |
13 |
||
19mm |
17 |
18 |
19 |
19 |
||
25mm |
22 |
20 |
22 |
22 |
||
38mm |
35 |
37 |
40 |
40 |
||
50mm |
40 |
42 |
45 |
45 |
||
76mm |
50 |
55 |
60 |
60 |
||

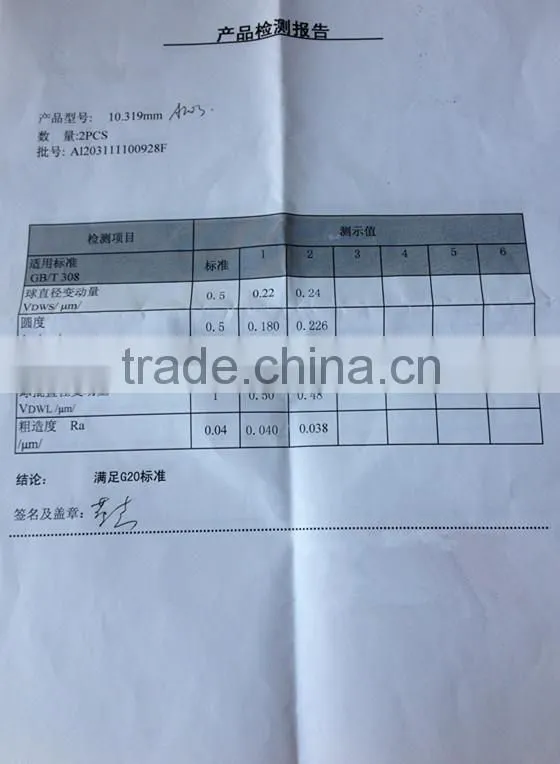

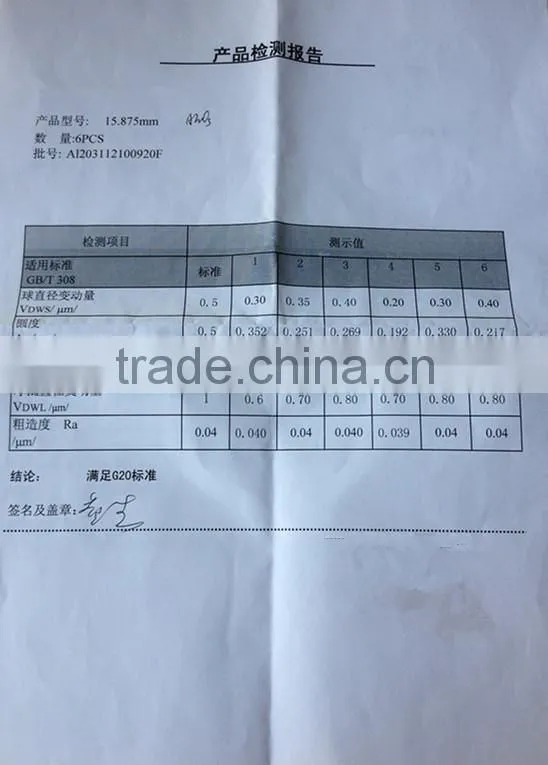

Lab Test

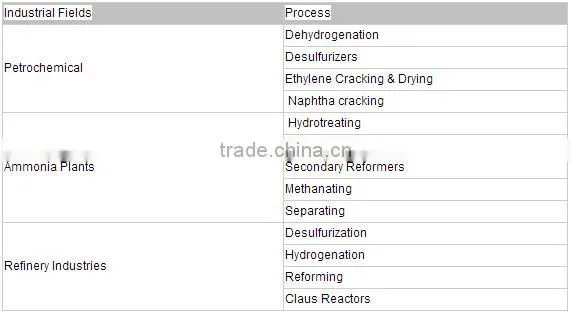

Application
