HELI Electric Forklift Motors , Electric Forklift
US$ 5,000 - 12,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shnaghai Qingdao Lianyugang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HELI New 1~3 Ton Forklift Electric, Battery Operated ForkliftUS$ 5,000 - 12,000MOQ: 1 Unit -
HELI New Forklift Truck Price CPCD30US$ 5,000 - 12,000MOQ: 1 Unit
-
HELI New Lpg Forklift , 3 Ton Forklift PriceUS$ 5,000 - 12,000MOQ: 1 Unit
-
HELI 3 Ton Forklift Specification CPCD30 3 Ton Portable ForkliftUS$ 5,000 - 12,000MOQ: 1 Unit
-
HELI Forklift Seat, Forklift ClampUS$ 5,000 - 12,000MOQ: 1 Unit
Condition
New
Place of Origin
Henan, China
Brand Name
HELI
Model Number
CPCD30
Type
Manual Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
3000
Max. Lifting Height
4270
Min. Lifting Height
220
Fork Length
1070
Fork Width
125
Overall Dimensions
2845*1480*4270
Certification
3C.ISO.TUV.CNAS.BV
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

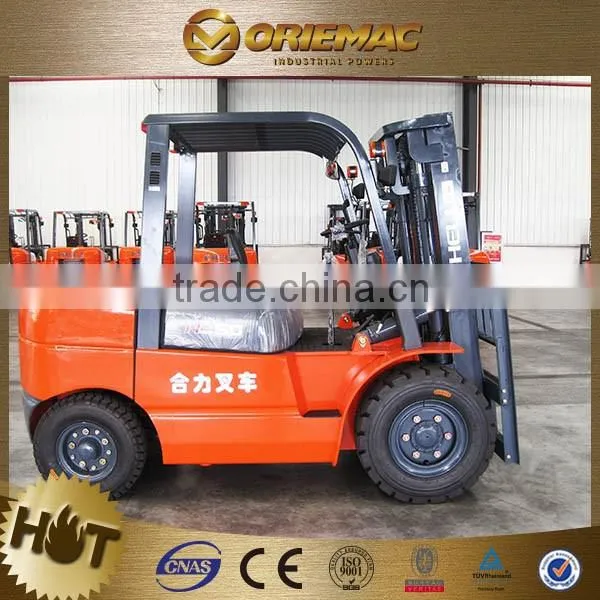

HELI electric forklift motors , electric forklift

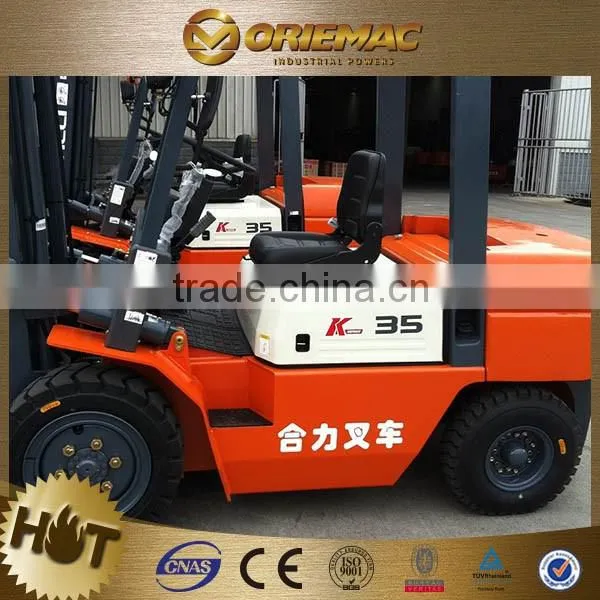

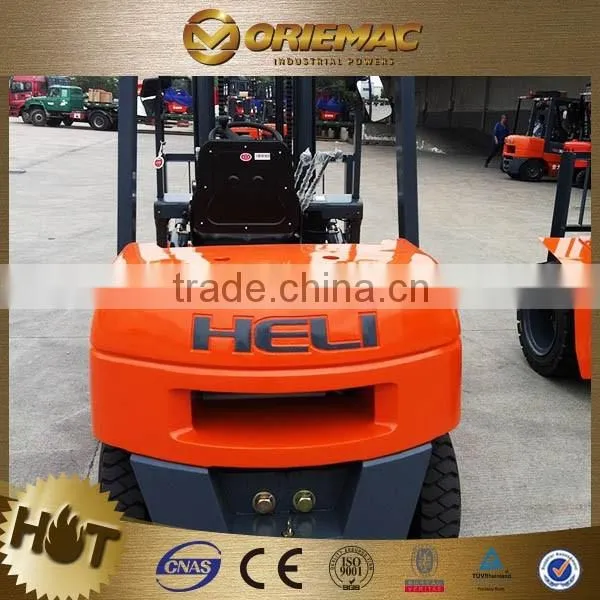

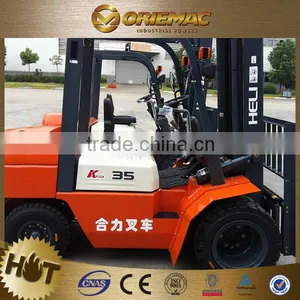

Diesel forklift truck with 3,000kg load capacity
Model Number: CPCD30
Equipped with China engine/Japanese engine,Hydraulic transmission with TCM-technology
Standard with 2-stage wide-view mast, lifting height is 3,000mm
Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.
Back-up buzze, rearview mirror, full set of lights and so on.
H2007 series 2.0-3.5T Diesel Forklift specification |
|||||||
| General | 1 | Model | CPCD30 | ||||
| 2 | Power type | Diesel | |||||
| 3 | Rated capacity | kg | 3000 | ||||
| 4 | Load center | mm | 500 | ||||
| 5 | Operator type | Seated | |||||
| 6 | Tyre type | Front/Rear | Pneumatic | ||||
| 7 | Number of wheels(X=driven)) | Front/Rear | 2 X /2 | ||||
| Dimensions | 8 | Lifting height | mm | 3000 | |||
| 9 | Free lift height | mm | 145 | ||||
| 10 | Fork size | LxWxT | mm | 1070x125x25 | |||
| 11 | Mast tilt range | F/R | 6/12 | ||||
| 12 | Overall Length(Without fork) | mm | 2698 | ||||
| 13 | Overall width | mm | 1225 | ||||
| 14 | Mast lowered height | mm | 2070 | ||||
| 15 | Mast extended height | mm | 4250 | ||||
| 16 | Overhead guard height | mm | 2090 | ||||
| 17 | Turning radius(Outside) | mm | 2400 | ||||
| 18 | Fork overhang(Wheel center to fork face) | mm | 498 | ||||
| 19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2885 | ||||
| 20 | Wheelbase | mm | 1700 | ||||
| 21 | Tread | Front | mm | 1000 | |||
| 22 | Rear | mm | 970 | ||||
| 23 | Ground clearance | Lowest | mm | 135 | |||
| 24 | Wheel base center | mm | 140 | ||||
| Performance | 25 | Speed | Travel | Full load | km/h | 18 | |
| 26 | No load | km/h | 19.5 | ||||
| 27 | Lifting | Full load | mm/s | 450 | |||
| 28 | No load | mm/s | 500 | ||||
| 29 | Lowering | Full load | mm/s | 450 | |||
| 30 | No load | mm/s | 500 | ||||
| 31 | Max.Drawbar Pull | Full load/No load | kg | 1100/1000 | 1350/1000 | ||
| 32 | |||||||
| 33 | Max.Gradeability | Full load/No load | % | 15/18 | 19/20 | ||
| Weight | 34 | Self weight | kg | 4280 | |||
| 35 | Wheel distribution | Full load | Front | kg | 6455 | ||
| 36 | Rear | kg | 825 | ||||
| 37 | No load | Front | kg | 1720 | |||
| 38 | Rear | kg | 2560 | ||||
| Wheels | 39 | Tyres | Spec | Front | 28*9-15-12PR | ||
| 40 | Rear | 6.50-10-10PR | |||||
| B rake | 41 | Brake type | Driving brake | Hydraulic | |||
| 42 | Parking brake | Mechanical hand brake | |||||
| 43 | Battery | Voltage/Capacity | V/AH | 12/100 | |||
| 44 | Transmission | Model type | Powershift (Manual) | ||||
| 45 | Stage | FWD/RVS | 1/1 (2/2) | ||||
| 46 | Operating pressure | Mpa | 17.5 | ||||
| 47 | Fuel tank capacity | L | 70 | ||||
| Power & Transmission | 48 | Engine | Model | ISUZUC240-PKJ30 | |||
| (EUIII) | |||||||
| 49 | Rated output/r.p.m | Kw | 34.6 | ||||
| /rpm | 2500 | ||||||
| 50 | Rated torque/r.p.m | N.m | 139 | ||||
| /rpm | 1800 | ||||||
| 51 | No.of cylinder | 4 | |||||
| 52 | BorexStroke | mm | 86x102 | ||||
| 53 | Displacement | L | 2.369 | ||||
