Professional Offer CHANGLIN ZL50H Various Model Front End Loader

Name: Professional Offer CHANGLIN ZL50H Various Model Front End Loader
Brand: changlin
SKU: 123216565
Availability: InStock

US$ 30,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

changlin

Model Number:

ZL50H

Shanghai Oriemac Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name changlin

Model Number ZL50H

Place of Origin Hunan, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8365*2946*3450 mm

Rated Load 5.0TON

Certification ISO,CE

Warranty 1year changlin ZL50h

After-sales Service Provided Engineers available to service machinery overseas

Professional offer CHANGLIN ZL50H Various Model front end loader

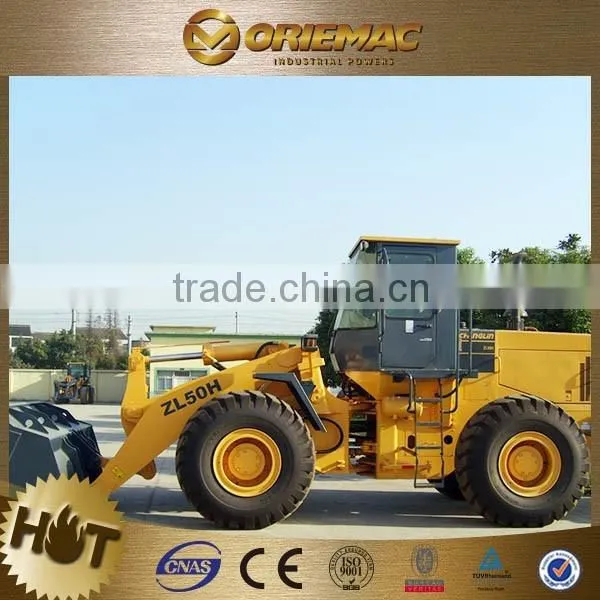

CHANGLIN wheel loader ZL50H
4 wheel drive,
Powerful diesel engine,
Low noise
Combined seal cylinder obtains high seal per

Equipped with reliable C 6121 manufactured in Shanghai or Original engine made in UK

3 forward & 3 reverse power shift transmission

Bucket automatic leveling ability for option

Combined seal cylinder obtains high seal performance and more reliability

Main Technical Specification
1		Rated load		5000(Kg)
2		Operating weight		16300KG
3		Rated bucket capacity		3.0(m3)
4		Max. breakout force		160kN
5		Max. dump clearance		3050(mm)
6		Dump reach		1190(mm)
7		Dump angle at any position		≥450
8		Digging depth(with bucket bottom horizontal)		165(mm)
9		Min. turning radius
		(1) Outside of bucket		6675(mm)
		(2) Outside of rear wheel		5879(mm)
10		Pivot angle frame		400
11		Oscillating angle of rear axle		+120
12		Lifting time of bucket		≤5.8(sec.)
13		Lowering time of bucket		≤3.8(sec.)
14		Dumping time		≤1.2(sec.)
15		Traveling speed(Km/h), 3 forward and 3 reverse
		(1) 1st gear		7.05/9.0
		(2) 2nd gear		11.7/16.0
		(3) 3rd gear		34.6/38.24
Diesel engine
1	Model		6CTAA8.3-C215 Tire II	3306B technology Engine C6121
2	Type		Direct injection. Turbocharge. Water cooling
3	Rated output		160 (kW)	158(Kw)
4	Inter-bore of cylinder/stroke		114/135 (mm)	121/152(mm)
5	Total exhaust of cylinder		8.3 (L)	9.7260(L)
6	Model of starting motor		42MT	KB-24V
7	Power of start motor		8.2(KW)	7.5(KW)
8	Voltage of starting motor		24(V)	24(V)
9	Rated speed		2200(r/min)	2200(r/min.)
10	Max. Torque		998(N.M)	>843(N.m)
11	Starting type		Electric	Electric
12	Min. specific fuel consumption		207(g/Kw.h)	<235(g/Kw.h)
13	Oil consumption		0.9-1.6(g/Kw.h)	0.95-1.77(g/Kw.h)
