Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > DIN17175 Boiler Seamless Steel Pipe
US$ 600 - 1,000
MOQ: 10 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
2.5, 50
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Thickness
2.5, 50
Section Shape
Round
Outer Diameter
0.5 - 24 inch
Place of Origin
Shandong, China
Secondary Or Not
Non-secondary
Application
Boiler Pipe
Technique
Hot Rolled
Certification
Other, Din
Surface Treatment
Other, factory state or as requested
Alloy Or Not
Non-alloy

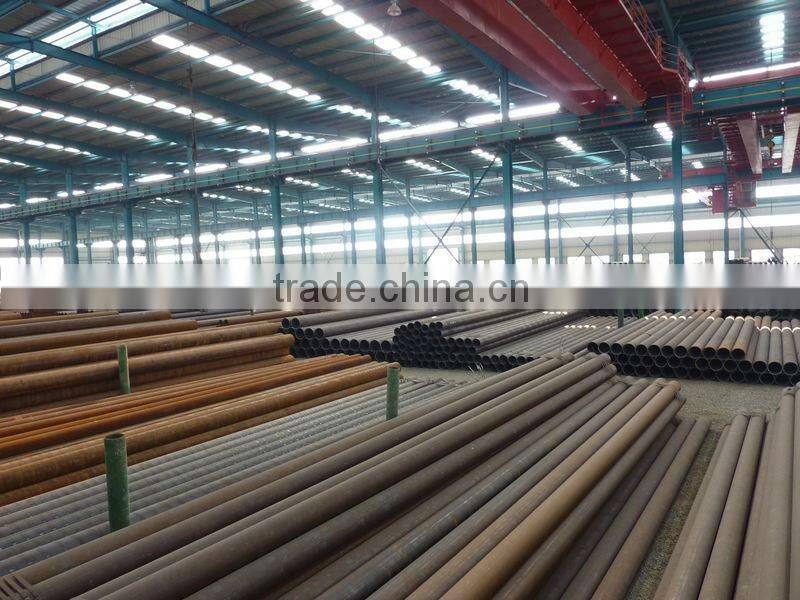

DIN17175 boiler seamless steel pipe
Seamless steel pipe outside diameter, wall thickness and theoretical weights.
| NPS(inch) | OD(mm) | SCH20 | SCH30 | STD | SCH40 | SCH60 | SCH80 | SCH100 | SCH120 | SCH140 | |
| 1/8 | 10.3 | WT | 1.73 | 1.73 | 2.41 | ||||||
| Kg/m | 0.37 | 0.37 | 0.47 | ||||||||
| 1/4 | 13.7 | WT | 2.24 | 0.63 | 3.02 | ||||||
| Kg/m | 2.24 | 0.63 | 0.8 | ||||||||
| 3/8 | 17.1 | WT | 2.31 | 2.31 | 3.2 | ||||||
| Kg/m | 0.84 | 0.84 | 1.1 | ||||||||
| 1/2 | 21.3 | WT | 2.03 | 2.77 | 2.77 | 3.73 | |||||
| Kg/m | 0.96 | 1.27 | 1.27 | 1.62 | |||||||
| 3/4 | 26.7 | WT | 2.31 | 2.87 | 2.87 | 3.91 | |||||
| Kg/m | 1.39 | 1.69 | 1.69 | 2.2 | |||||||
| 1/1 | 33.4 | WT | 2.62 | 3.38 | 3.38 | 4.55 | |||||
| Kg/m | 1.99 | 2.5 | 2.5 | 3.24 | |||||||
| 1+1/4 | 42.2 | WT | 2.87 | 3.56 | 3.56 | 4.85 | |||||
| Kg/m | 2.78 | 3.39 | 3.39 | 4.47 | |||||||
| 1+1/2 | 48.3 | WT | 2.92 | 3.68 | 3.68 | 5.08 | |||||
| Kg/m | 3.27 | 4.05 | 4.05 | 5.41 | |||||||
| 2 | 60.3 | WT | 3.2 | 3.91 | 3.91 | 5.54 | |||||
| Kg/m | 4.51 | 5.44 | 5.44 | 7.48 | |||||||
| 2+1/2 | 73 | WT | 4.5 | 5.16 | 5.16 | 7.01 | |||||
| Kg/m | 7.6 | 8.63 | 8.63 | 11.4 | |||||||
| 3 | 88.9 | WT | 4.58 | 5.49 | 5.49 | 7.63 | |||||
| Kg/m | 9.52 | 11.3 | 11.3 | 15.3 | |||||||
| 3+1/2 | 102 | WT | 4.62 | 5.74 | 5.74 | 8.08 | |||||
| Kg/m | 11.09 | 13.6 | 13.6 | 18.6 | |||||||
| 4 | 114 | WT | 5.03 | 6.02 | 6.02 | 8.56 | 11.1 | ||||
| Kg/m | 13.52 | 16.1 | 16.1 | 22.3 | 28.3 | ||||||
| 5 | 141 | WT | 5.25 | 5.61 | 6.55 | 6.55 | 9.53 | 12.7 | |||
| Kg/m | 17.57 | 18.73 | 21.8 | 21.8 | 31 | 40.3 | |||||
| 6 | 168 | WT | 5.64 | 6.32 | 7.11 | 7.11 | 11 | 14.3 | |||
| Kg/m | 22.58 | 25.2 | 28.3 | 28.3 | 42.6 | 54.2 | |||||
| 8 | 219 | WT | 6.31 | 7.11 | 8.18 | 8.18 | 10.3 | 12.7 | 15.1 | 18.3 | 20.6 |
| Kg/m | 33.1 | 37.15 | 42.6 | 42.5 | 53.1 | 64.6 | 75.9 | 90.4 | 101 | ||
| 10 | 273 | WT | 6.58 | 8.03 | 9.27 | 9.27 | 12.7 | 15.1 | 18.3 | 21.4 | 25.4 |
| Kg/m | 43.23 | 52.47 | 60.3 | 60.3 | 81.5 | 96 | 115 | 133 | 155 | ||
| 12 | 324 | WT | 7.11 | 8.81 | 9.53 | 9.53 | 14.3 | 17.5 | 21.4 | 25.4 | 28.6 |
| Kg/m | 55.56 | 68.48 | 73.9 | 73.9 | 109 | 132 | 160 | 187 | 208 | ||
| 14 | 356 | WT | 8.02 | 10 | 9.53 | 9.53 | 15.1 | 19.1 | 23.8 | 27.8 | 31.8 |
| Kg/m | 68.82 | 85.32 | 81.3 | 81.3 | 127 | 158 | 195 | 225 | 254 | ||
| 16 | 406 | WT | 8.78 | 11.3 | 9.53 | 9.53 | 16.7 | 21.4 | 26.2 | 31 | 36.5 |
| Kg/m | 86 | 109.99 | 93.3 | 93.3 | 160 | 204 | 246 | 287 | 333 |
| standard | Grade of steel | Chemical composition | Mechanical property | ||||||||
| C | Si | Mn | P | S | Cr | Mo | tensile strength(Mpa) | yield strength(Mpa) | elongation(%) | ||
| DIN17175 | St35.8 | <=0.17 | 0.10-0.35 | 0.40-0.80 | <=0.030 | <=0.030 | 360-480 | >=235 | >=25 | ||
| St45.8/||| | <=0.21 | 0.10-0.35 | 0.40-1.20 | <=0.030 | <=0.030 | 410-530 | >=255 | >=21 | |||
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | <=0.030 | <=0.030 | 0.25-0.35 | 460-600 | >=270 | >=20 | ||
| 13CrMo44 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | <=0.030 | <=0.030 | 0.17-1.10 | 0.45-0.65 | 440-590 | >=290 | >=20 | |
| 10CrMo910 | 0.08-0.15 | 0.10-0.35 | 0.40-0.70 | <=0.030 | <=0.030 | 2.00-2.50 | 0.90-1.20 | 450-600 | >=280 | >=18 | |
