Home > Electrical & Electronics > Sensor > Pressure Sensor > ES-P28B Wall-mounted Motion Detector Sensor Switch/Infrared Detector Switch

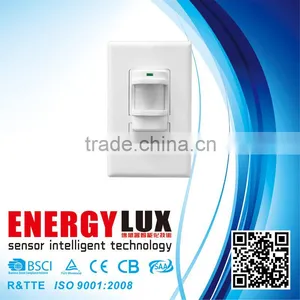

ES-P28B Wall-mounted Motion Detector Sensor Switch/Infrared Detector Switch

Name: ES-P28B Wall-mounted Motion Detector Sensor Switch/Infrared Detector Switch
Brand: Energylux
SKU: 123206261
Availability: InStock

ES-P28B Wall-mounted Motion Detector Sensor Switch/Infrared Detector Switch thumbnail-1

ES-P28B Wall-mounted Motion Detector Sensor Switch/Infrared Detector Switch photo-1

US$ 1 - 4 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Energylux

Model Number:

ES-P28B

Contact Supplier Request Quote Chat Now

Ningbo Energylux Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Energylux

Model Number ES-P28B

Usage Speed Sensor

Theory Inductance Sensor

Output Switching Transducer

Product Description

ES-P28B Wall-mounted motion detector sensor switch/Infrared detector switch

ES-P28B is a new energy-saving lighting switch, it adopts high sensitivity detector, MCU control, controllable Silicon and SMT; It gathers automatic, convenient, safety and practical functions; The wide detection range is made up of the up and down, left and right service field; It utilizes the infrared energy from Human Body as the control-signal source, When one enters the detection field, it will start the controlled load; It can identify day and night automatically; Its installation is convenient and its range is wide; It has the functions of the power indication and the detection indication.

Specifications

MODEL	ES-P28B
DETECTION RANGE	9M
DETECTION ANGLE	180°
POWER FREQUENCY	50/60HZ
RATED LOAD	800W(220-240V/AC)
TIME SETTING	10Sec-7Min(adjustable)
WORKING HUMIDITY	<93%RH
WORK TEMPERATURE	-10°C~+40°C
INSTALLING HEIGHT	2m-4.5m

Packaging & Shipping

PACKAGING DETIAL	one gift box per piece, 100pcs one carton(adjustable)	By sea/air(avaible)
N.W/G.W(KGS)	10.8/12.4
PACKING SIZE(CM)	51.54727.5cm

FUNCTION:

Ø Can identify day and night: the consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “Lux” Max position. It can work in the ambient light less than 3 lux when it is adjusted on the Min position. As for the adjustment pattern. Please refer to the resting pattern.
Ø Time-delay is added continually: When it receives the second induction signals after the first induction, it will restart to time from the moment.
Ø Time-delay adjustment: It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.
Ø The switch: The switch is “ON”,“OFF”,“AUTO”.

INSTALLATION: (see the diagram)

Ø Screw off two nails on the faceplate and unload the faceplate
Ø Unload the small cover directly and adjust the time and lux knob
Ø Loose the screws in the connection terminal, and then connect the power to connection terminal of sensor according to connection-wire diagram
Ø Install the sensor in rectangle hole, fix the screw through the mounting hole
Ø Install back the small cover and faceplate, switch on the power and then test it.
