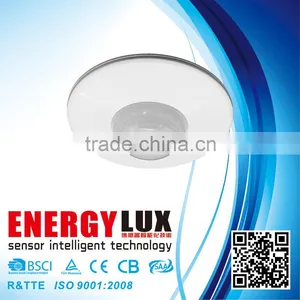

ES-P26C LIGHT CONTROL SWITCH / PIR MOTION SENSOR/PIR Detector Switch

Name: ES-P26C LIGHT CONTROL SWITCH / PIR MOTION SENSOR/PIR Detector Switch
Brand: Energylux
SKU: 123206367
Availability: InStock

US$ 1 - 4 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Energylux

Model Number:

ES-P26C

Ningbo Energylux Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Energylux

Model Number ES-P26C

Usage Other, light sensor

Theory Other, infrared detector

Output Switching Transducer

Product Description

ES-P26C LIGHT CONTROL SWITCH / PIR MOTION SENSOR/PIR detector switch

Product details-----ES-P26C Motion sensor

FUNCTION:

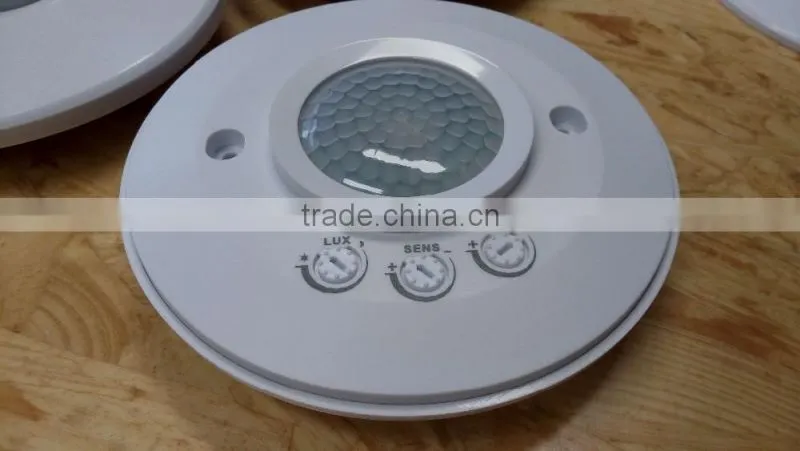

Ø Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
Ø Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.

INSTALLATIION (see the diagram)

Ø Switch off the power.
Ø Please move the upper cover with anti-clockwise whirl as per the diagram in the crust.
Ø Fix the bottom on the selected position with the inflated screw

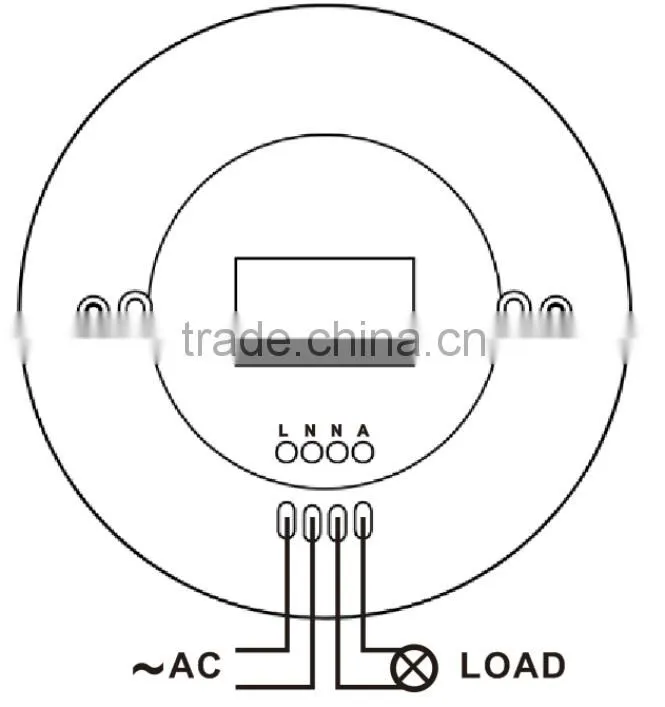

Ø Connecting the power and the load to sensor as per the connection-wire sketch diagram.
Ø Buttoning the upper cover on the sensor, whirling the cover with clockwise, then you could switch on the power and test it.
