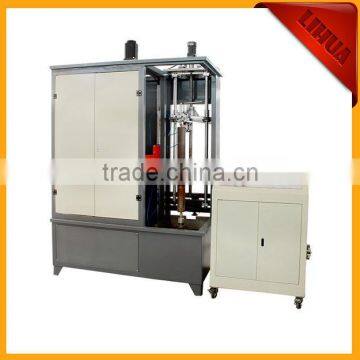

Customized one station CNC vertical hardening equipment

Specifications

CNC hardening equipment
1,easy operation
2,high efficiency
3,easy to maintenance
4,energy saving

Quenching machine tool

Mainly by the quenching machine, medium frequency power supply ( high frequency power, ultrasonic frequency power source, ultra-high frequency power ), cooling device of three parts; wherein the high frequency quenching machine consists of a machine body, upper and lower loading and clamping mechanism, a clamping and rotating mechanism, the quenching transformer and resonant tank, cooling system, quenching liquid circulation system, electrical control system, quenching the machine is generally a single-station ( small diameter workpiece can be used when the double-station quenching machine ); quenching machine from the structure with vertical and horizontal two categories, users can choose according to quenching quenching machine tool, for special parts or special technology, according to the heating requirements of design and manufacture of special quenching machine tool. Use by quenching machine tool and medium frequency power supply ( high frequency power, ultrasonic frequency power source, ultra-high frequency power), achieved by PLC program control of induction hardening process, commonly
used in gear, bearing, shaft parts, valve, cylinder and all kinds of mechanical parts quenching and heat treatment.

Common quenching device type

The outer circle quenching series: on all types of shaft, rod, tube, the circular parts ( such as bearings, valves etc.)
the outer circle surface of whole or partial quenching.

Inner circle quenching series: various types of pipes, mechanical parts of the inner circle for the whole or partial
quenching, such as cylinder, shaft sleeve.

Terminal (End), surface quenching series: on the mechanical parts of the face, flat part of whole or partial quenching.

The special-shaped parts quenching series: for special-shaped parts of the surface of a whole or partial quenching.

Large parts quenching series: large volume,heavy especially big parts of the whole or partial quenching, such as marinegear, dam sluice rail, large oil pipeline etc..

Die quenching series: mould surface induction quenching machine tool is applicable to a large automobile panel die and largenon-circular space curved surface parts of the heat treatment of the numericalcontrol technology and equipment
