K23JD Manual Operated 2 Way Direct Acting Solenoid Directional Control Valve

Name: K23JD Manual Operated 2 Way Direct Acting Solenoid Directional Control Valve
Brand: MIDCOOL
Availability: InStock

FOB Price

US$ 1 - 1,000 / Piece

1 Piece(Min. Order)

Port Ningbo or Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Control
Pressure	Medium Pressure	Power	Pneumatic
Material	Alloy	Temperature of Media	Medium Temperature
Media	Gas	Port Size	G1/2
Place of Origin	Zhejiang, China	Model Number	K23JD, K23JD series
Brand Name	MIDCOOL

Product Description

Specifications

K23JD manual operated 2 way direct acting solenoid directional control valve
1.K23JD series
petitive price
3.100% new

K23JD manual operated 2 way direct acting solenoid directional control valve

manual operated directional control valve

-----------------------------------------------------------------------------

1.Features

The valve is an axial seal stop reversal valve. The 'normal closed' and 'normal open' are its two structural style.Its request of air cleaning is low, and its capacity of resisting the dust is strong. It's widely used for control single acting air cylinder and diaphragm cylinder and so on. It's also used in program control circle. If the gas vent is stopped up, it's changed to 2-position 2-way switch valve.

2.Symbol

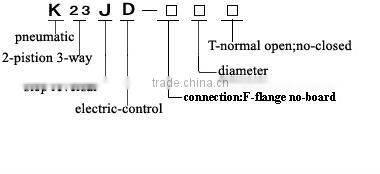

3.Model code

4.Parameter

model		K23JD-6(T)	K23JD-8(T)	K23JD-10(T)	K23JD-15(T)	K23JD-20(T)	K23JD-20(T)	K23JD-F32(T)	K23JD-F40(T)	K23JD-F50(T)

diameter mm		6	8	10	15	20	25	32	40	50
medium		compressed air
pressure range MPa		0.2--0.8
medium temperature °C		5--50
enviroment temperature°C		5--50
exchang time S		<=0.04		<=0.06		<=0.10		<=0.30		<=0.40
exchange frequency Hz		>=6		>=4		>=2		>=1		>=0.5
effective area>=mm²		10	20	40	60	110	190	300	400	650
leakage Nml/min		50		100		200		300		300
viltage		AC:220; 36 DC:24; 12
allow voltage fluctuation		10-- -15
min working frequency(pcs/day)		1/30
diameter of pilot silenoid valve(mm)		1.2		2		3
power consumption(W)	AC	12		15		28
	DC	6		8		10
life>=(ten thousands)		150

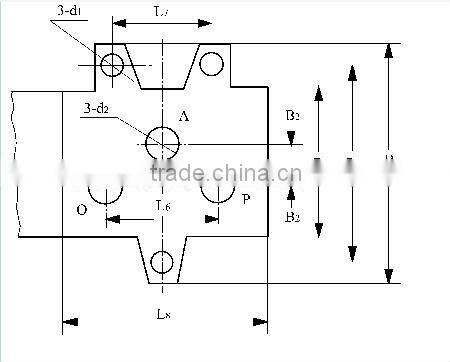

5.Appearance and installing

K-direction view after taking off valve's board

model	d		L1	L2	L3	L4	L5	B	B1	H	H1	H2	H3	L6	L7	L8	B2	B3	B4	d1	d2
K23JD-6(T)	G1/8	M10*1	68	88	28	25		58	7	144	6	14	28	28	25	50		36	48	5	8
K23JD-8(T)	G1/4	M12*1.25
K23JD-10(T)	G3/8	M16*1.5	86	121	40	33		64	7	169	10	19	38	40	40	74	6	40	52	6	15
K23JD-15(T)	G1/2	M20*1.5
K23JD-20(T)	G3/4	M27*2	130	180	60	52		100	11	216	12	30	55	66	66	118	10	65	84	9	25
K23JD-25(T)	G1	M33*2
K23JD-F32(T)	G11/4	M42*2	80	40	80	215	217.8			191.5	52.5
K23JD-F40(T)	G11/2	M48*2
K23JD-F50(T)	G2	M60*2	101	56	90	265	256.8			216	65

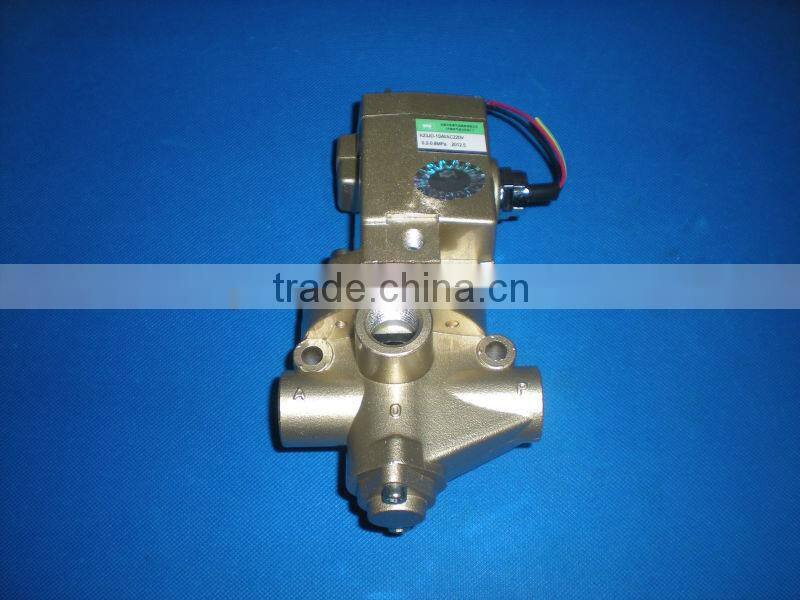

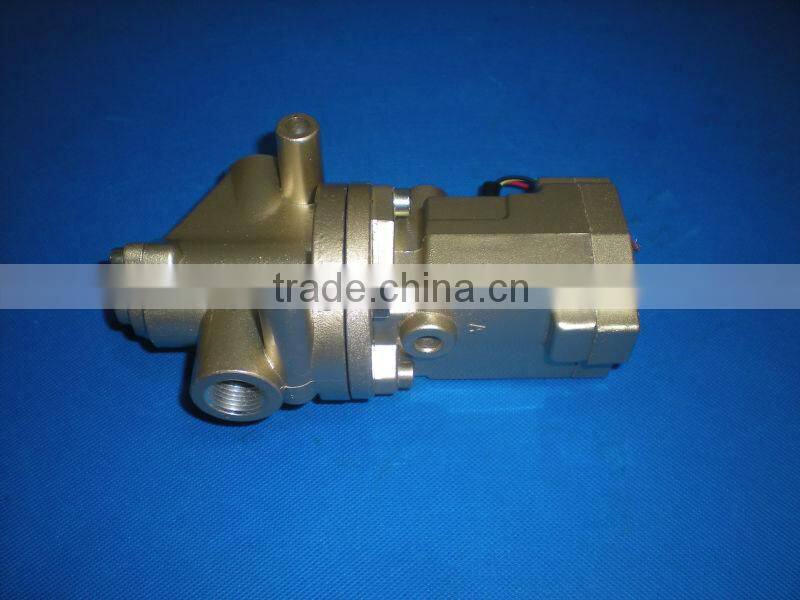

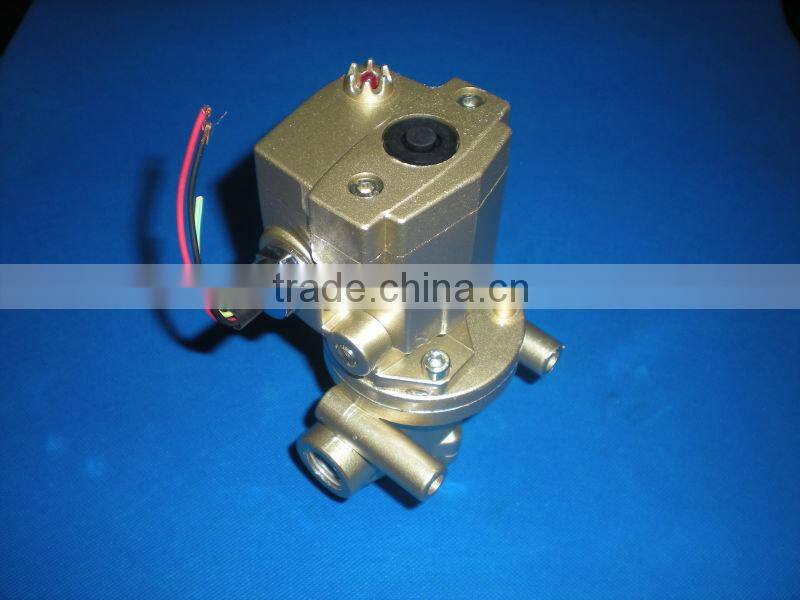

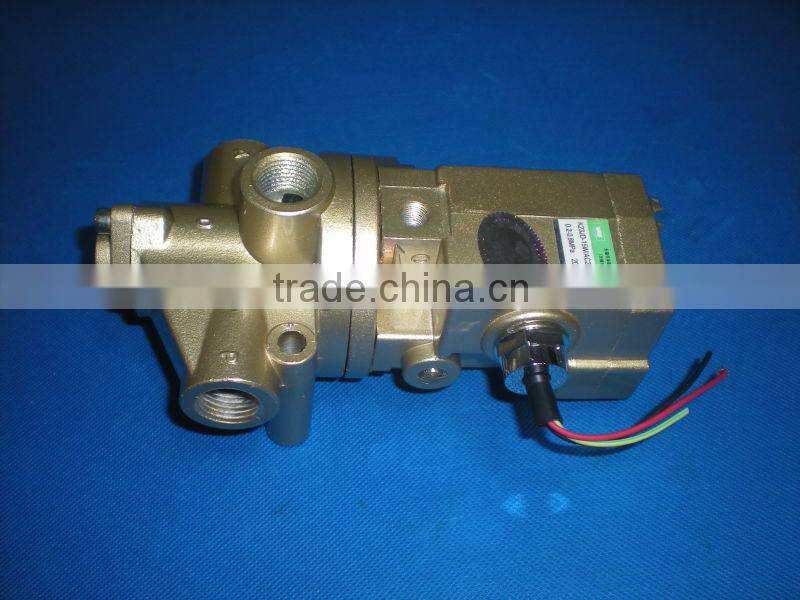

6.Other pictures

7.Packing

8.After sales
