Help CenterWE5 Direct Acting Solenoid Valve
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WE5 Solenoid Operated Directional Action Control ValveUS$ 1 - 1,000MOQ: 1 Piece -
WE5 2 Way Direct Acting Solenoid Control ValveUS$ 1 - 1,000MOQ: 1 Piece
-
WE5 Dsg Solenoid Operated Direction Valve Solenoid Control Valve ValveUS$ 1 - 1,000MOQ: 1 Piece
-
WE5 Dsg 2 Way Direct Acting Solenoid Directional ValveUS$ 1 - 1,000MOQ: 1 Piece
-
Brass Three-way Ball Valve (L/T Type Port)US$ 100 - 20,000MOQ: 100 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Medium Pressure
Power
Solenoid
Material
Casting
Temperature of Media
Medium Temperature
Media
Oil
Port Size
5
Place of Origin
Zhejiang, China
Model Number
WE5
Brand Name
MIDCOOL
Specifications
WE5 direct acting solenoid valve1.Operating pressure to 25Mpa
2.Flow to 14 L/min

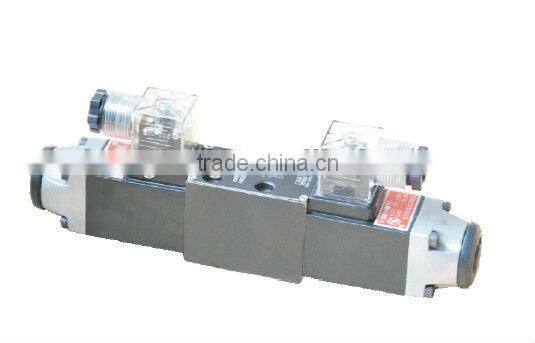

WE5 direct acting solenoid valve
solenoid directional valve
-----------------------------------------------------------
Specification
1.Direct acting solenoid valve operating direction as standard type
2.Dc or ac electromagnet
3.gasket-mounting
Directional valve of type WE5 are solenoid operated directional spool valves.They control the start,stop and direction of a flow.These directional valves basically consist of housing,one or two solenoid,control spool,as well as one or two return springs.
In the non-operated condition,control spool is held by return springs in central or in the initial position.Control spool is actuated via wet-pin solenoids.
