yokogawa paperless recorder temperature recorder DX2000 model:DX2000MOQ:1pcs

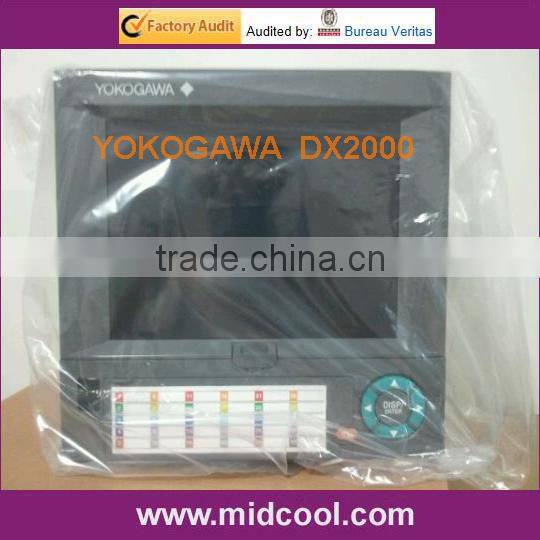

yokogawa paperless recorder temperature recorder DX2000
The DX2000 is a DAQSTATION that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by Email and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/TCP. It comes with a four, eight, ten, twenty, thirty, fortychannel or forty eight-channel model. As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel. The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.
*1 /A1, /A2, /A3, /A4, /A5, /F2 cannot be specified together.
*2 /A5 and /F1 cannot be specified together.
*3 /C2, /C3 and /CP1 cannot be specified together.
*4 /F1 and /F2 cannot be specified together.
*5 In case that 24 VDC/AC power supply (/P1) and desktop type are specified together, /H5 must be specified.
/P1 and /H5[ ] cannot be specified together.
*6 /H5[ ]
D: Power cord UL, CSA st'd
F: Power cord VDE st'd
R: Power cord SAA st'd
J: Power cord BS st'd
H: Power cord GB st'd
*7 /N2 can be specified for only DX2010, DX2020, DX2030, DX2040 and DX2048.
*8 /TPS4, /TPS8, /A5 and /F2 cannot be specified together.
*9 In case that /TPS8 is specified, combination of /A4/F1 cannot be specified together.
*10 /KB1 and /KB2 cannot be specified together.
*11 In case that /KB1 is specified, remote input terminal (438227) is included.
*12 In case that /PM1 is specified, /A5, /F2, /M1 and /R1 cannot be specified. And
combination of /A2/F1 and combination of /A4/TPS8 cannot be specified together.
*13 /MC1 can be specified for only DX2010, DX2020, DX2030, DX2040 and DX2048.
*14 /BT2 can be specified for only DX2010, DX2020, DX2030, DX2040 and DX2048.
In case that standard memory is specified, maximum number of batches is 6.
