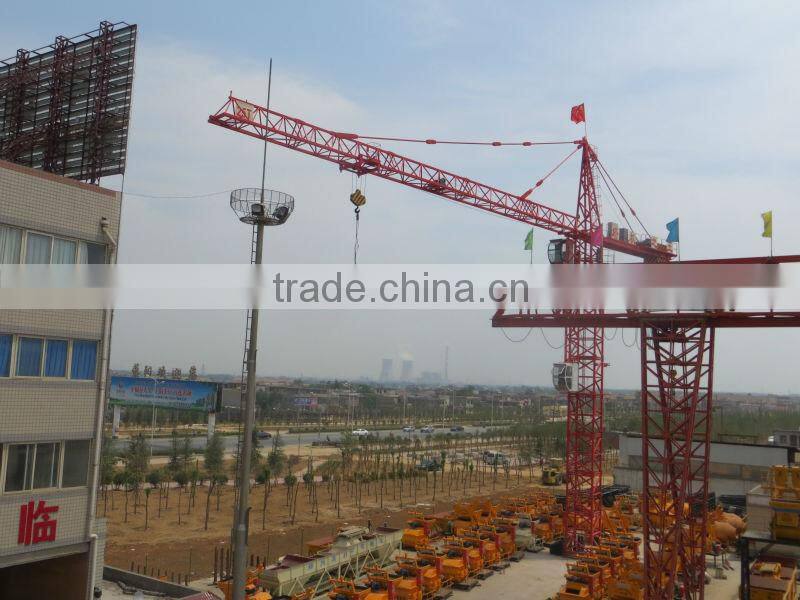

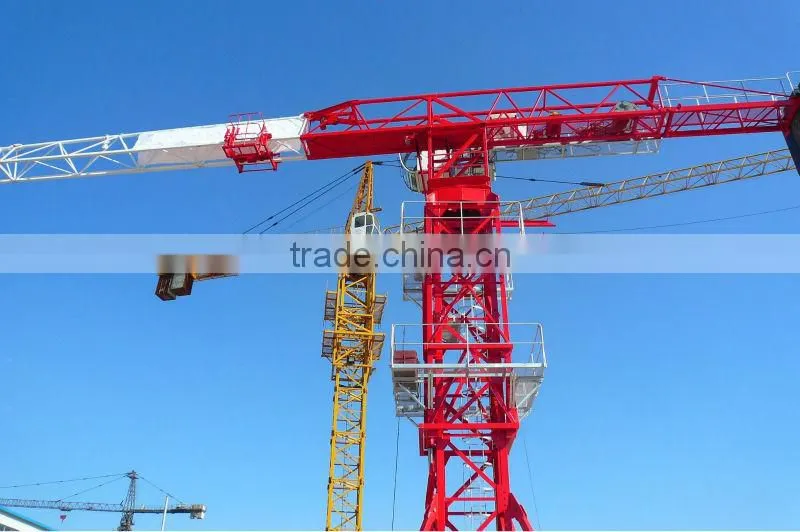

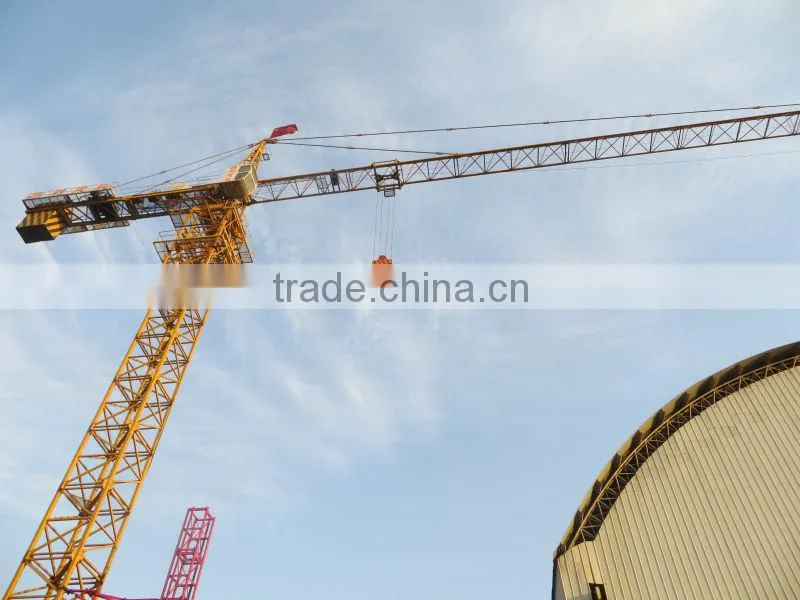

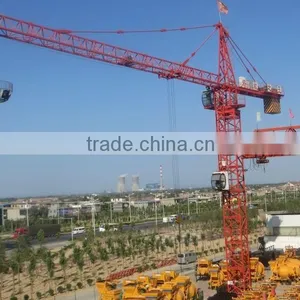

Reliable Quality QTZ40 Yujie Tower Crane,electric Tower Crane,climbing Tower Crane
US$ 1 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
all kinds of construction
Rated Loading Capacity:
5T,6T,8T,10T,12T
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Look! CE,ISO Apporved!! High Quality Tower Crane Qtz63(5013) (6Ton),tower Crane PriceUS$ 1 - 150,000MOQ: 1 Set -
QTZ40/4708 Building/Construction/Self-raising/Mobile/Inside-climbing/Flat-top/Luffing Tower Crane,tower Crane SmallUS$ 1 - 150,000MOQ: 1 Set
-
Good Service Tower CraneUS$ 6,000 - 80,000MOQ: 1 Set
-
6 Ton Crane/10 Ton Overhead Crane/2 Ton Overhead Crane/Tower CraneUS$ 6,000 - 80,000MOQ: 1 Set
-
Look! CE,ISO Apporved!! High Quality Tower Crane Qtz63(5013) (6Ton),new or Used Tower Crane in DubaiUS$ 1 - 150,000MOQ: 1 Set
Condition
New
Application
all kinds of construction
Rated Loading Capacity
5T,6T,8T,10T,12T
Rated Lifting Moment
500KN.m/630KN.m/800KN.m/1000KN.m/1200KN.m
Max. Lifting Load
5T,6T,8T,10T,12T
Max. Lifting Height
120m/120m/150m/150m/150m
Span
50m/50m/58m/60m/72m
Place of Origin
Henan, China
Brand Name
YU JIE
Model Number
QTZ/TC
Certification
ISO/CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
High Efficiency QTZ40 Tower Crane
I.Main fetures of Tower Crane
This series of tower crane, ranging from QTZ31.5 to QTZ315 has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
II.Features
1.Beam Without Ballast;
2.Pre-embedded Four Outriggers Type;
3.Cross Beam Inclined Stay Bar With Ballast;
4.Cross Beam Inclined Stay Bar Without Ballast;
5.Traveling Type (Mobile) Tower cranes;
6.Inside Climbing.

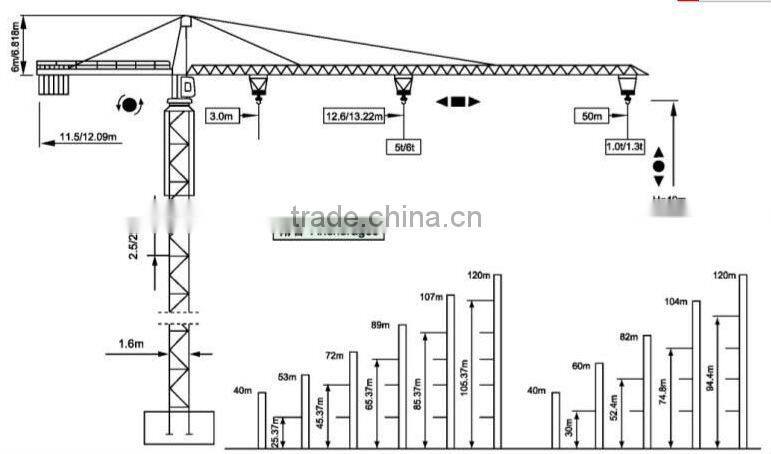

III. Parameters of tower crane
Model |
QTZ315(7035)
|
QTZ300(7031)
|
QTZ200(7020)
|
QTZ160
(6516)
|
QTZ125A(6015)
(5518)
|
QTZ100A(5515)
|
QTZ80A(6010)
(5512)
|
QTZ63B
(5610)
(5013)
|
QTZ63C
(5211)
|
QTZ40
(4708)
(4510)
|
QTZ40A
(4708)
|
QTZ31.5
(3883)
(4075)
(4264)
|
Amplitude(m) |
70 |
70 |
70 |
65 |
60/55 |
55 |
60/55 |
56/50 |
52 |
47/45 |
47 |
38/40/42 |
Independent height(m) |
53 |
50 |
50 |
50 |
46 |
45 |
46 |
41 |
40 |
29 |
29 |
27 |
Max.height(m) |
301 |
221 |
200 |
190 |
200 |
180 |
200 |
141 |
140 |
100 |
120 |
100 |
Max lifting capacity(t) |
16 |
12 |
12 |
10 |
8 |
8 |
8 |
6 |
6 |
4 |
4 |
3 |
Wall-attached Frame |
11 |
8 |
7 |
6 |
6 |
6 |
8 |
6 |
6 |
4 |
6 |
5 |
Main material |
140×140×16
Angle steel welding
|
135×135×12
Square steel tube
|
135×135×10
Square steel tube |
160×160 × 14
Angle steel 160×160×16 Reinforcing
mast section
|
160×160×12 Angle steel |
140×140×12 Angle steel |
125×125×10 Angle steel |
|||||

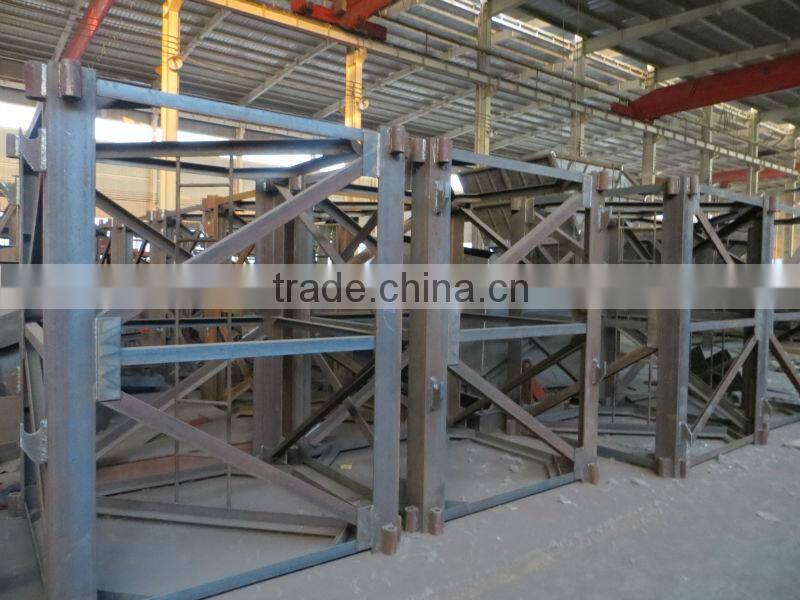

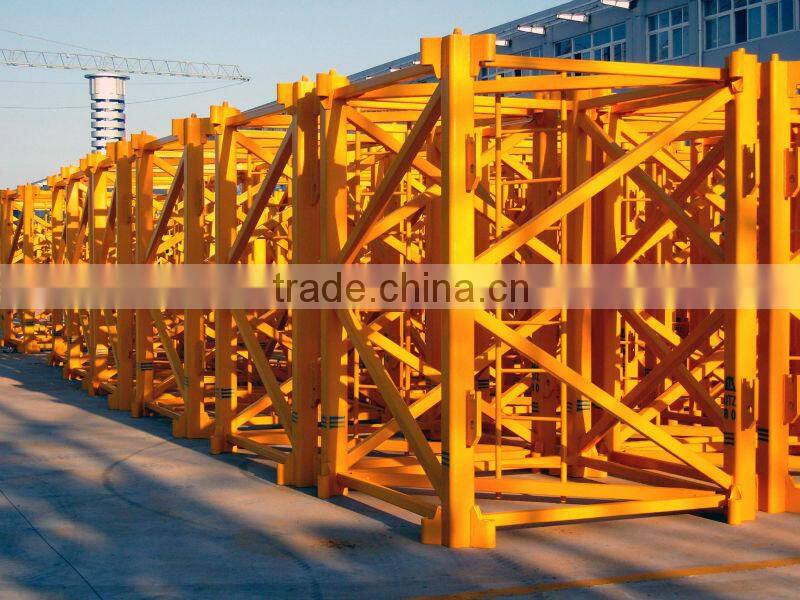

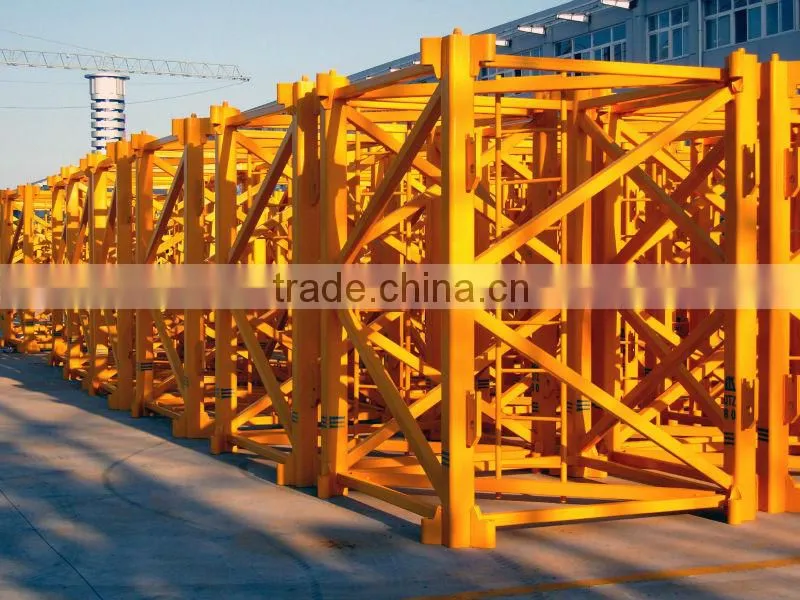

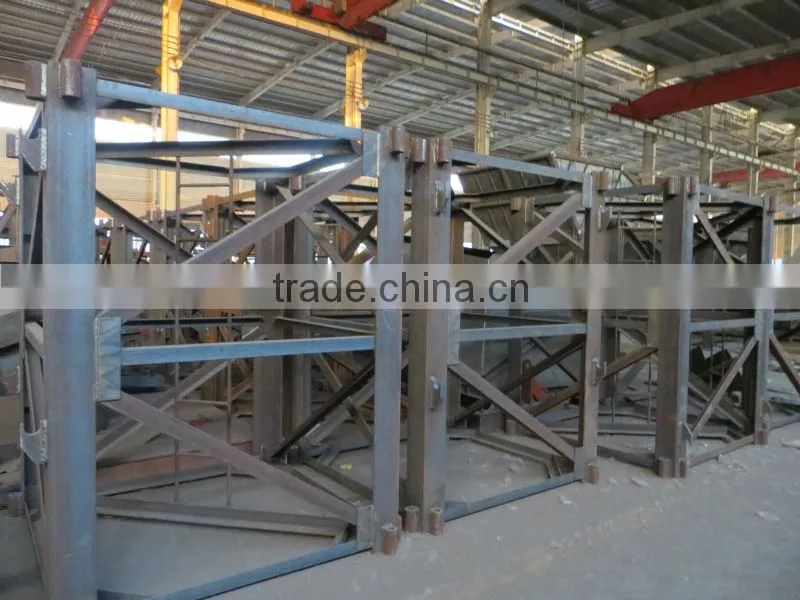

Standard Mast Section Dimension |
2.083×2.083×3 |
1.935×1.935×2.8 |
1.835×1.835×2.5 |
1.835×1.835×2.5 |
1.615×1.615×2.5 |
1.5×1.5×2.5 |
1.5×1.5×2.2 |
1.5×1.5×2.4 |
||||
About us:
About Zhengzhou Changli Machinery Manufacturing Co.,Ltd,which is specilized in construction machine.As a modern lorge-scale production enterprise in the construction machinery base,Zhengzhou Changli Machienry Manufacturing Co.,Ltd.Has a professional design team and an excellent tech skills group.Now the advanced producting equipment and rerfect after-sale service are the symbol of Zhengzhou Changli. We Zhengzhou Changli will persist in technical innovation,constantly increasing the core competitiveness,so as to be one of the most attractive suppliers of construction machinery.
Contact us for more details about Tower Crane.
