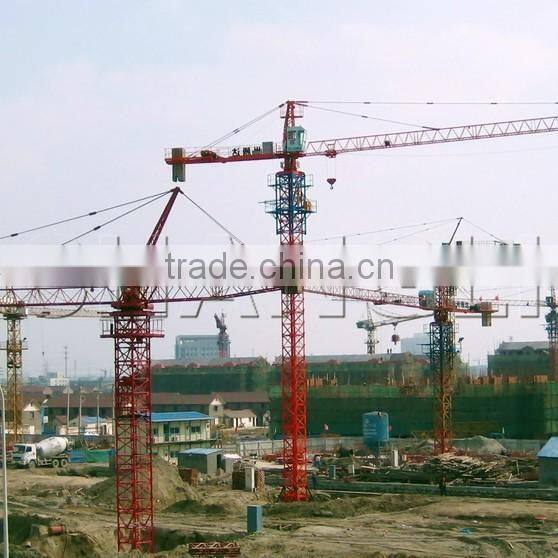

CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane

CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-1
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-2
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-3
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-4
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-5
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane thumbnail-6
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-1
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-2
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-3
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-4
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-5
CE,ISO (Certification) QTZ40A Hydraulic Fixed Mini Tower Crane photo-6
US$ 1 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Construction
Rated Loading Capacity:
1.0Ton-4Ton
Contact Supplier Request Quote Chat Now
Zhengzhou Changli Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Construction
Rated Loading Capacity 1.0Ton-4Ton
Rated Lifting Moment 500KN.m/630KN.m/800KN.m/1000KN.m/1200KN.m
Max. Lifting Load 2-25T
Max. Lifting Height 200m
Span 0-80m
Place of Origin Henan, China
Brand Name YUJIE
Model Number QTZ40A
Certification CE ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

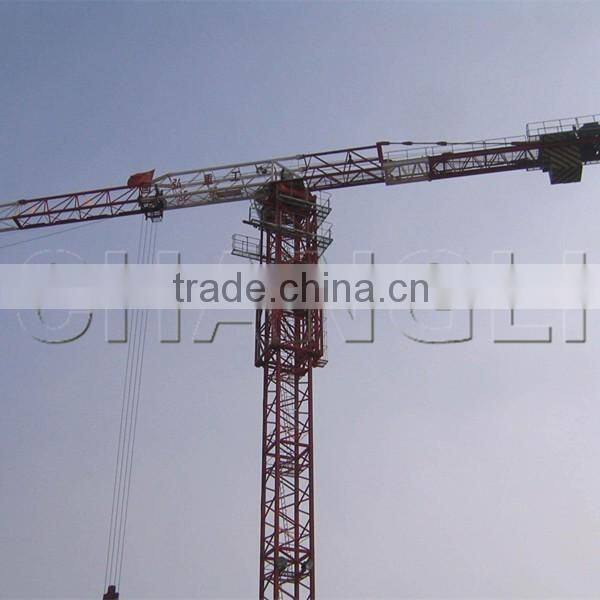

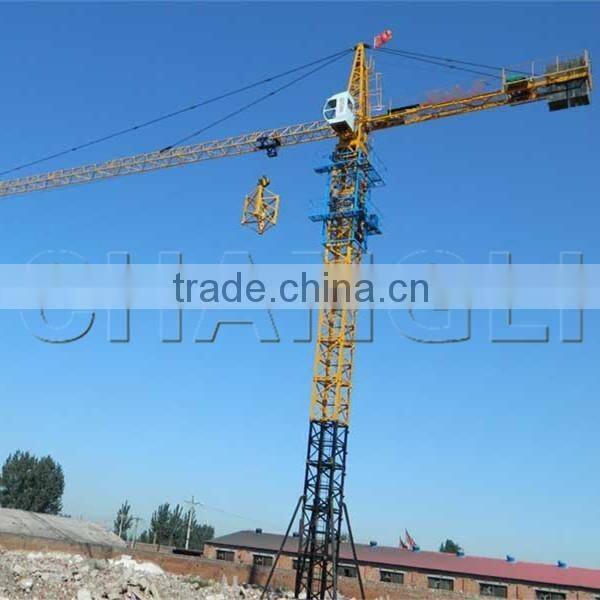

CE,ISO (Certification) QTZ40A Hydraulic fixed mini tower crane



CE,ISO (Certification) QTZ40A Hydraulic fixed mini tower crane

Product Description



I.Main fetures of  mini tower crane
This series of tower cranes, ranging from QTZ31.5 to QTZ315 has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
1."#" Beam Without Ballast;
2.Pre-embedded Four Outriggers Type;
3.Cross Beam Inclined Stay Bar With Ballast;
4.Cross Beam Inclined Stay Bar Without Ballast;
5.Traveling Type (Mobile) Tower cranes;
6.Inside Climbing.

QTZ40 Mini Tower crane Paramters:



Model



Parameters

QTZ40

(4708)(4510)

Tip load capacity(T)

1.0

Max .Radius(M)

47

Independent Height(M)

32.5

Max. Lifting Capacity(T)

4

Max. Height(M)

135

Wall-attached Frame

5

Main Material

160x12 Angle steel

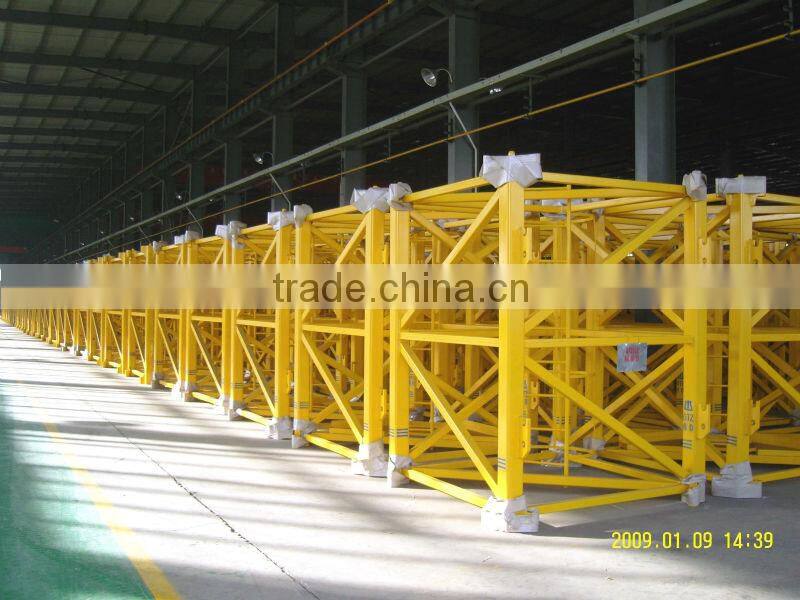

Standard Mast Section Dimension

1.5x1.5X2.5

Hoisting Speed(m/min)

70/35/9

Mini. Stabilizing Falling Speed (m/min)

4.5

Slewing Speed(r/min)

0-0.7

Traveling Speed(m/min)

42/21

Climbing Speed(m/min)

0.5

Motor Total Power(KW)

21.4

Complete Machine Total Weight

Independent Structure Weight(KG)

24539

Counter Weight(T)

8.11

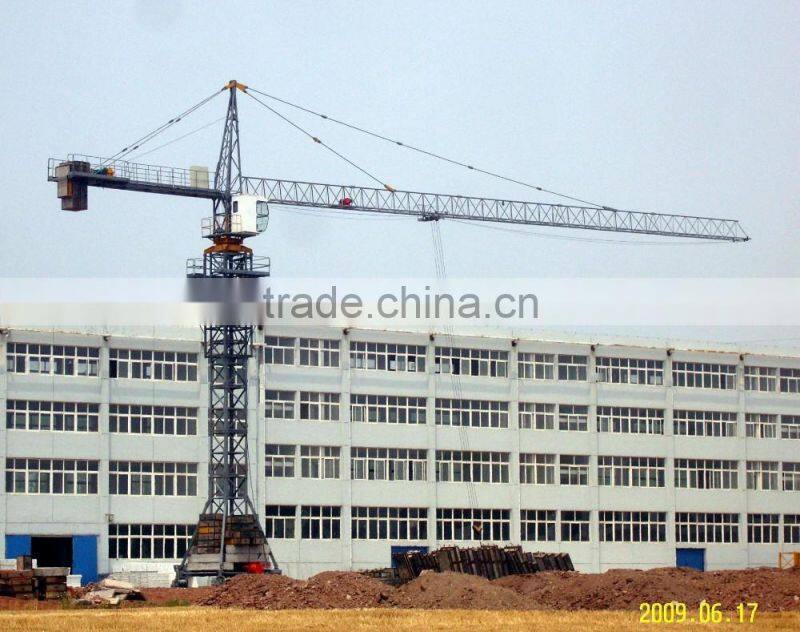

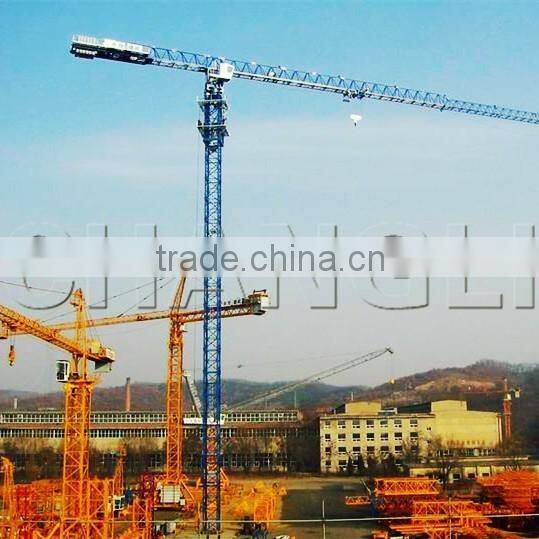

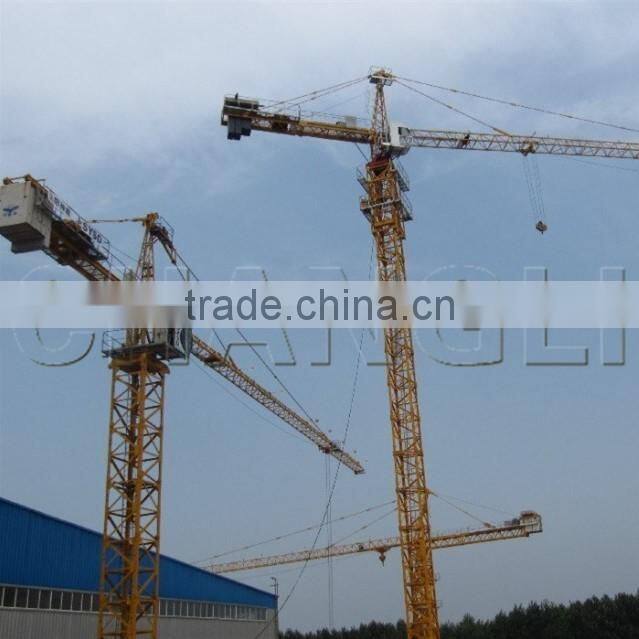

CE,ISO (Certification) QTZ40A Hydraulic fixed mini tower craneCE,ISO (Certification) QTZ40A Hydraulic fixed mini tower craneCE,ISO (Certification) QTZ40A Hydraulic fixed mini tower craneCE,ISO (Certification) QTZ40A Hydraulic fixed mini tower craneCE,ISO (Certification) QTZ40A Hydraulic fixed mini tower craneCE,ISO (Certification) QTZ40A Hydraulic fixed mini tower crane



 Specifications of Mini Tower Crane

1. TOWER CRANE WITH CE, GOST, ISO9000 CERTIFICATE
2, TOP 5 IN CHINA
3, HAVE 40 YEARS EXPERIENCE IN THIS AREA
4, 600 STAFFS

1. Version: fixed or traveling type
2. Free height: 50 meters
3. Max. height: 161 meters
4. Max. radius: 60 meters
5. Jib end load: 1.6 MT at 60 meters
6. Max. load: 10MT at 13.75 meters
7. Hoisting mechanism: JT2.5
8. Drum capacity: 450 meters
9. Lifting speed: 1.82m/min~80.1m/min
10. Slewing mechanism: HZ-125
11. Slewing speed: 0.6r/min
12. Trolley mechanism: BF-125
13. Trolley speed: 25/51m/min
14. Power line voltage: 380V/50Hz
15. Color: yellow
16. Counter weight: Stell-structured frame (without concrete)
17. Mast section: 1.8 x 1.8 x 3m
18. Foundation bolt: included (12 sets)
19. Cabin: included (with air condition)
20. Telescoping cage: included
21. Pump and cylinder: included
22. Main cable: included
23. Basic mast: included

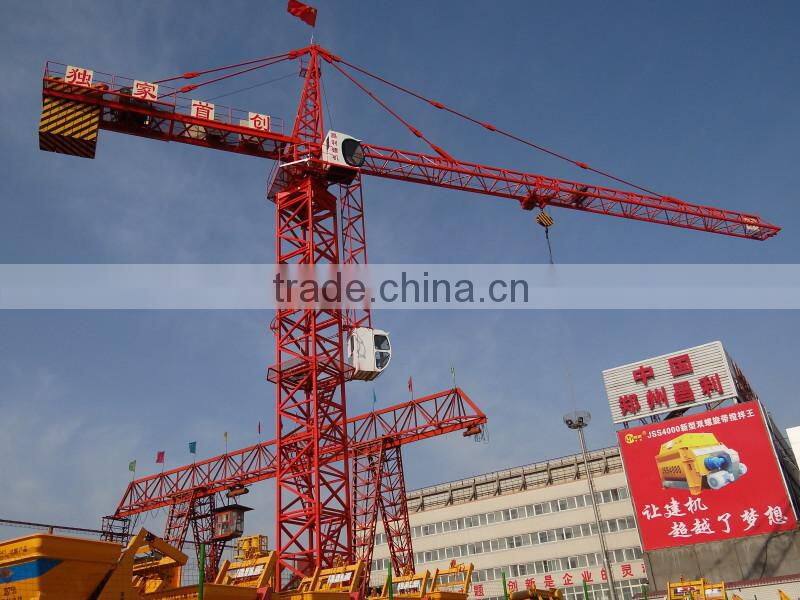

CE,ISO (Certification) QTZ40A Hydraulic fixed mini tower crane

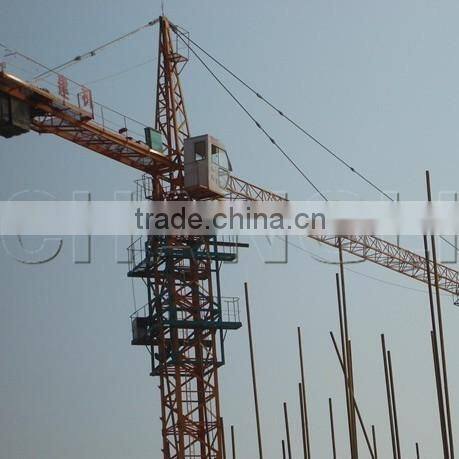

CE,ISO (Certification) QTZ40A Hydraulic fixed mini tower crane
