Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YU JIE | Model Number | SC200/200 construction hoist | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Chain | Maximum Lifting Weight | 2T per cage | |
| Maximum Lifting Height | 200m | Lift Speed | 36m/min | |
| Certification | ISO/CE | Warranty | 15 months after delivery from factory | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

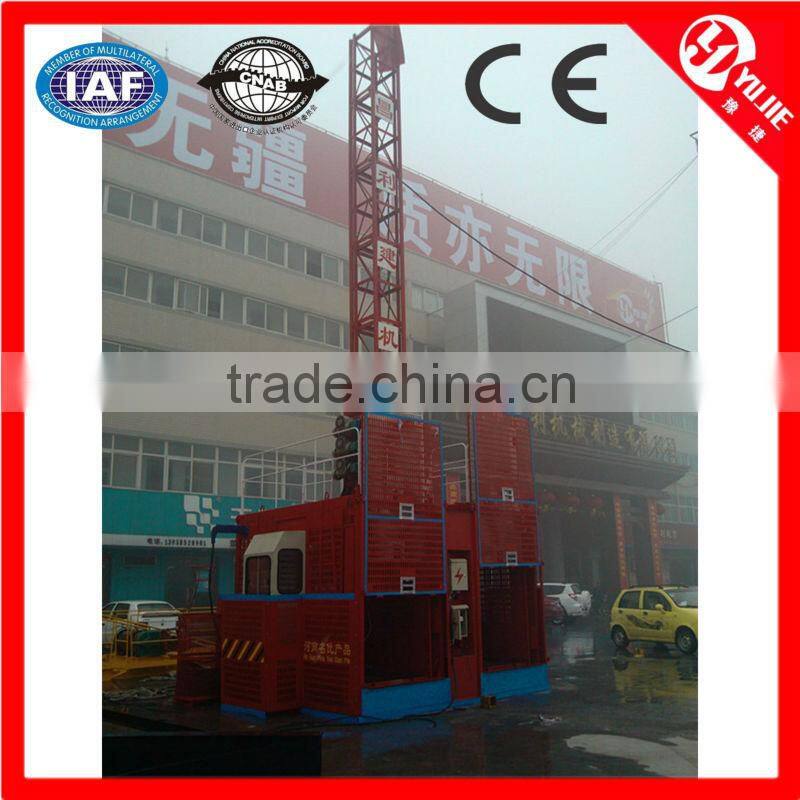

SC200/200 Construction Hoist/ construction elevator/construction lift construction elevator
Zhengzhou Changli Machinery Manuafacturing Co., Ltd
Supplier of World TOP500 Company - Lafarge Group.
*****************************************************************************************

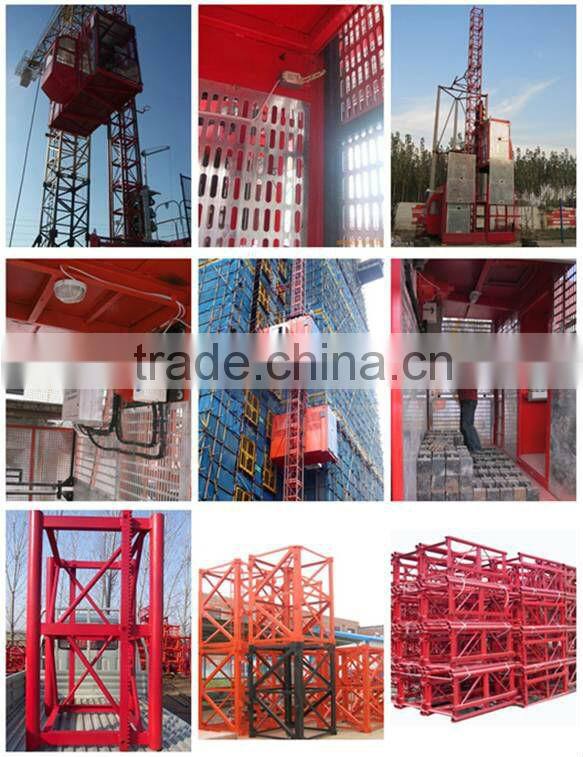

SC200 Construction Hoist
I. Brief Introduction
Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.
Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, etc.
SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.
Mast section specifications: 650 * 650 * 1508, 800 8 800 * 1508.
Structure forms varies: SCD two drive, SC three drive without balance, built-in upper-setting and frequency control, etc.
Application: the equipment is applicable to people and material transporting in high building construction that above 60m, such as bridges, chimneys, mansions, etc.. And can also be used in warehouse , wharf, etc for vertical transportation.
> Mast Section Dimension: 650 * 650 * 1508, 800 * 800 * 1508
> Main Chord: Φ76 * 4.5, Φ76 * 6.0, Q345B
II. Main Technical Parameters
Parameter | Unit | Model | |||
SC100 | SC100/100 | SC200 | SC200/200 | ||
Rated capacity | kg | 1000 | 2×1000 | 2000 | 2×2000 |
Number of people | No. | 12 | 2×12 | 16 | 2×16 |
Rated lifting speed | m/min | 36 | 36 | 36 | 36 |
Max.lifting height | m | 200 | 200 | 200 | 200 |
Motor power | kw | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Suspension cage inner size | m | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 |
Weight of 650 standard section | kg | 124 | 148 | 124 | 148 |
Dimension of 650 standard section | mm | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 |
counter weight | kg | = | = | = | = |
Suspender loading capacity | kg | 200 | 200 | 200 | 200 |
Dimension of 800 standard section | mm | 800×800×1508 | 800×800×1508 | 800×800×1508 | 800×800×1508 |
Technical Diagram ---------------Three Transmission | ||||
No. | Name | Unit | Parameter | Remark |
1 | Rated Capacity | kg | 2000/2000 | |
2 | Rated Hoising Speed | m/min | 33 | Reducer Ratio 1:6 |
3 | Max Height | m | 150 | |
4 | Dimension of Cage (L*W) | m x m | 3*1.5 | |
5 | Hight of Cage | m | 2.4 | |
6 | Motor Power | kw | 2 * 3 * 11 | JC = 100% JC = 25% |
7 | Weight of Mast Section | kg / unit | 140 | |
8 | Safety Device | SAJ40-1.2A | ||
III. Salient Features of Construction Elevator
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
Zhengzhou Changli Machinery Manufacturing Co., Ltd is a professional manufacturer and exporter of SC100 Construction Elevator, Construction Hoist, Construction Lifter, Construction Material Elevator, Construction Elevator for Material and People, Double Cabins Construction Hoist, Double Cages Construction Hoist
Should any inquiry for our construction hois, construction elevator. construction lift, construction lifter, ourdoor elevator, building lifts, pls feel free to email or call us!
Contact Person: Sarah Shi
Mobile: +86-13523442966
Skype: sarahchangli
Welcome to visit our factory! We are manufacturer!!

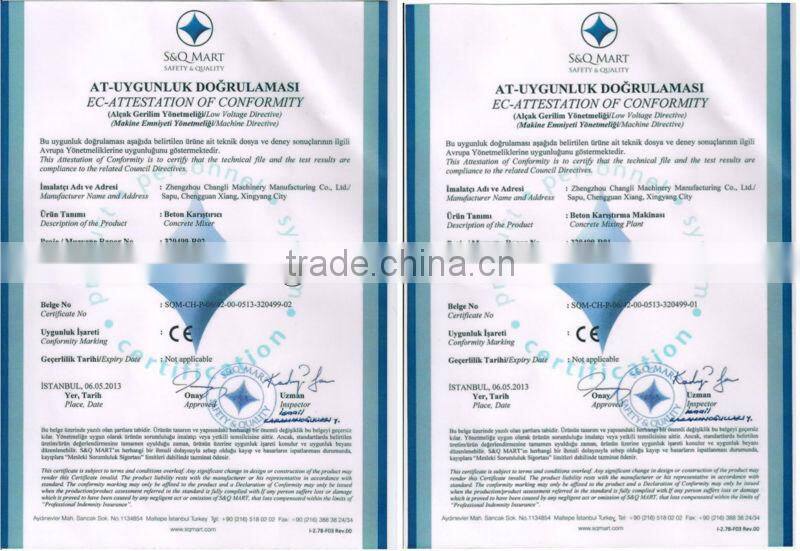

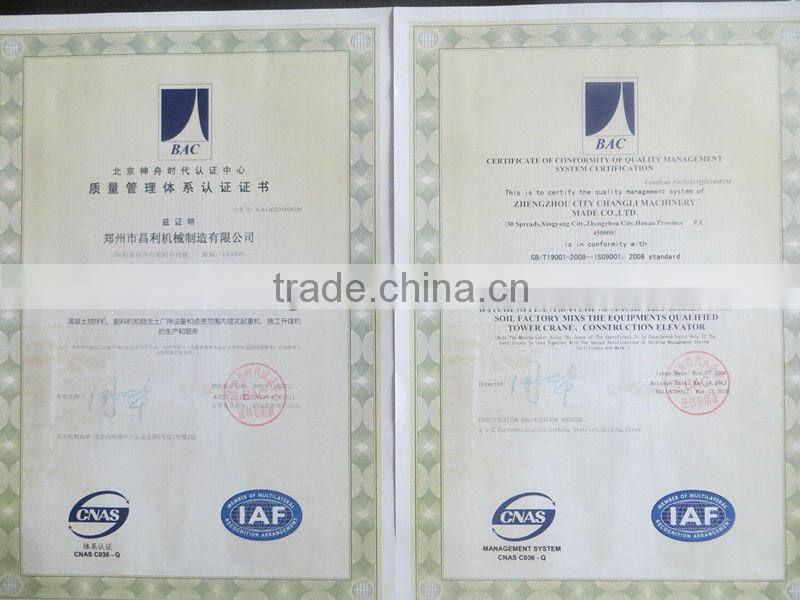

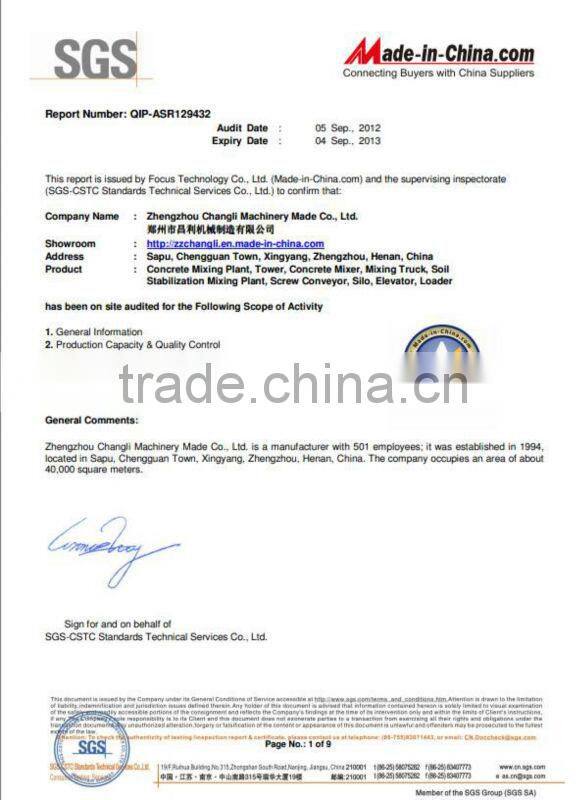

Our products has gained Certifications CE, ISO9001:2008, BV, SGS.
