8M3 HOWO/Dongfeng& Foton Brand! 6*4 Drive Beton Truck Mixer

FOB Price

US$ 1 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao Or Tianjin Port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Yu Jie	Model Number	beton truck mixer
Weight	25T	Dimension(LWH)	8715 * 2496 * 3850
Power(W)	140kw	Certification	IAF,ISO,SGS
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

6*4 drive beton truck mixer

I.Performance features of beton truck mixer

1.High configuration gurantee high performance.

The whole components of hydraulic system adopts the world famous brand products, including the filter, temperature detect switch (TDS) and so on, which ensures the reliability and safety of the system.

2.All-steel radia tyre

The truck mixer is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. With this kind of tyre, the raveling will become safer.

3.Strong Power

The engines adopt the imported Germany DEUTZ engine. It takes full advantage of the energy and minimizes the power loss. To meet the requirements from different customers, our truck mixer can be equipped with different brand engines, such as Weichai, Cummins and DEUTZ. In a word, you have a rich field of choices.

4.Automatic welder of circumferential seams

The mixing drum adopts the advanced circular arc automatic welding equipment, welding and makes it to mould at once time, which ensures the quality of mixing drum and the nice appearance. It also effectively prevents the oil and water leakage of the machine.

5.Operation handle

Two handle control the mixing drum and engine separately with reliable lock device. The controlling system is reliable and convenient.

6.Safety Guard

The design is full of humanization and fully takes the safety in the travelling into consideration

II.Parameters of beton truck mixer

Model	Concrete mixer truck
Whole Vehicle Performance & Parameters	Chassis	ZZ1257N3847
	Curb Weight (Kg)	13100
	Total Vehicle Weight (Kg)	25000
	Outline Dimension(LBH) (mm)	8715 * 2496 * 3850
	Wheelbase (mm)	3950+1350
	Front Overhang (mm)	1500
	Rear Overhang (mm)	1800
	Max Traveling speed	90
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)
	Gear Box	HW15710
	Driving Type	6*4
	Steering Mechanism	ZF8098
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00-20
Engine Parameters	Model	WD615.95E
	Type	Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
	Max Power (KW)	336HP
	Max Torque	1350 N.m
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m3)	14.7
	Max Mixing Cubage (m3)	9---10
	Feeding Speed (m3)	≥3.5
	Discharging Speed (≥m3)	≥1.5
	Leftover Rate	Nearly Zero
	Max Rotating Speed (r/min)	14---16
	Mixing Drum Obliquity (°)	13.5
	Max Mixing Drum Diameter (mm)	φ2162
Driving System	Speed Reducer	Italian BONFILI-577L
	Hydraulic Pump	EATON/5423-518 Italy ARK/PV89MHR20
	Hydraulic Motor	EATON/5433-138 Italy ARK/MF89V20
Water Supply System	Water Tank Capacity (L)	260
Water Supply System	Water Supply Mode	Water Pump; Pneumatic Pump

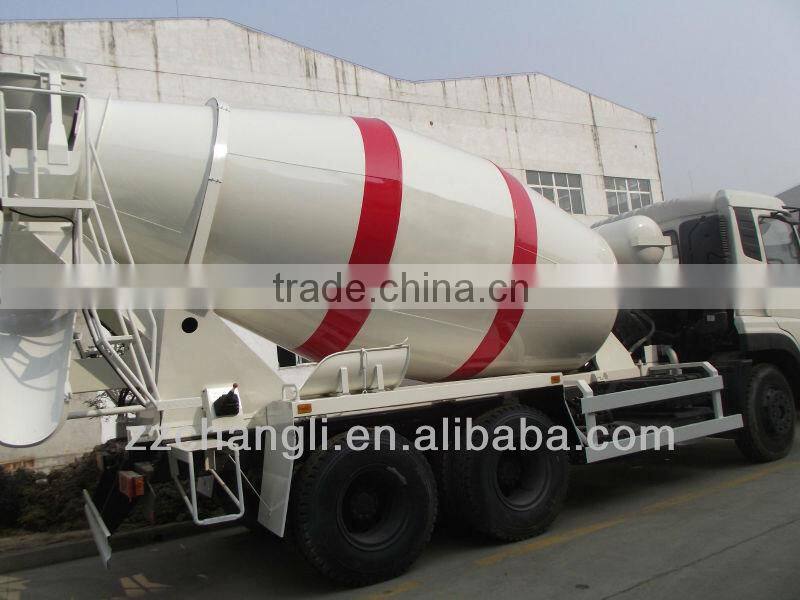

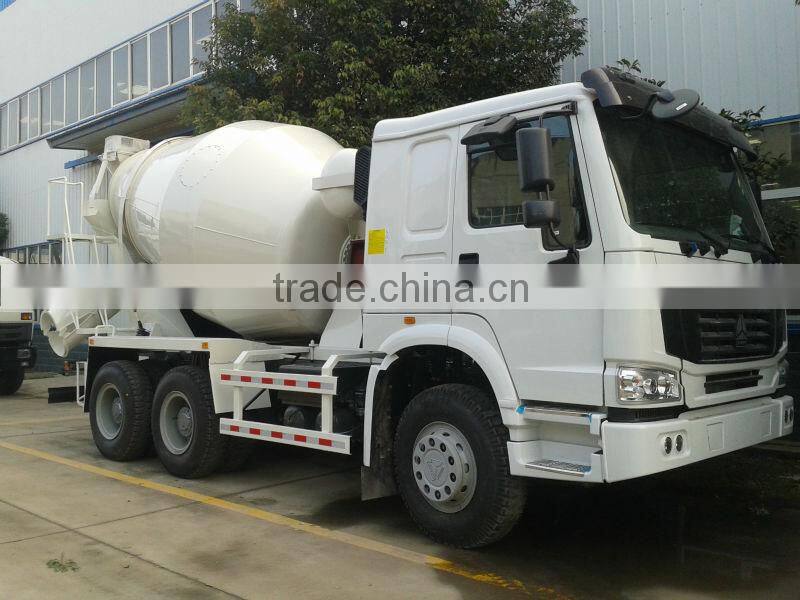

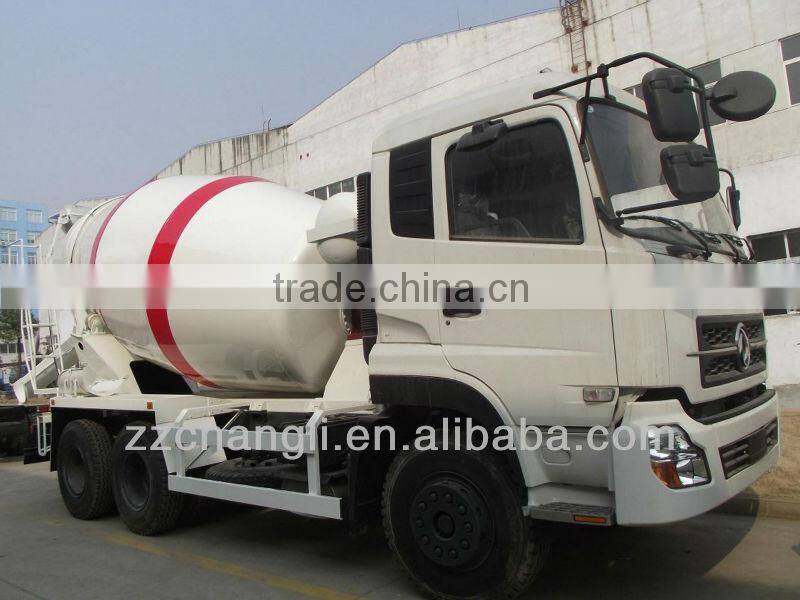

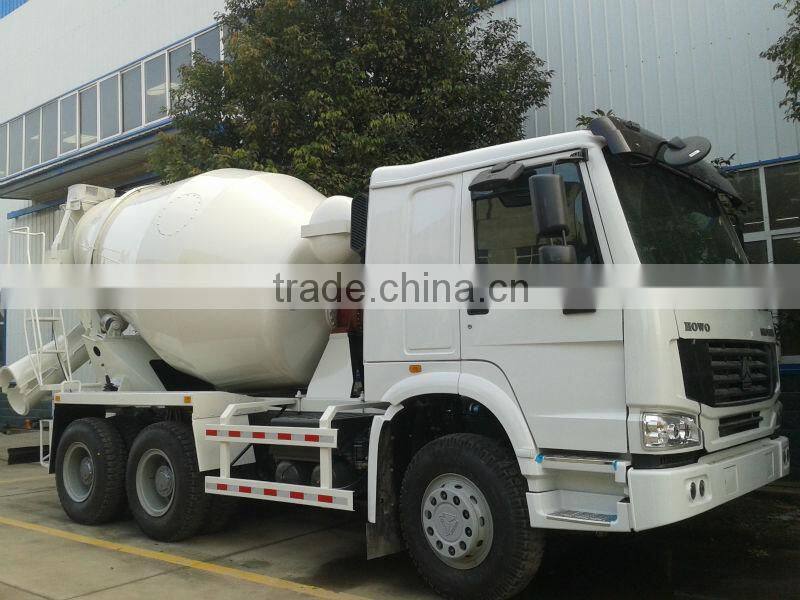

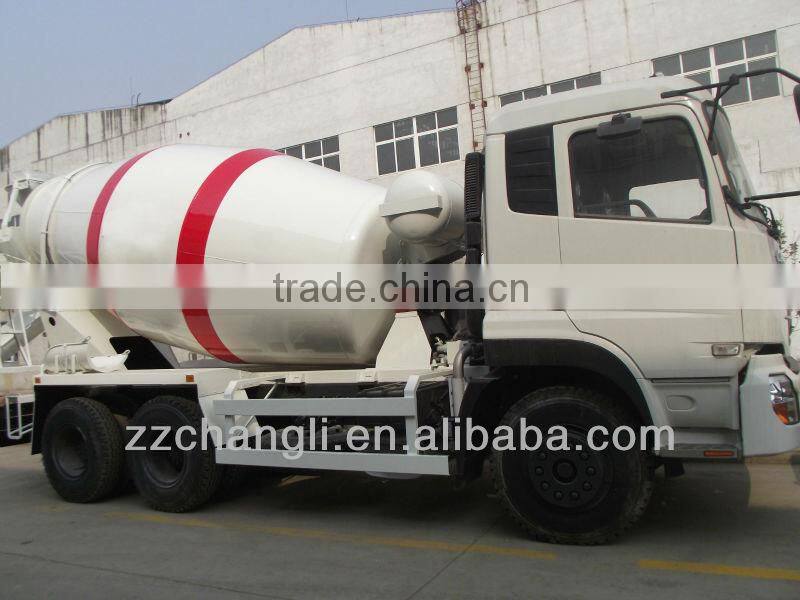

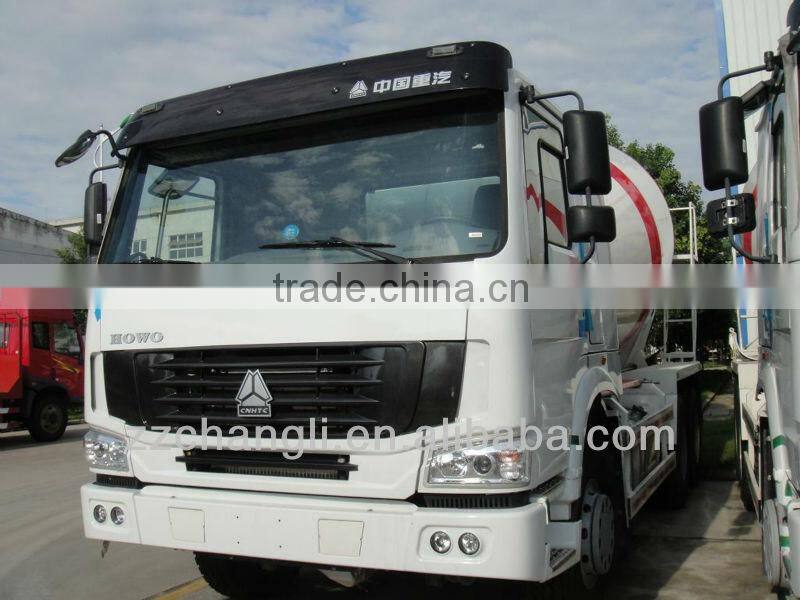

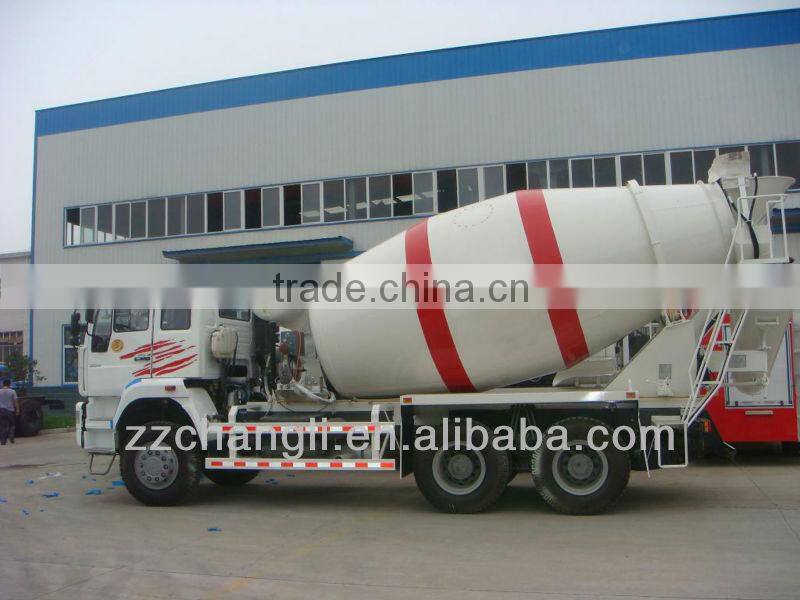

III. Some pictures of beton truck mixer
