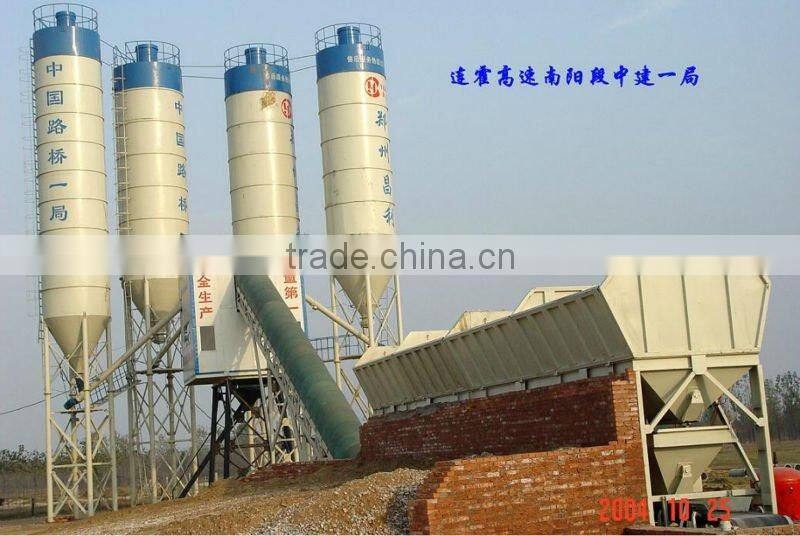

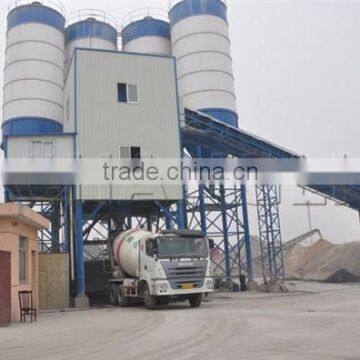

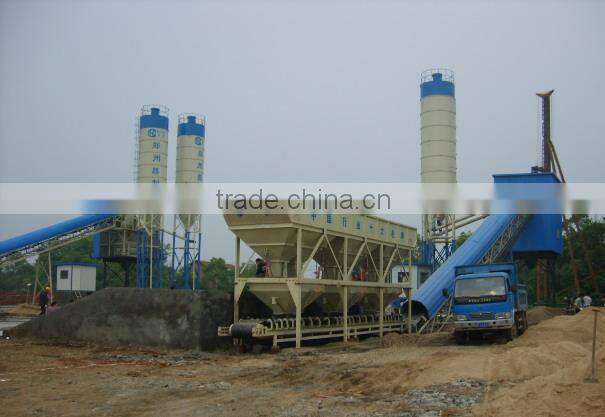

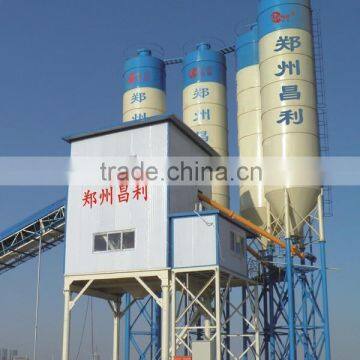

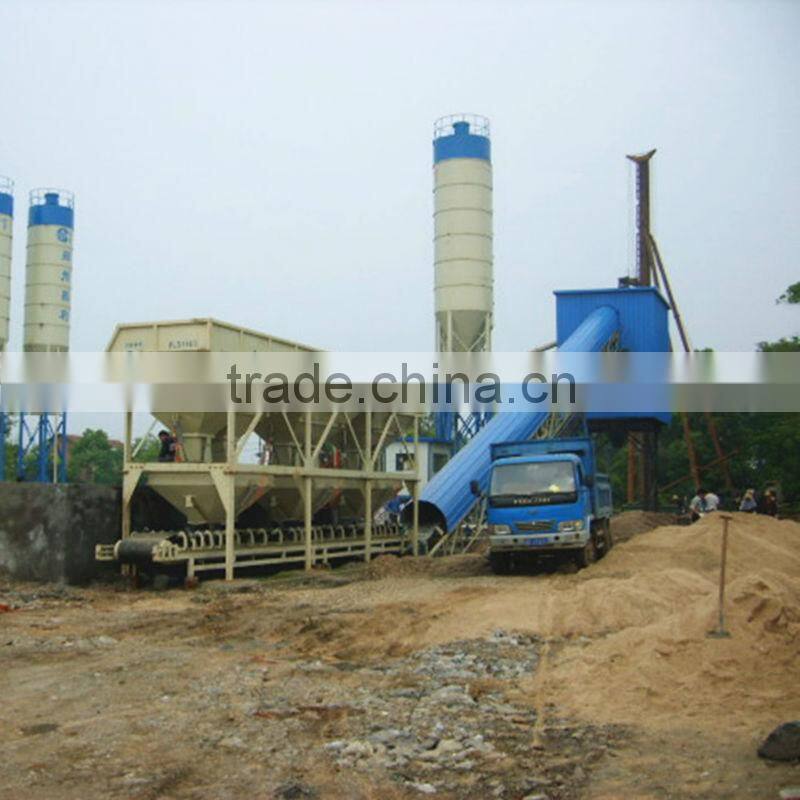

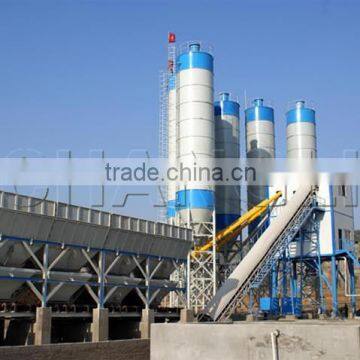

malaysia concrete batching mixing plant for sale,belt type concrete plant 90m3/h
HOT SALE HZS90 concrete central mix plant
large-type in our mixing plant, suitable for building houses, project, ground and precast product for factory.

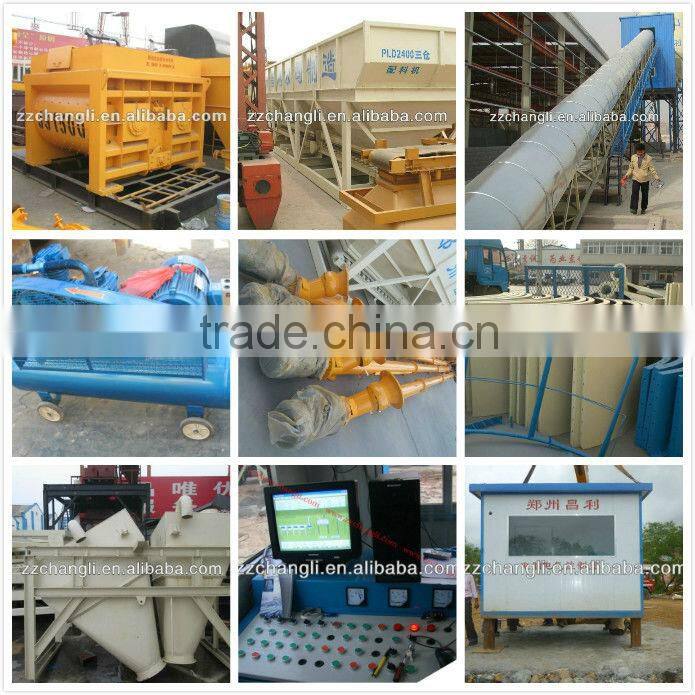

Main Parts:
Concrete Mixer: JS1500 (including the steel support)

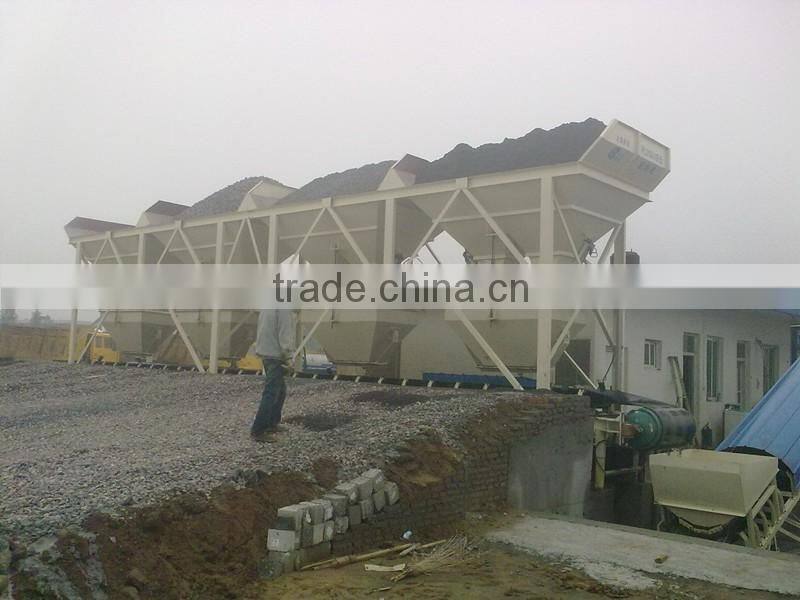

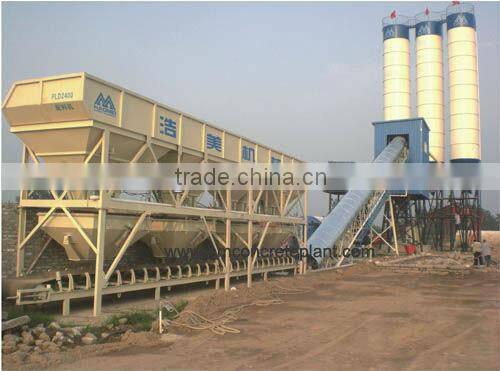

Batching machine: PLD2400
Water supply system: Spray mode.

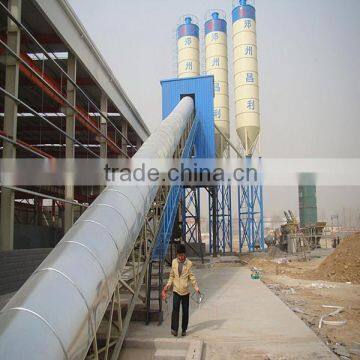

Conveyor system
Measurement system: measure the aggregate, cement, water, liquid additive.
The electrical system adopts import parts and has credibility performance.
Technical Parameter |
| ||||
Item | Unit | Parameter | |||
Max. Productivity | m3/h | 90 | |||
Nominal Capacity of Mixer | m3 | 1.5 | |||
Aggregate Storage Capacity | m3 | 4×12 | |||
Capacity of Cement Cabin | t | 2?00 | |||
Mixing Motor Power | kw | 45 | |||
Lifting Motor Power | kw | 18.5 | |||
Power of Machine | kw | 132 | |||
Weight of Machine | t | 60 | |||
Discharge Height | m | 3.8 | |||
Overall Dimension (L×W×H) | m | 42×18×19.4 | |||
Max. Weights | Aggregate | kg | 4×1200 | ||
Cement | kg | 1000 | |||
Ash | kg | 300 | |||
Mineral Powder | kg | 300 | |||
Water | kg | 300 | |||
Additive | kg | 50 | |||
Measuring Accuracy | Aggregate | % | ±2 | ||
Powder | % | ±1 | |||
Water | % | ±1 | |||
Additive | % | ±1 | |||
