Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty

Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-1
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-2
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-3
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-4
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-5
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty thumbnail-6
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-1
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-2
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-3
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-4
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-5
Aok Lumileds Chip Led Street Light of High Efficacy 110lm/w 5 Years Warranty photo-6
US$ 419 - 439 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Philipe LUXEON T
Input Voltage(V):
90-305VAC
Lamp Power(W):
280
Contact Supplier Request Quote Chat Now
Fuzhou Aok LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Philipe LUXEON T
Input Voltage(V) 90-305VAC
Lamp Power(W) 280
Lamp Luminous Flux(lm) 30800
Lamp Luminous Efficiency(lm/w) 100
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification C-tick, CE, SAA, UL
Warranty(Year) 5
Place of Origin Guangdong, China
Brand Name AOK
Model Number AOK-WiL
Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty


Applications of Lumileds led street light

Highway | Main Street | Normal Road | Laneway | Bridge | Park | Plant Area | Plaza | Stadium & Sports Field | Yard | Garden | Parking Area | Factory |Solar LED Street Light
Details of Lumileds led street light
Model Power Luminous Flux Replace HID/ HPS / Metal Halide Lamp Lamp Size Net Weight Packing Gross Weight
AOK-40iL 40W 4200lm 80-100W 431*316*136mm 5.3kg 480*370*200mm 6.3kg
AOK-80iL 80W 8400lm 160-200W 504*316*136mm 6.1kg 555*370*200mm 7.3kg
AOK-120iL 120W 12600lm 240-300W 577*316*136mm 7.3kg 630*370*200mm 8.6kg
AOK-160iL 160W 16800lm 300-400W 650*316*136mm 8.2kg 705*370*200mm 9.6kg
AOK-200iL 200W 21000lm 400-500W 723*316*136mm 9.0kg 780*370*200mm 10.6kg
AOK-240iL 240W 25200lm 500-600W 796*316*136mm 9.9kg 855*370*200mm 11.6kg
AOK-280iL 280W 29400lm 600-800W 869*316*136mm 16.3kg 930*370*200mm 12.6kg



Main paraments of Lumileds led street light

LED Chip Lumileds Luxeon T Peak Lighting Angle 125°
Driver Meanwell Driver Storage Temperatures -40°C~50°C
Operating Voltage 100-240/277VAC or 12-24VDC Working Environment -40°C~50°C
Power Efficiency 90% Total Harmonic Distortion < 10%
Power Factor 0.95 LED Life Span  LM70 62,000 hours
Lamp Rated Luminous Efficiency 105-110lm/w Wind Index Force 12
Color Rendering Index Ra>75 &  Ra>80 Body and Shell Materials Aluminum alloy
Color Temperature 3800-4100/5000-5650/5650-6300K IP Rating IP67
Certifications UL,DLC,TUV,SAA,CE,RoHS Warranty 5 years

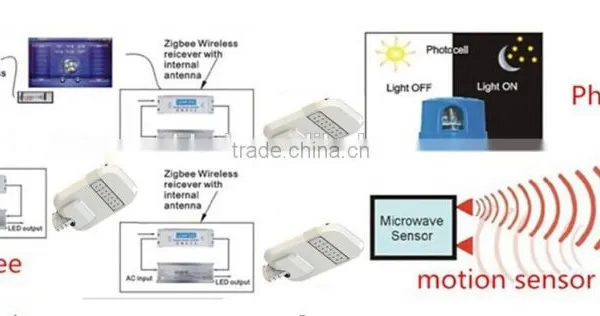

Options Dimming/Timer/Zigbee/DALI/Photocell/Motion Sensor



Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty









  motion sensor led solar street light

Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty
motion sensor led solar street light Distribution

Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty

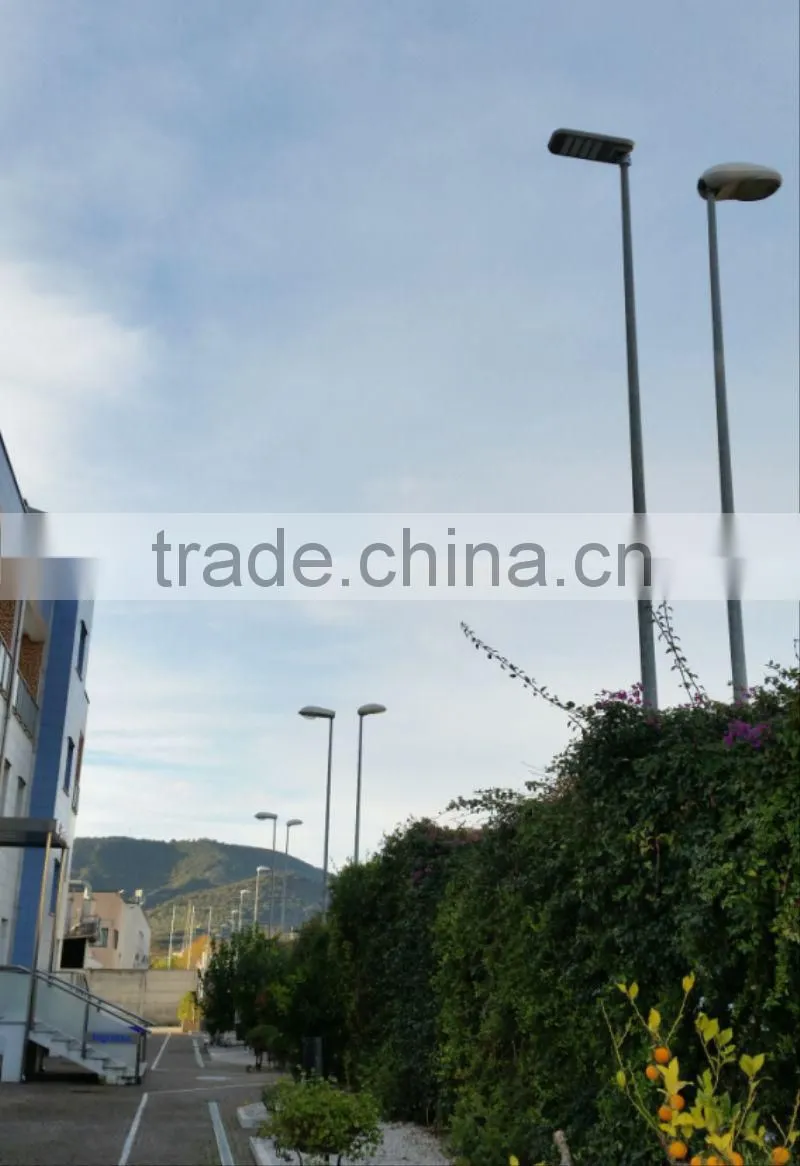

Lumileds led street light Projects



Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty






Our Services



Are you looking for reliable LED light manufacture?

We not only provide products,but also lighting solutions.

Consultancy of Lumileds led street light

"What lux level or how bright it would be if we use AOK LED? Could you make a professional calculation?"



As experienced LED lighting specialist, we offer our customers more than just the delivery of reliable and professional LED lightings products. Our focus and the services we provide have enabled us to build an excellent relationship with the market. Our team of lighting designers play an essential role in this.

The service consists of two different levels. The first level is our basic service that we offer in providing Light Technical Advice for our customers.

And based on the profile (lighting scheme) you supply - such as a drawing of a infrastructural project (motorway, tunnel, inter urban roads), residential area, underpass, parking area, city centre or even a greenhouse - our lighting specialists can present you a customised lighting plan by using a lighting calculation software. All your requirements will be taken into account and translated in a perfect lighting performance solution, including AOK LED models, column distance and positioning and lighting class and most efficient energy consumption.

All these technical services are free of charge,for more information, please contact us.

    street light ,all in one solar street light lighting design:

Aok Lumileds chip led street light of high efficacy 110lm/w 5 years warranty

Advantage:Why choose AOK Lumileds led street light ?
1.High Quality:We have strict quality control system .Good reputation in the market.We provide solutions not only products.
2.Quick response:Well-trained and experienced staff will reply all of your enquires in fluent English in 1 hour.(10 hours between 23:00-09:00 the second day BeiJing Time)
3.Good Service: We treat clients as friend.We responsibility to serve our clients best interests.
4.Free Light study: We can do professional lighting design and perform ROI(Return Of Investment) calculation.
5.Fast & Cheap Delivery: Discount price from Express company and forwarder.
6.Certificates:We have certificates for different countires to help client expand the business easliy.
7.Product Update:We can customized special products for you,and we keep on developing new products to meet market demand.
8. We can supply C/O (Certificate of Origin), saving approx 20% import duty.
