Made in China Optical Fiber Cable GYTA53

Made in China Optical Fiber Cable GYTA53 thumbnail-1
Made in China Optical Fiber Cable GYTA53 thumbnail-2
Made in China Optical Fiber Cable GYTA53 thumbnail-3
Made in China Optical Fiber Cable GYTA53 thumbnail-4
Made in China Optical Fiber Cable GYTA53 photo-1
Made in China Optical Fiber Cable GYTA53 photo-2
Made in China Optical Fiber Cable GYTA53 photo-3
Made in China Optical Fiber Cable GYTA53 photo-4
US$ 500 - 12,000 MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
FHDT
Model Number:
GYTA53
Contact Supplier Request Quote Chat Now
Chengdu Datang Communication Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name FHDT
Model Number GYTA53

Made in China Optical Fiber Cable GYTA53

Made in China Optical Fiber Cable GYTA53



Made in China Optical Fiber Cable GYTA53

 Made in China Optical Fiber Cable GYTA53Made in China Optical Fiber Cable GYTA53Made in China Optical Fiber Cable GYTA53

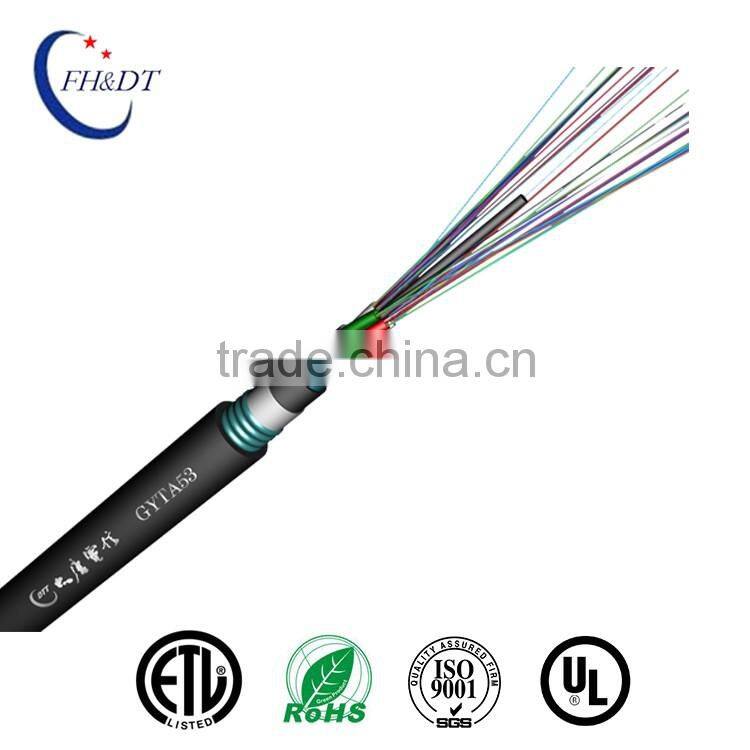

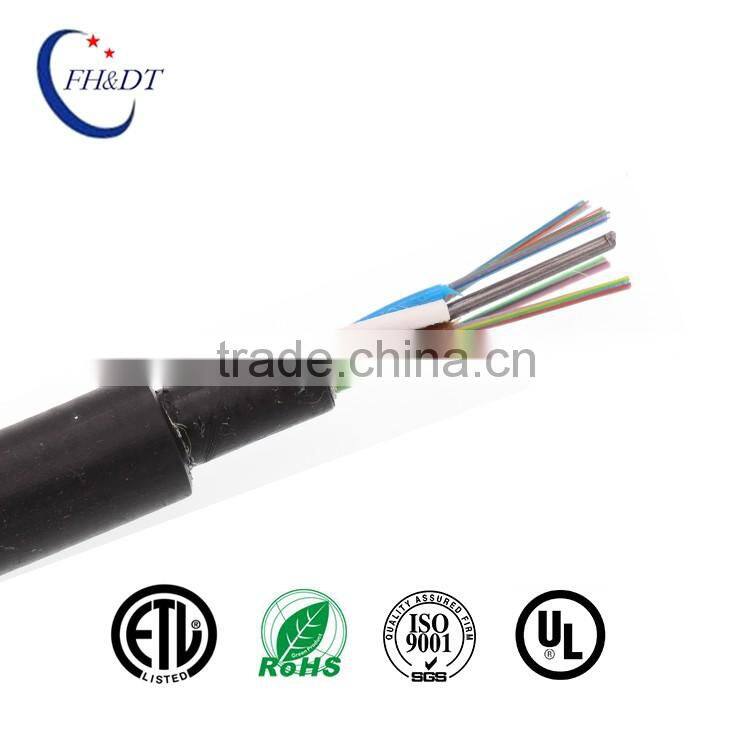

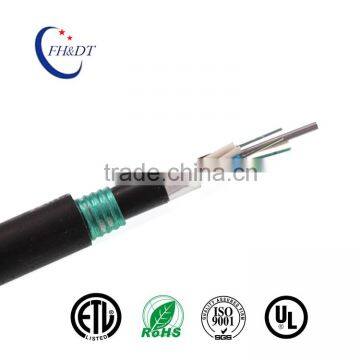

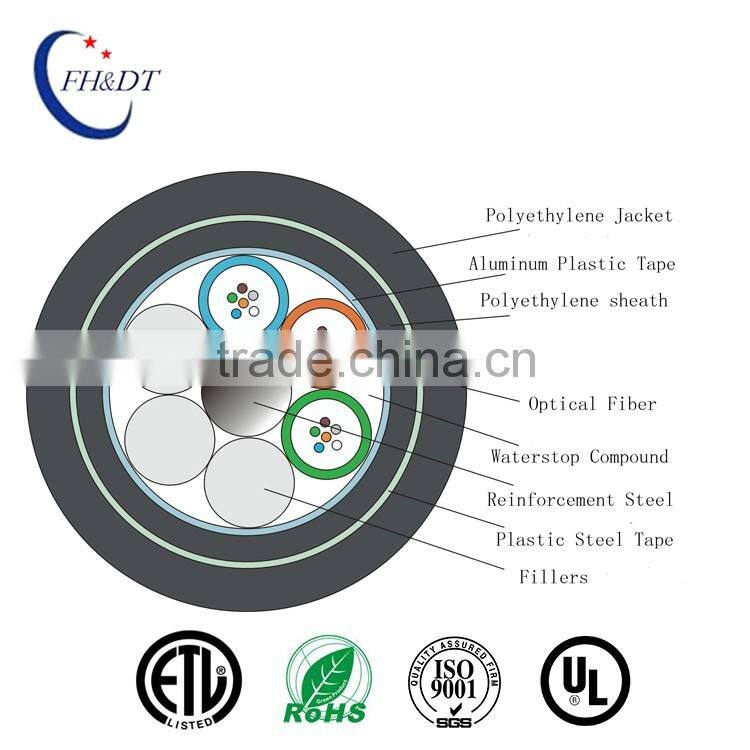

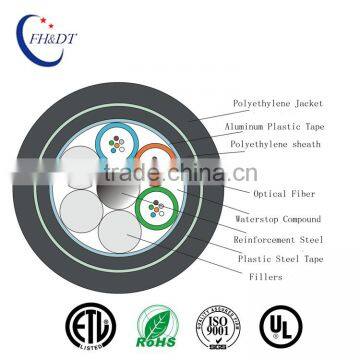

GYTA53—Central metal strength member, stranded loose tube, aluminum tape shielding, corrugated steel tape armoring, black PE sheath outdoor optical cable.



Applications

This product can be used as outdoor transmission lines in core network (for example, long haul and relay lines between local telecommunication centers). It can also be used as outdoor distribution lines or feeder in access network.





Application Circumstances

Recommended: Direct buried

Alternative: Groove, Cable trench





Optical characteristic of optical fiber cable



Type of fiber

B1.1

B4

Wavelength(nm)

1310

1550

1550

Attenuation coefficient(max)(dB/km)

0.36

0.22

0.22

PMD

M

20

20

Q

0.01%

0.01%

PMDQ (max)

0.5ps/km1/2

0.5ps/km1/2

Zero-dispersion Wavelength(nm)

1300~1324

——

Zero-dispersion Slope (max) ps/(nm2·km)

0.093

——

Absolute value of Chromatic Dispersion ps/(nm·km)

1288~1339nm

3.5

——

1271~1360nm

5.3

——

1550nm

18.0

——

1530~1565nm

——

0.1~10.0

Dmax-Dmin 1530~1565nm

——

5.0

cut-off wavelength lcc(nm)

≤1260

≤1480

Note: If specification at 1600nm is required, Please make it out in the ordering contract.





Structure and Mechanical Characteristics of Cable

Fibre

Count

Steel Wire

mm

PE Sheathed

Steel Wire mm

Loose Tube

Size

mm

Tubes

Fillers

Cable

Diameter

mm

Cable

Weight

kg

Strength

Long/Short Term

N

Crush Resistance

Long/Short Term

N/100mm

4~6

1.6

/

1.4/2.1

1

4

14.6

205

1000/3000

1000/3000

8~12

1.6

/

1.4/2.1

2

3

14.6

205

1000/3000

1000/3000

14~18

1.6

/

1.4/2.1

3

2

14.6

206

1000/3000

1000/3000

20~24

1.6

/

1.4/2.1

4

1

14.6

206

1000/3000

1000/3000

26~30

1.6

/

1.4/2.1

5

0

14.6

207

1000/3000

1000/3000

32~36

1.9

/

1.8/2.6

3

2

15.9

243

1000/3000

1000/3000

38~48

1.9

/

1.8/2.6

4

1

15.9

244

1000/3000

1000/3000

50~60

1.9

/

1.8/2.6

5

0

15.9

244

1000/3000

1000/3000

62~72

1.9

2.7

1.8/2.6

6

0

16.7

266

1000/3000

1000/3000

74~84

2.2

3.6

1.8/2.6

7

0

17.6

298

1000/3000

1000/3000

86~96

2.2

4.4

1.8/2.6

8

0

18.4

321

1000/3000

1000/3000

98~108

2.2

5.3

1.8/2.6

9

0

19.3

348

1000/3000

1000/3000

110~120

2.2

6.1

1.8/2.6

10

0

20.1

373

1000/3000

1000/3000

122~132

2.2

6.9

1.8/2.6

11

0

20.9

399

1000/3000

1000/3000

134~144

2.2

7.8

1.8/2.6

12

0

21.8

429

1000/3000

1000/3000





Temperature Characteristics

Temperature range :-40℃~+60℃

Additional Attenuation≤0.05dB/km



Allowable bending radius

12.5 D @ static bending

25 D @ dynamic bending



Cable Delivery Length

The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.



Made in China Optical Fiber Cable GYTA53



Made in China Optical Fiber Cable GYTA53







Made in China Optical Fiber Cable GYTA53

Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical

cable factory with all kinds of advanced equipments.  The main part includes an 8000-sq.m

optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-

sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers

of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
