Made in China Optical Fiber Cable GYDXTW

Name: Made in China Optical Fiber Cable GYDXTW
Brand: FHDT
SKU: 123158451

Made in China Optical Fiber Cable GYDXTW thumbnail-1

Made in China Optical Fiber Cable GYDXTW thumbnail-2

Made in China Optical Fiber Cable GYDXTW thumbnail-3

Made in China Optical Fiber Cable GYDXTW photo-1

Made in China Optical Fiber Cable GYDXTW photo-2

Made in China Optical Fiber Cable GYDXTW photo-3

US$ 1,000 - 12,000 MOQ: 10 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

FHDT

Model Number:

GYDXTW

Contact Supplier Request Quote Chat Now

Chengdu Datang Communication Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name FHDT

Model Number GYDXTW

Made in China Optical Fiber Cable GYDXTW

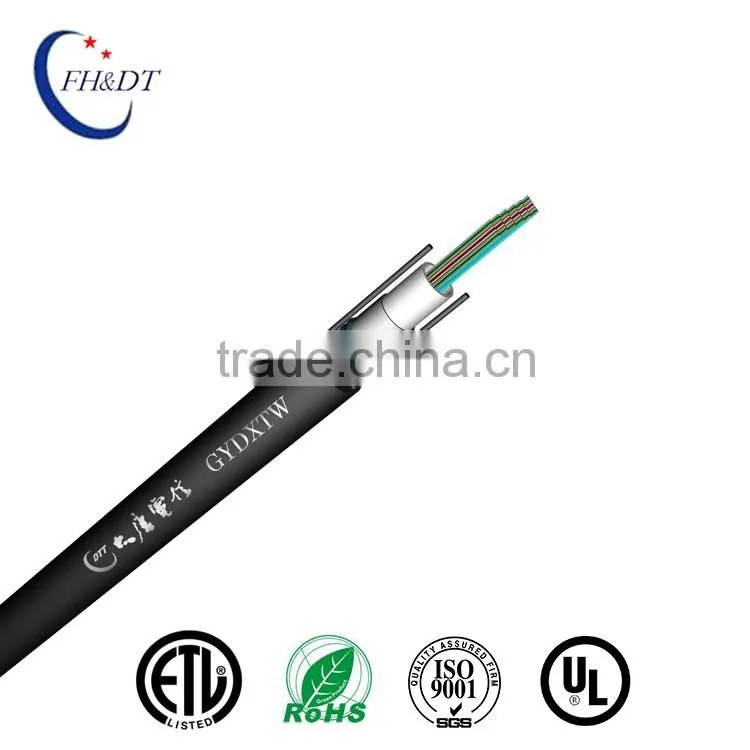

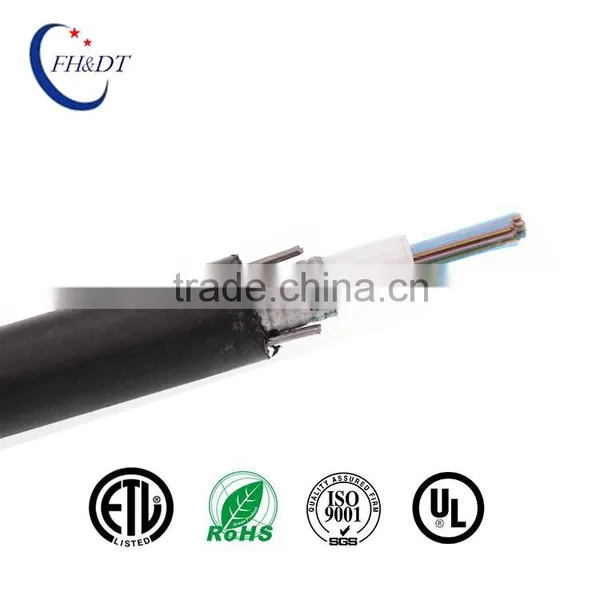

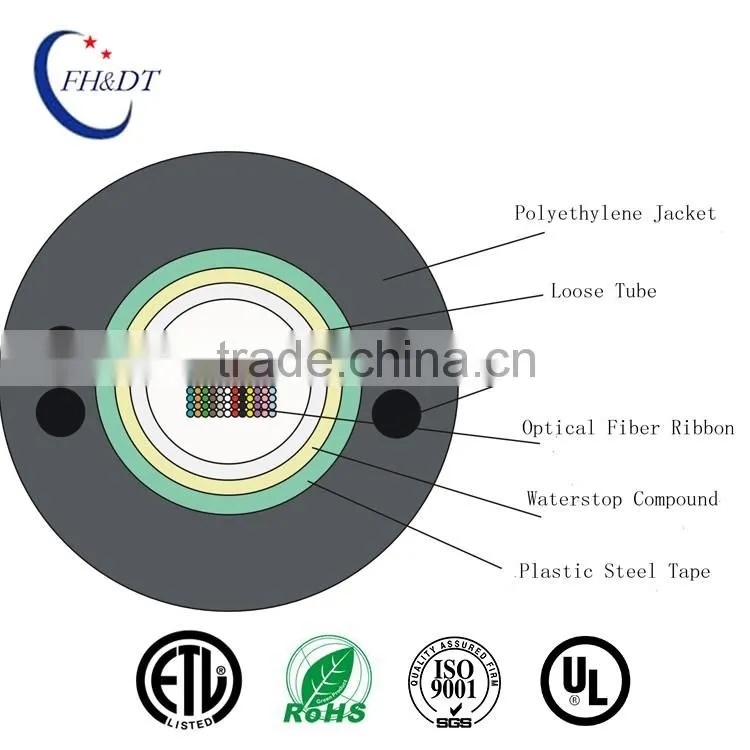

GYDXTW—Metal strength member, central loose tube with ribbon, steel tape with two parallel steel wires in black PE sheath outdoor cable.

Applications

This product can be used as outdoor distribution lines, feeder or leading lines in access network.

Chinese Standard

YD/T 981.1~981.3-1998

“Optical fiber ribbon cables for access

network.”

Application Circumstances

Recommended: Aerial, Duct

Alternative: Groove, Cable trench

Optical characteristic of optical fiber cable

Type of fiber			B1.1		B4
Wavelength(nm)			1310	1550	1550
Attenuation coefficient(max)(dB/km)			0.36	0.22	0.22
PMD	M		20		20
	Q		0.01%		0.01%
	PMD_Q(max)		0.5ps/km^1/2		0.5ps/km^1/2
Zero-dispersion Wavelength(nm)			1300~1324		——
Zero-dispersion Slope (max) ps/(nm²·km)			0.093		——
Absolute value of Chromatic Dispersion ps/(nm·km)		1288~1339nm	3.5		——
		1271~1360nm	5.3		——
		1550nm	18.0		——
		1530~1565nm	——		0.1~10.0
		Dmax-Dmin 1530~1565nm	——		5.0
cut-off wavelength lcc(nm)			≤1260		≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Structure and Mechanical Characteristics of Cable

Fibre Count	Steel Wire mm	Loose Tube Size (mm)	Sheath Thickness mm	Cable Diameter (mm)	Cable Weight (kg)	Strength Long/Short Term (N)	Crush Resistance (N/100mm)
12~16	1.6	2.7/3.5	3.1	11.5	144	600/1500	300/1000
24	1.6	3.5/4.5	3.1	12.5	165	600/1500	300/1000
36	1.6	4.2/5.2	3.1	13.1	181	600/1500	300/1000
48	1.6	5.8/7.0	3.1	15.0	224	600/1500	300/1000
60~72	1.6	6.2/7.4	3.1	15.4	235	600/1500	300/1000
84~108	1.6	7.3/8.5	3.1	16.5	266	600/1500	300/1000
120	1.6	7.7/9.1	3.1	17.1	284	600/1500	300/1000
132~156	1.6	8.5/9.9	3.1	17.9	308	600/1500	300/1000
168~180	1.6	9.1/10.5	3.1	18.5	326	600/1500	300/1000
192	1.6	9.8/11.2	3.1	19.2	348	600/1500	300/1000

Temperature Characteristics

Temperature range :-40℃~+60℃

Additional Attenuation≤0.05dB/km

Allowable bending radius

10 D @ static bending

20 D @ dynamic bending

Cable Delivery Length

The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.
