Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > UL CUL DLC TUV SAA Aluminium Body 80W 150W 100W LED Tunnel Light

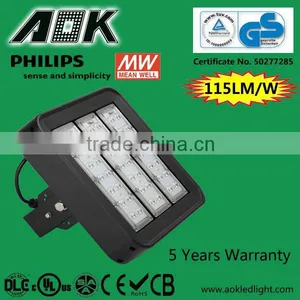

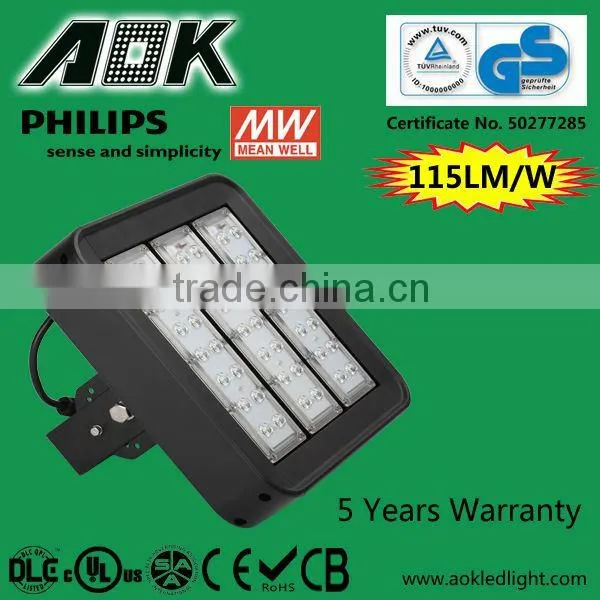

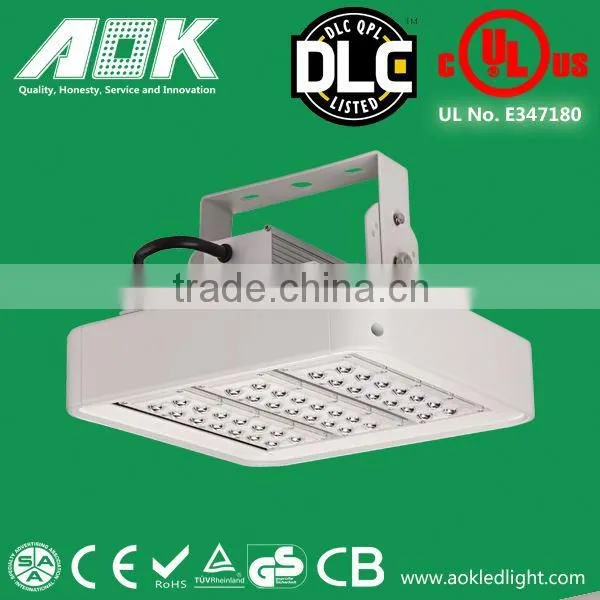

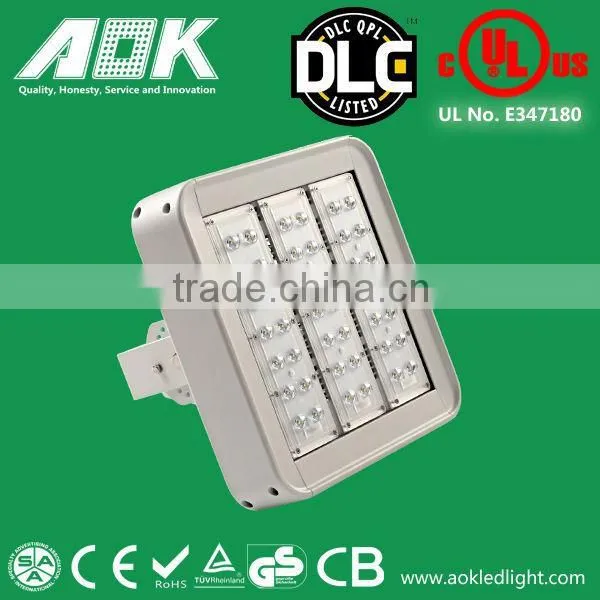

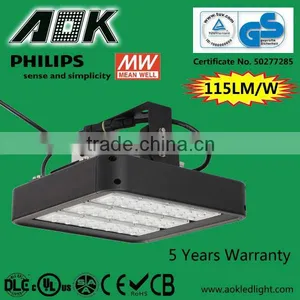

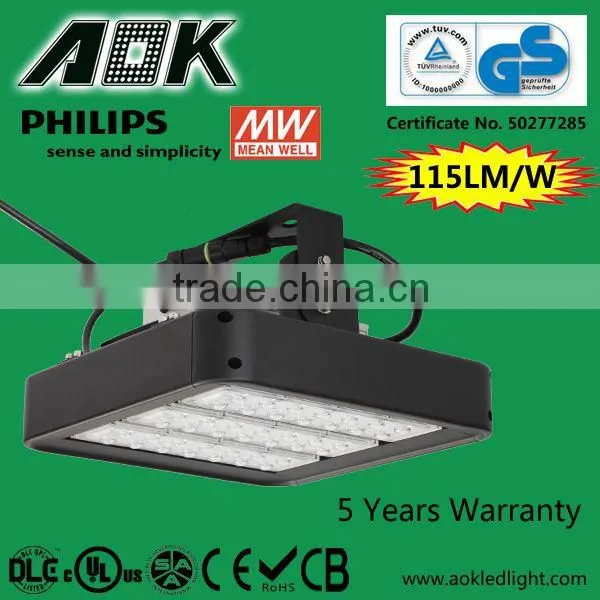

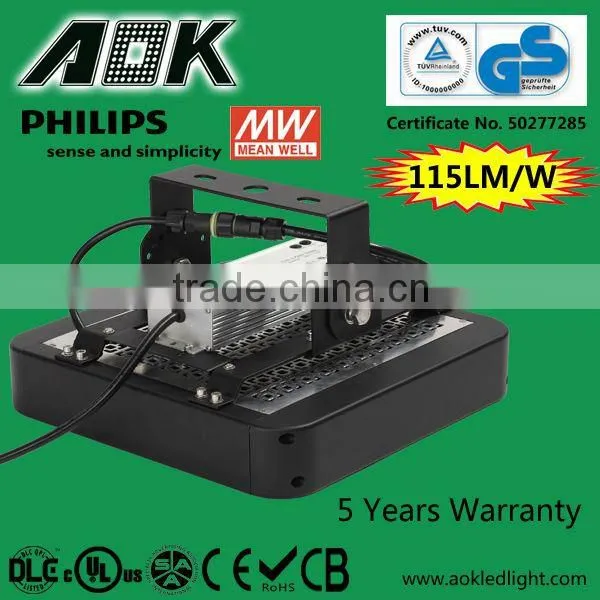

UL CUL DLC TUV SAA Aluminium Body 80W 150W 100W LED Tunnel Light
US$ 198 - 218
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
LumiLEDs Luxeon T Chip
Input Voltage(V):
100-277
Lamp Power(W):
120
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL CUL DLC 400w Led Retro Fit 480vUS$ 601 - 605MOQ: 1 Piece -
Dali Led Tunnel Light With 100-528VACUS$ 186 - 189MOQ: 1 Piece
-
130lm/w Low Price Led Tunnel LightUS$ 142 - 145MOQ: 1 Piece
-
8 Years Warranty 16000 Lumens 160w Led Tunnel LightUS$ 215 - 218MOQ: 1 Piece
-
2016 New Arrival Meanwell Driver IP67 Tunnel Led LightUS$ 102 - 105MOQ: 1 Piece
LED Light Source
LumiLEDs Luxeon T Chip
Input Voltage(V)
100-277
Lamp Power(W)
120
Lamp Luminous Flux(lm)
13800
Lamp Luminous Efficiency(lm/w)
115
Color Temperature(CCT)
Other, 30°,45°,60°,90*100°,120°
Working Temperature(℃)
-40, 50
Working Lifetime(Hour)
62000
Lamp Body Material
Aluminum Alloy
IP Rating
IP67
Certification
C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Place of Origin
China
Brand Name
AOK
Model Number
AOK-120Wi
UL cUL DLC TUV SAA Aluminium Body 80W 150W 100W LED Tunnel Light
Product Description
5 Years Warranty UL cUL DLC TUV SAA 120W LED Tunnel Light
| Product Details | |||||||
| Model | Power |
Luminous Flux: |
Replace HID Lamp | Lamp Size |
Net Weight |
Packing |
Gross Weight |
| AOK-40Wi | 40W | 4600lm | 100-120W | 303*151*183mm | 3.5kg | 370*300*255mm | 6.3kg |
| AOK-80Wi | 80W | 9200lm | 200-250W | 303*232*183mm | 5.2kg | 380*300*255mm | 8.1kg |
| AOK-120Wi | 120W | 13800lm | 300-350W | 303*311*196mm | 6.2kg | 375*470*255mm | 9.3kg |
| AOK-160Wi | 160W | 18400lm | 400-500W | 392*303*196mm | 7.2kg | 375*500*255mm | 10.5kg |
| AOK-200Wi | 200W | 23000lm | 500-600W | 473*303*196mm | 8.5kg | 375*542*255mm | 11.8kg |
| AOK-240Wi | 240W | 27600lm | 600-750W | 554*303*196mm | 9.3kg | 375*625*255mm | 13.5kg |
| AOK-280Wi | 280W | 32200lm | 700-1000W | 635*303*196mm | 10.5kg | 375*705*255mm | 14.3kg |
| AOK-320Wi | 320W | 36800lm | 800-1000W | 713*303*196mm | 11.8kg | 375*788*255mm | 15.8kg |
| AOK-360Wi | 360W | 41400lm | 1000-1100W | 794*303*196mm | 13.3kg | 375*885*255mm | 16.5kg |
| AOK-400Wi | 400W | 46000lm | 1000-1200W | 875*303*196mm | 15.5kg | 375*965*255mm | 17.3kg |
| Main Parameters | |||||||
| Driver | Meanwell Driver | CRI | Ra > 75 (>80 optional) | ||||
| LED Chips | Philips Luxeon T chip | Color Temperature | 3000-3500, 4100, 5000, 5700, or 6500K | ||||
| IP Rating | IP65 & IP67 | Luminous Efficiency | 110-115lm/w | ||||
| Guarantee | 5 Years Warranty | Operating Voltage | 90-305VAC or 347-480VAC or 12/24VDC | ||||
| Certifications | UL,DLC,TUV,SAA,CE,RoHS | Operating Temperature | -40 ºC to +50 ºC | ||||
| Heat Radiator | Anodized Aluminum | Operating Humidity | 10% to 90% | ||||
| Face | Anti-static Coating | Power Fact | >0.95 | ||||
| LED Life Span | 62,000 hours LM70 | Power supply efficiency | >90% | ||||
| Options | Dimming/Timer/zigbee/Photocell/Motion Sensor | ||||||
Patented all-in-one design, ideal product for all project
Our Services
|
Are you looking for reliable LED light manufacture? We not only provide products,but also lighting solutions. |
| Lighting Design Consultancy |
|
"What lux level or how bright it would be if we use AOK LED? Could you make a professional calculation?"
As experienced LED lighting specialist, we offer our customers more than just the delivery of reliable and professional LED lightings products. Our focus and the services we provide have enabled us to build an excellent relationship with the market. Our team of lighting designers play an essential role in this. |
Company Information
| AOK Guarantee | |
| Quality Control | |
|
ISO 9001:2008 quality control system has been established. All stages from Incoming Quality Control, Process Quality Control to Finished Goods Quality Check are carried out under strict rules |
Other Led Lights You May Click The Picture To Choose:
| AOK LED Light Company Limited | |||||||||
| Contact: Jan Wu Mobile: +86-18450068757 | |||||||||
| Website: Skype: aokled15 | |||||||||
| Tel: +86-591-83820886 Fax: +86-591-83835675 | |||||||||
| Address: 5 Blding, No 150, MinJiang Road, CangShan Zone, Fuzhou City, China. Zip: 350008 |
