CE ,BV Approved !!! stainless welded and bolted 100 ton cement silo,fly ash silo,cement silo manufacturer
- 1000000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Good Quality Agricultural Cereal Storage Maize Wheat Paddy Corn Grain Galvanized Steel Silo
- Sell Well New Type Feed Storage Grain Machine Steel Silo Price For Sale
- Hot Selling Cheap Custom Stainless Big Mouth Steel Silo Grain Storage Machine
- Top Quality Grain Farm Steel Silo Steel Grain Bin Farm Silo Machine
- New Low Price Grain Bin Storage Machine Bin Corn Silo Storage Machine
- Economical Custom Design Feed Coil Equipment Spiral Steel Silo Making Machine
Product Details
Condition: | New | Capacity: | 120m3 | Material: | Steel |
Place of Origin: | Henan, China | Brand Name: | YUJIE | Model Number: | SNC100 |
Dimension(L*W*H): | 3*3*21m | Weight: | 8T |
Product Description
Hot Sell 100T cement silo manufacturer for concrete batch plant
(30 years experience)
Addvantages:
1.Easy transport & install fast
2.Accept customized order
3.Standard discharging height:7.4m
4.ISO ,CE,BV,SGS certificates
I.Characters of 100 ton cement silo manufacturer
With scientific and simple structure, great strength, large capacity, and good sealing, The Cement Silo is suitable for the storage of powdery and grain stuff. It is widely used in many fields such as grain, feed, food, chemicals, brewery, and so on. It also can be used as warehouse.
The Cement Silo is in international standard and has capacity from 500 tons to 10000 tons. The side wall steel sheets are designed according to theory of highest strength. The steel sheets of the Cement Silo are galvanized 275 g/ m2 and 350 g/m2 in accordance with international standard. Besides, there are many ways of unloading, such as the fluidized unloading, multi-spot unloading, etc. Space structure technology is used in design of the silo framework to ensure the stability of big span, the angle is 25° with good strength.
II.100 Ton cement silo manufacturer Installation:
Equipment positioning: According to the diameter of Cement Silo, fixing the position of the equipments;
Rolling silo: After fixing the position of the equipments, rolling silo to 2m high;
Install silo roof: After cutting silo roof level with plasma cutter, installing the silo roof;
Lifting silo: Lifting the rolling silo to required height
Fixing silo: fixing the silo with embedded plate
Installing other facility: The user design and install the selected objects.
III.100 Ton cement silo Functions:
1. Good sealing performance: With five-layer spiral crimping, the seams are very tight. It is also suitable for storing building material such as cement. With Seal gum embedded into spiral crimping seams, the spiral silo also can store fluid material such as waste water.
2. Small area needs: The height and diameter are optional in a wide range. The distance between two silos can be minimized to 600 mm to make full use of the available space and reduce area occupancy.
3. Long life time: Best sheets of the silo body enables a normal service life up to 25-30 years.
4. Short construction period: Highly mechanized construction of spiral silos on site, short construction period. A 2000 ton steel silo only needs 5-8 dsys to install.
IV. Main Parameters of 100T cement silos:
Model | 100T |
Silo Diameter (A) | 3,000mm |
Silo Body Height (H1) | 9,810mm |
Silo Cone Height (H2) | 2,579mm |
Silo Height (H3) | 19,789mm |
Total Height (H4) (including handrails) | 20,902mm |
Discharging Height (H5) | 7,400mm |
Total Weight | 8T |
Material | Q235 |
Steel Thickness (from Cone to Top) | 6-6-5-4-3mm |
Accessories | Dust Collector, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Arch Breaking |

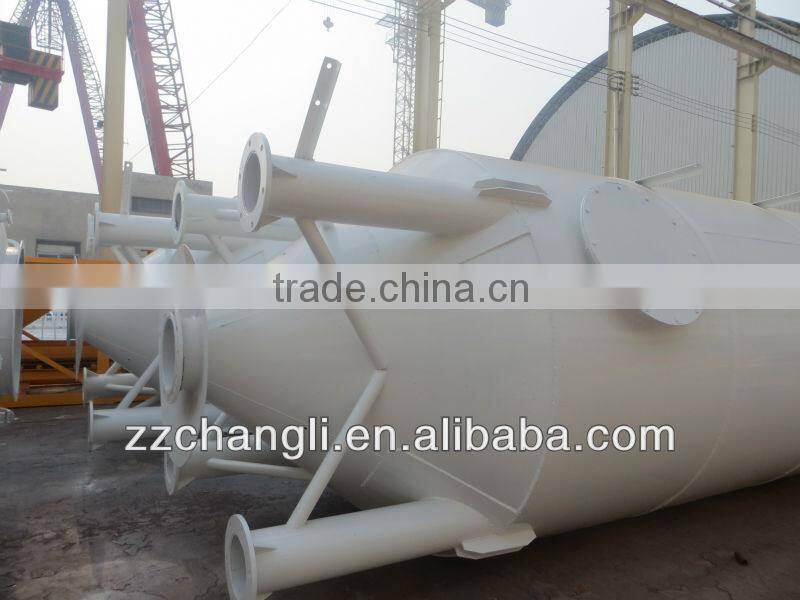

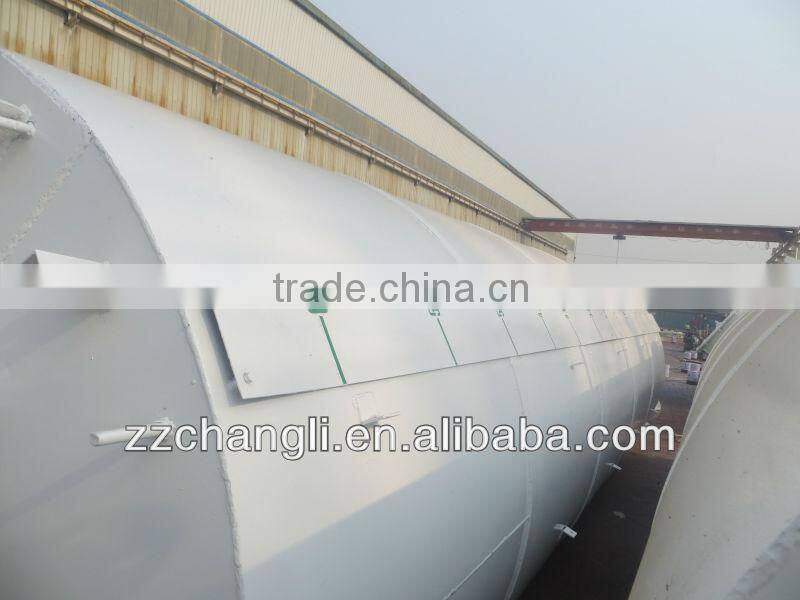

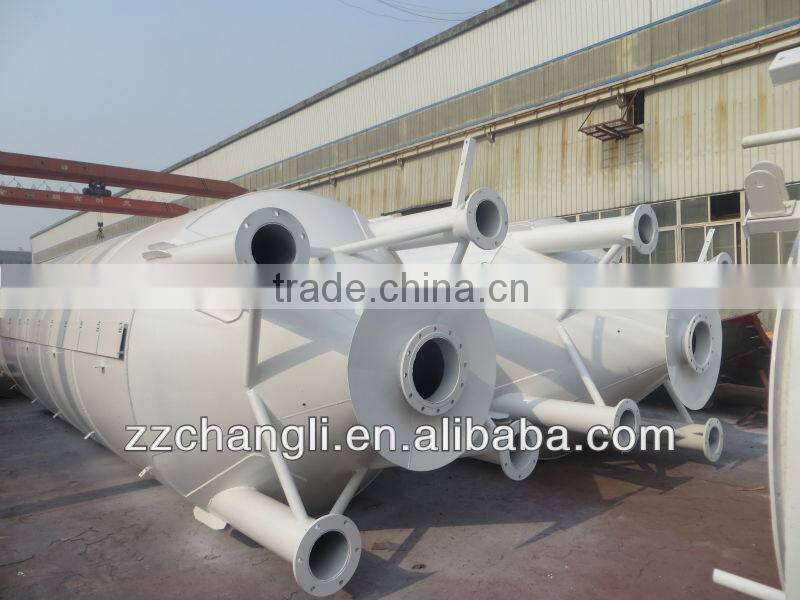

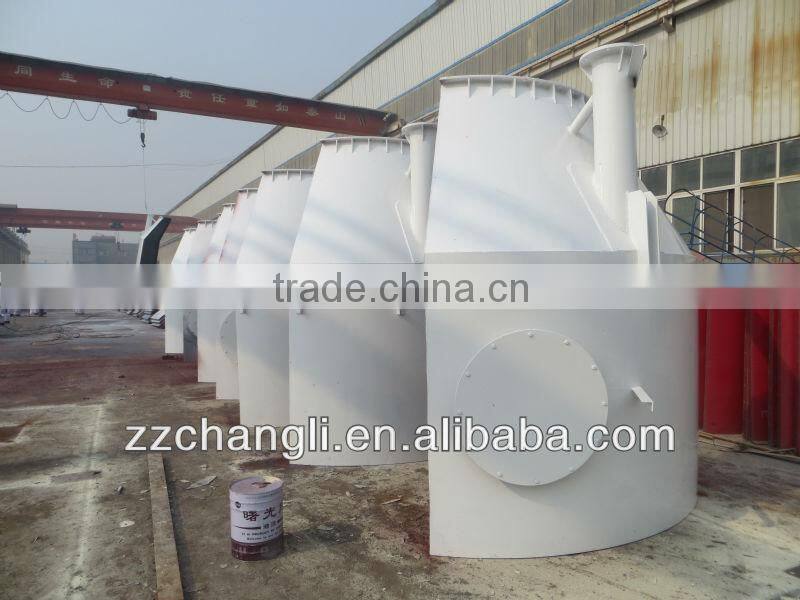

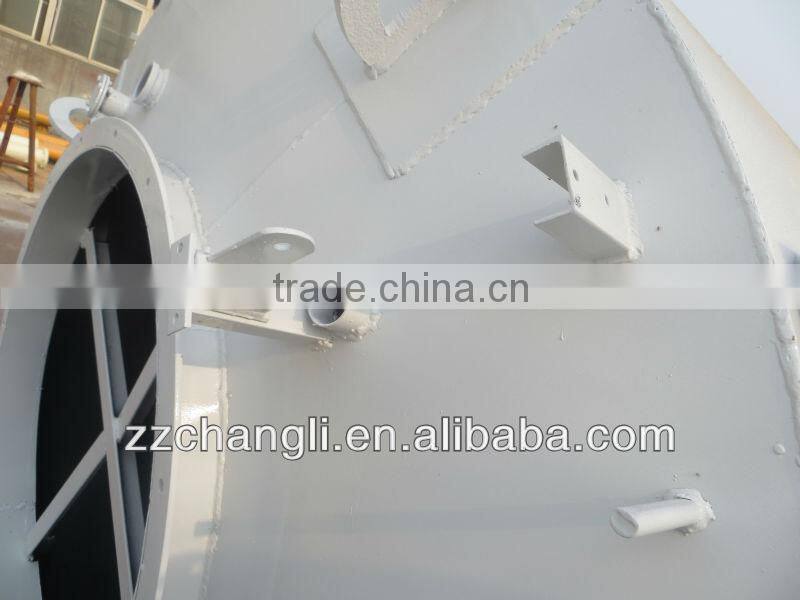

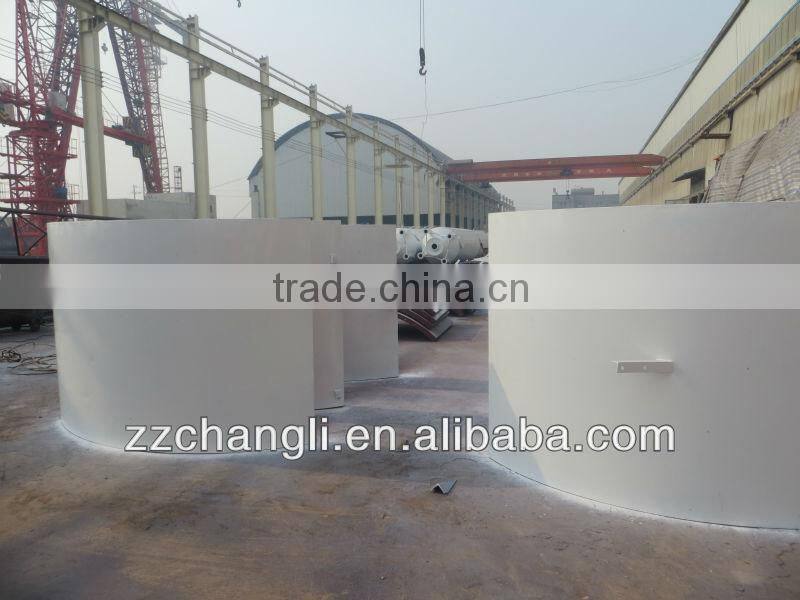

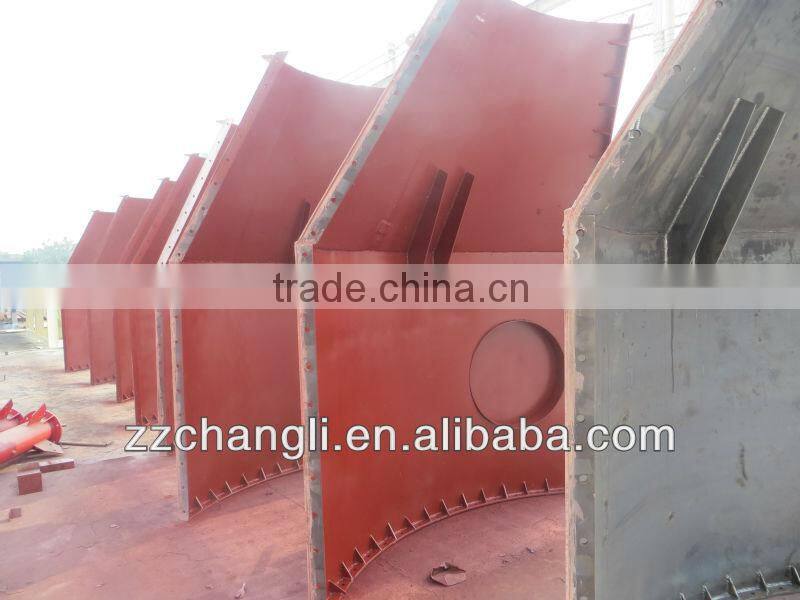

V.Some pictures of 100 T cement silos(exported to Japan)

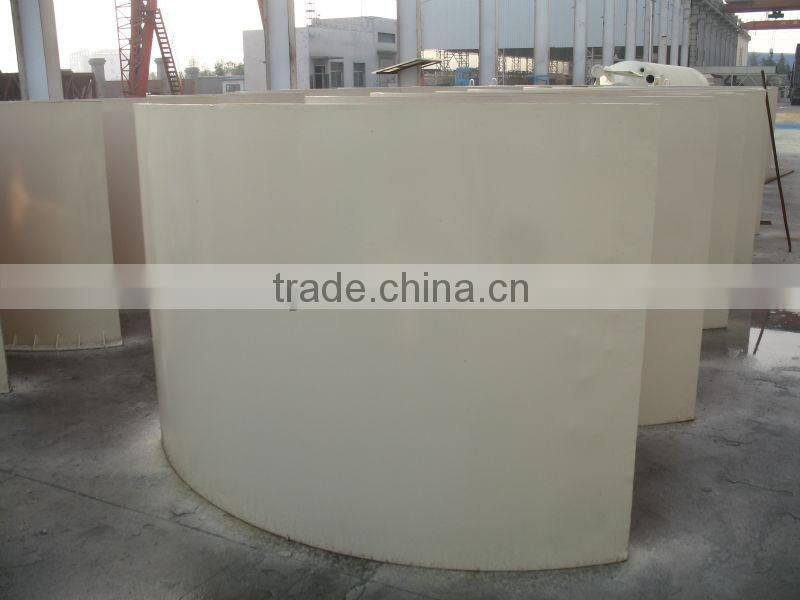

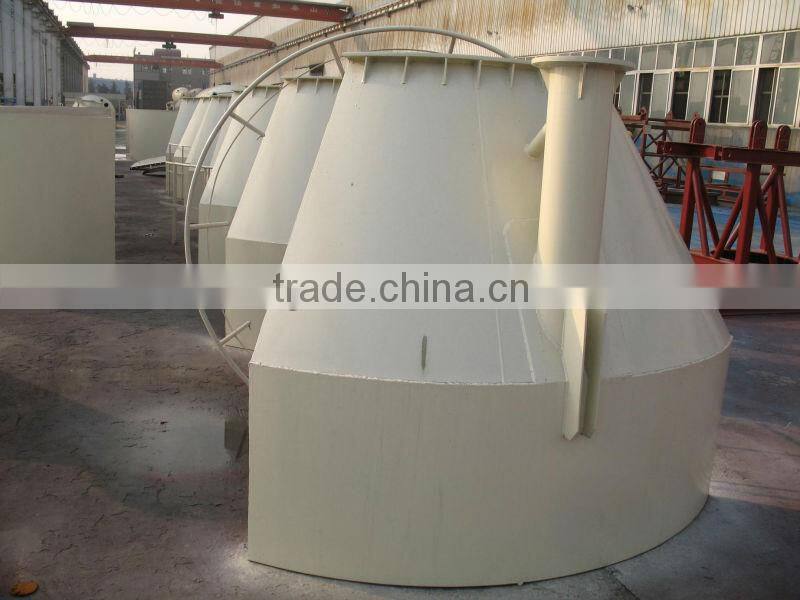

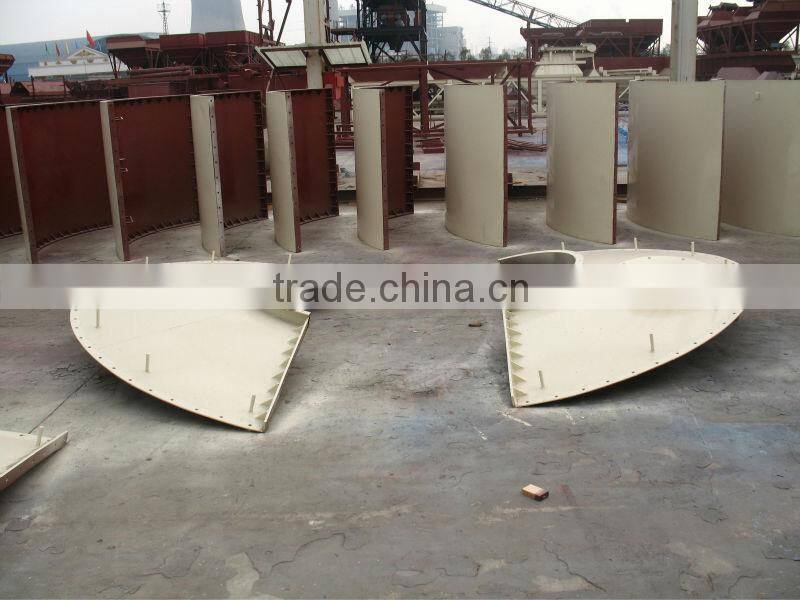

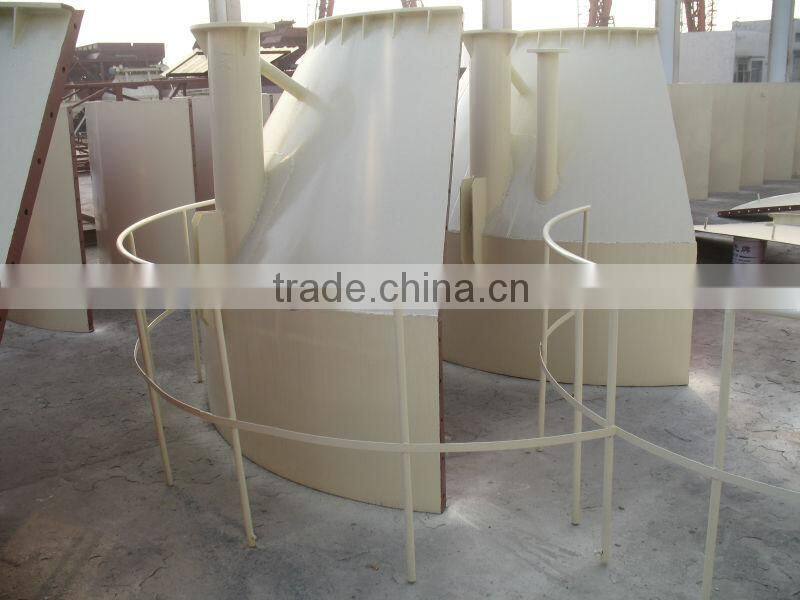

100 ton cement silo ---bolted cement silos exported to Russia

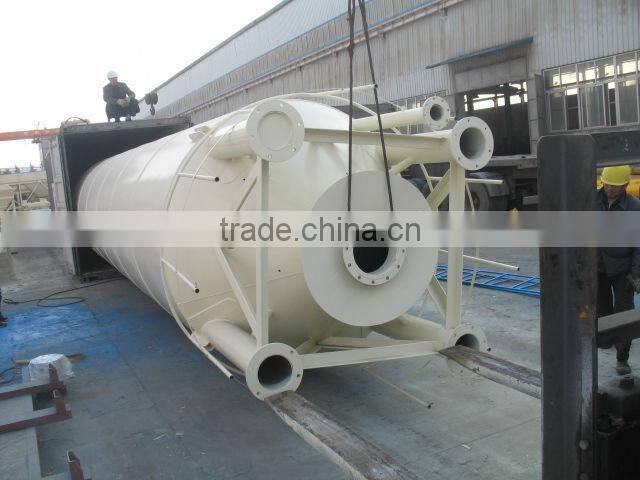

VI.Loading images of 100 Ton cement silos
Working Principle of Our Cement Silos
1. Bulk cement silos should be erected by a special crane and then put onto the concrete foundation which is previously prepared, after checking the verticality with the horizontal plane once the silo is set up, then weld the base with the foundation embedment parts.
2. Once cement silos is fixed, the cement can be delivered to the construction site by cement bulk truck. Connecting the conveying pipe of buck cement silo with the filling pipe of cement silos, then convey the cement cement silos through the air pressure.
3. During the process of filling cement, the operator should press continuously the button of vibration motor of dust filter so as to shake off the cement on the bag, preventing the bag from being blocked and occurrence of explosion.
4. Once the bag of dust filter is blocked, the pressure inside of silo exceeds the safety pressure of safety valve on the top of silo, the pressure safety valve will be opened immediately to release the pressure inside the silo, preventing the occurrence of explosion accident.
5. By higher level indicator, we can know whether the silo is full or not, while by lower level indicator we can know the silo is lack of material or not.
6. When discharging the material, first open the manual butterfly valve at the bottom of cone, then with cement conveying device (screw conveyor) the cement can be discharged. In the process of discharging, should there is “arches” or "bridges”, pls timely press the button of electromagnetic valve of arch breaking device, blow the air, eliminate the "arches" or “bridges”, ensuring the smooth supplying of cement.
7. When the cement conveying device (screw conveyor) is broken down, pls swith off the manual butterfly valve at the bottom of the cone, preventing the leakage of cement and material waste.
