UL CUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

UL CUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light thumbnail-1
UL CUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light thumbnail-2
UL CUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light photo-1
UL CUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light photo-2
US$ 90 - 118 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
LumiLEDs Luxeon T LED chip
Warranty(Years):
5
Input Voltage(V):
90-305VAC, 347/480VAC, 12/24VDC
Contact Supplier Request Quote Chat Now
Fuzhou Aok LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LumiLEDs Luxeon T LED chip
Warranty(Years) 5
Input Voltage(V) 90-305VAC, 347/480VAC, 12/24VDC
Lamp Power(W) 200
Lamp Luminous Flux(lm) 19500
Lamp Luminous Efficiency(lm/w) 130
Color Temperature(CCT) Other, 3000, 4000, 5000, 5700, or 6500K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 62000
Lamp Body Material Aluminum
IP Rating Other, IP65&IP67
Certification C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, SAA, UL, VDE
Place of Origin Guangdong, China
Brand Name AOK
Model Number AOK-150WiU

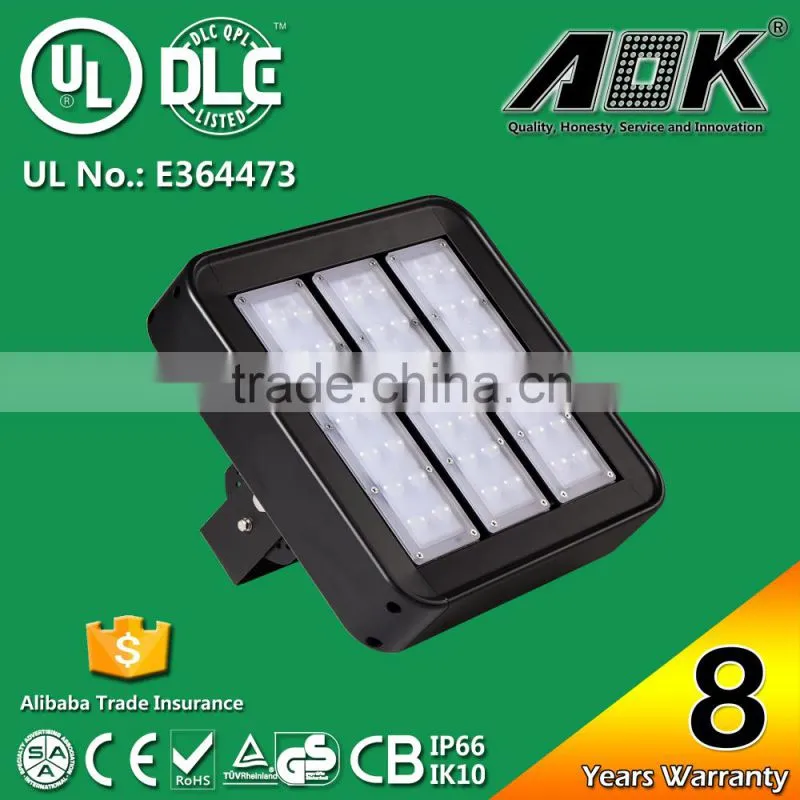

UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

UL cUL DLC TUV SAA CB CE Listed 130lm/w 150W Industrial LED Highbay Light



We are the very few manufacture
1.Who has DLC Premium with 347V/480V together.
2. Who has 400W with 480V DLC Premium .

Choose us will be your best option!

Main Features
  • Wide Power range: 40W to 400W
  • Input Voltage: 90-305VAC, 347/480VAC, DC12V/24V
  • Long Lifespan, TM21 reported L70>62000hours
  • Philips LumiLEDs, fixture lumens >120lm/w
  • Meanwell driver, 1-10V/pwm dimmable
  • Warranty: 5 years
  • UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed
  • Short production time: 5-7 working day

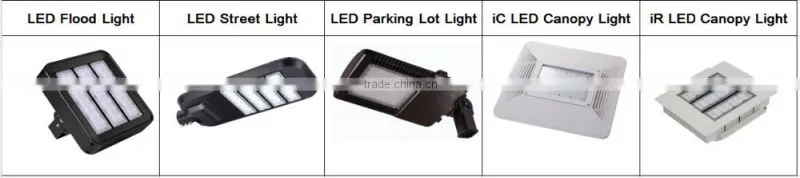

To View More AOK LED Lights, pls click the following



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

>>     " href="http://preview.china.cn/productgrouplist-221881333/LED_Flood_Light.html" target="_blank"> >>         " href="http://aokled.en.china.cn/productgrouplist-221881333/LED_Flood_Light.html" target="_blank">View More >>>>>         " href="http://aokled.en.china.cn/productgrouplist-221881333/LED_Flood_Light.html" target="_blank">                   >>  " href="http://aokled.en.china.cn/productgrouplist-221886303/LED_Street_Light.html" target="_blank">  View More >>>  >>    " href="http://preview.china.cn/productgrouplist-221886303/LED_Street_Light.html" target="_blank">           >>     " href="http://aokled.en.china.cn/productgrouplist-222555297/LED_Parking_Lot_Light.html" target="_blank"> View More >>>           >> " href="http://aokled.en.china.cn/productgrouplist-221886305/LED_Canopy_Light.html" target="_blank"> View More >>>           >> " href="http://aokled.en.china.cn/productgrouplist-221886305/LED_Canopy_Light.html" target="_blank"> View More >>>



Product Description
Parameters of  150W Industrial LED Highbay Light



Item No.

Power

(W)

 LED Qty

Module

Qty

Luminous

Efficacy

(lm/w)

Luminous

Flux

(lm)

CRI

(Ra>)

HPS/MH

Replacement

(w)

Max Current

(constant)

(A)
AOK-40Wi 40 14 1 120 4800 80 120 0.45
AOK-80Wi 80 28 2 120 9600 80 250 0.9
AOK-120Wi 120 42 3 120 14400 80 400 1.35
AOK-160Wi 160 56 4 120 19200 80 500 1.8
AOK-200Wi 200 70 5 120 24000 80 600 2.25
AOK-240Wi 240 84 6 120 28800 80 800 2.66
AOK-280Wi 280 98 7 120 33600 80 1000 3.1
AOK-320Wi 320 112 8 120 38400 80 1000 3.55
AOK-360Wi 360 126 9

120

 43200 80 1200 4
AOK-400Wi 400 140 10 120 48000 80 1500 4.45

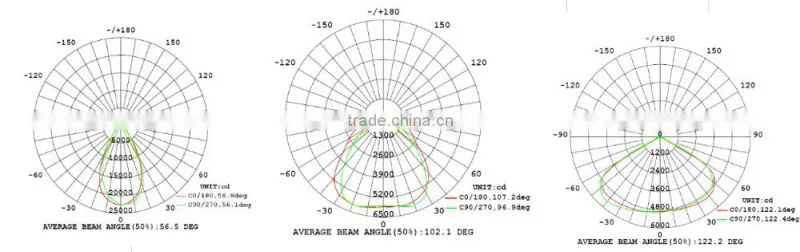

Different Light Distributions of  150W Industrial LED Highbay Light



For Different application requirement, AOK customised different types of beam angles for customers,

at the moment we have 60°, 90*100°, 120° beam angle.



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

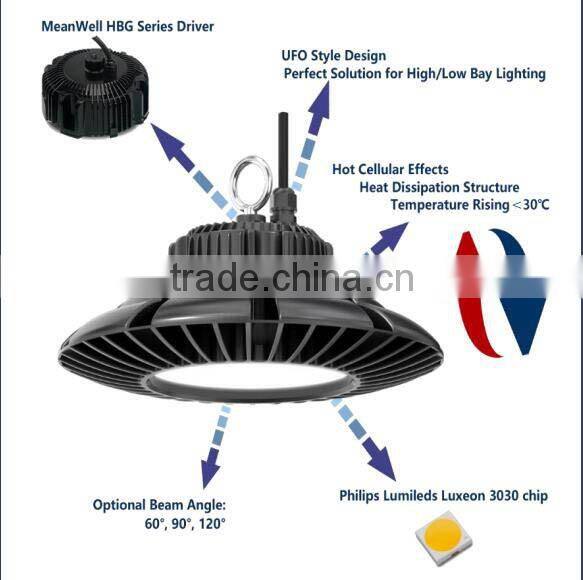

Detailed Image of  150W Industrial LED Highbay Light
UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

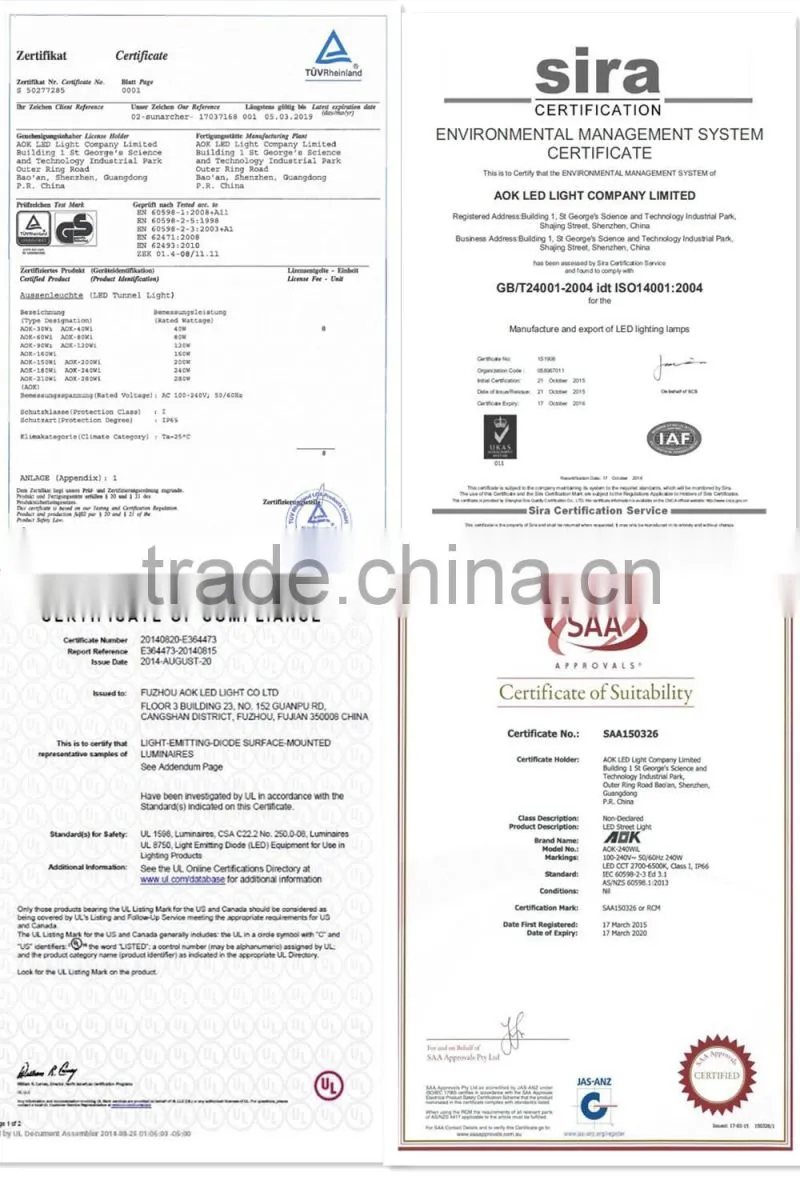

Certificates of 200W LED Warehouse Light
1. UL Certificate No.: E364473
2. TUV GS-Mark Approval, Certificate No. S 50277285
3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520
4. SAA Certificate No.: TUV01877E
5.  For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items.

  UL cUL DLC TUV SAA CB CE Listed 130lm/w LED Warehouse Light

   UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

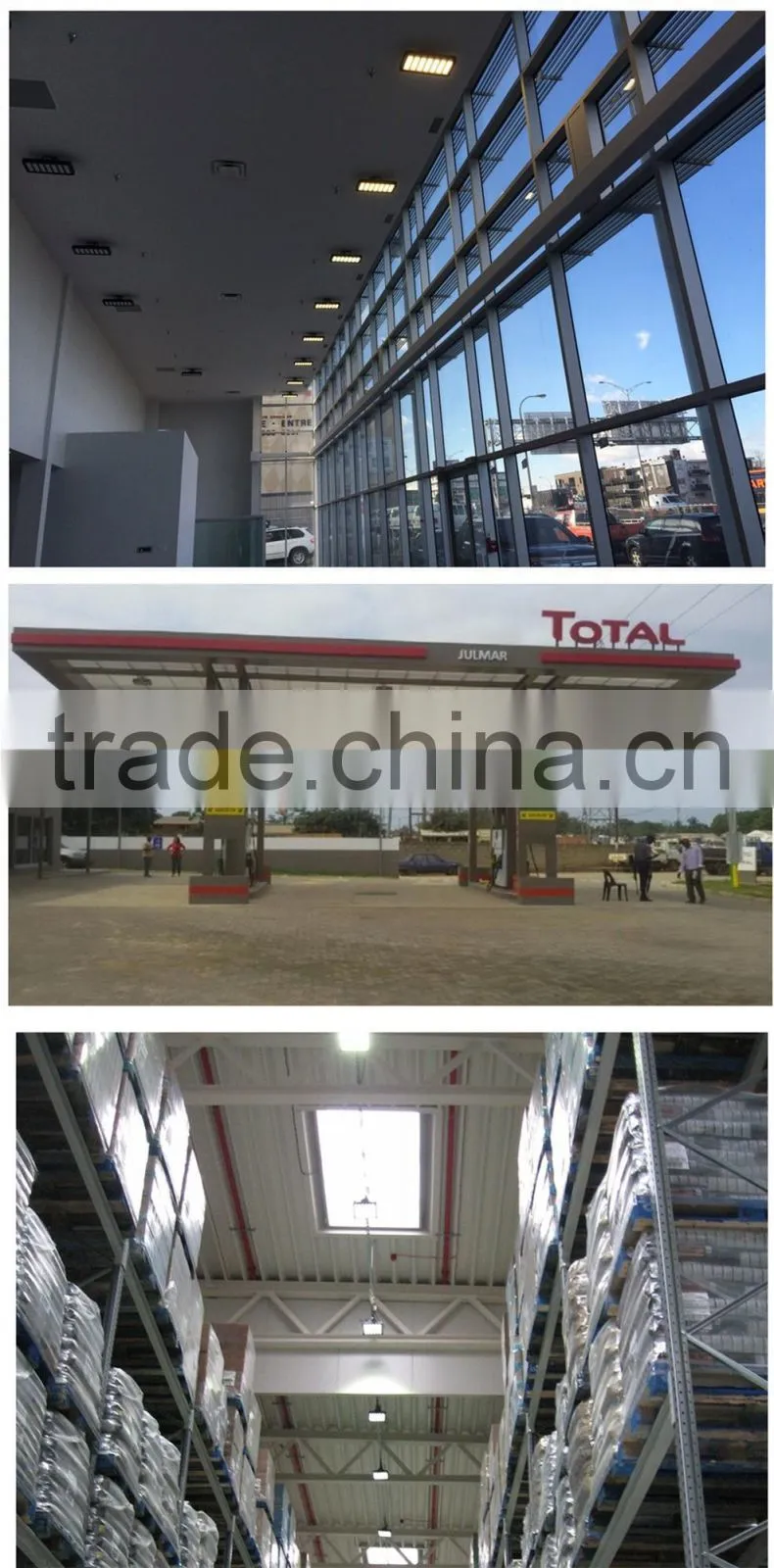

Application Projects
Application of 150W Industrial LED Highbay Light



1. Warehouse Lighting, Factory Lighting, Industrial Lighting

2. Garage Lighting, Workshop Lighting

3. Outdoor Area Lighting, High Mast Lighting

4. Supermarket Lighting, Store Lighting

5. Tunnel Lighting, Bridge Lighting

6. Gas Station Lighting

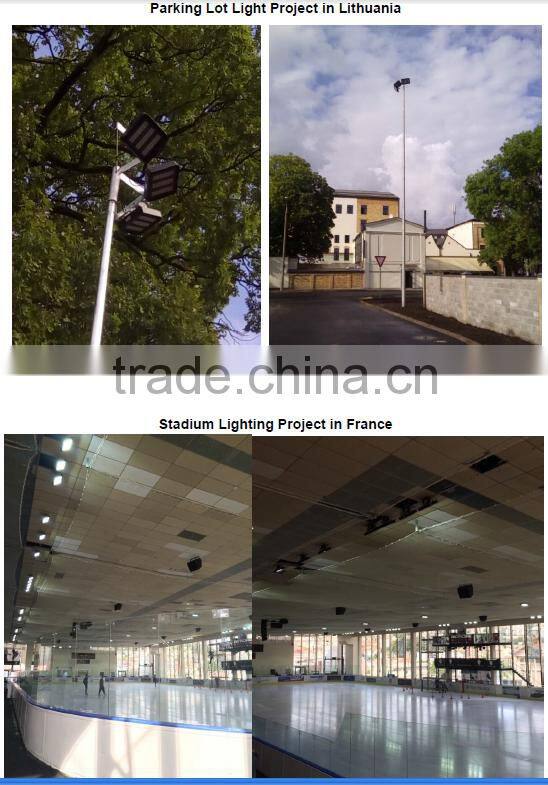

Projects finished with 150W Industrial LED Highbay Light



Warehouse Project in Canada - Using 280W LED High Bay Lights, 5000K

UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

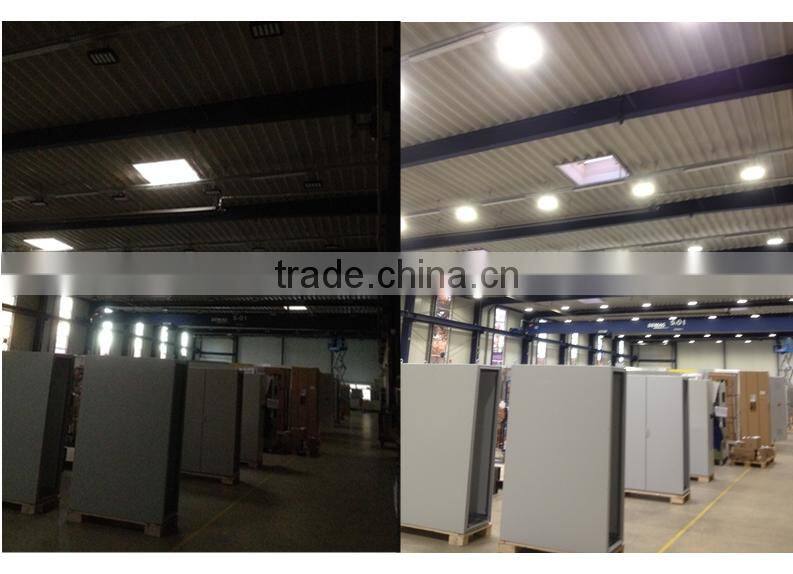

Logistic Warehouse of DEMAG Germany - using 200W LED High bay lights 5700K

UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

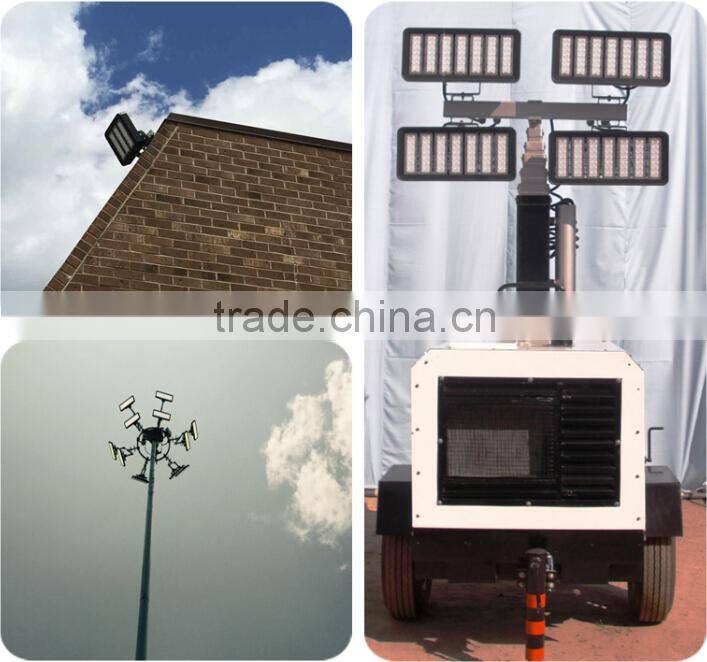

Outdoor Lighting Applications as flood light, mobile tower lighting and High Mast Lighting

 UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

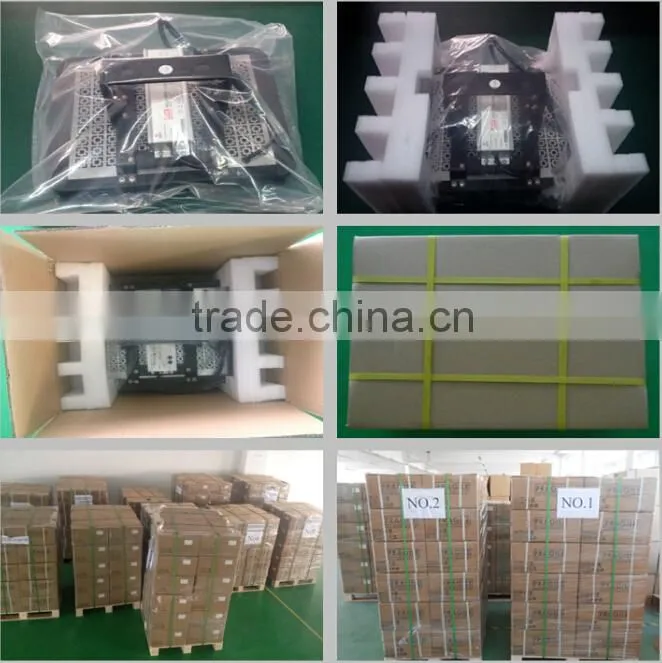

Packaging & Shipping



1. Standard export Carton Box, 1unit/ carton

2. Pallet packing for bulk orders, 30 to 40 units/ pallet

3. Container loading for large orders.

UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light



Quality Control

AOK has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.

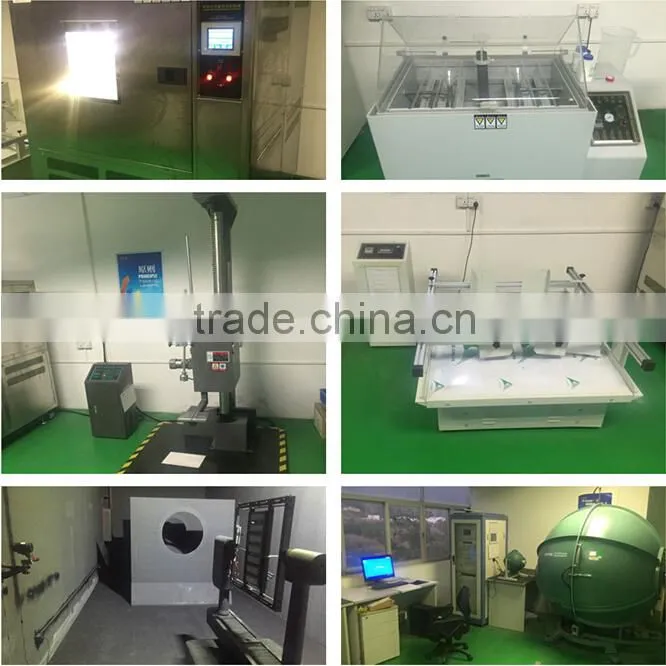

LED Light QuaityTesting Equipments



For every piece of AOK LED High Bay Light, they will be tested in many procedures.

Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under

extreme temperature environment.

Picture No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under

corrosive environment.

Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places

Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.

Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.

 UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light





Quality Control - Aging department



For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery.



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

Company Information
Introduction of AOK LED Light Company Limited



Strict Quality Control System

ISO9001:2008 Quality control system

Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control.

High Quality Manufacturer authorized by UL organization.

Best Partner of Philips Lumileds from 2013~2014, 2014~2015

More Company Introduction

AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China.

Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.



Production Center of AOK Industrial LED Light



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light



AOK Service



1. Before and after sales in time service 7/24.

2. Professional Lighting solution suggestions, dialux simulation available.

3. Payment terms: Paypal, TT, LC, DP etc.

4. Shipment terms: FOB, CIF, CFR

5. Short Lead time: 5-7 working days for sample order and orders less than 100units.

6. NO MOQ required, sample testing welcome.



  UL cUL DLC TUV SAA CB CE Listed 130lm/w  150W Industrial LED Highbay Light

Trade Shows
AOK at Lighting Fairs

To know market trend and new products better, AOK is alway active in different kinds of Lighting exhibitions.

1. AOK attends HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.

2. AOK attends HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )

3. AOK attended Las Vegas Lighting fair in May 2014

4. AOK attended New York Lighting Fair in May 2015

5. AOK attends Guangzhou Lighting fair in every June 9th ~12th



UL cUL DLC TUV SAA CB CE Listed Aluminium Body 130lm/w AOK 200W 150W Industrial LED Highbay Light

Contact
AOK LED Light Company Limited
Contact: Jan Wu                                      Mobile:   +86-18450068757
Website:                     Skype:   aokled15
Tel:  +86-591-83820886                            Fax:     +86-591-83835675
Address: 5 Blding, No 150, MinJiang Road, CangShan Zone, Fuzhou City, China. Zip: 350008



UL cUL DLC TUV SAA CB CE Listed 130lm/w 150W Industrial LED Highbay Light
