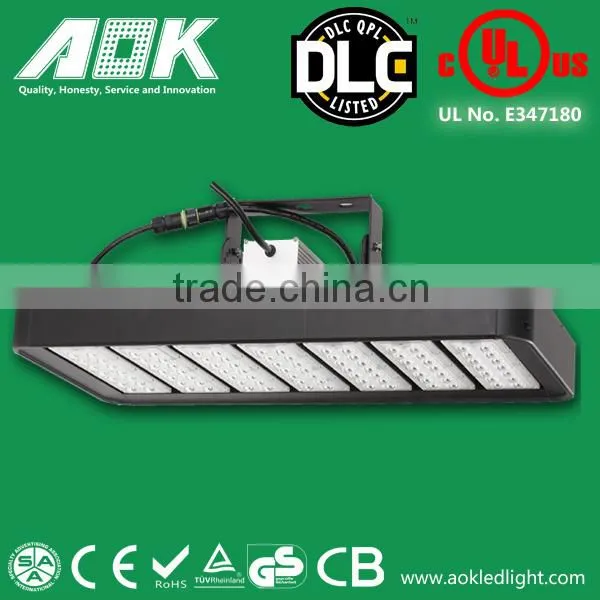

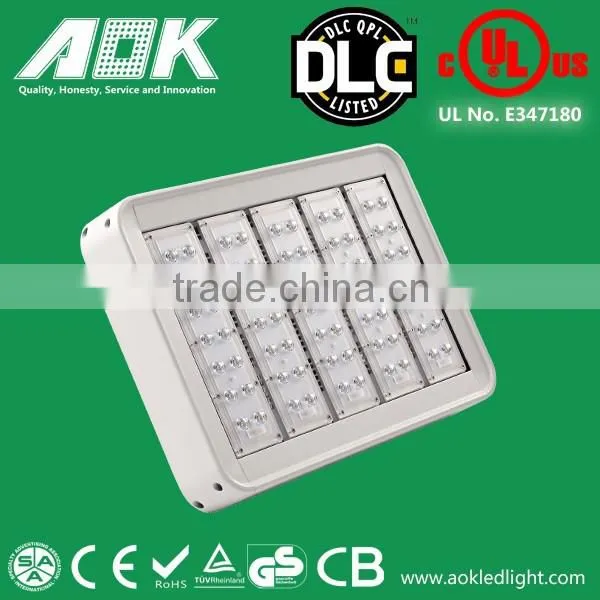

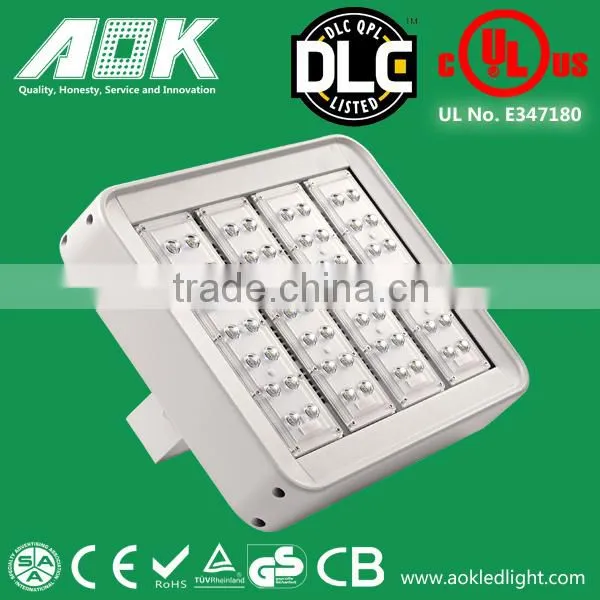

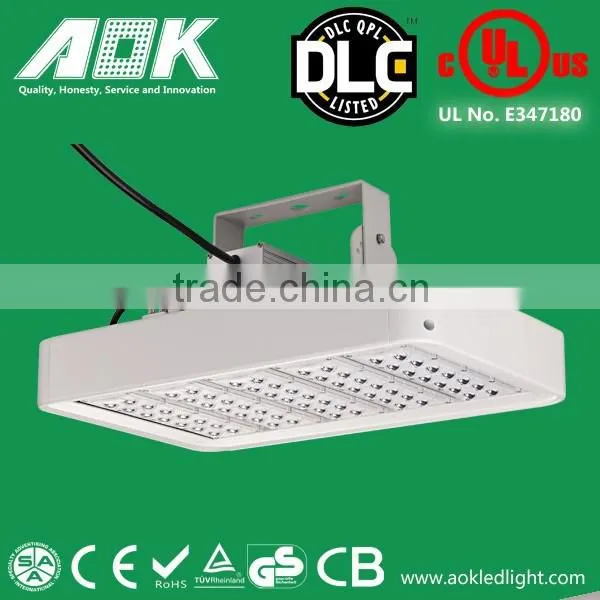

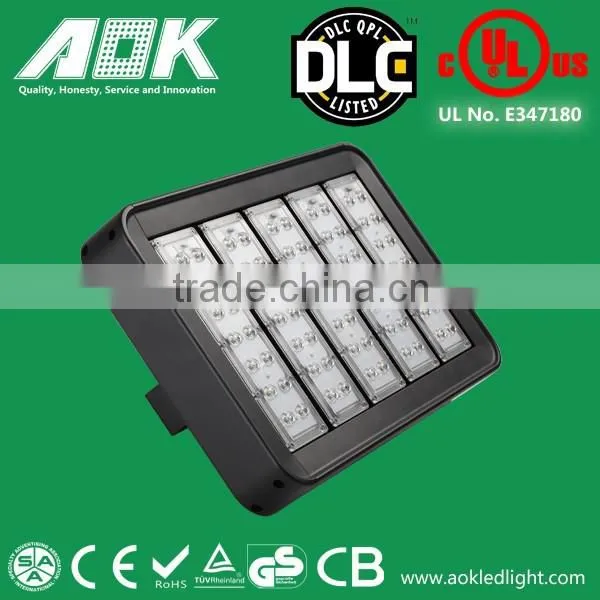

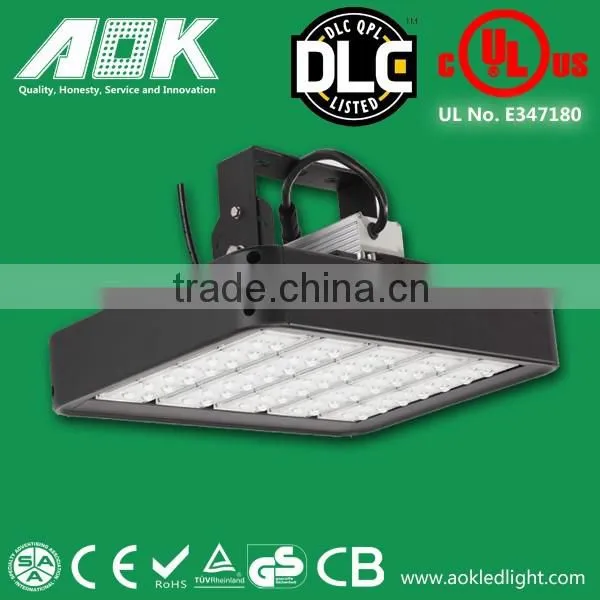

2015 New UL DLC TUV 200W LED Tunnel Light
| Product Details of LED Tunnel Light | |||||||
| Model | Power | Luminous Flux: | Replace HID/ HPS / Metal Halide Lamp | Lamp Size | Net Weight | Packing | Gross Weight |
| AOK-40Wi | 40W | 4400lm | 80-100W | 303*151*183mm | 3.5kg | 370*300*255mm | 6.3kg |
| AOK-80Wi | 80W | 8800lm | 160-200W | 303*232*183mm | 5.2kg | 380*300*255mm | 8.1kg |
| AOK-120Wi | 120W | 13200lm | 250-300W | 303*311*196mm | 6.15kg | 375*470*255mm | 9.3kg |
| AOK-160Wi | 160W | 17600lm | 350-400W | 392*303*196mm | 7.15kg | 375*500*255mm | 10.5kg |
| AOK-200Wi | 200W | 22,000lm | 400-500W | 473*303*196mm | 8.5kg | 375*542*255mm | 11.8kg |
| AOK-240Wi | 240W | 26400lm | 500-600W | 554*303*196mm | 9.25kg | 375*625*255mm | 13.5kg |
| AOK-280Wi | 280W | 20,800lm | 600-800W | 635*303*196mm | 10.5kg | 375*705*255mm | 14.25kg |
| Main Parameters of LED Tunnel Light | |||||||
| Driver | Meanwell Driver | CRI | Ra > 75 (>80 optional) | ||||
| LED Chips | Philips Luxeon T chip | Color Temperature | 3000, 4100, 5000, 5700, or 6500K | ||||
| IP Rating | IP65 & IP67 | Luminous Efficiency | 107lm/w | ||||
| Guarantee | 5 Years Warranty | Operating Voltage | 90-305VAC or 347-480VAC or 12/24VDC | ||||
| Certifications | UL,DLC,TUV,SAA,CE,RoHS | Operating Temperature | -40 ºC to +50 ºC | ||||
| Heat Radiator | Anodized Aluminum | Operating Humidity | 10% to 90% | ||||
| Face | Anti-static Coating | Power Fact | >0.95 | ||||
| LED Life Span | 50,000 hours | Power supply efficiency | >90% | ||||
| Options | Dimming/Timer/zigbee/Photocell/Motion Sensor | ||||||
| Applications of LED Tunnel Light | |||||||
| 1.Tunnel light; 2.Gymnasium, Sports Stadium Lighting; 3.Building, Billboard Lighting; 4.Gas Station, Petrol Station Conference Centers ,Garage Lighting, Canopy Lighting; 5.Parking Area , Garden Lighting; 6.Workshop, Office, Show Room,Plant Area, Factory Lighting; 7.Warehouse, Storage Lighting; 8.Yard, Square Lighting; 9.Highway, road light; 10.Plaza,Port,Station,Dock,Deck,Ship,Boat Lighting; 11.Cold Storage | |||||||
|
One LED Tunnel Light for different applications.
|

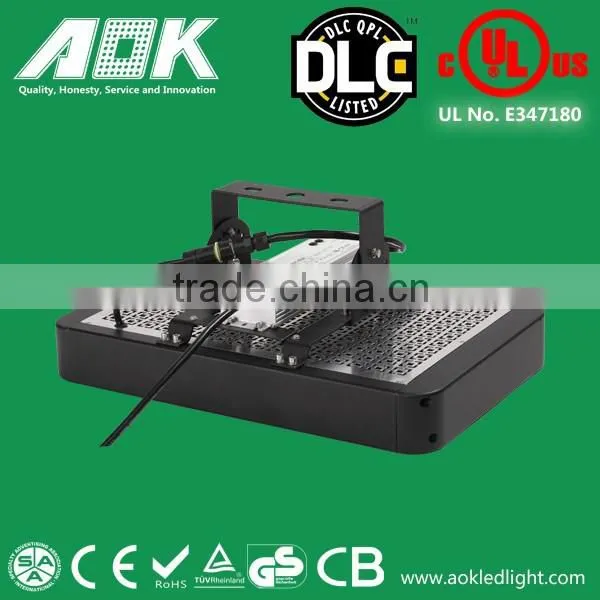

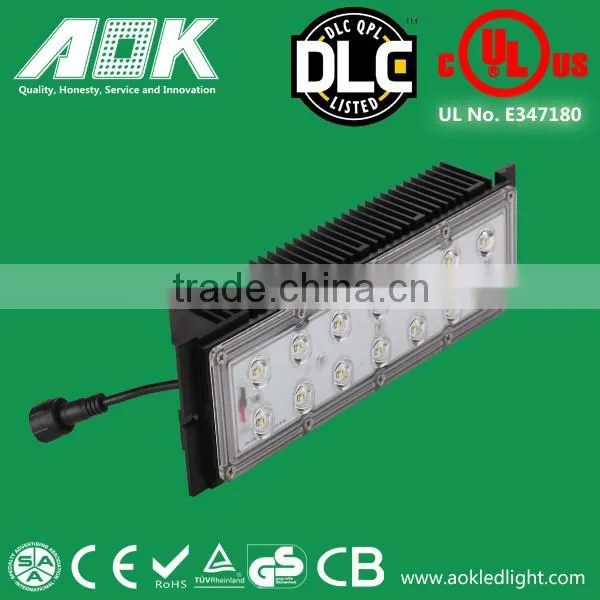

The details of LED Tunnel Light
|
Are you looking for reliable LED light manufacture? We not only provide products,but also lighting solutions. |
| LED Tunnel Light Design Consultancy |
|
"What lux level or how bright it would be if we use AOK LED? Could you make a professional calculation?"
As experienced LED lighting specialist, we offer our customers more than just the delivery of reliable and professional LED lightings products. Our focus and the services we provide have enabled us to build an excellent relationship with the market. Our team of lighting designers play an essential role in this.
The service consists of two different levels. The first level is our basic service that we offer in providing Light Technical Advice for our customers.
All these technical services are free of charge,for more information, please contact us. |
Advantage:Why choose AOK LED Tunnel Light ? LED Flood Light
|
| 1.High Quality:We have strict quality control system .Good reputation in the market.We provide solutions not only products. |
| 2.Quick response:Well-trained and experienced staff will reply all of your enquires in fluent English in 1 hour.(10 hours between 23:00-09:00 the second day BeiJing Time) |
| 3.Good Service: We treat clients as friend.We responsibility to serve our clients best interests. |
| 4.Free Light study: We can do professional lighting design and perform ROI(Return Of Investment) calculation. |
| 5.Fast & Cheap Delivery: Discount price from Express company and forwarder. |

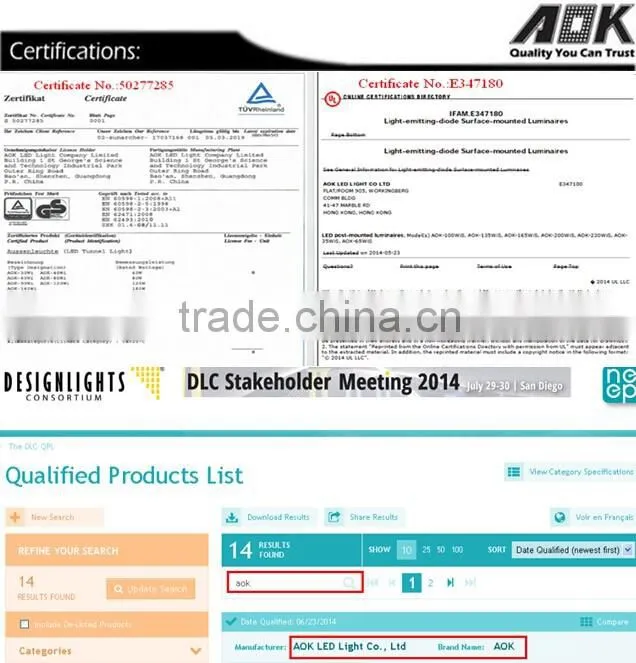

| 6.Certificates:We have certificates for different countires to help client expand the business easliy. |
| 7.Product Update:We can customized special products for you,and we keep on developing new products to meet market demand. |
| 8. We can supply C/O (Certificate of Origin), saving approx 20% import duty. |
| AOK LED Tunnel Light Guarantee | |
| Quality Control | |
|
ISO 9001:2008 quality control system has been established. All stages from Incoming Quality Control, Process Quality Control to Finished Goods Quality Check are carried out under strict rules |
| AOK LED Light Company Limited | |||||||||
| Contact: Liz | |||||||||
| Website: Skype: aokled26 | |||||||||
| Tel: +86-591-88209641 Fax: +86-591-83835675 | |||||||||
| Address: (HQ) No. 152, Guanpu Rd, Cangshan District, Fuzhou City, Fujian Provice, China |
