DHB40 mobile hot asphalt plant, mobile asphalt batching plant woth CE certification
Main parts:

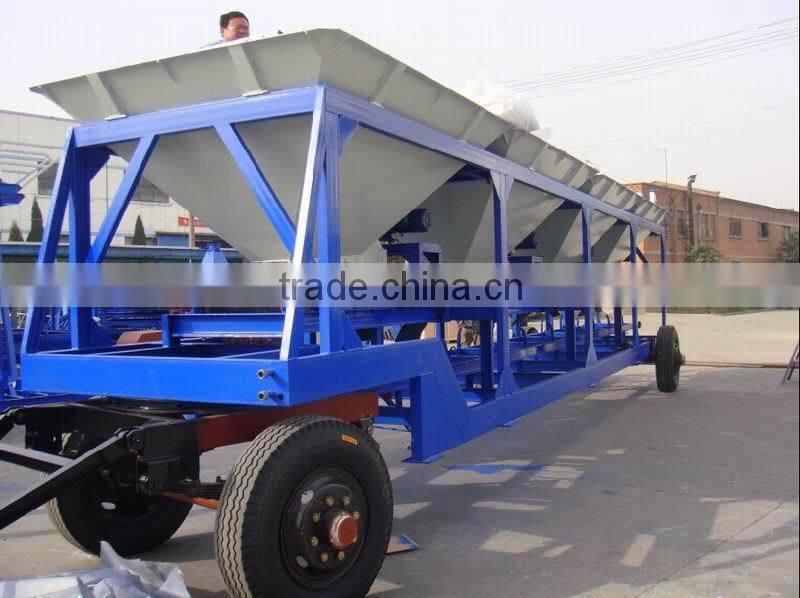

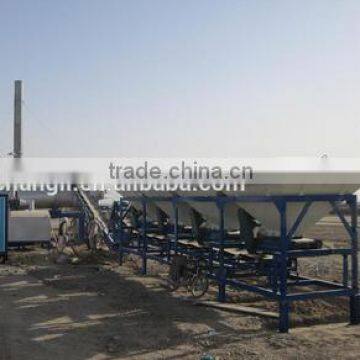

1. cold aggregate supply system
storage bin capacity: 4×4m3
The storage width:2.6m ;
Loading height: 2.78m;
Ring belt width:500mm;
Aggregate belt width: 500mm;
Bin vibrator: 1×0.25kw;
Motor power: 4 kw;
Drying drum, finished product elevator and finished product bin
Specification:

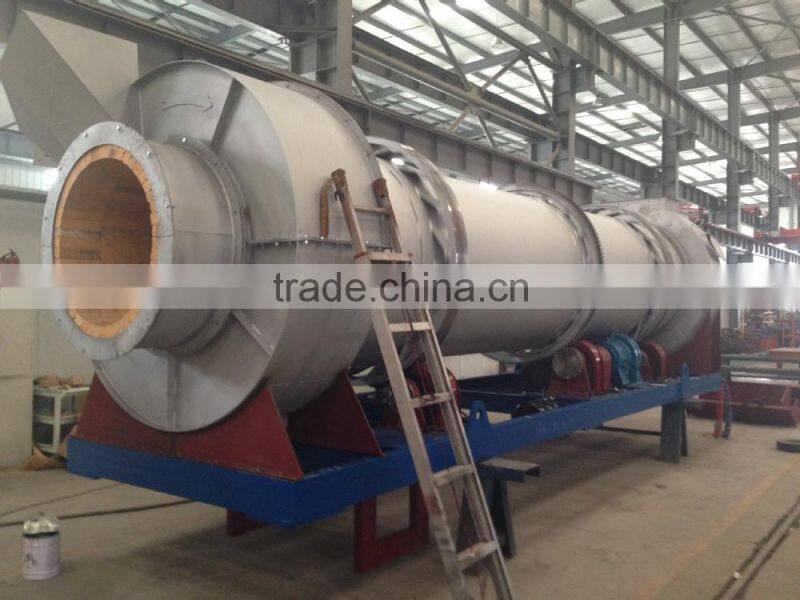

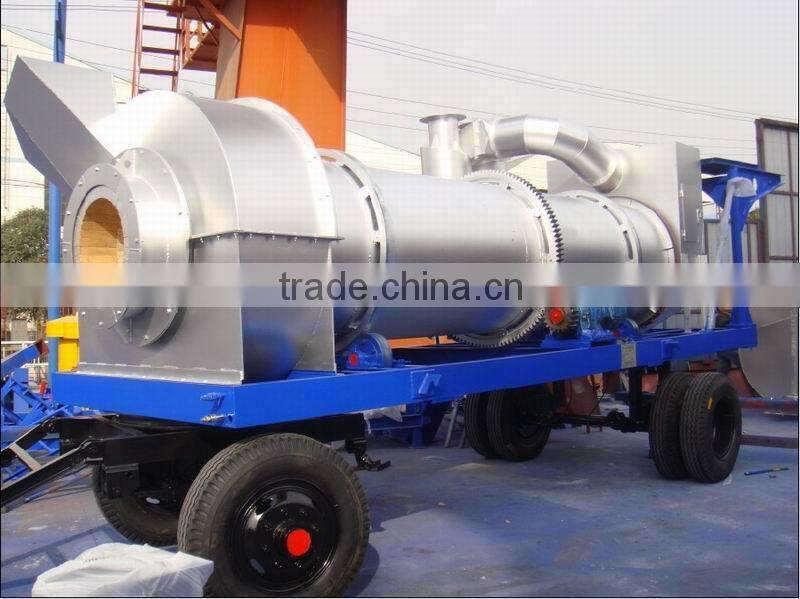

Drying drum:
Drum diameter: 1.2m
Drum length: 5m
Motor power: 11kW

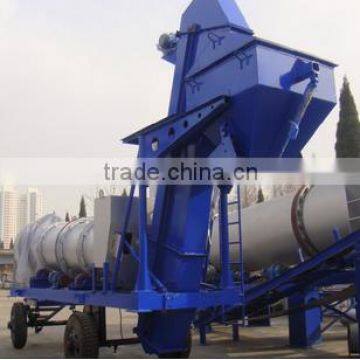

Finished product elevator:
Single row of chain;
Elevator motor power: 5.5kw
Finished product bin:
Volume: 2.5m3
Discharging method: hydraulic discharging
Motor power: 2.2kw
Discharging height: 2.5m

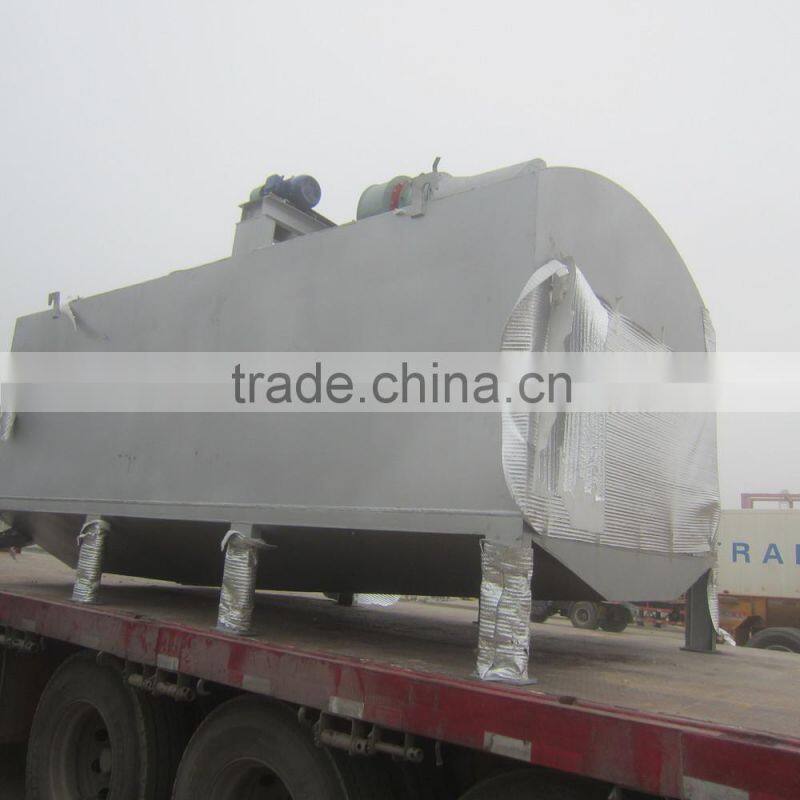

Bitumen tank
Specification:
Bitumen tank volume: 10m3
Drawing fan motor power: 4kw
fuel: coal or firewood.
Control system
1. Control room:
Size: 2.2x2.2x2.5m, Copy container structure, the walls, door and windows are made of colorized steel plate, double-layer heat insulation.
2. In electric control system, it is equipped with operation platform, main electrical parts and China famous ZHENGTAI OR DELIXI product with interlock and two-grade protecting device; manual control device, main motor current display, finished mixture temperature display, timing meter for cold aggregate and asphalt is applied on operation platfrom; convenient and easy for operation.
1. We will use container to deliver the equipments to customer, It can save much cost for customer;
2. The equipments will be packed with tin foil paper to prevent them from peeling off of pain during transportation;
3. All the equipments are fastened well in the container to make sure they won't move during transportation.

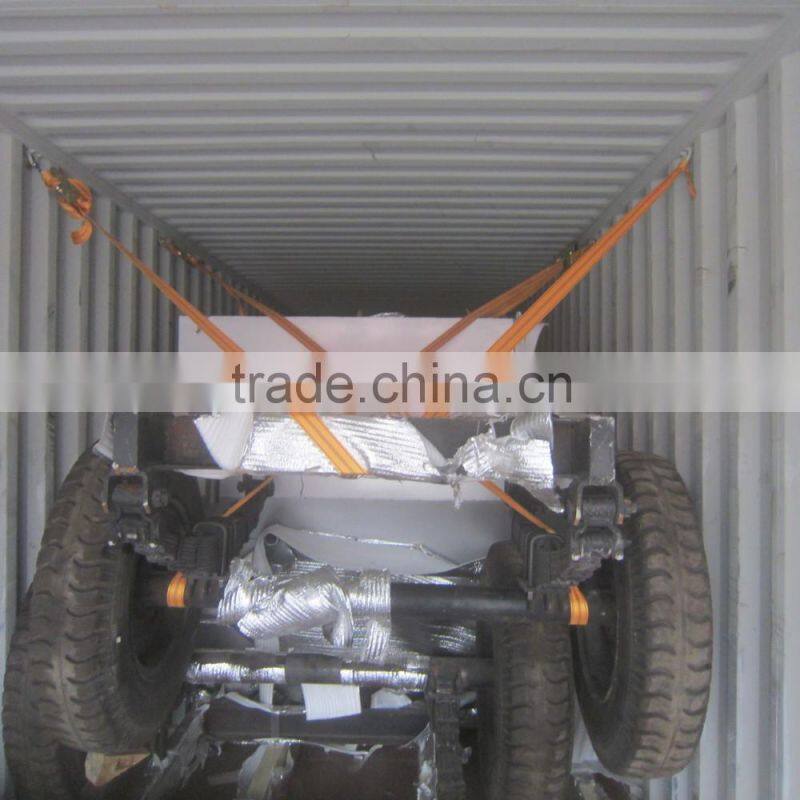

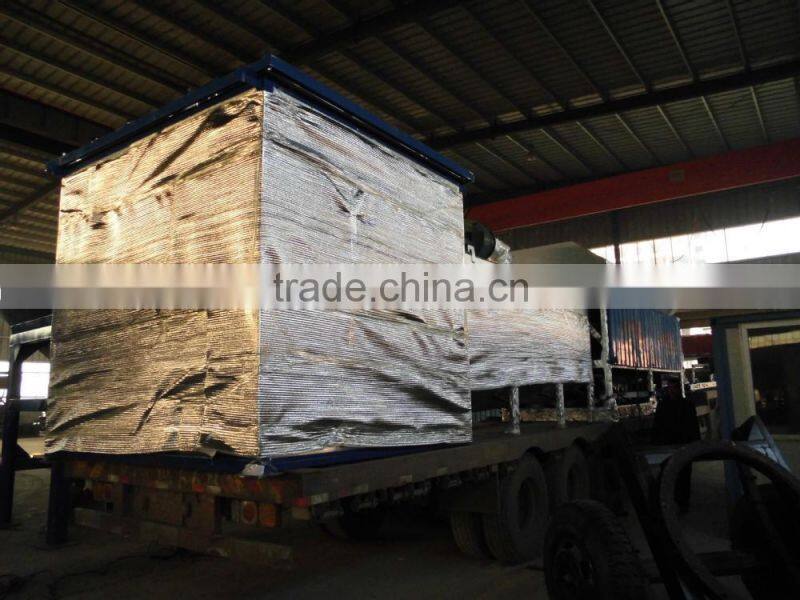

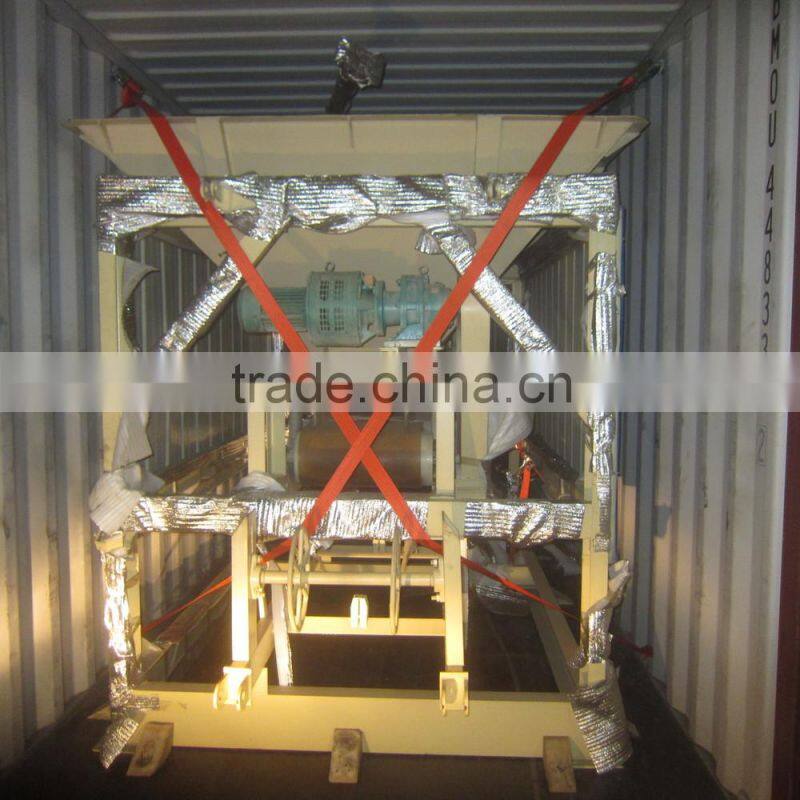

Loading pictures
1. we will provide the doucments needed for you to clear your customs;
2. we will send engineers to your site to help you install the asphalt plant and train your workers;
3. we will supply all the spare parts to you;
4. after our engineers come back to China, if there is a problem with the asphalt mixing plant, we can solve it by talking on the phone, a vedio chat. If the probelm can't be solved, we will send engineers again to your site.
1. we have ISO9001, ISO14001 and OHSMS18000;
2. we are a verified supplier by alibaba and BV;
3. we have over 30-year experience;
4. we have over 500 workers to ensure quick delivery;
5. we have 10 engineers to design special asphalt plant for our customers.

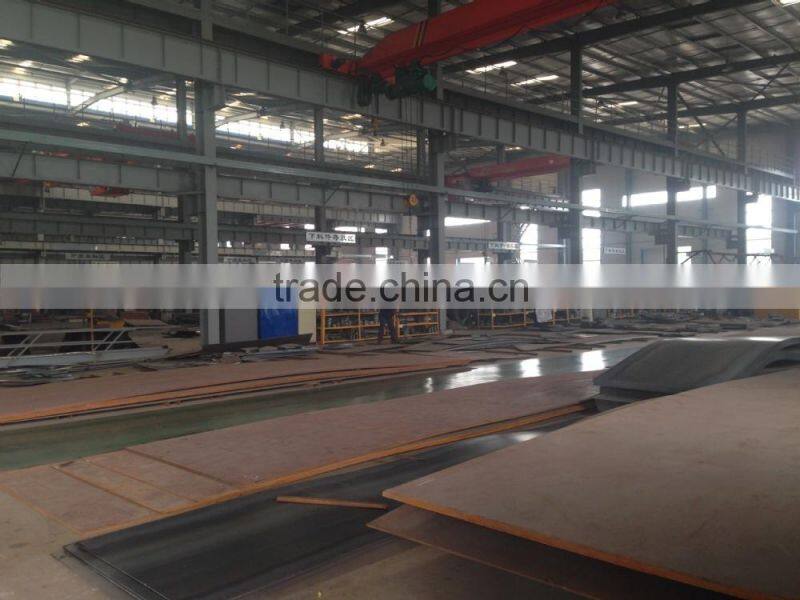

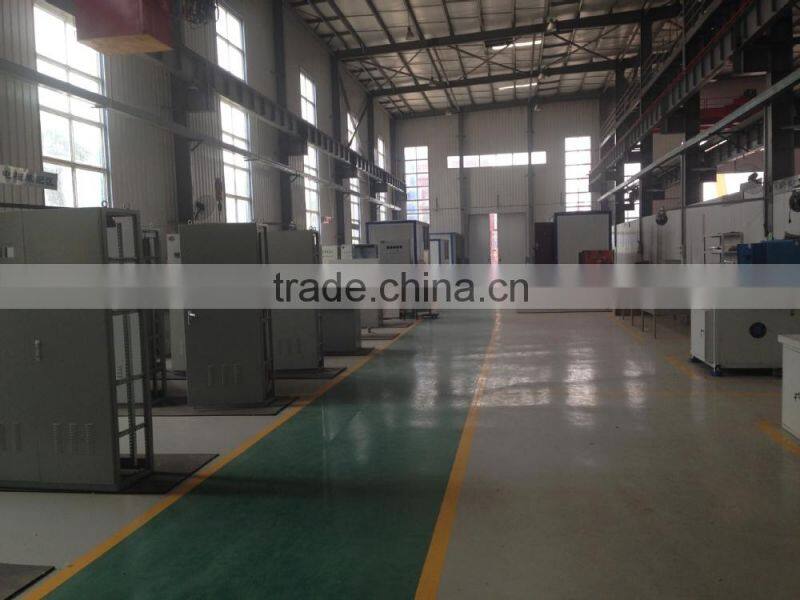

Pictures of our factory:
Other equipments we have:
Concrete batching plant
Contact us:
Contact: Crystal Wang
Mobile Phone: +8617839909811
Skype: crystalwang51
Wechat:crystal wang
