Grain Silos Manufacturers

Name: Grain Silos Manufacturers
Brand: BODA
Availability: InStock

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Capacity	965 m3
Material	Steel	Place of Origin	Shandong, China
Brand Name	BODA	Model Number	TCZK09110
Dimension(LWH)	Actual situation	Weight	Actual situation

Product Description

grain silos manufacturers

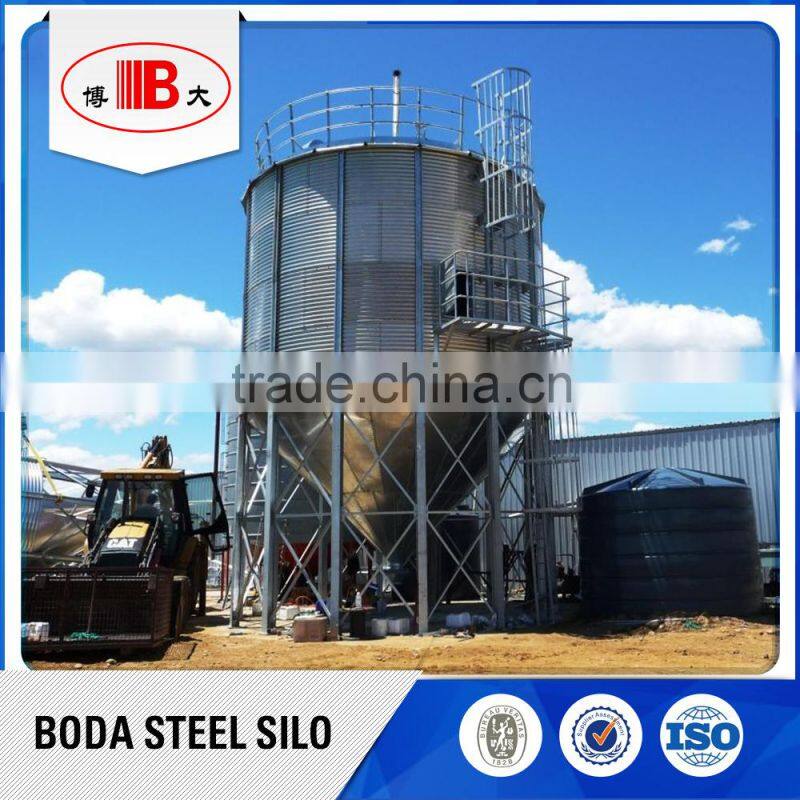

1. BODA hopper bottom steel silo series is specially designed by senior engineers in our company, with high-quality stainless steel.

2. Hopper angles can be 45° and 60°,among which 60° conical bottom is usually used to store larger pellet and powder materials with high viscosity.

3. All BODA silos are precision engineered from high strength, 80mm x 14mm low profile corrugated steel plate, normally galvanised to 275 g/m2.

4. The life cycle of the silos can come up to 30-50 years long. The products are designed comply with the national standard of GB50322-2001.

5. BODA stainless hopper bottom steel silos provide the best quality powder material storage option available.

Details	Materials	Quality Standard	Features
Body Plate	304 stainless steel	China National Standard with Quality Report	Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments
Bolts and Screws	stainless bolts and nuts for 8.8grade	Quality Strength Report	stainless steel with longer life
Enforcement Rib Stiffeners	Sidewall stiffeners are manufactured from min. 350 N/mm² tensile high strength steel . This type of stiffeners easily transit the vertical loads during loading or unloading, environment loads of the silo.	China National Standard with Quality Report	to be outside for flour, starch or other edible powder safety Rigorous calculation to meet full silo strength safety
Wind Ring	Hot Dip Galvanized For additional support for higher wind areas, the wind ring is attached directly to the stiffeners. The rings strengthen the silo providing reinforcement against damaging wind.	China National Standard with Quality Report	Rigorous calculation to meet the anti-wind needs for sea port area or windy area
Silo door with platform	A standard manhole door is located in the second ring of the silo. Double size door with strong frame and block system.	China National Standard with Quality Report	Easy for the ascendant to inspect and maintenance, ensure the safety of the silo.
Stairs	BODA offers both ladders and stairs as outside climbing options. All of them have handrail or safety guard.	China National Standard with Quality Report	Can be installed inside and outside of the silo, Easy for the ascendant to inspect and maintenance, ensure the safety of the silo.

1.Stainless steel for safe storage of flour, starch and other edible powder material;

2.Automatic-flow unloading;

3. Save resources and costs;

4. Hopper angles can be 45° and 60°;

5. Could be movable;

6. Easily to be installed;

7. Do not need a serious concrete, labor and energy cost;

8. Less grain residues in steel grain silo;

9. Hopper structure prevents loss of time and money during the unloading period

Bottom shape	Hopper Type	Flat Bottom Type
Capacity	≤1500t	≥1500t
Design view	Heavy structural “wide-flanged” columns Columns designed “X” bracing Pressure bearing is higher than the national standard, and safe enough.	Can be built by hopper concrete or flat cement based on your requirement and actual demand.
Silo Discharge	Hopper is with Rigorous Full Load Safety Calculation. BODA has 0 Silo Hopper Accidents and 0 Silo Accidents Can be made by concrete or steel	There will be one or more discharge holes on the bottom based on different materials and capacity.
Sweeper	Normally no need sweeper for hopper bottom silo except for high viscidity materials	Clean up residual easier China Famous Brand or France Brand

•Hopper bottom silos in capacities from 10 tonnes to 2,000 tonnes

•Flat bottom silos can reach the capacity of 10000 tonns

•Can be gas sealed for fumigation

•Insulation silo, stainless silo and welding silo are all available

•Complete grain storage, aeration, temerpature monitoring, level indicating, cleaning, drying, other handling and processing systems available. Elevators and conveyor systems from 10 t/hr to 1,000 t/hr

•Full installation service available

Installation: to guide the installation//send installation team//supply assembly drawing.
