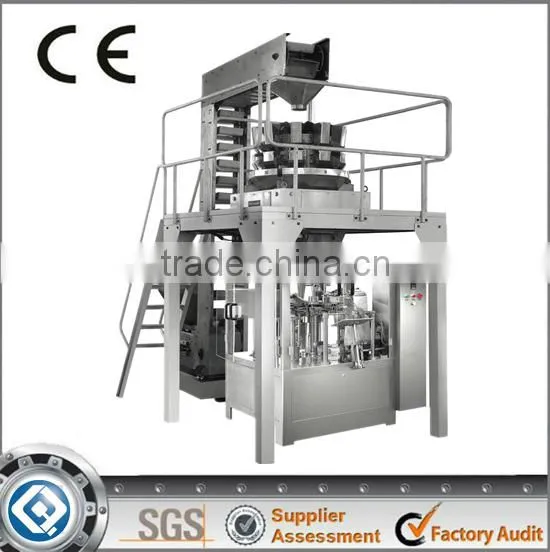

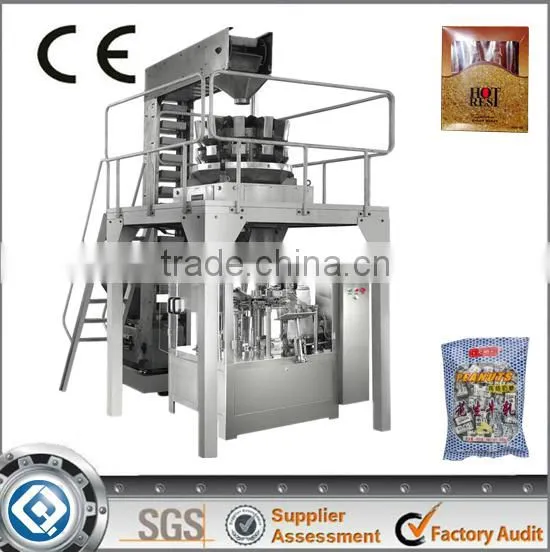

High Quality High Speed Packing Machine, Pack machine

Specifications

High Speed Packing Machine, Pack machine
1.Suit for all kinds of material
2.Frequency control
3.Automatic and customized







Main technical parameters



Working position	Six-working , eight-working and ten-working position
Pouch material	Laminated film
Pouch pattern	Stand-up, falt
Pouch size	W:200-300mm L:200-450mm
Filling Scope	500-6000g
Weight Accuracy	≤±4g
Speed	10-35pouches/min(The speed depends on the product status and flling weight)10-35 Bag /Min
Voltage	380V 3phase 50HZ/60HZ
Total power	6.5KW
Compress air	0.6m3/min(supply by user)







Our machine is used to produce bags which can hold both liquid and solid materials. It doesn't use oil which contributes to the protection of environment. Besides,the retort pouches packing machine is easy to operate, which can also improve the efficiency. water pouch packing machine price









Product Process

1:Giving bag
2:Coding (Ribbon hot coding)
3:Open bag
4:Filling and vibrate,dust
5:Exhaust,Sealing
Check1: No bag or bag open error, no filling   Check 2: No bag ,No filling, No sealing Safty device: Machine stop at abnormal air pressure, heater disconnection alarm
6:Forming and out put packages.







Function and Characteristics
1,Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine  interface is friendly.



2,Frequency conversion adjusts the speed: machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.



3,Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.



4,Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.



5,Rapid replacement of the specifications of the bags, the width of the robotic device can be easily and quickly adjust.



6,It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.



7,Use the plastic bearing, don’t need put on oil, less pollution.



8,Use no oil vacuum pump, avoid polluting the environment in the production.



9,The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.



10,Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food,With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.



2) KJL-2 Model of KJL-2 2-head linear weigher.



Application: Quantitative packing of granular materials like spices, salt, washing powder, seed, rice, fooder, gourmet, white sugar and so on.
3)Single-Bucket elevator

This kind of elevator is used mainly to convey the solid food ,such as rice, chip potato ,candy ,etc.it composes the automatic quantitative packing system combined with the weigher and packing machine, which is applying widely. Be made of 304 stainless steel and plastic (PP) which is hygienicand healthy .the elevator is controlled automatically.
