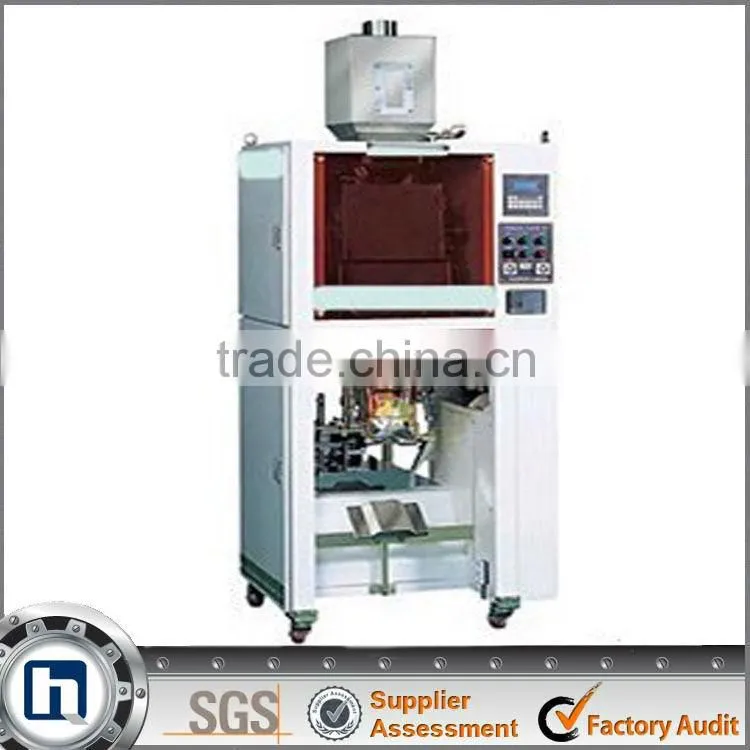

cosmetics packaging box packaging packaging machinery

Specifications

A) Ideal for all kinds of material
B) Easy to adjust
C) Frequency control
D) High automation
E) Design for customer











Pouch type:



Machine is ideal for all kinds of large size pre-made pouches ( more than 330mm), including flat type, stand up type, etc.



Features:



Easy to operate: The machine is designed with PLC controller, HMI system



Easy to adjust: with all working process in one station.







Main technical parameters:







Bag type	All kinds of bag
Bag sizes	W:100-200mm L:100-300mm
Filling range	≤1000g
Packing speed	20-50 bags/ min( depending on the product and filling weight)
Power souce	380v 50/60HZ
Total power	3 kw
Package accuracy	Error ≤± 1%
Compressed air	0.6 m3/min(supply by user)
packing size	4600mm*2000mm*2430mm
NOTE	Machine designed as customer require.







Product Process



1:Giving bag

2:Coding (Ribbon hot coding)

3:Open bag

4:Filling and vibrate,dust

5:Exhaust,Sealing

Check1: No bag or bag open error, no filling .   Check 2: No bag ,No filling, No sealing Safty device: Machine stop at abnormal air pressure, heater disconnection alarm

6:Forming and out put packages.











Main Features:







A,Easy to operate:PLC controller, HMI system, fault indication on the touch screen.







B,Easy to adjust: only need about 10 mints to change different pouches.







C,Frequency control: adjusted within the range according to the needs of reality in production.







D,High automation : automatically weighting and packing process, machine alarms automatically in case of failure.







Safety and Hygiene:







A,It matchs with the glass safty door. The machine will stop working when door opening. So that it could protect the safty of operators. At the same time, it could prevent dust.







B,Using the plastic bearing, oil not required, less pollution.







C,with oil-free vacuum pump, machinery avoid polluting the environment in the production.







D,Material saving: bag unopened, material unfilled when failure process.







E,Machine has hygienic structure, with the parts that contact the products made of 304 SS.







Applications:







A.Solid: candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked foods, pickles, puffed food, dailynecessities, etc.







B.Granule: MSG, chicken, sugar, melon seeds, nuts,capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.







C.Powder: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc.







D.Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.







E.Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.







F.Other materials can be bagged.
